Steering Gearbox

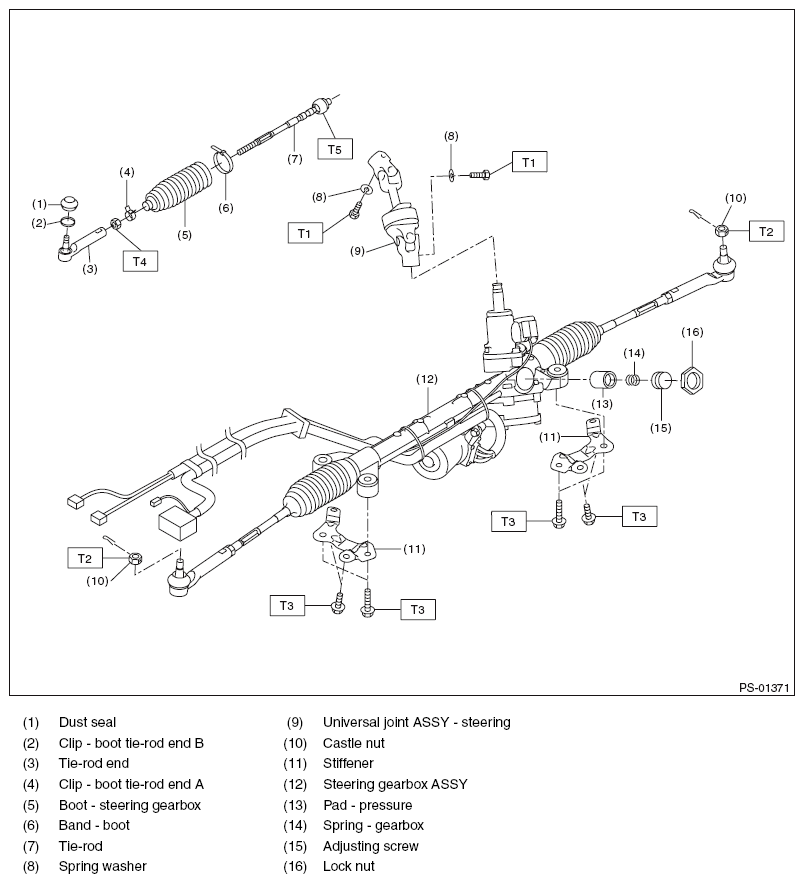

Fig 1: Exploded View Of Steering Gearbox

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 24 (2.45, 17.7)

T2: 27 (2.75, 19.9)

T3: 60 (6.12, 44.3)

T4: 85 (8.67, 62.7)

T5: 90 (9.18, 66.4)
