Aux Input Terminal

  1. Disconnect the ground cable from battery.
  2. Remove the console front cover assembly.
    • MT model
      1. Remove the shift knob.
      2. Release the clips and claws, then pull up the console front cover assembly.

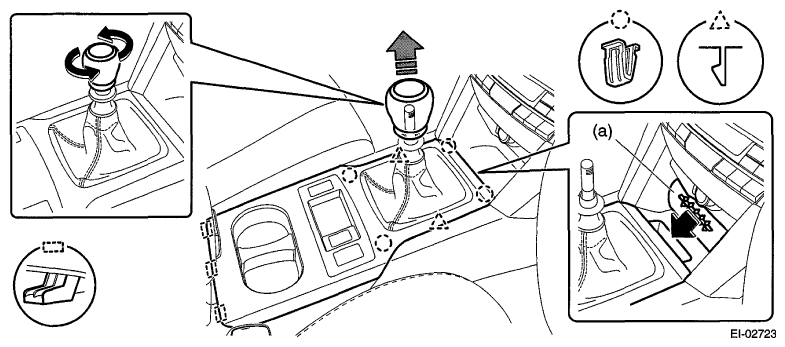

        Fig 1: Removing Console Front Cover Assembly (MT Model)
        G06653100Courtesy of SUBARU OF AMERICA, INC.
        NOTE: Turn over the front center pocket mat (a) and pull up the console front cover from the slit.
      3. Disconnect the harness connector and remove the console front cover assembly.
    • AT/CVT model
      1. Remove the select lever knob.
        1. Lower the cover grip AT.
        2. Remove the clamp grip pin, then remove the select lever knob.
      2. Release the clips and claws, then pull up the console front cover assembly.

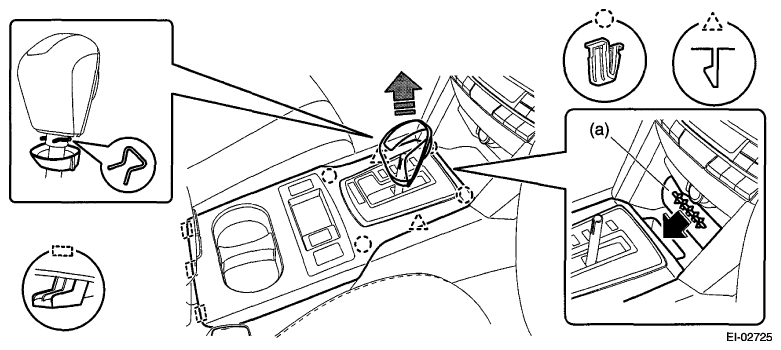

        Fig 2: Pulling Up Console Front Cover Assembly
        G06653101Courtesy of SUBARU OF AMERICA, INC.
        NOTE: Turn over the front center pocket mat (a) and pull up the console front cover from the slit.
      3. Disconnect the harness connector and remove the console front cover assembly.
  3. Remove the console front side cover assembly.
    1. Remove the screws and release the clips (A) to (D) in order.
    2. Remove the console front side cover assembly by pulling it up.

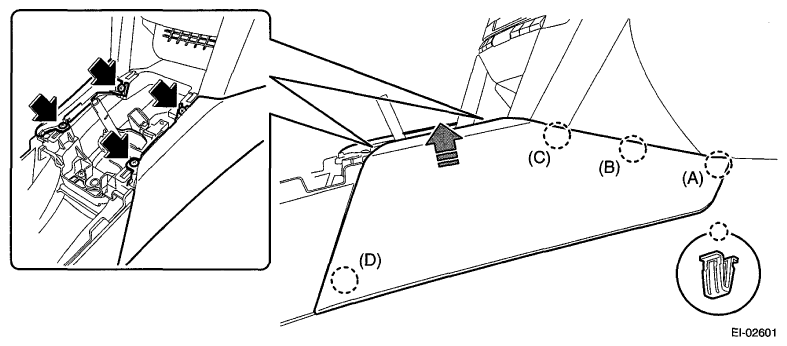

      Fig 3: Removing Console Front Side Cover Assembly
      G06653102Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the console box assembly.
    1. Move the seat forward, and remove the bolts after detaching the left and right caps.
      NOTE: For a model with power seat, connect the battery ground cable and move the seat. Then, disconnect the battery ground cable again and wait for 60 seconds at least before restarting the work.
    2. Remove the screws, disconnect the harness connector and remove the console box assembly.

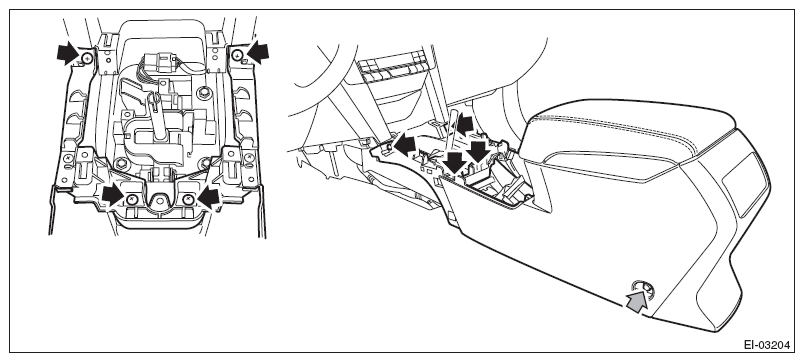

      Fig 4: Locating Console Box Assembly Harness Connector And Mounting Screws
      G08584037Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the AUX input terminal.
    1. Remove the claws at four locations.
    2. Remove the AUX input terminal assembly by pushing it into the console box.

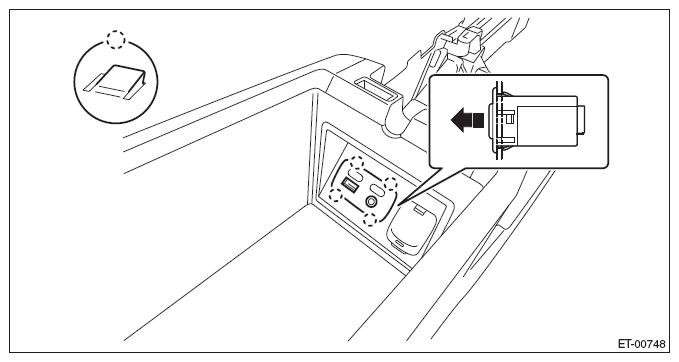

      Fig 5: Removing Auxiliary Input Terminal Assembly
      G08584657Courtesy of SUBARU OF AMERICA, INC.
