Front Side Marker Light Bulb: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the clips and remove the air intake duct. (When removing the front turn signal light bulb RH)
    Fig 1: Locating Air Intake Duct Clips
    G06653429Courtesy of SUBARU OF AMERICA, INC.
  3. Turn the steering wheel in the opposite direction to the headlight to be removed. Then remove the clips and turn over the mud guard.
    Fig 2: Locating Mud Guard Clips
    G07916072Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bulb socket and turn signal light bulb.

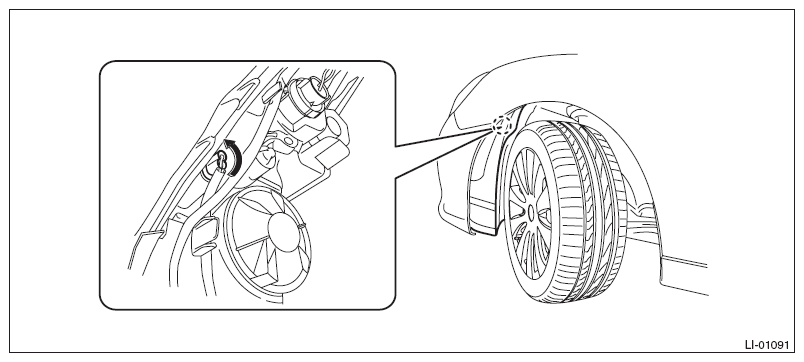

    Fig 3: Turning Signal Light Bulb
    G07916083Courtesy of SUBARU OF AMERICA, INC.
