DTC P0332 Knock Sensor 2 Circuit Low Input (Bank 2)

DTC DETECTING CONDITION :

Detect as soon as malfunction occurs.
GENERAL DESCRIPTION < Ref. to , DTC P0332 KNOCK SENSOR 2 CIRCUIT LOW INPUT (BANK 2) , Diagnostic Trouble Code (DTC) Detecting Criteria. >

TROUBLE SYMPTOM :

Driving performance problem
Knocking is occurred.

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to , CLEAR MEMORY MODE , Clear Memory Mode.> and Inspection Mode < Ref. to , INSPECTION MODE , Inspection Mode.>.

WIRING DIAGRAM :

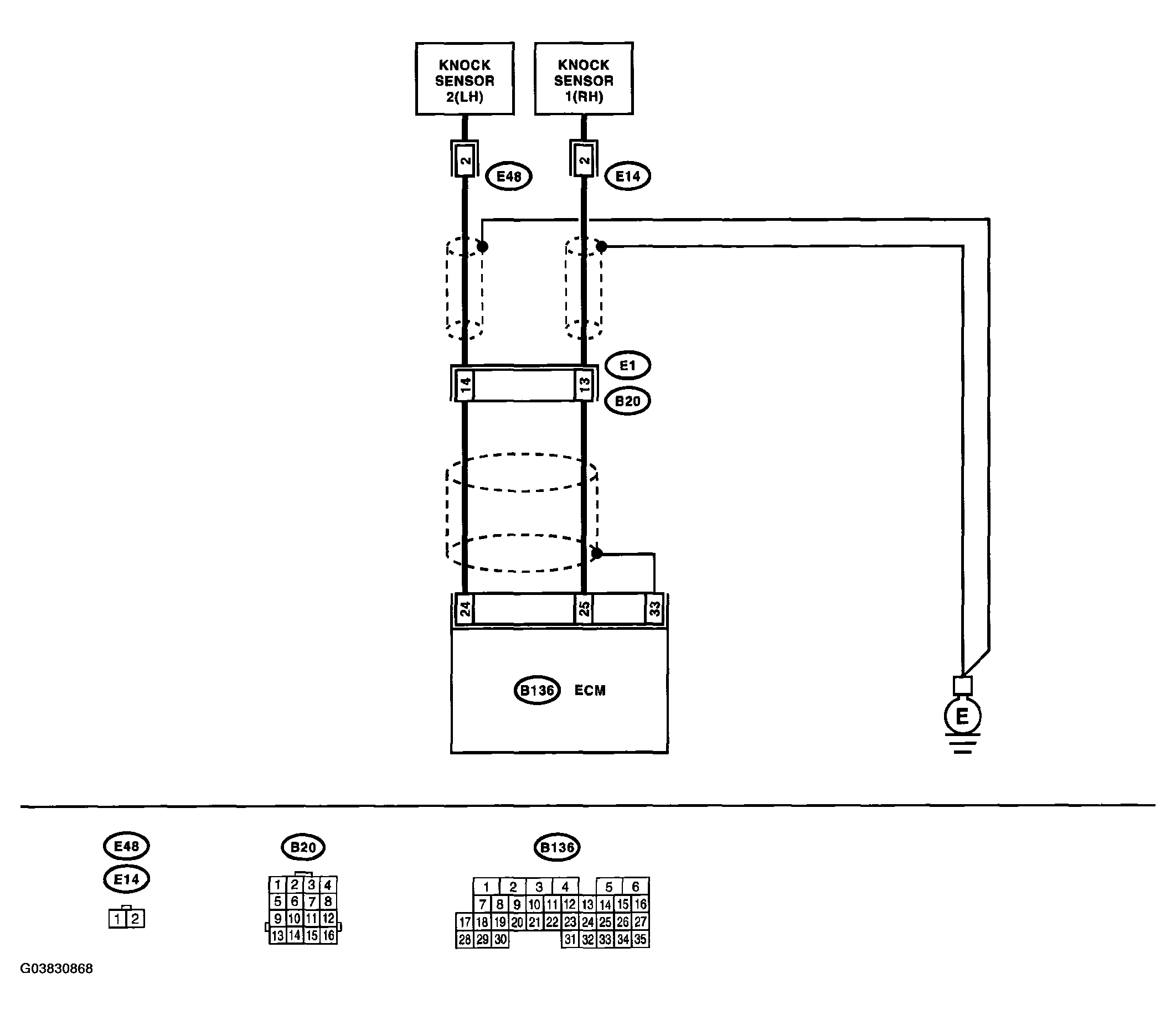

Fig 1: Identifying Knock Sensor 2 Circuit Low Input Wiring Diagram (DTC P0332)

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSIS PROCEDURE - DTC P0332 KNOCK SENSOR 2 CIRCUIT LOW INPUT

Step	Check	Yes	No
1 CHECK HARNESS BETWEEN KNOCK SENSOR AND ECM CONNECTOR. Turn the ignition switch to OFF. Disconnect the connector from ECM. Measure the resistance between ECM harness connector and chassis ground. Connector & terminal (B136) No. 24 - Chassis ground:	Is the resistance more than 700 k?	Go to step 2 .	Repair the harness and connector. NOTE: In this case repair the following: Open circuit in harness between knock sensor and ECM connector Poor contact in knock sensor connector Poor contact in coupling connector
2 CHECK KNOCK SENSOR. Disconnect the connector from knock sensor. Measure the resistance between knock sensor connector terminal and engine ground. Terminals No. 2 - Engine ground:	Is the resistance more than 700 k?	Go to step 3 .	Repair the harness and connector. NOTE: In this case repair the following: Poor contact in knock sensor connector
3 CHECK CONDITION OF KNOCK SENSOR INSTALLATION.	Is the knock sensor installation bolt tightened securely?	Replace the knock sensor. < Ref. to KNOCK SENSOR . >	Tighten knock sensor installation bolt securely.
