Fuel Filler Pipe: Installation

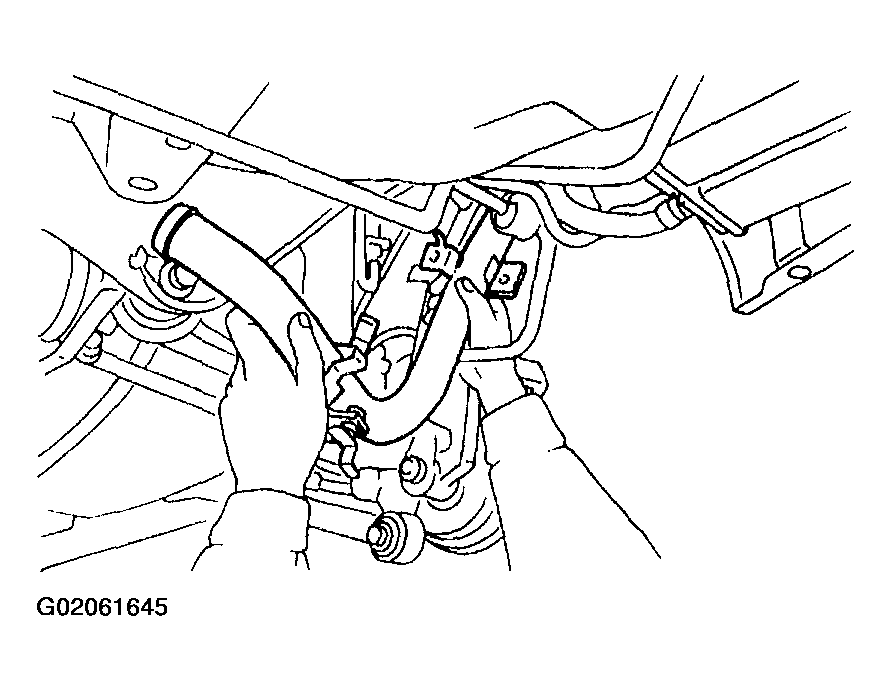

Set fuel filler pipe from under side of vehicle, and hold it on fuel filler flap open.

Fig 1: Installing Fuel Filler Pipe
Connect fuel filler pipe into fuel filler hose.

Fig 2: Connecting Fuel Filler Pipe Into Fuel Filler Hose
Lower the vehicle.

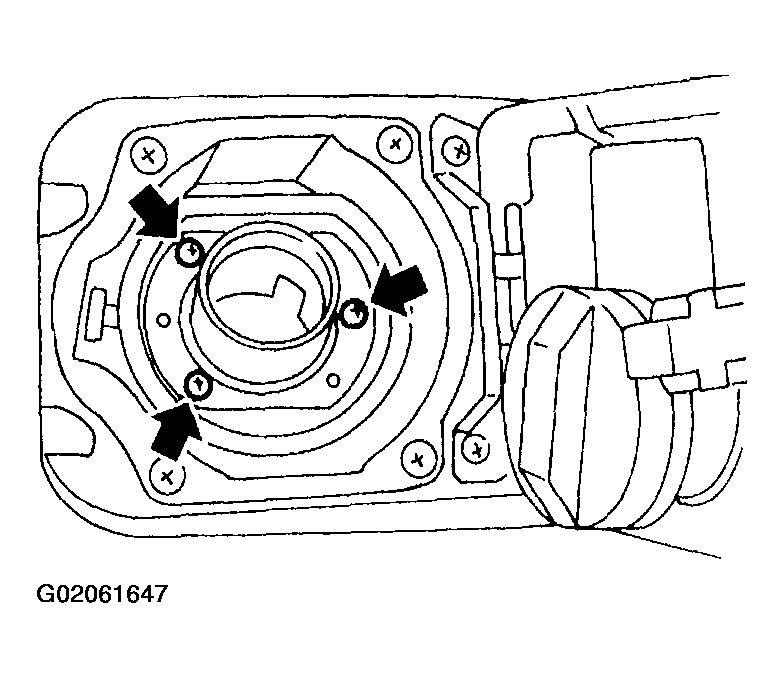

Temporarily tighten screws which install fuel filler pipe on filler lid open.

Fig 3: Temporarily Tighten Screws Which Install Fuel Filler Pipe
Tighten bolt which holds fuel filler pipe on body.

Fig 4: Tightening Bolt Which Holds Fuel Filler Pipe On Body
Connect evaporation hoses to pipes.

Fig 5: Connecting Evaporation Hoses To Pipes
Lift-up the vehicle.
Tighten clamp bolt which holds fuel filler hose.

Fig 6: Tightening Clamp Bolt Which Holds Fuel Filler Hose

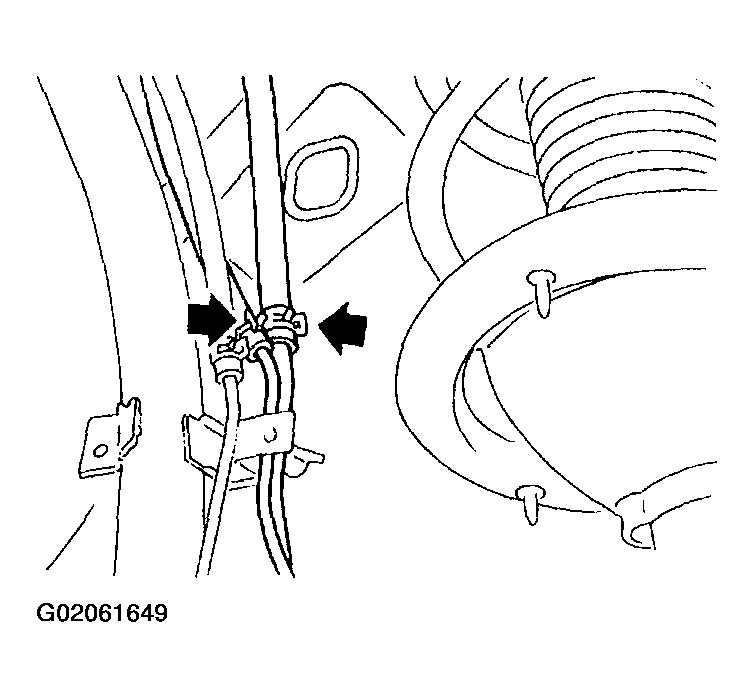

Install two evaporation hoses to clip.

Fig 7: Installing Two Evaporation Hoses To Clip

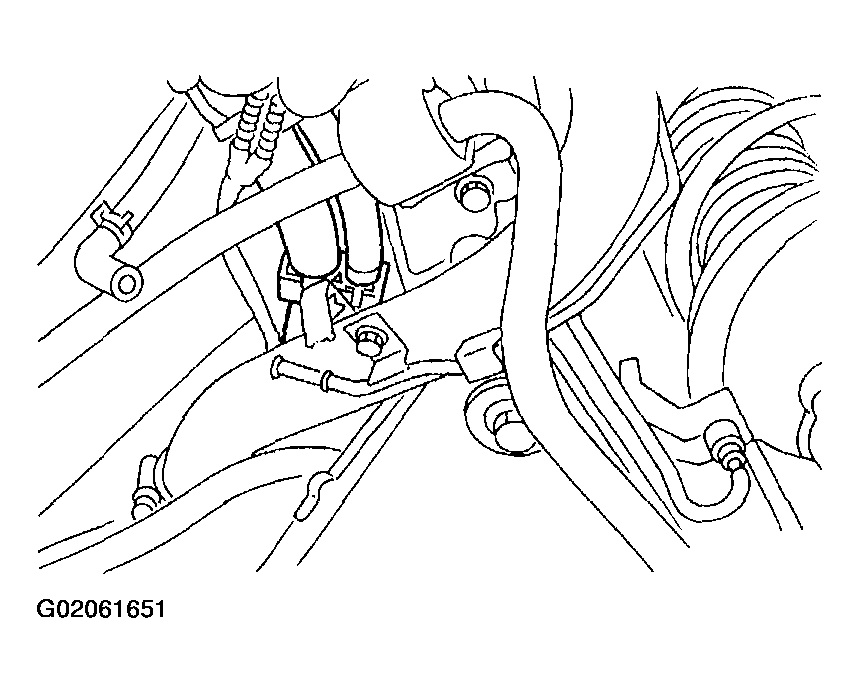

Connect evaporation hose to joint pipe.

Fig 8: Connecting Evaporation Hose To Joint Pipe
Lower the vehicle.

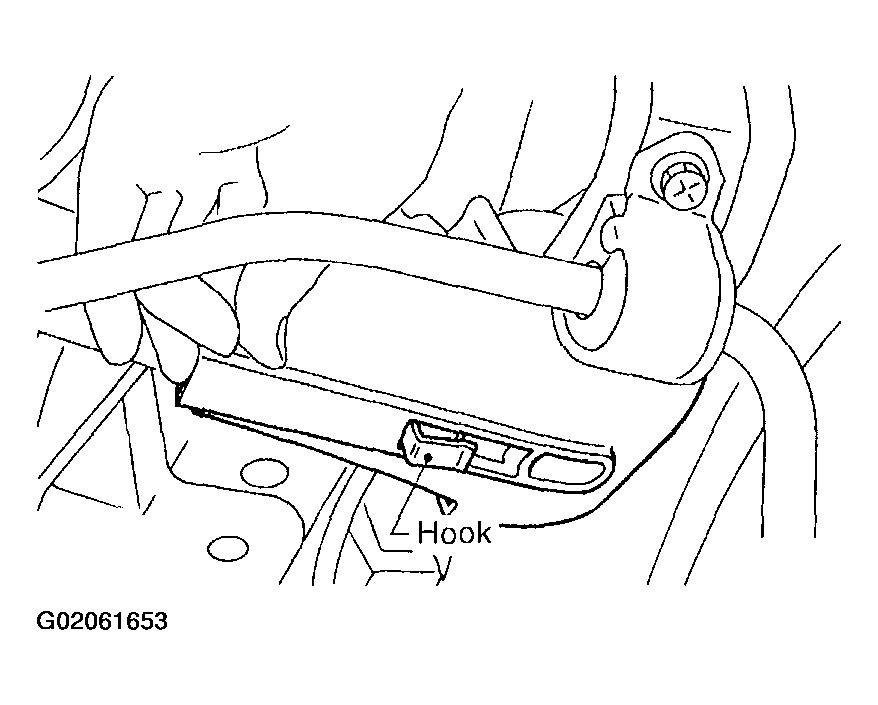

While holding the under side of protector cover on bracket, install it.

Fig 9: Installing Under Side Of Protector Cover

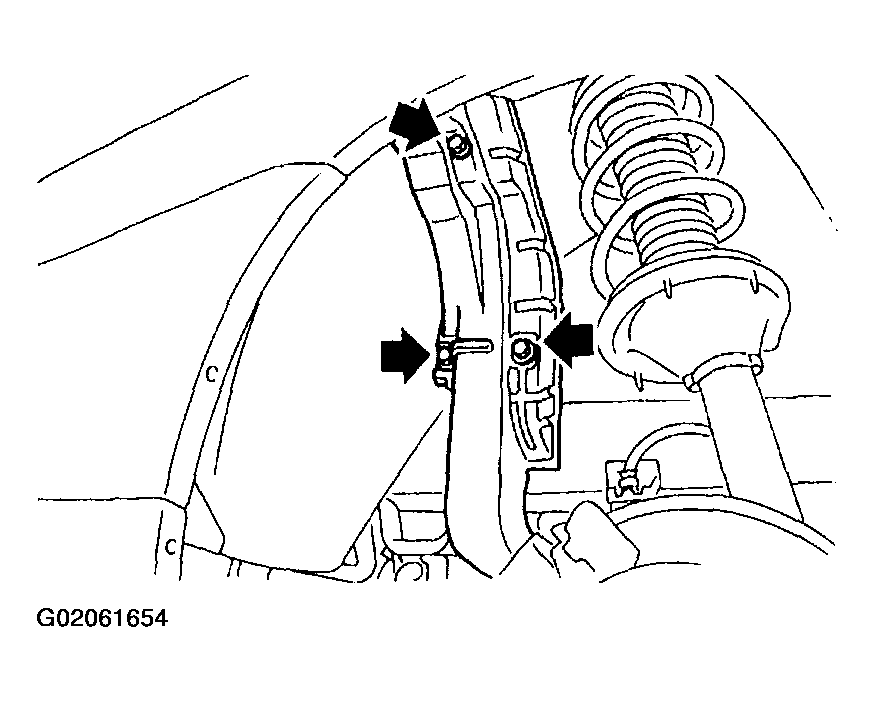

Tighten bolts which install protector cover on body.

Fig 10: Installing Protector Cover On Body
Tighten screws which install fuel filler pipe on filler lid open.

Fig 11: Installing Fuel Filler Pipe On Filler Lid Open
Install rear right wheel.

Fig 12: Installing Rear Right Wheel
Install fuel filler cap.

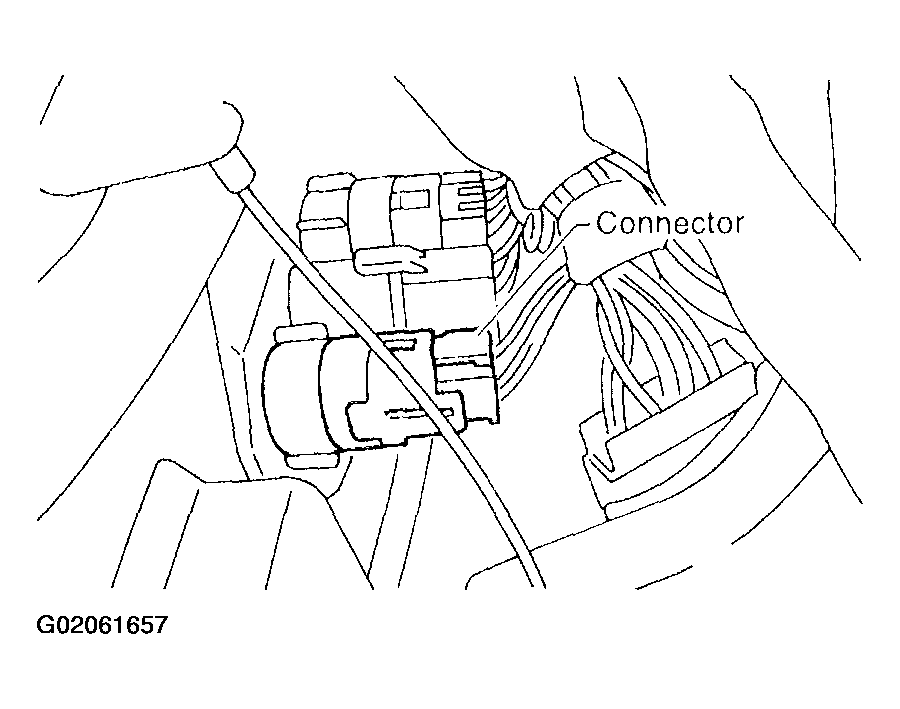

Connect connector to fuel pump relay.

Fig 13: Connecting Connector To Fuel Pump Relay

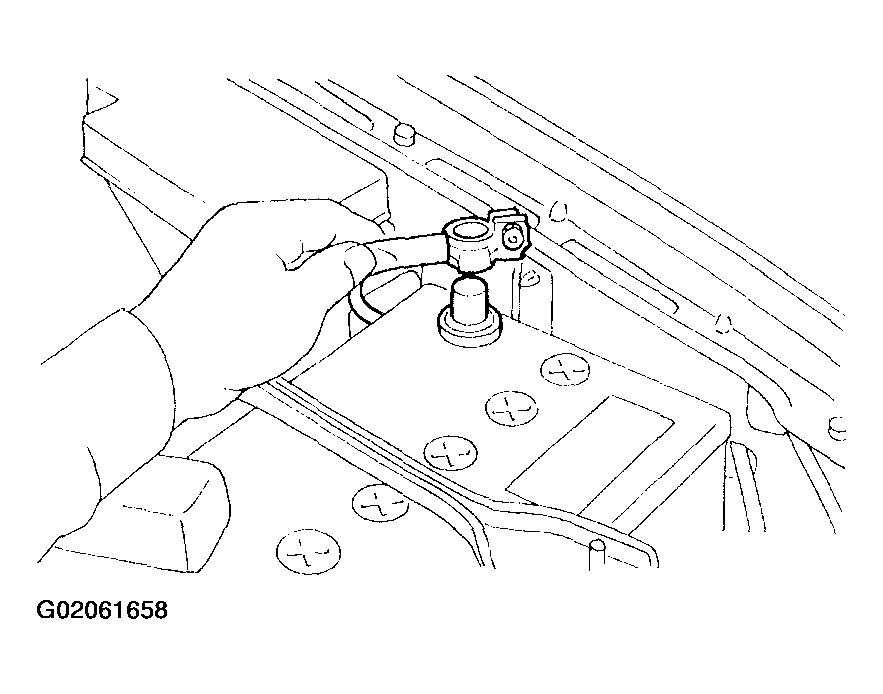

Connect battery ground terminal.

Fig 14: Connecting Battery Ground Terminal
