Power window switch, component description - GF72.29-P-6040MCC

MODEL 451.3 /4 with CODE (V43) Power window

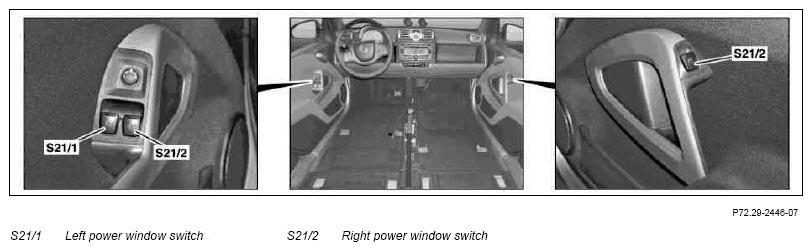

Fig 1: Identifying Left And Right Power Window Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The power window switches are installed in the corresponding door paneling on the door handle.

Task

The left power window switch transfers the adjustment requests for the left power window motor (M10/3) to the power window convenience feature control unit (N57/2).

The right power window switch transfers the adjustment requests for the right power window motor (M10/4) to the power window convenience feature control unit.

Design

The power window switches are designed as pushbutton switches. Each switch has 2 actuation directions:

• Push to open window
• Pull to close window
