Taillight and Illumination: Notes

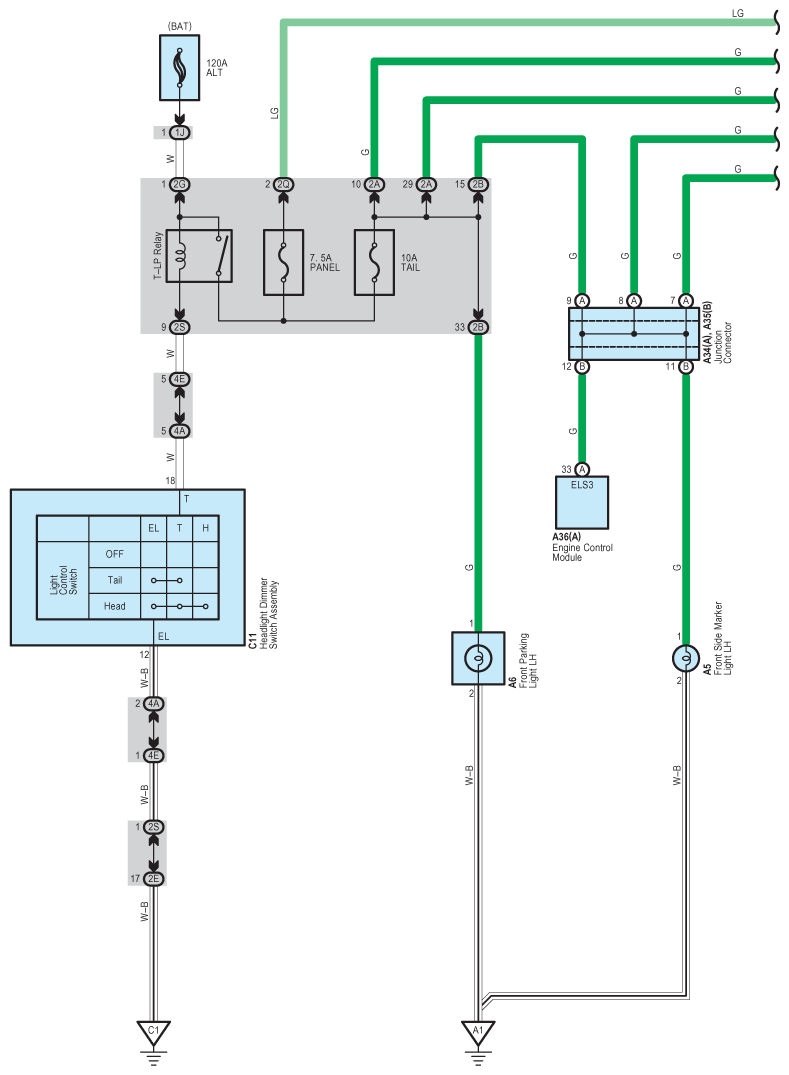

Fig 1: Taillight And Illumination - Circuit Diagram (1 Of 5)
G07601140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

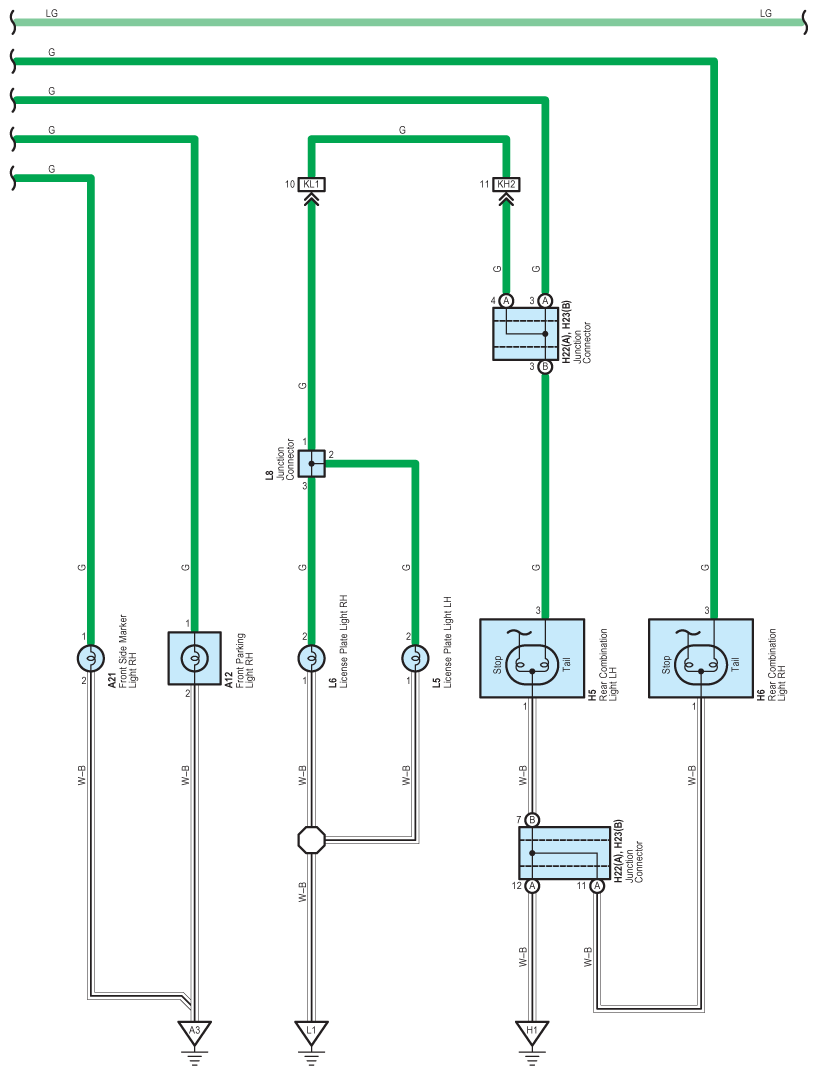

Fig 2: Taillight And Illumination - Circuit Diagram (2 Of 5)
G07601141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

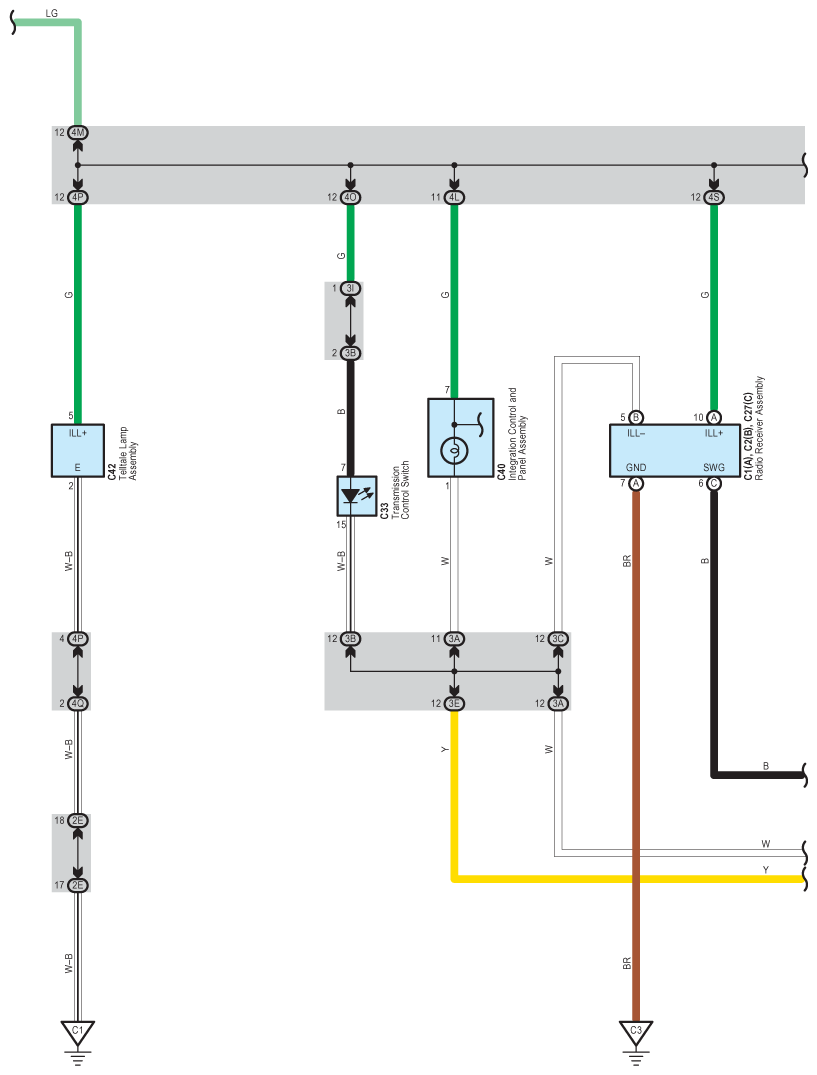

Fig 3: Taillight And Illumination - Circuit Diagram (3 Of 5)
G07601142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

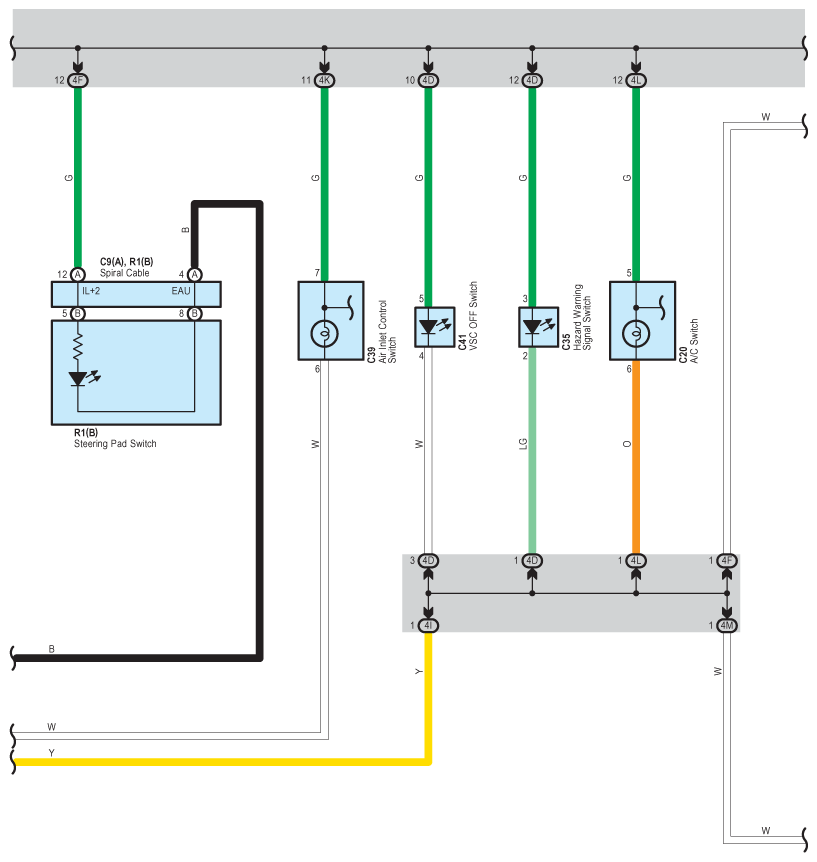

Fig 4: Taillight And Illumination - Circuit Diagram (4 Of 5)
G07601143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

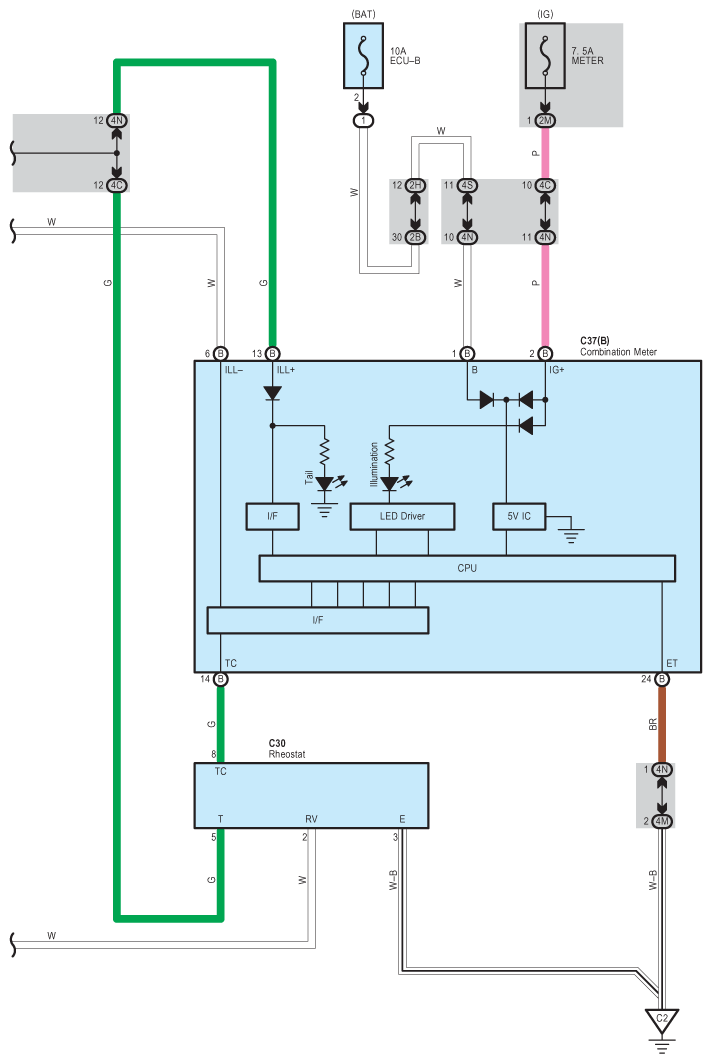

Fig 5: Taillight And Illumination - Circuit Diagram (5 Of 5)
G07601144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
