Global Positioning System (GPS) Antenna Replacement

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

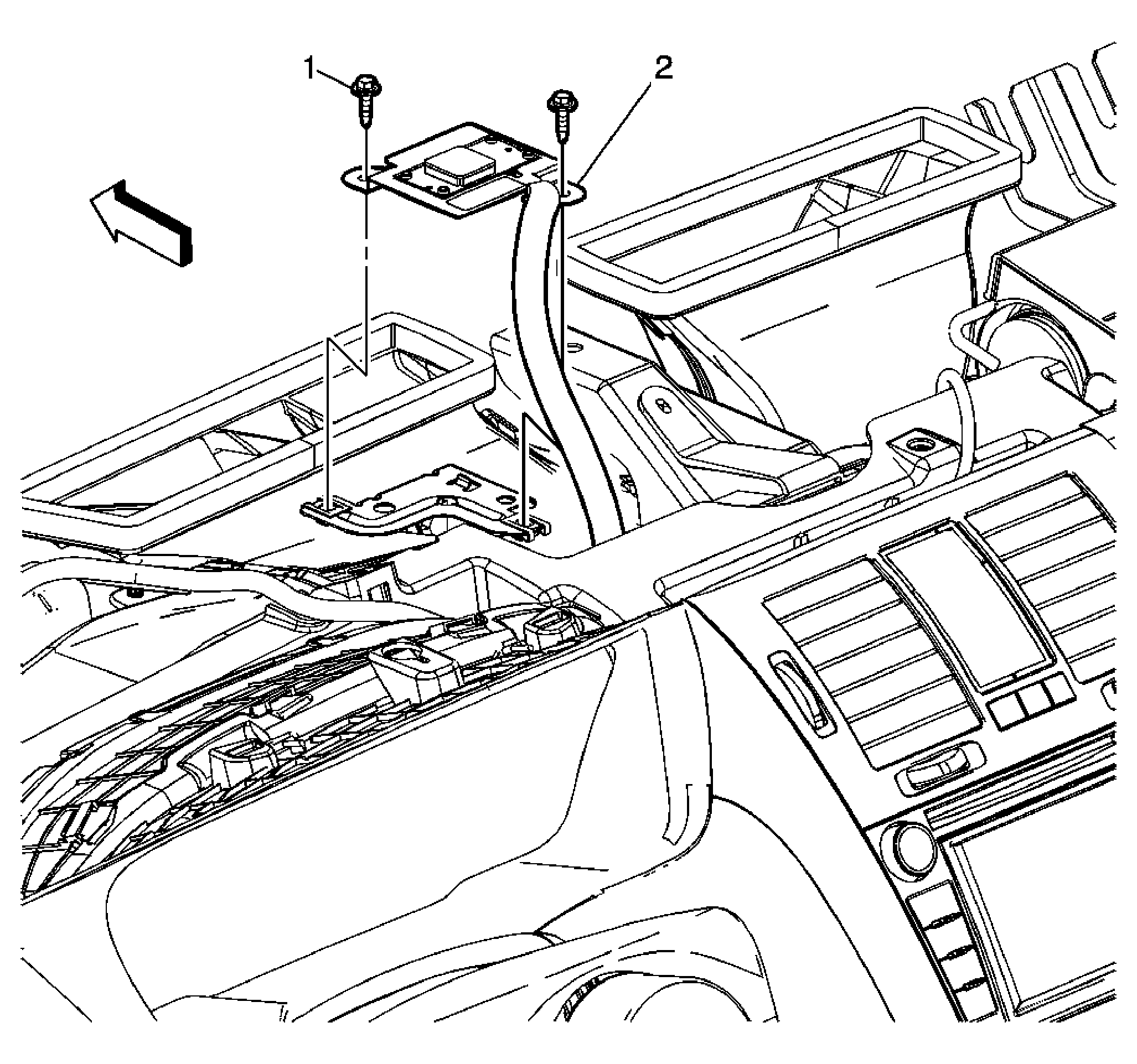

Fig 1: Replacing Global Positioning System (GPS) Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Pad Replacement . Remove the Radio. Refer to Radio Replacement .
1	Global Positioning System (GPS) Bracket Bolt (Qty: 2) Tighten:: 2.5 N.m(22 lb in).
2	Instrument Panel GPS Antenna Assembly Tip: Disconnect the I/P GPS antenna from the radio.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Pad Replacement .
Remove the Radio. Refer to Radio Replacement .

Global Positioning System (GPS) Bracket Bolt (Qty: 2)

Tighten:: 2.5 N.m(22 lb in).

Instrument Panel GPS Antenna Assembly
Tip: Disconnect the I/P GPS antenna from the radio.
