Rear Extension Locating Pin Removal

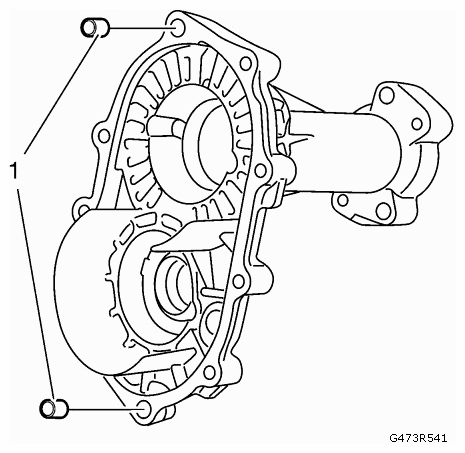

Fig 1: Identifying Transfer Case-To-Rear Extension Housing Locating Pins

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the transfer case-to-rear extension housing locating pins (1) as required using multigrip pliers.
