Front Wheel Drive Intermediate Shaft Installation: Procedure

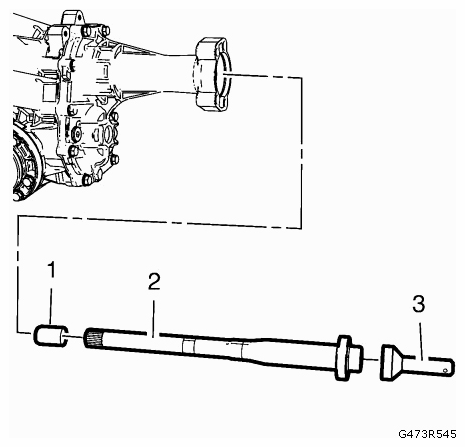

Install the DT-49104 protective collar (1) to the intermediate shaft (2), and install the intermediate shaft (2) using the DT-49103 fitting drift (3) and a rubber mallet.

Fig 1: Installing Intermediate Shaft
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the DT-49104 protective collar and apply grease to the splines of the shaft. Refer to ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS for the recommended grease.

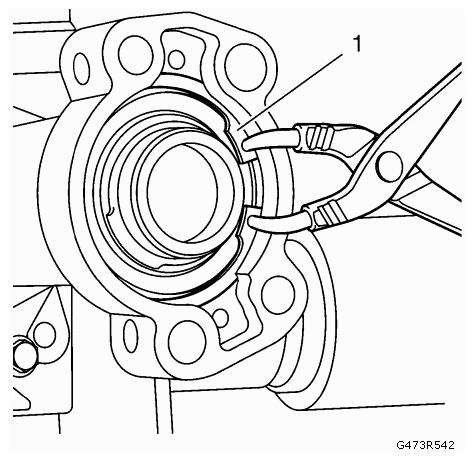

Install the transfer case intermediate shaft retaining ring (1).

Fig 2: Installing Transfer Case Intermediate Shaft Retaining Ring
Courtesy of SAAB-SCANIA OF AMERICA, INC.

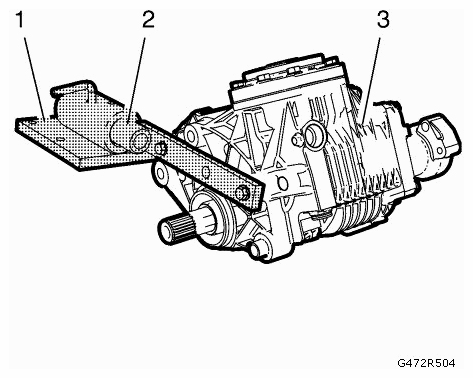

Remove the transfer case (3) from the adapter DT-622-A (2) and bracket DT-113-2 (1).

Fig 3: Removing Transfer Case From Adapter
Courtesy of SAAB-SCANIA OF AMERICA, INC.
