Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System, 4-CYL. >> Adjustment - Replacement >> EVAP Pressure Sensor >> To fit

To fit

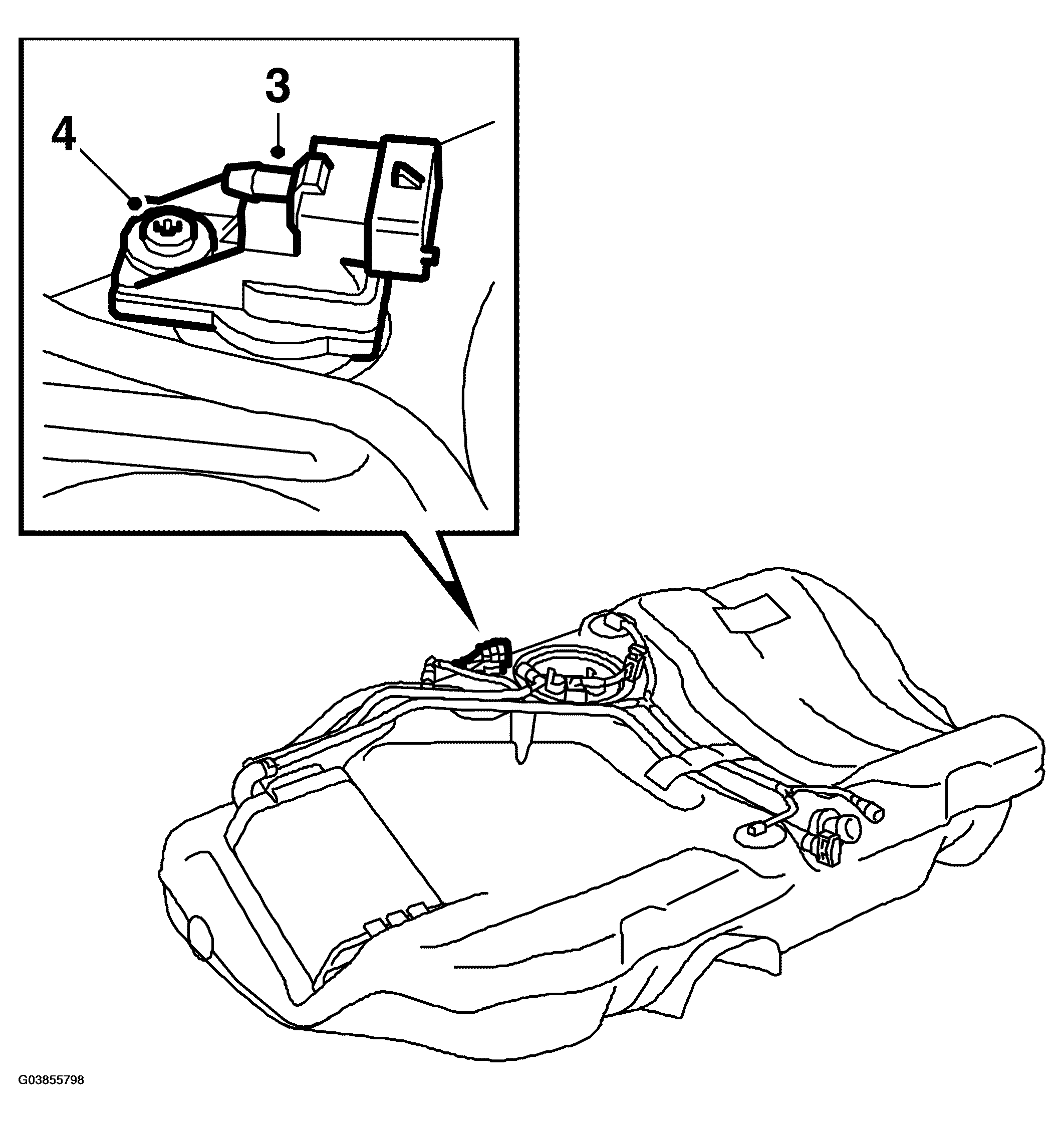

Fig 1: Illustration For Steps 3-4
G03855798Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Make sure the sealing surfaces are clean.
  2. Apply acid-free vaseline or equivalent to the O-ring.
  3. Fit the pressure sensor.
  4. Tighten the screw.
  5. Fit the fuel tank.
