To Remove

  1. Remove the front grille and right-hand front light cluster.

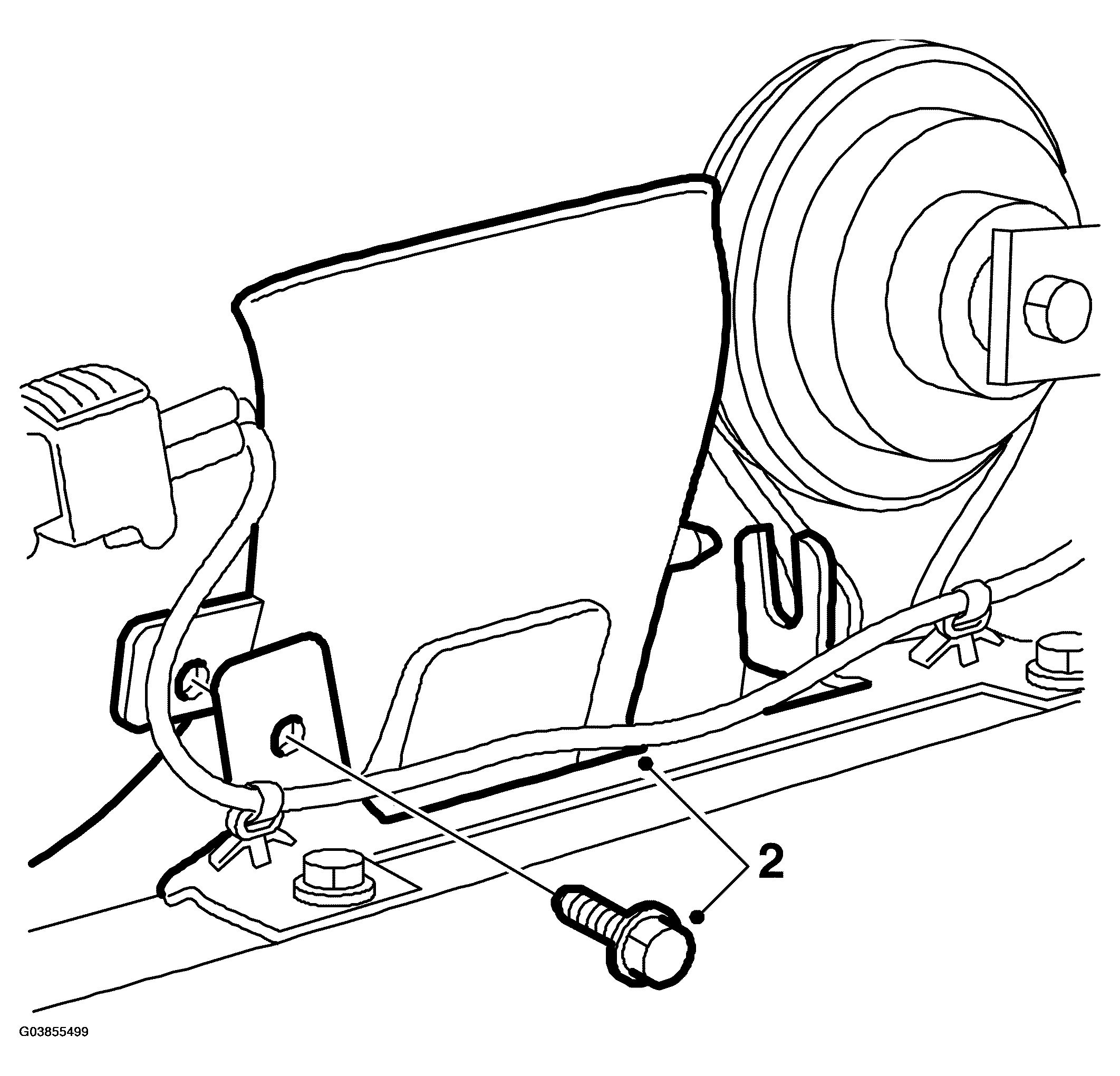

    Fig 1: Illustration For Step 2
    G03855499Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the bracket for the air intake pipe.
  3. Disconnect the air hose from the air cleaner casing.

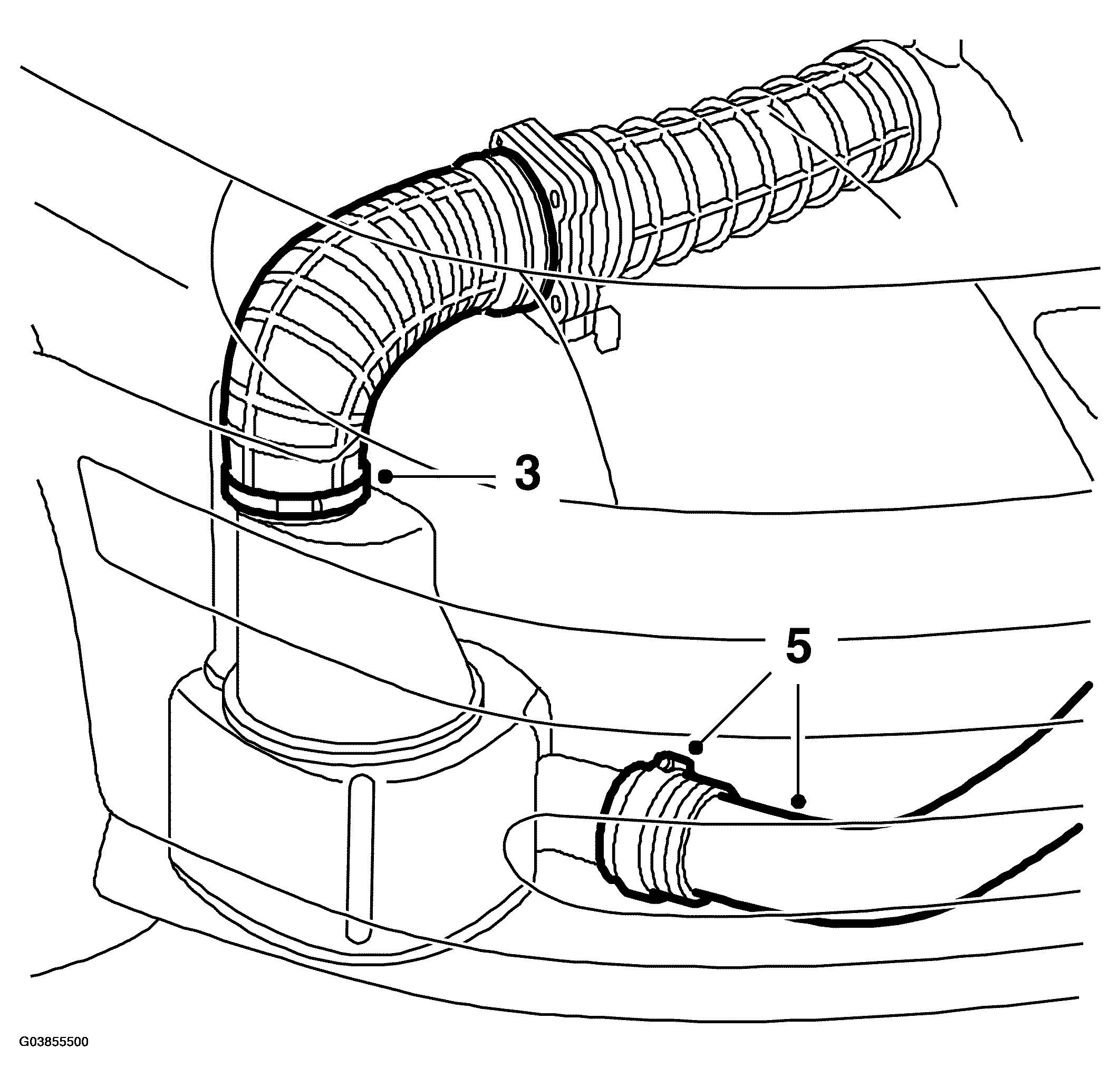

    Fig 2: Illustration For Steps 3 & 5
    G03855500Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Raise the car.
  5. Detach the air intake pipe.
  6. Remove the lower front cover.
  7. Undo the air cleaner casing's lower mounting and lower away the casing.

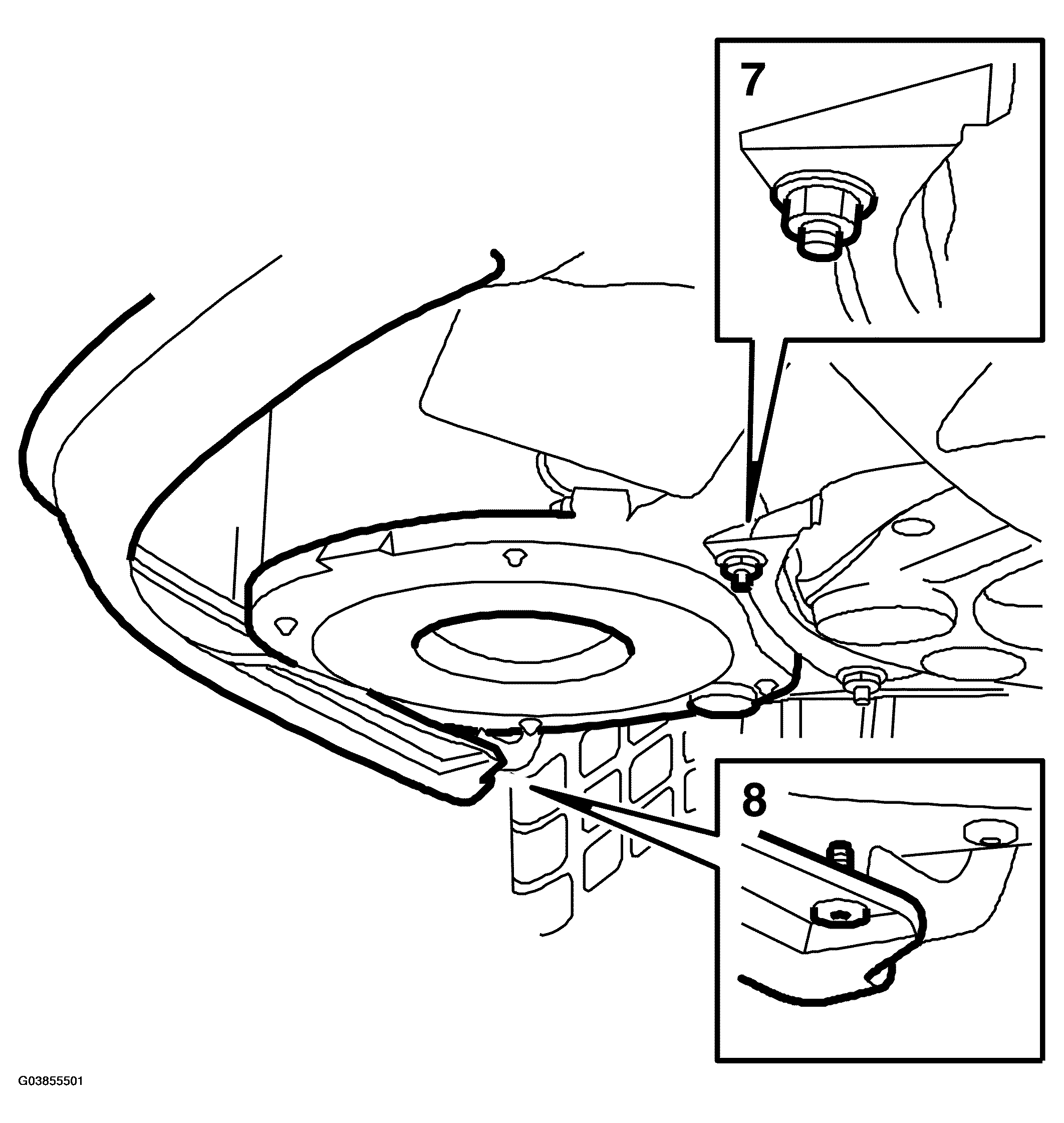

    Fig 3: Illustration For Steps 7 & 8
    G03855501Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the lower spoiler section and then lower away the air intake pipe.
