Position sensor, first bow locked, (561c): Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
2	Power supply B+	From the control module, STC
3	Signal output	First bow locked (sensor affected) = 0.4-1.2 V First bow unlocked (sensor unaffected) = 2.4-3.4 V

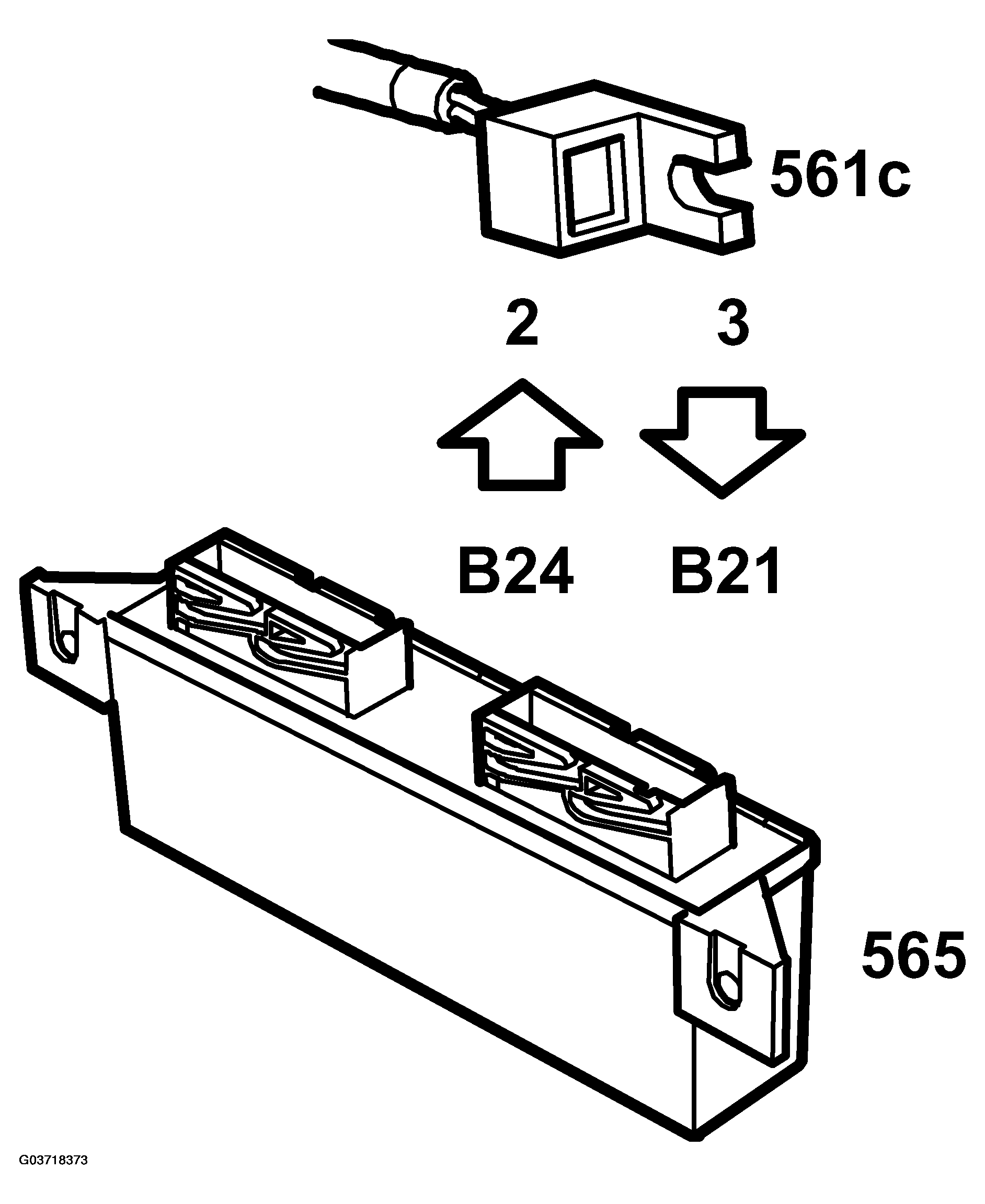

Fig 1: Identifying Communication Flow - Position Sensor (First Bow Locked - 561C)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The sensor is connected to the STC control module with two leads. The sensor is energized with B+ on pin 2 and gives information to the STC control module on pin 3.

The sensor is affected by the locking mechanism for the first bow. The sensor is affected when the first bow is locked.

Diagram

Fig 2: Circuit Diagram - Position Sensor (First Bow Locked - 561C)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
