Fuel level sensor (46), PSG16: Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
D	Ground	Sensor's ground. Connected to ECM pin 34(M)
C	Signal	The pin is supplied 5 V via X kO internally in ECM. Connected to ECM pin 48 (M)

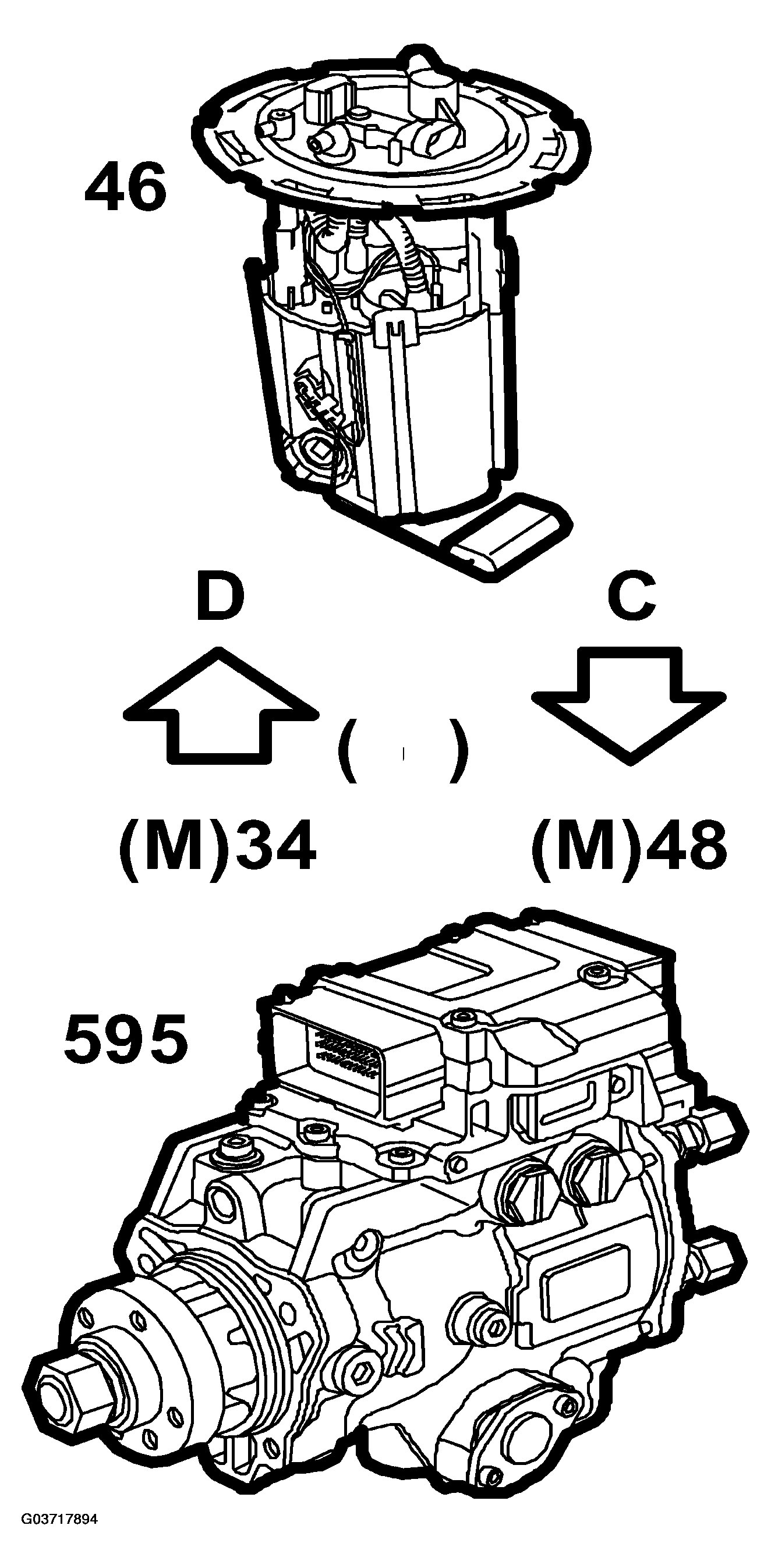

Fig 1: Identifying Communication Flow - Fuel Level Sensor (PSG16)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

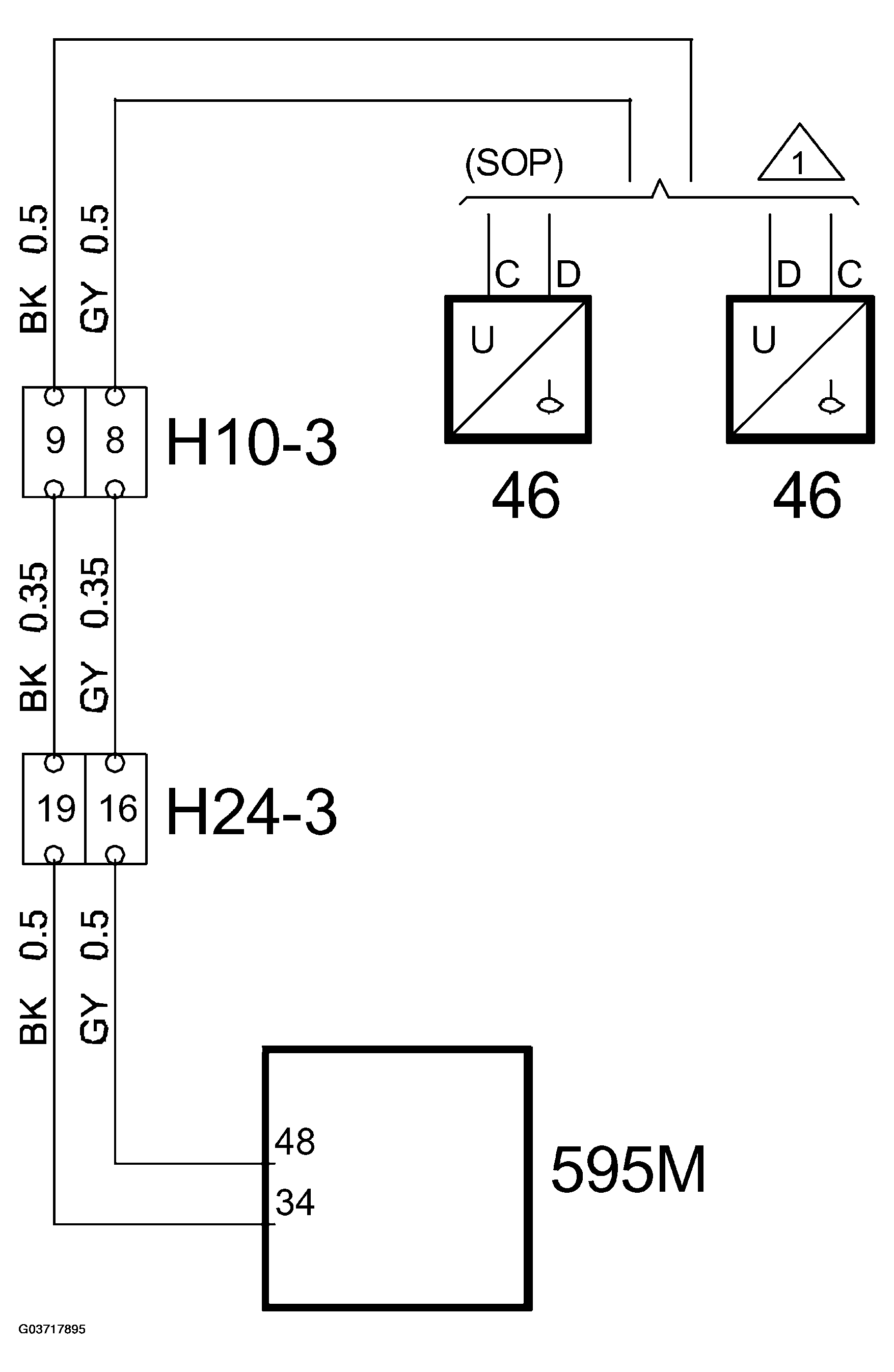

Fig 2: Circuit Diagram - Fuel Level Sensor (PSG16)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
