Bootlid switch (388): Connect

The button has direct chassis grounding and is fed with 5V via a resistor of 2.7kO integrated in DDM. The control module input is digital, a voltage above 2V is interpreted as an open circuit while lower than 2V is interpreted as closed. The LEDs are fed with PWM+ from DDM and use the same ground as the breaker.

CONNECTOR PINOUTS REFERENCE

Pin	Signal type	Description
1	Power supply 5V	Lighting Pulse modulation + (PWM) from DDM
2	Ground	When the button is pressed in
4	Ground	Body ground to breaker and LEDs

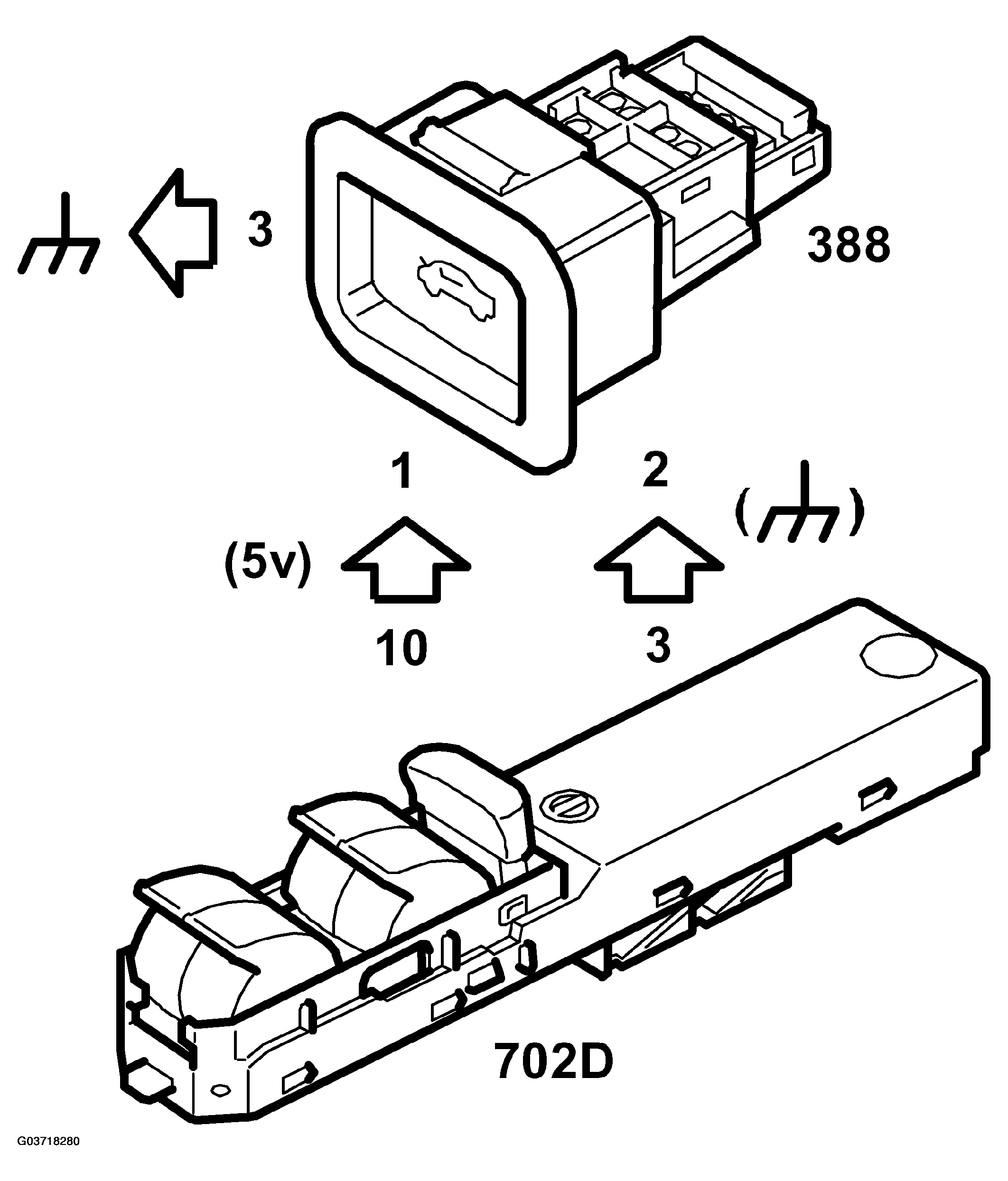

Fig 1: Identifying Communication Flow Bootlid Switch (388)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

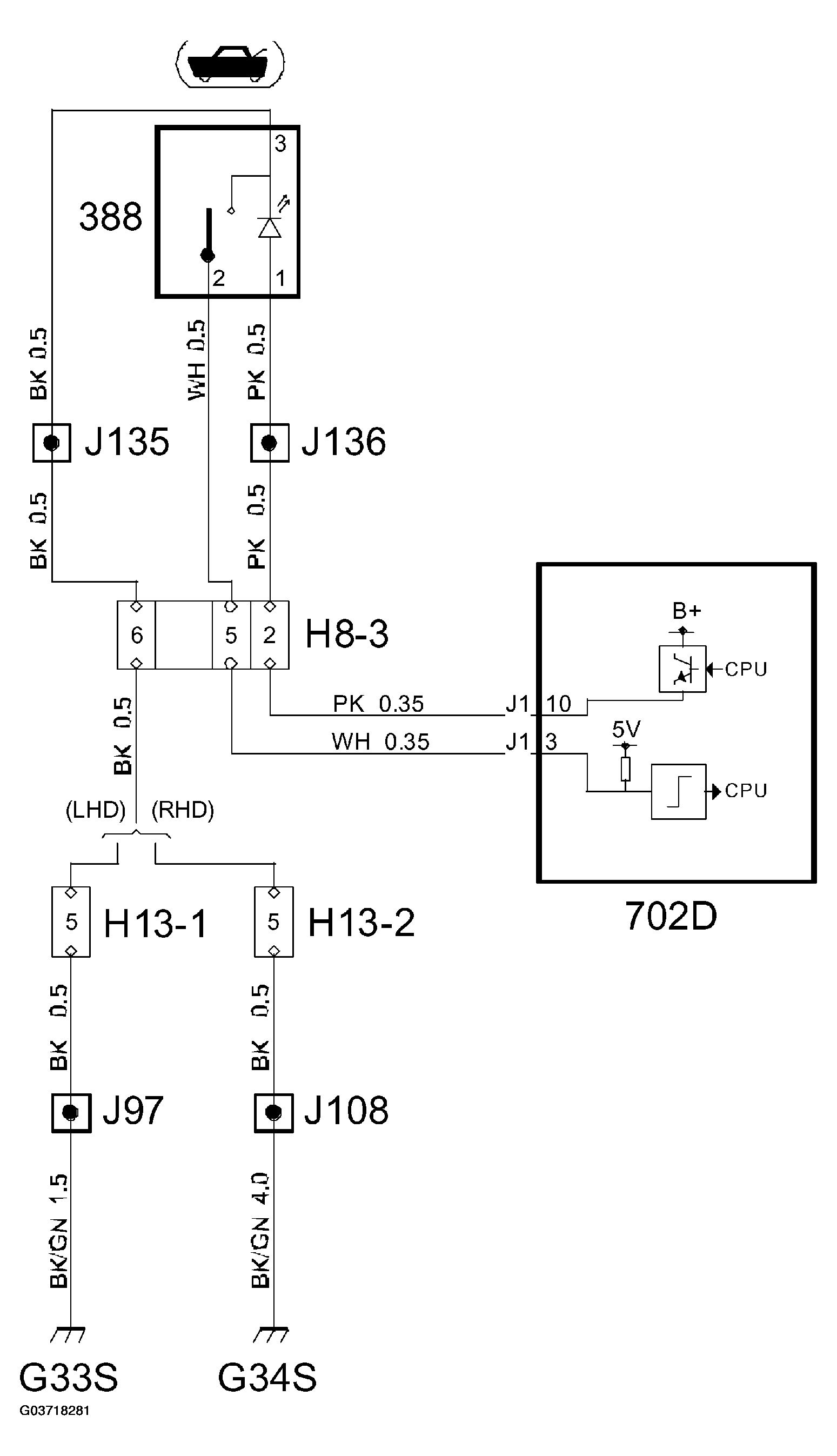

Fig 2: Circuit Diagram Bootlid Switch (388)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
