Installing Spray Nozzle For Headlight Washer System
- Install spray nozzle for headlight washer system.

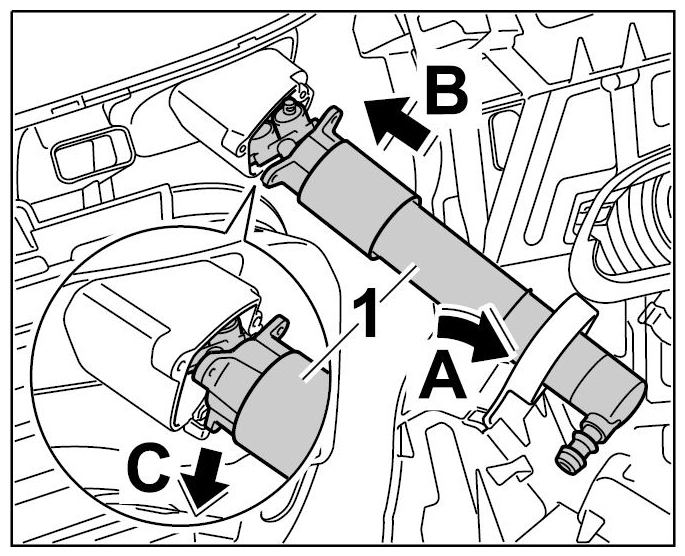

- 1.1. Insert spray nozzle for headlight washer system -1-
into the guide and swivel it in -arrow A-
.
- 1.2. Push spray nozzle for headlight washer system -1-
into the front apron -arrow B-
and engage with the clip -arrow C-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Secure spray nozzle for headlight washer system on the front apron.

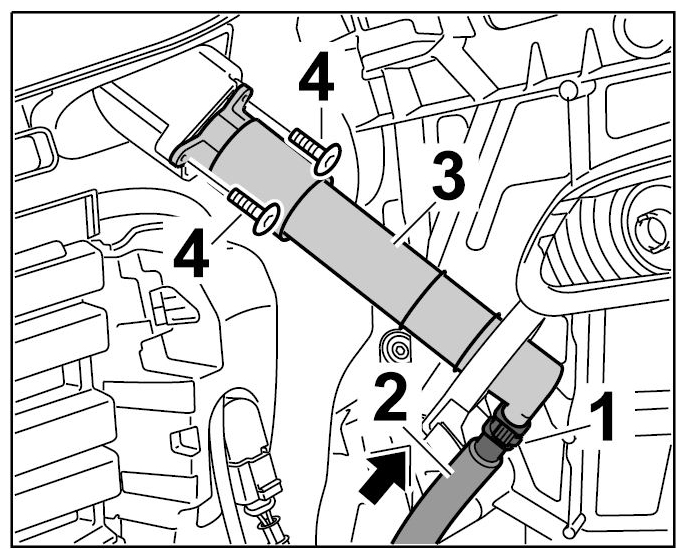

- 2.1. Secure spray nozzle for headlight washer system -3-
with the fastening screws -4-
on the front apron. → Tightening torque: 1.5 Nm (1.0 ftlb.)
- 2.2. Push water hose -2-
onto spray nozzle for headlight washer system -3- (-arrow-
) until the rapid-action coupling -1-
engages audibly.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Engage cap on nozzle head.

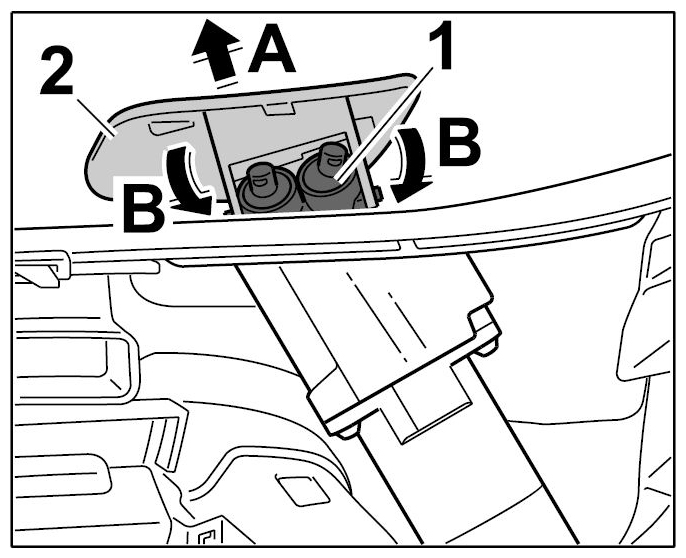

- 3.1. Press out nozzle head -1-
from the inside -arrow A-
hold it securely.
- 3.2. Engage cap -2-
at the latches on the nozzle head -1- (-arrows B-
).
