Moveable Window Schematics
Moveable Window Schematics

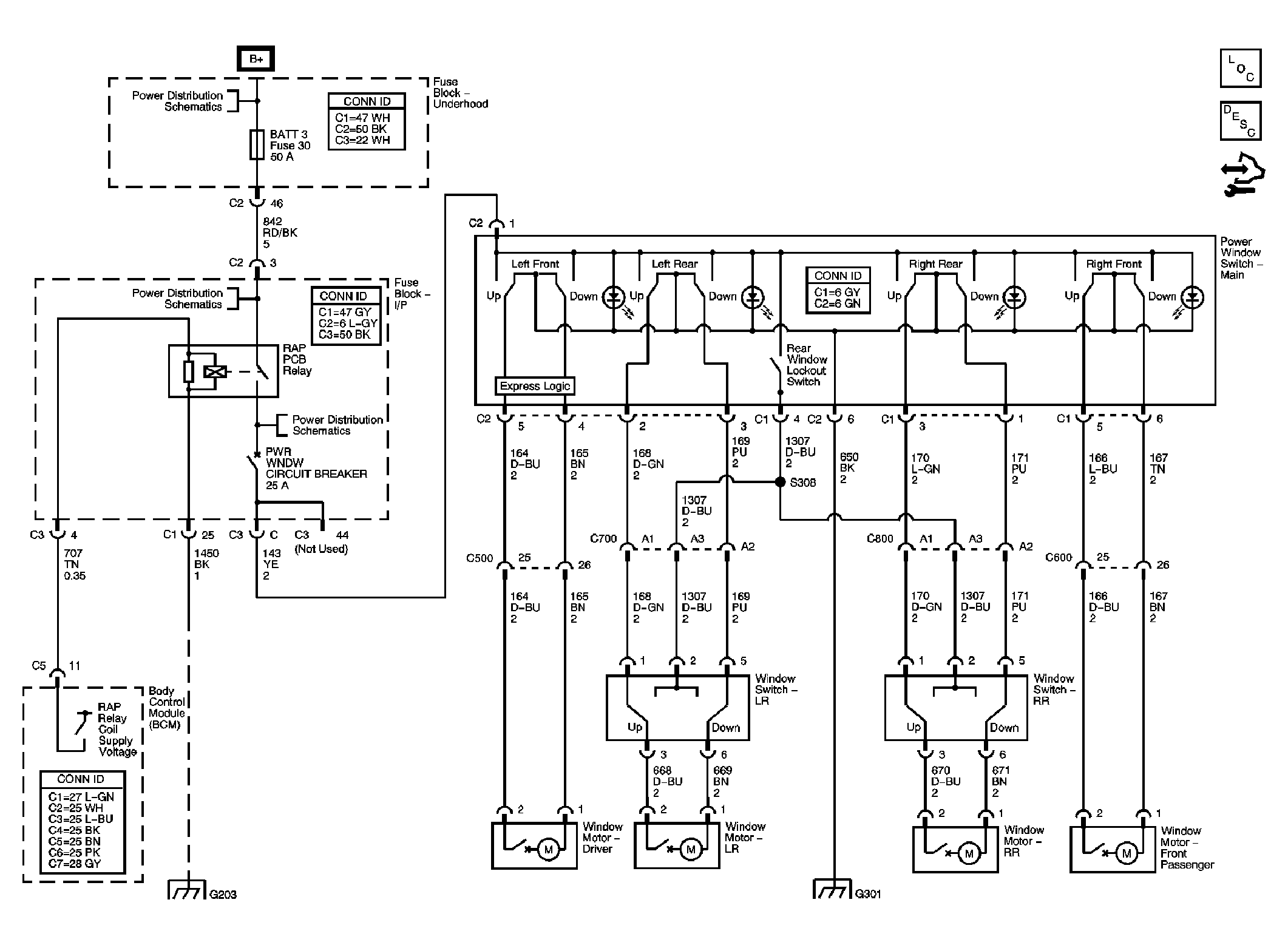

Fig 1: Identifying Moveable Window Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
