Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

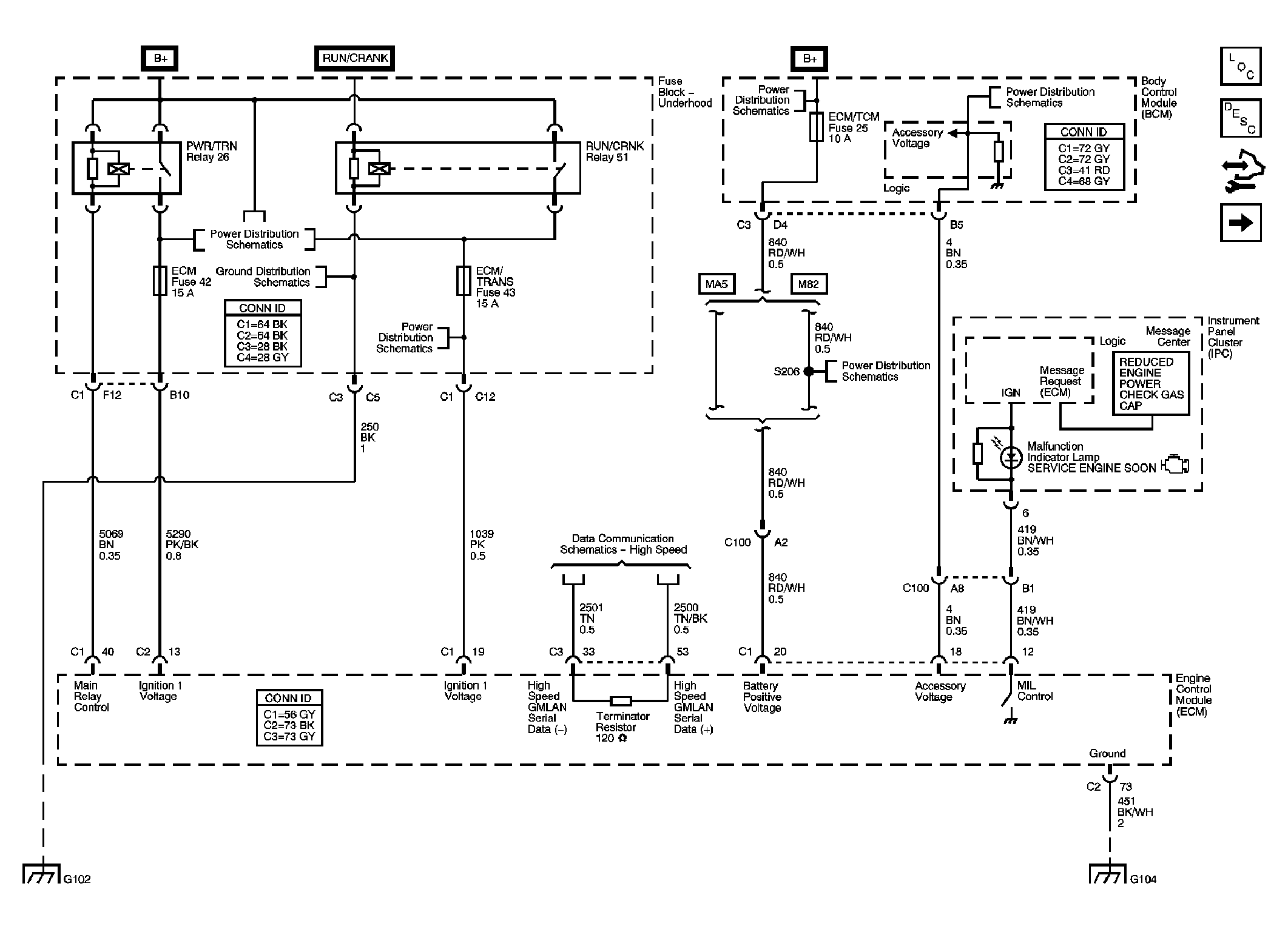

Fig 1: Power, Ground, Data Link, & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

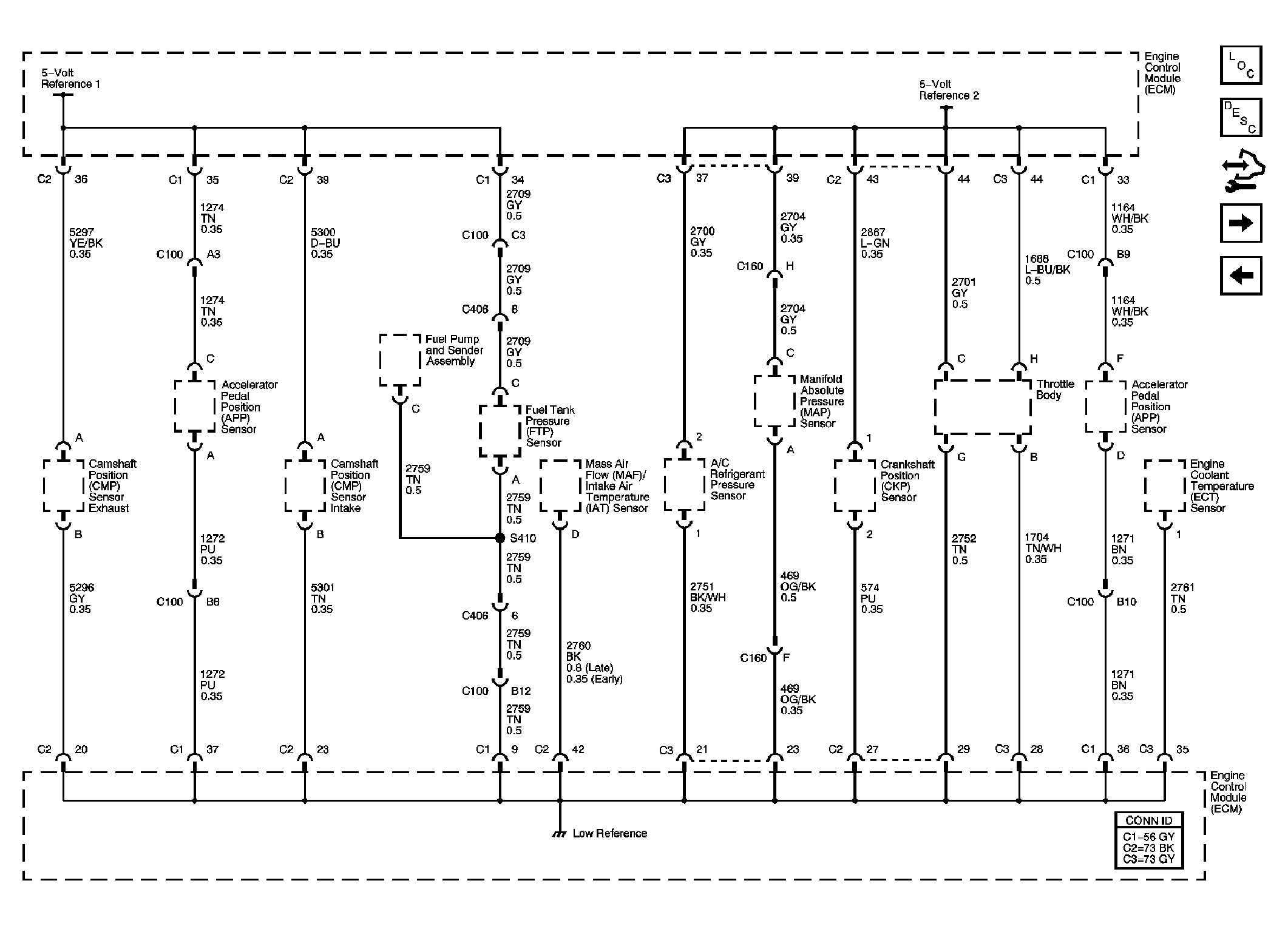

Fig 2: 5-Volt & Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

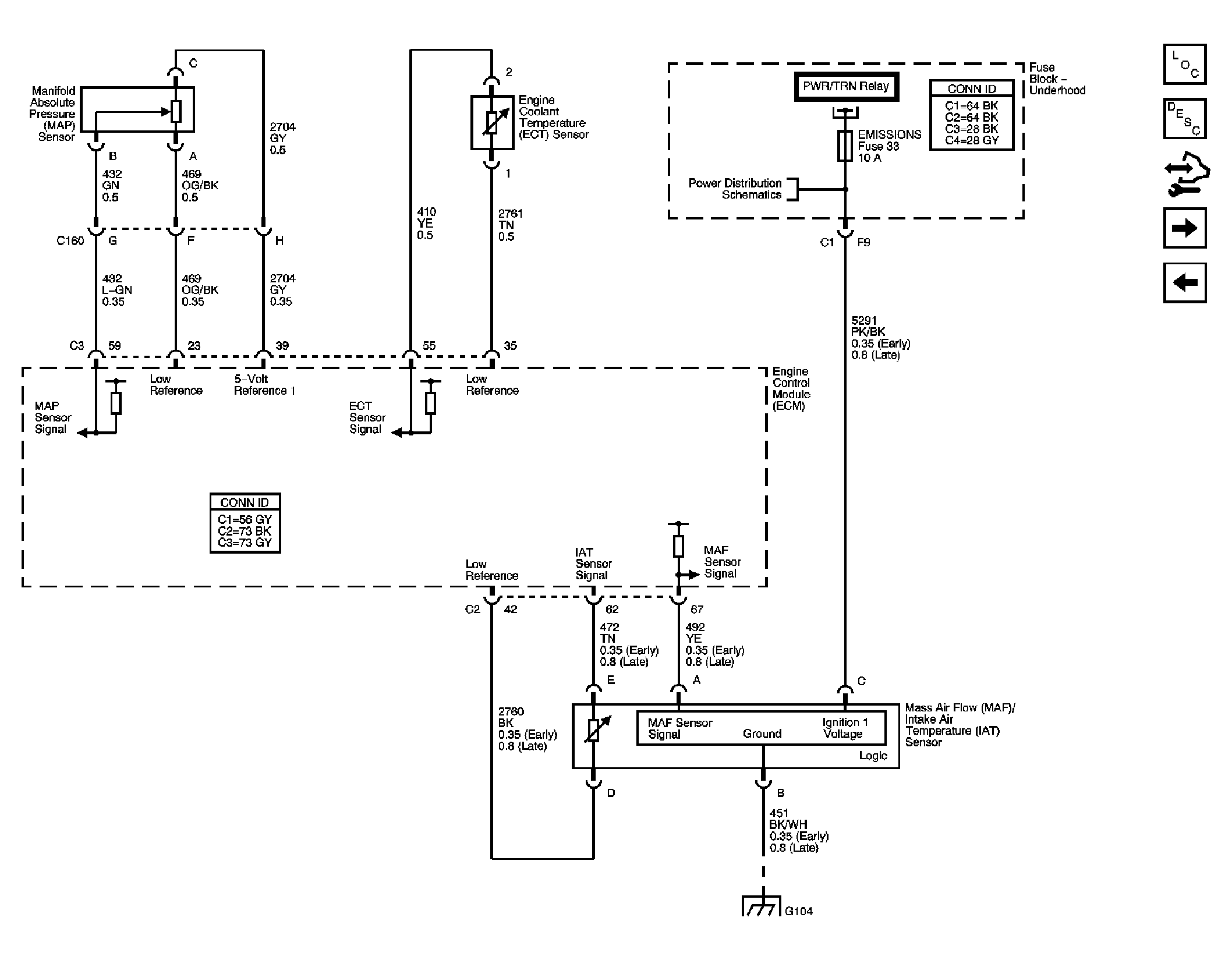

Fig 3: Engine Data Sensors Schematic - Pressure & Temperature

Courtesy of GENERAL MOTORS CORP.

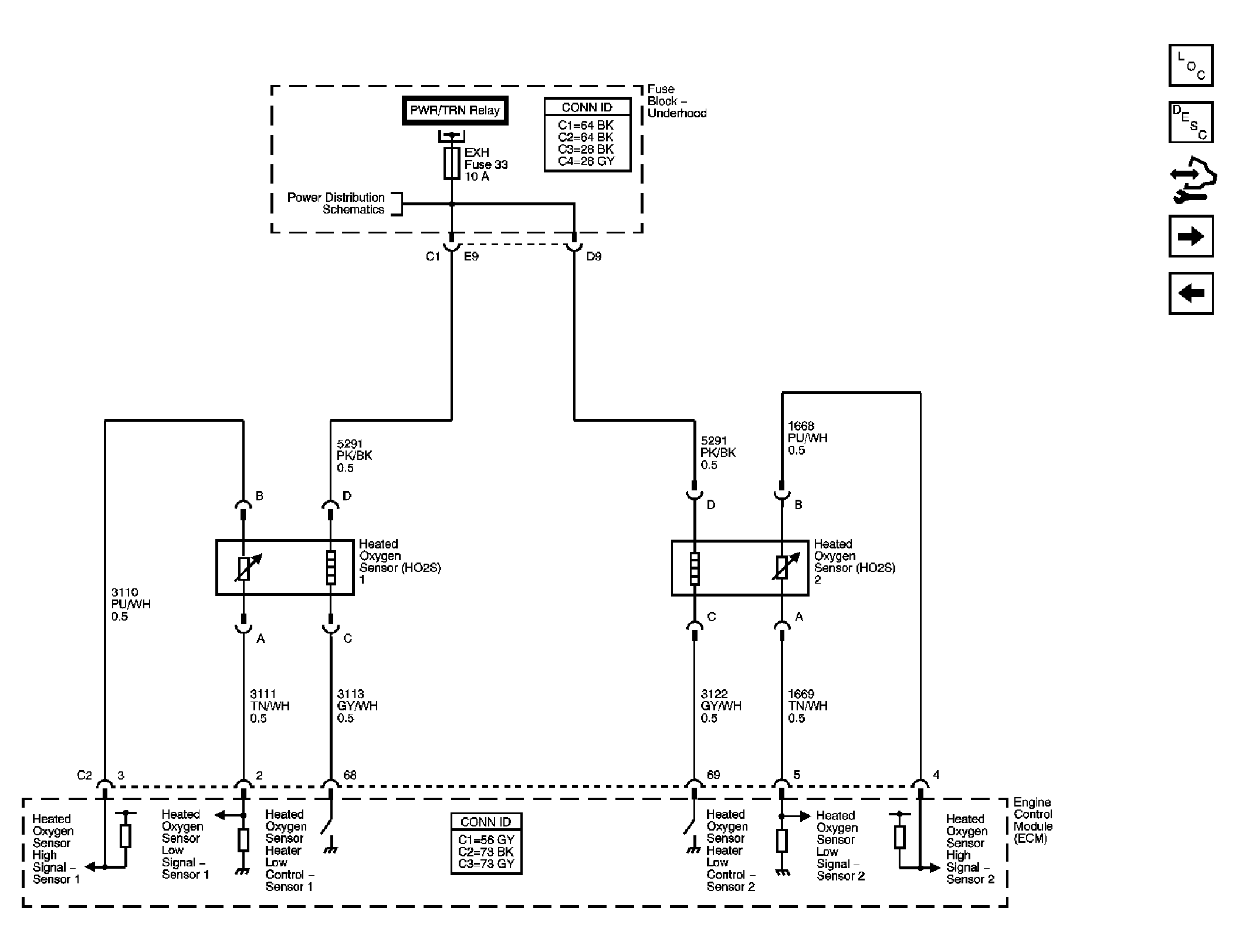

Fig 4: Engine Data Sensors Schematic - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

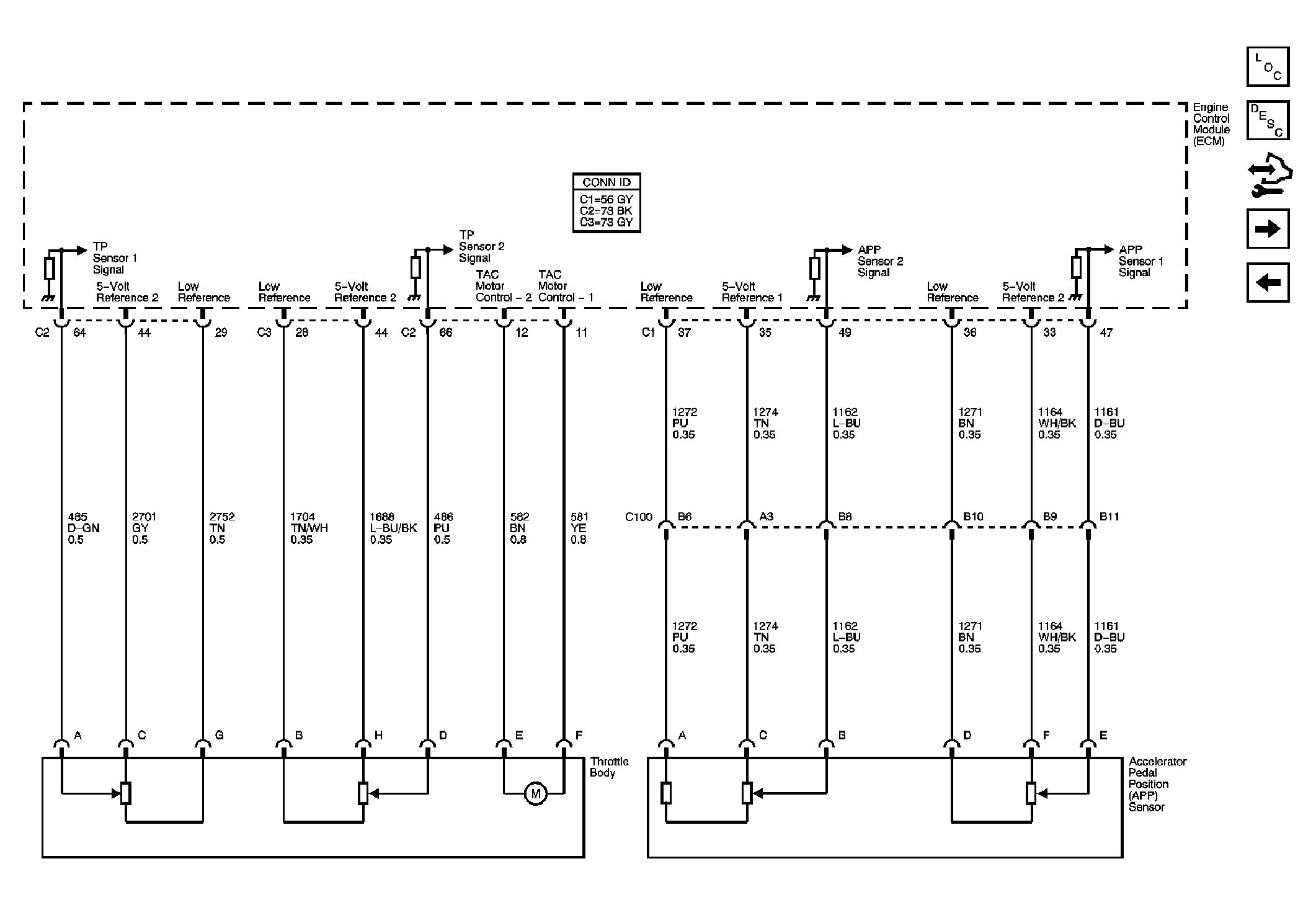

Fig 5: Engine Data Sensors Schematic - Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

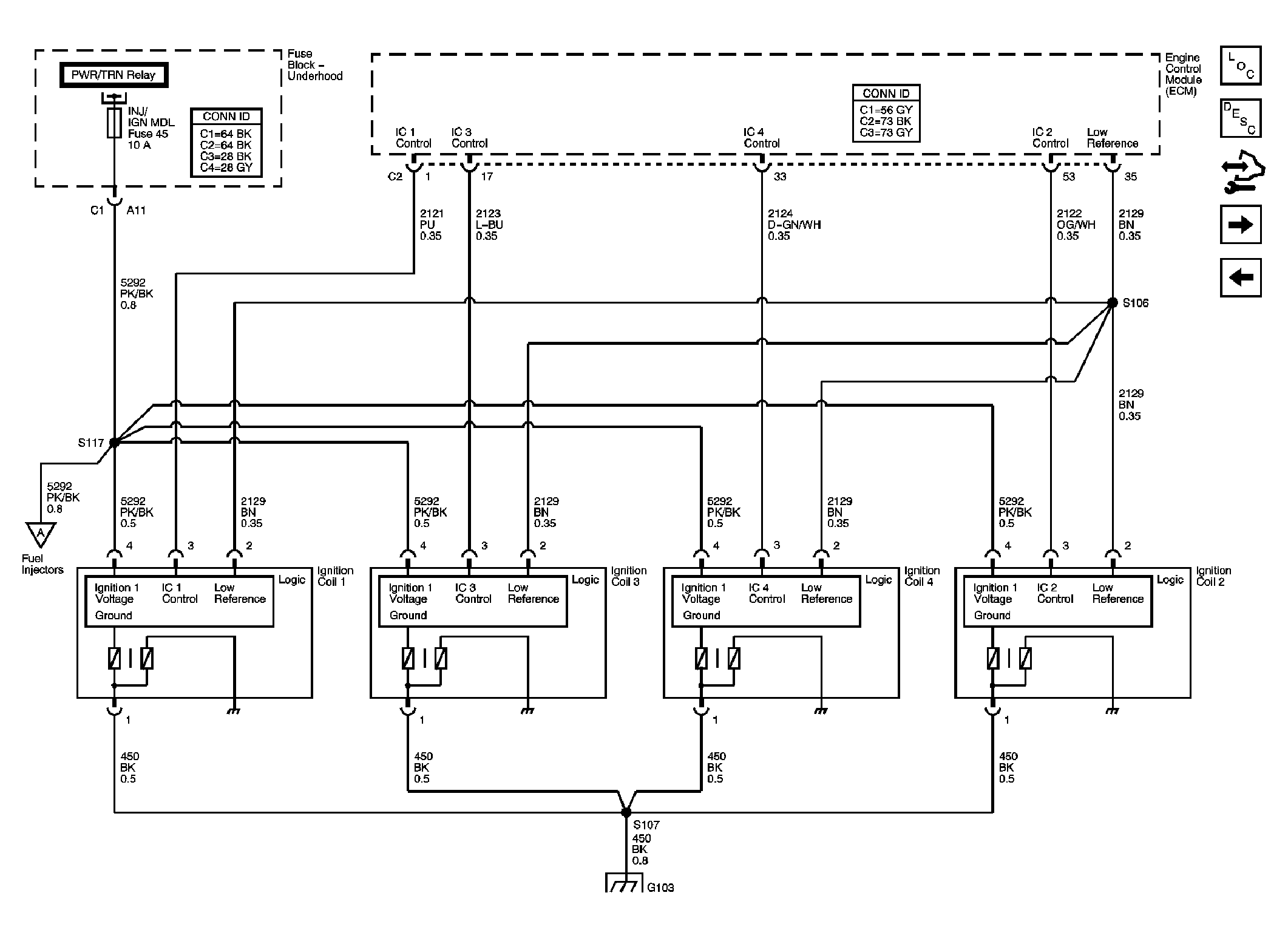

Fig 6: Ignition Controls Schematic - Ignition System

Courtesy of GENERAL MOTORS CORP.

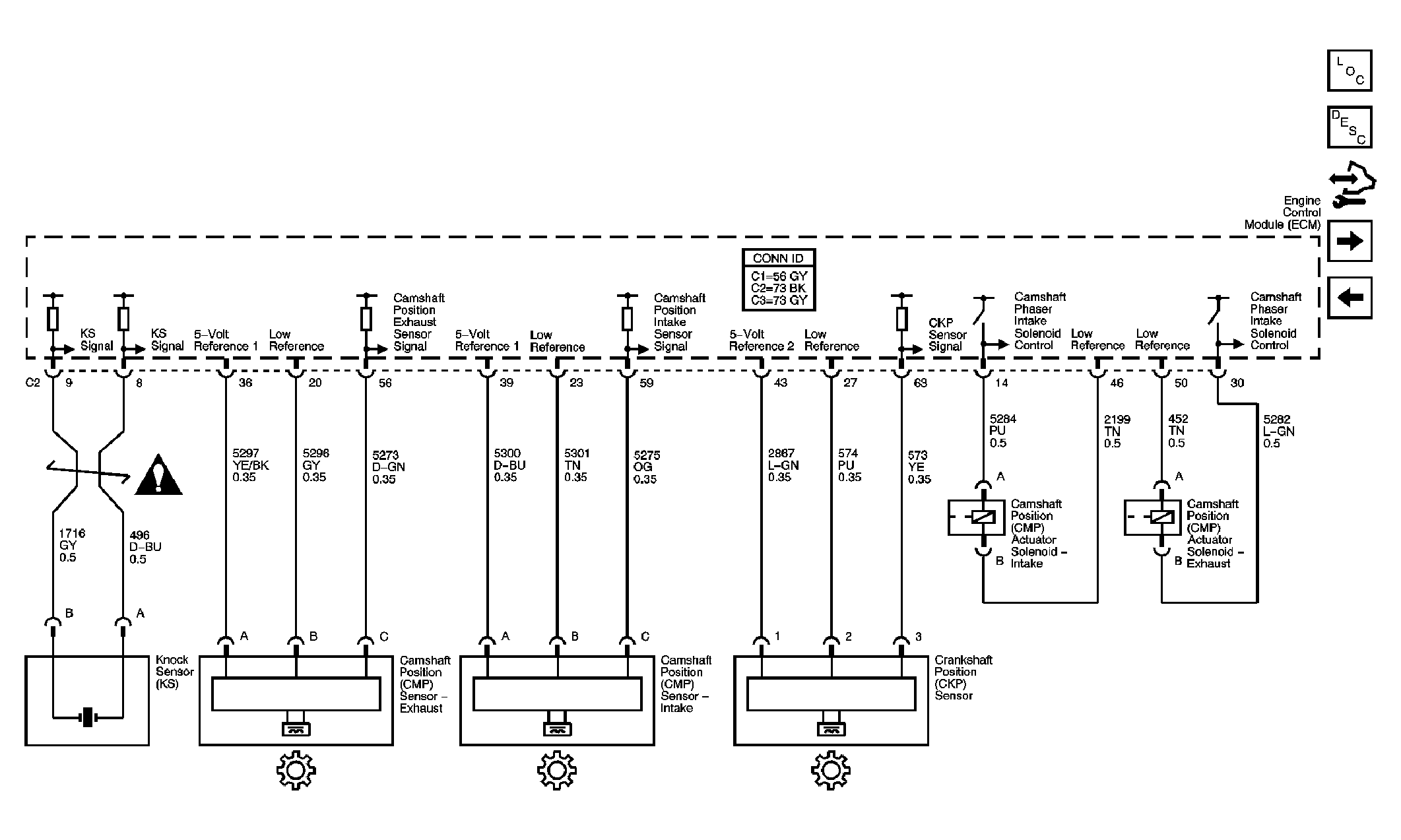

Fig 7: Ignition Controls Schematic - Sensors

Courtesy of GENERAL MOTORS CORP.

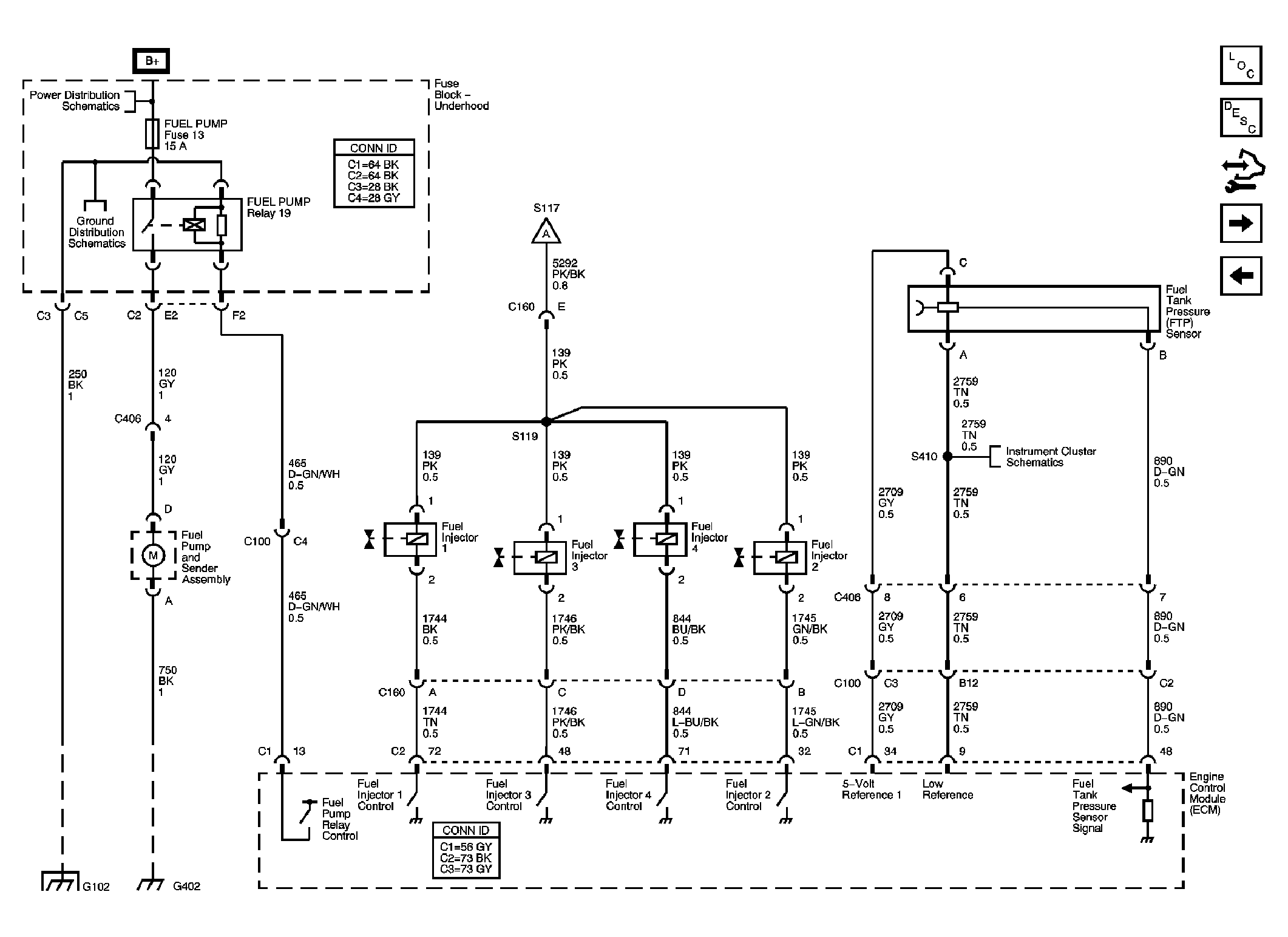

Fig 8: Fuel Controls Schematic - Fuel Pump Controls & Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

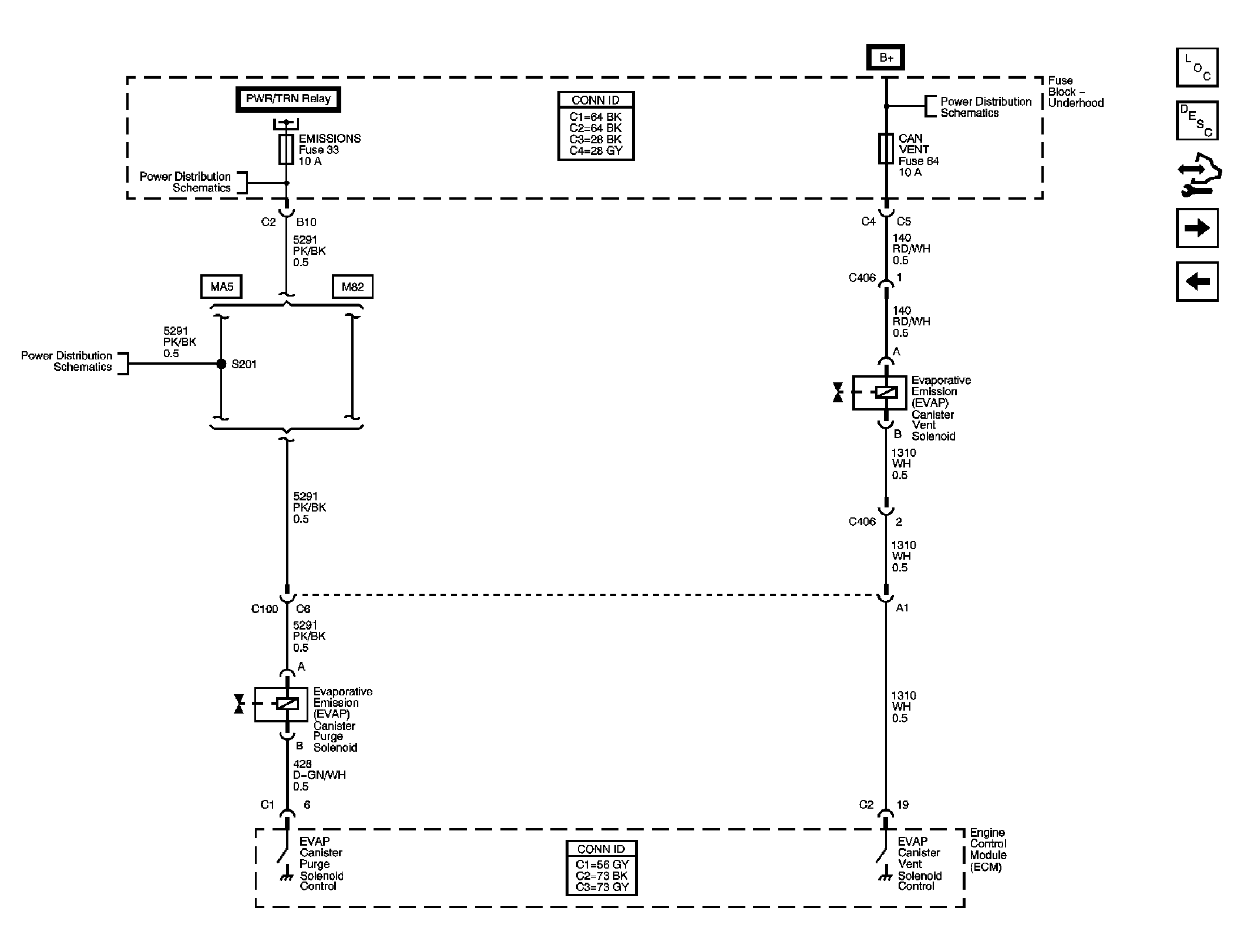

Fig 9: Fuel Controls Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

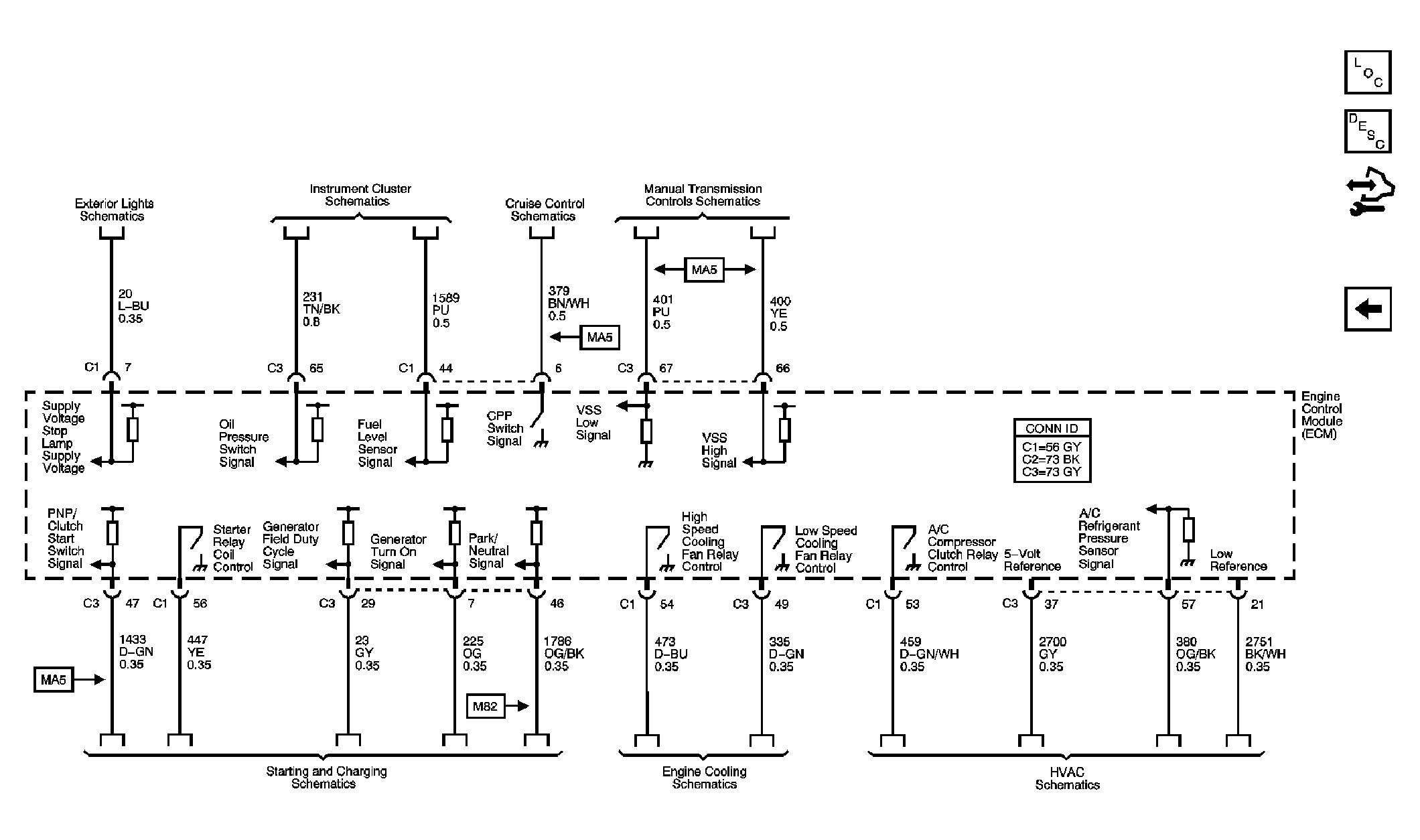

Fig 10: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
