Antilock Brake System Schematics (HP7)

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

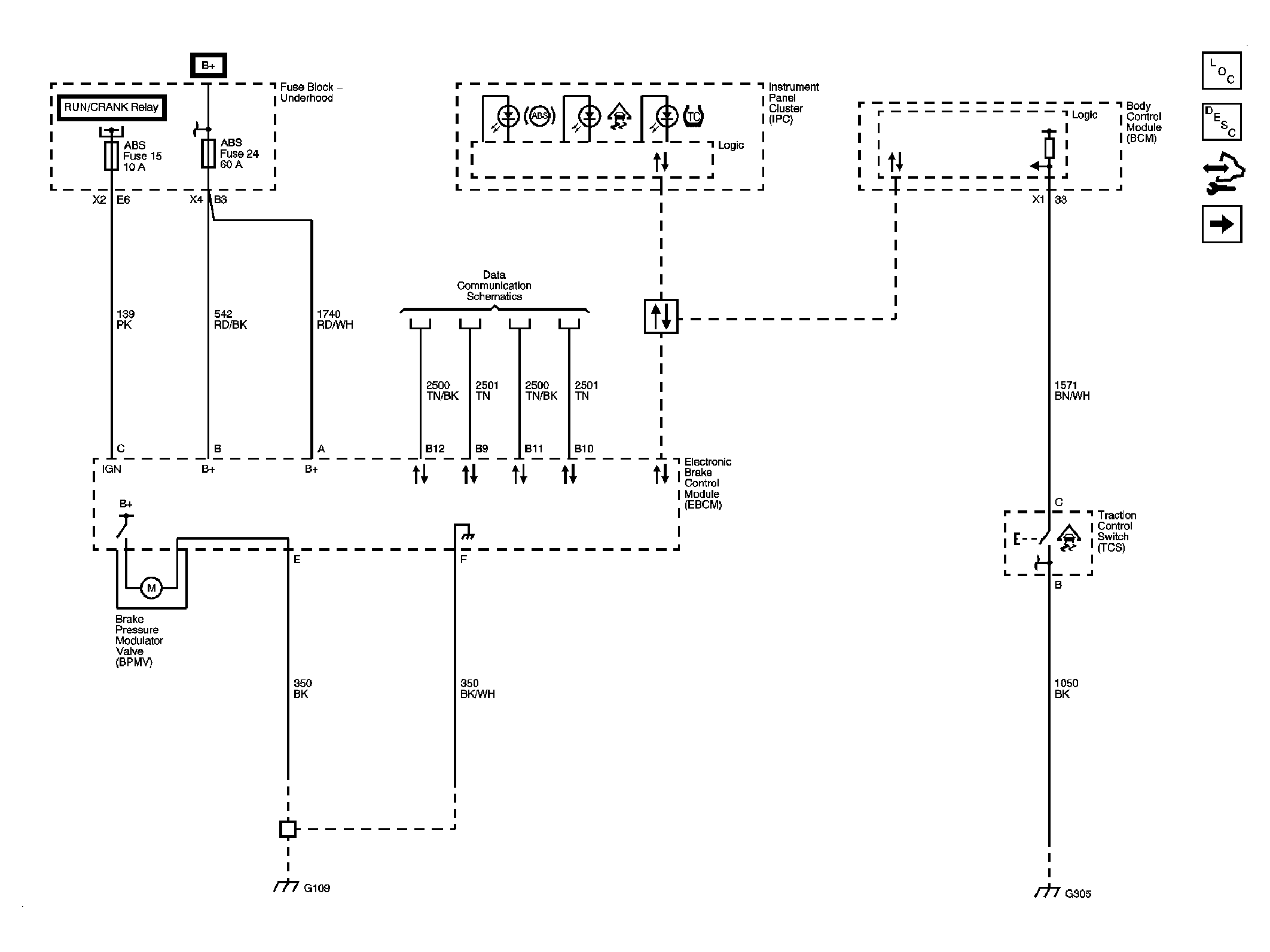

Fig 1: Power, Ground, DLC, Traction Control Switch, and Indicators
GM2253256Courtesy of GENERAL MOTORS CORP.

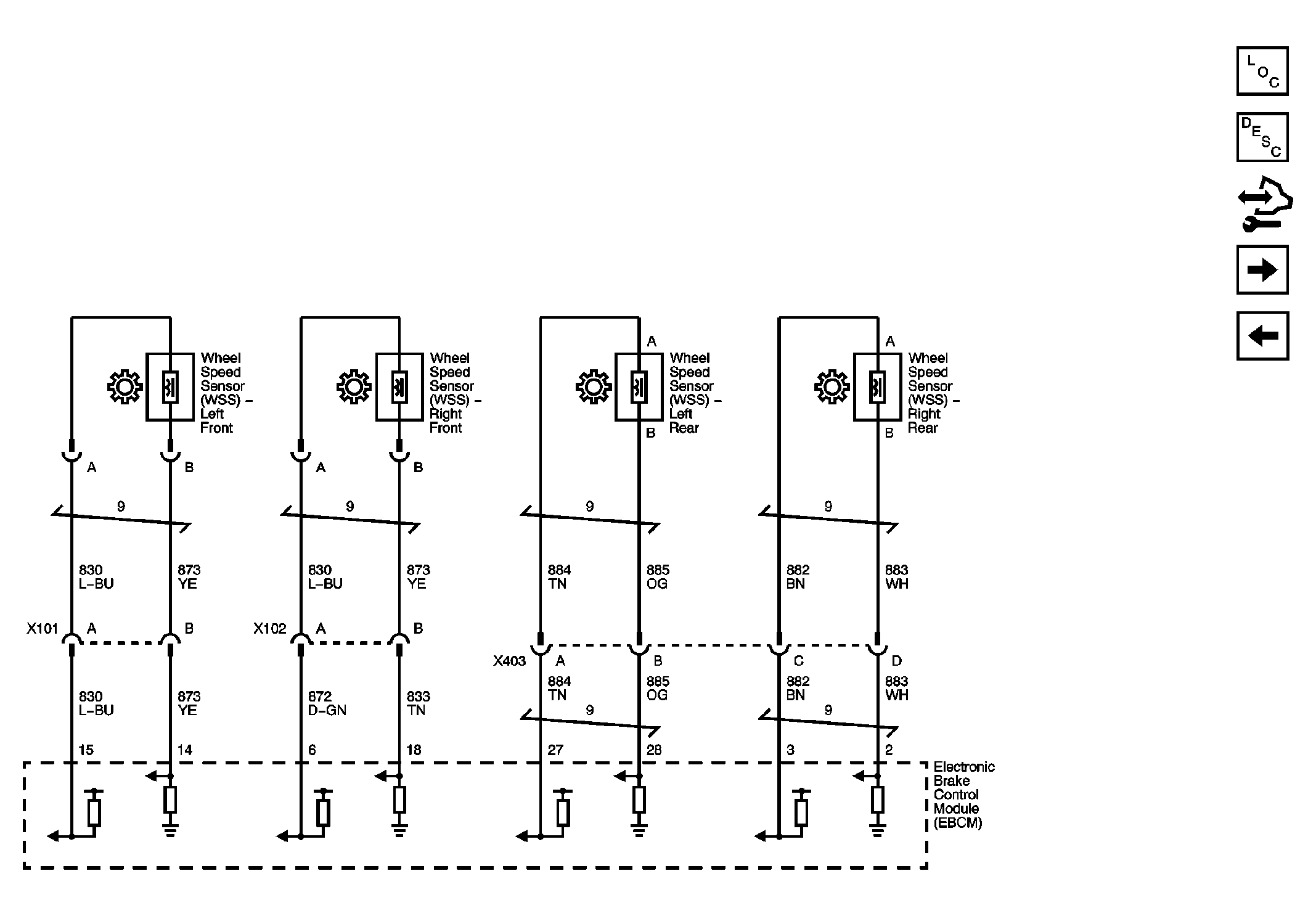

Fig 2: Wheel Speed Sensors
GM2253257Courtesy of GENERAL MOTORS CORP.
Fig 3: Sensors
GM2253258Courtesy of GENERAL MOTORS CORP.
