Schematic & Routing Diagrams

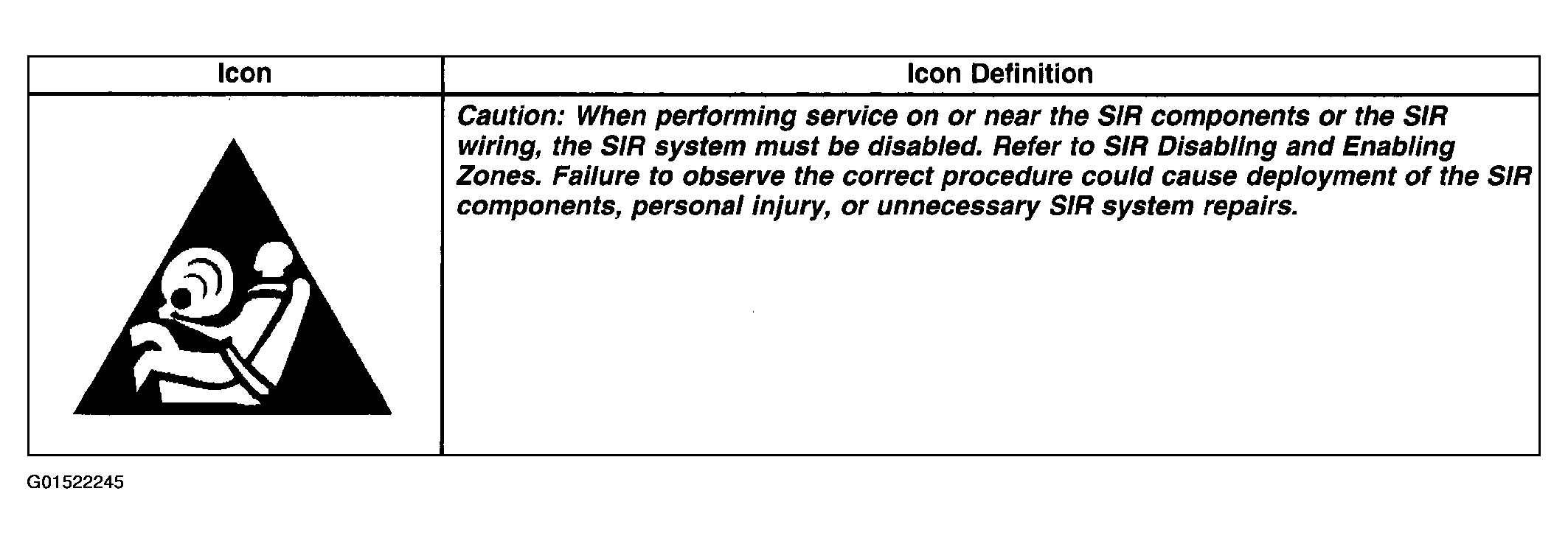

Fig 1: Example Of An Icon

G01522245

Courtesy of GENERAL MOTORS CORP.

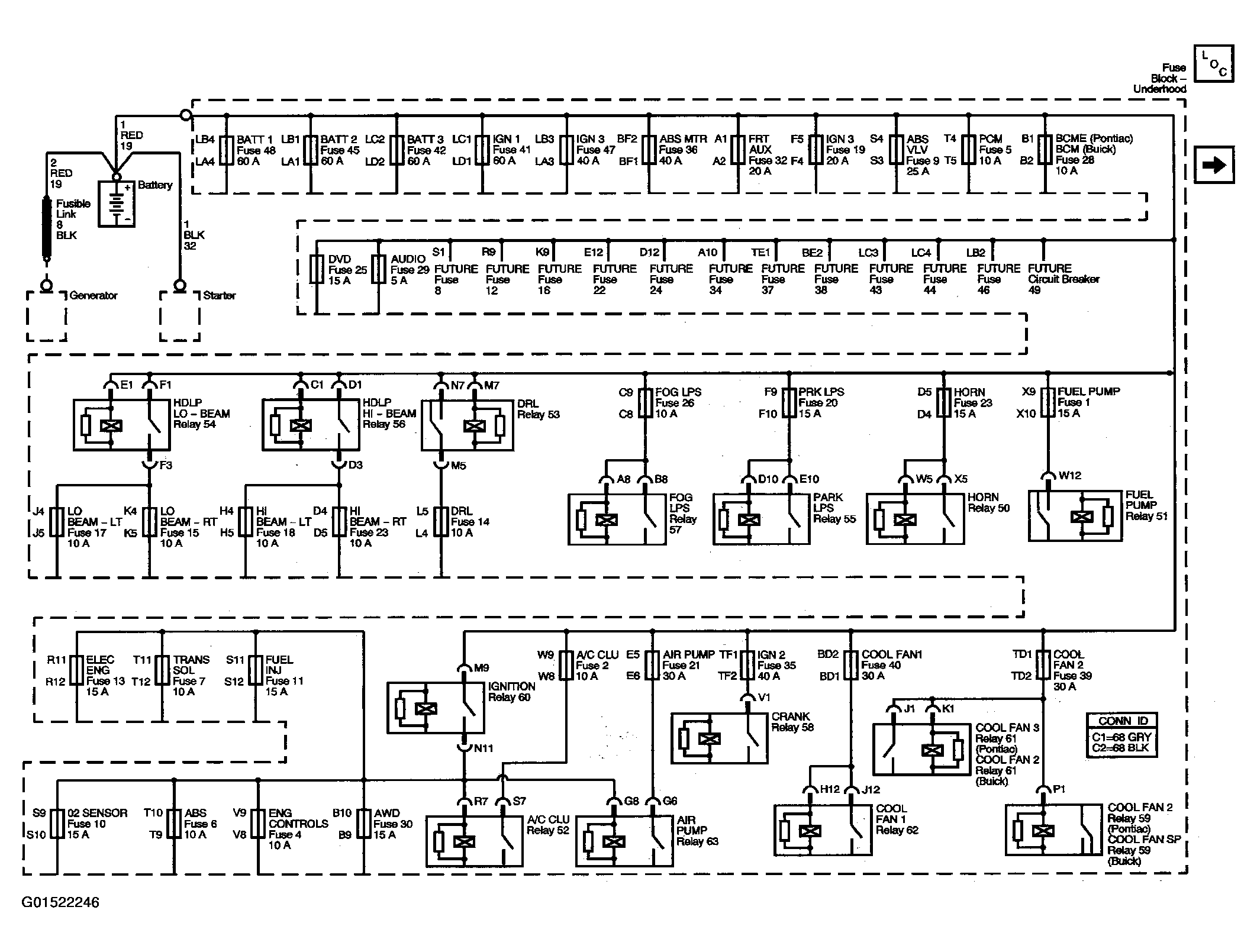

Fig 2: Power Distribution Schematic (1 Of 3)

G01522246

Courtesy of GENERAL MOTORS CORP.

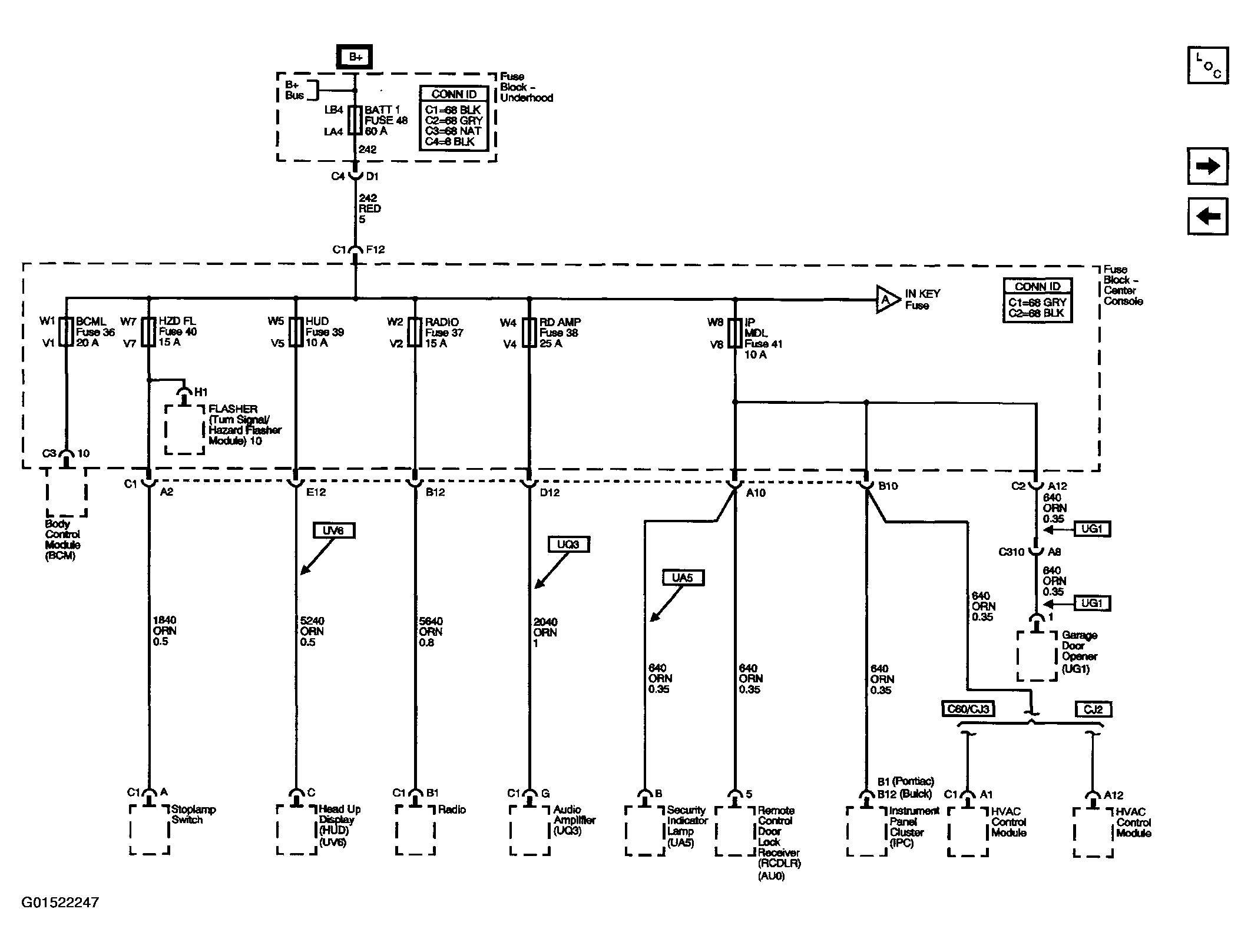

Fig 3: Power Distribution Schematic (2 Of 3)

G01522247

Courtesy of GENERAL MOTORS CORP.

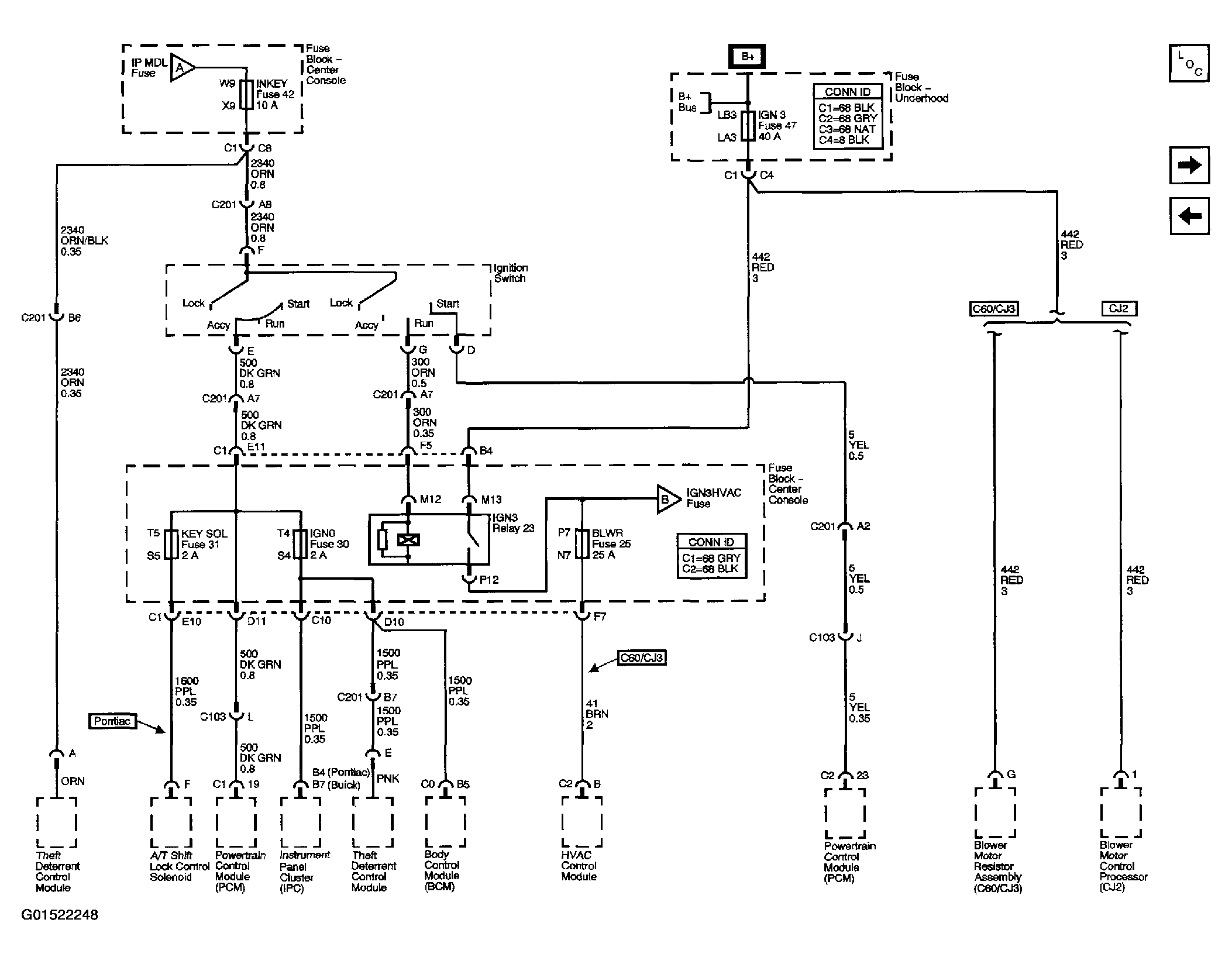

Fig 4: Power Distribution Schematic (3 Of 3)

G01522248

Courtesy of GENERAL MOTORS CORP.

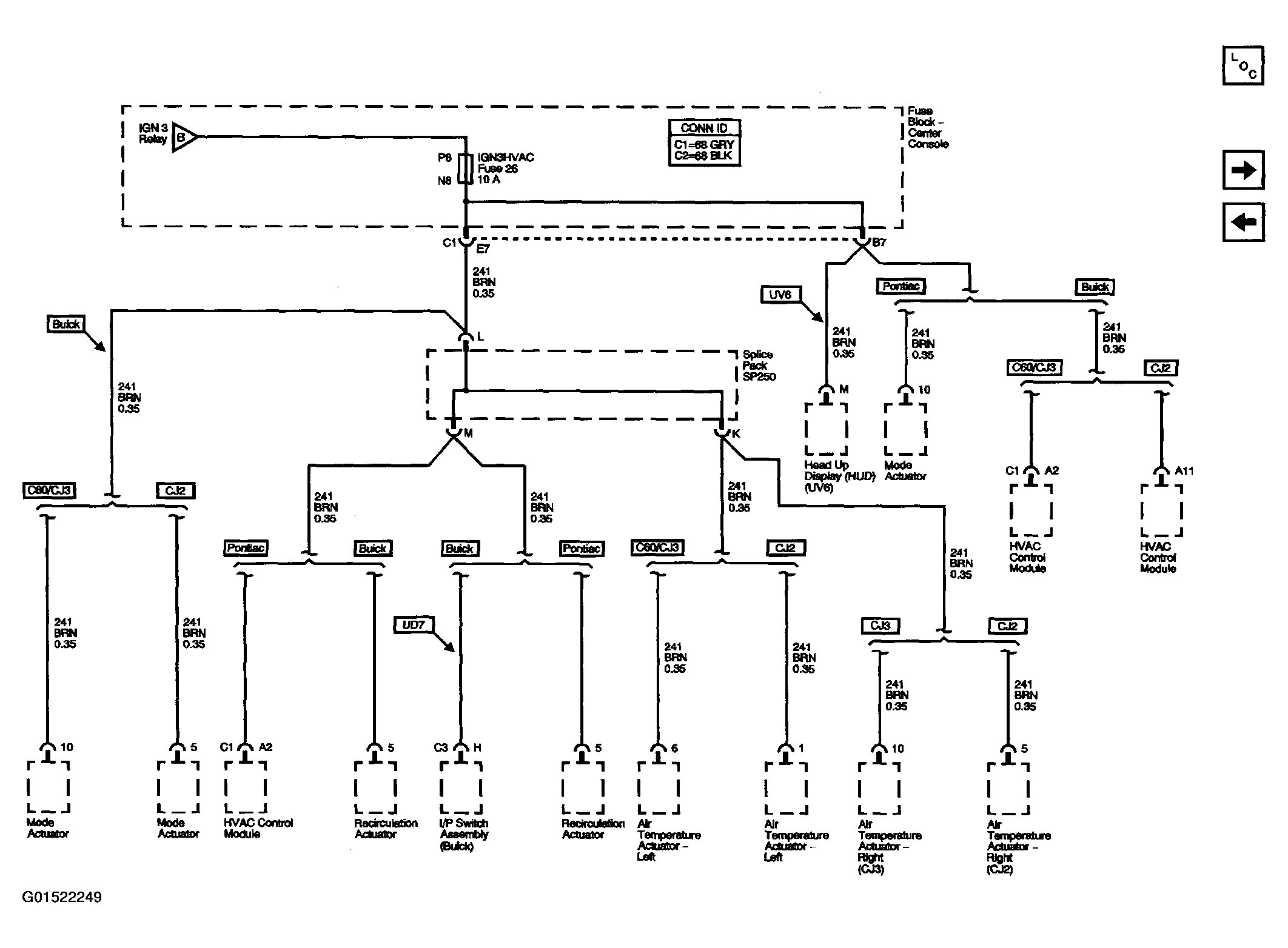

Fig 5: Power Distribution Schematic

G01522249

Courtesy of GENERAL MOTORS CORP.

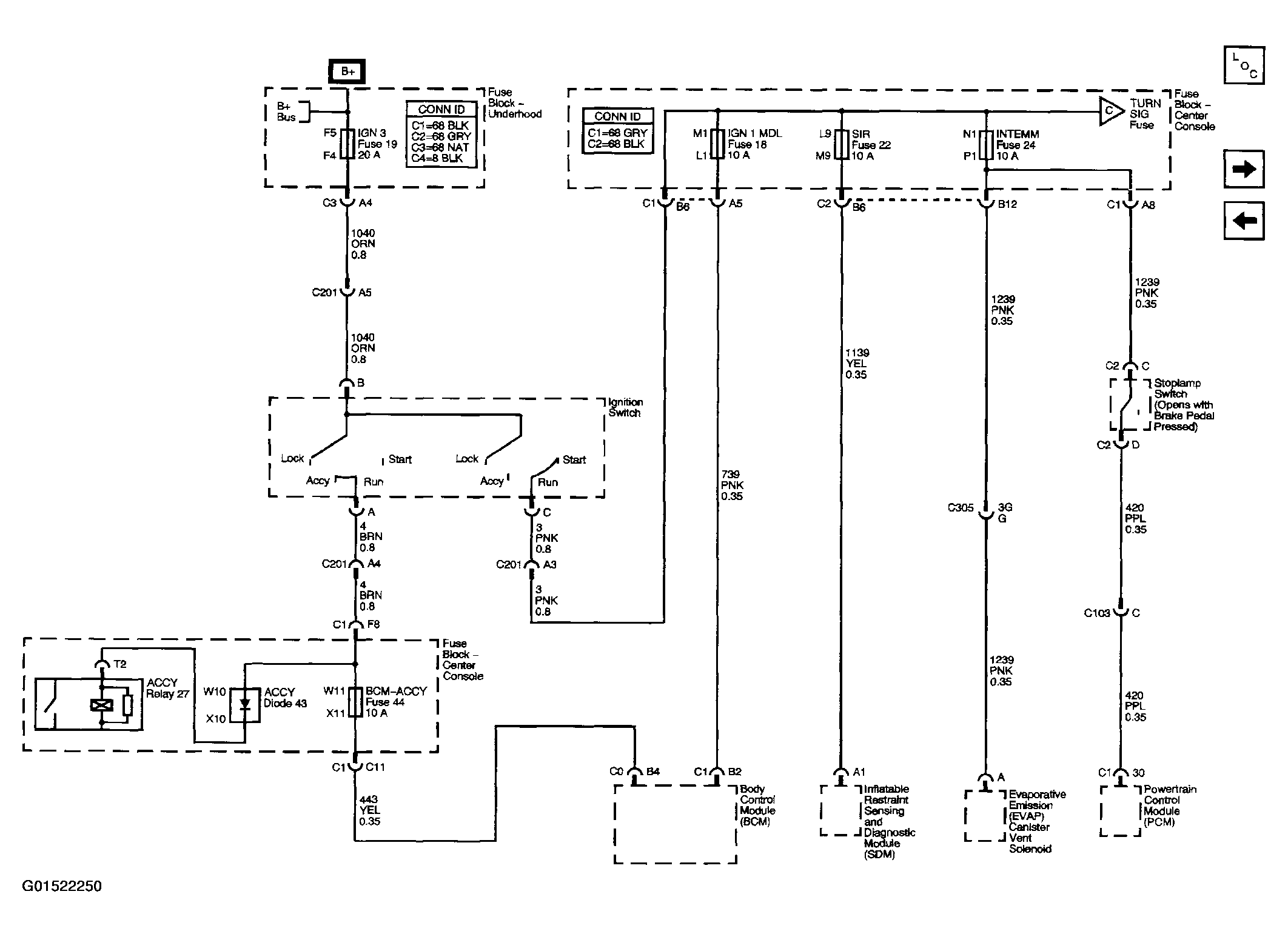

Fig 6: Power Distribution Schematic (1 Of 9)

G01522250

Courtesy of GENERAL MOTORS CORP.

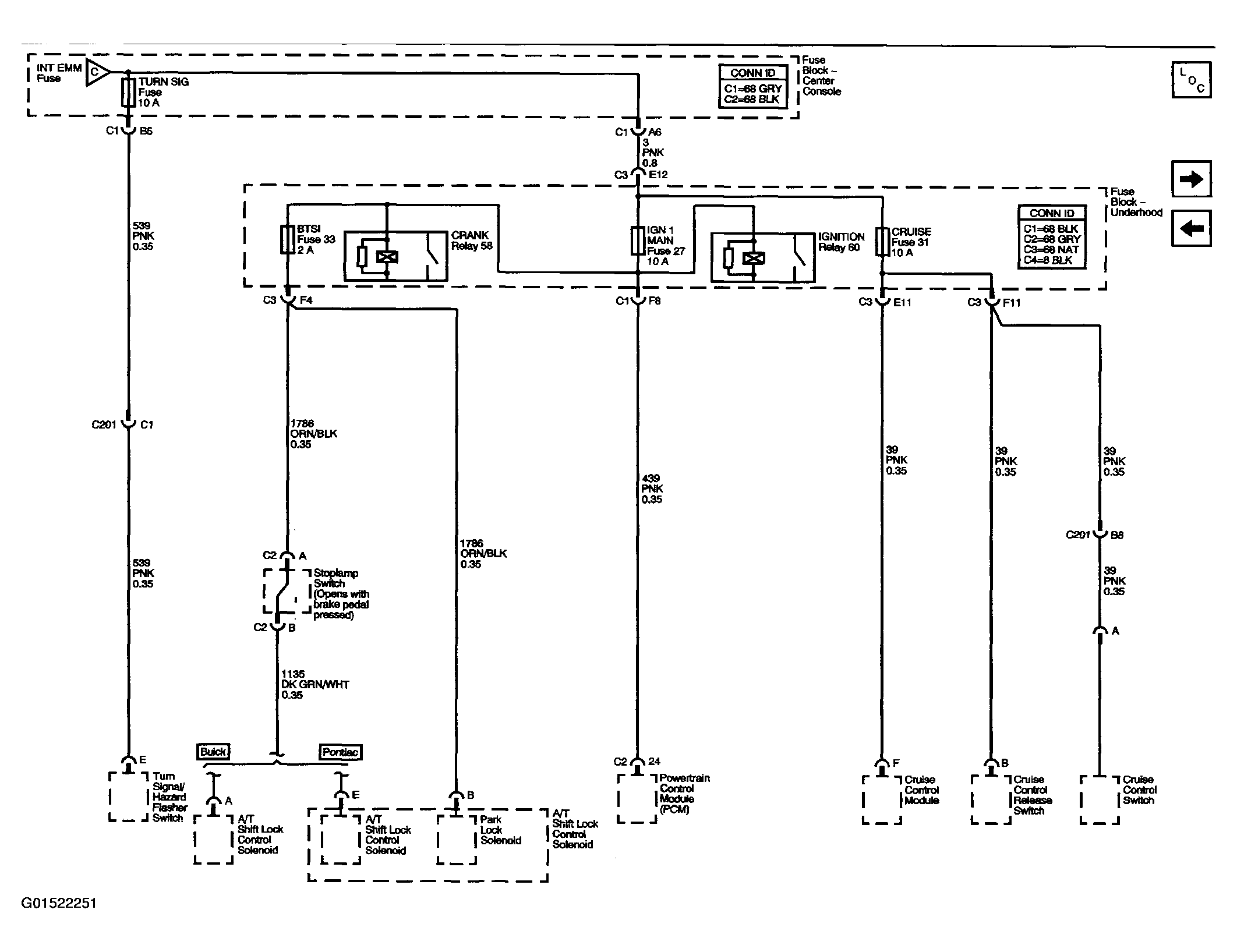

Fig 7: Power Distribution Schematic (2 Of 9)

G01522251

Courtesy of GENERAL MOTORS CORP.

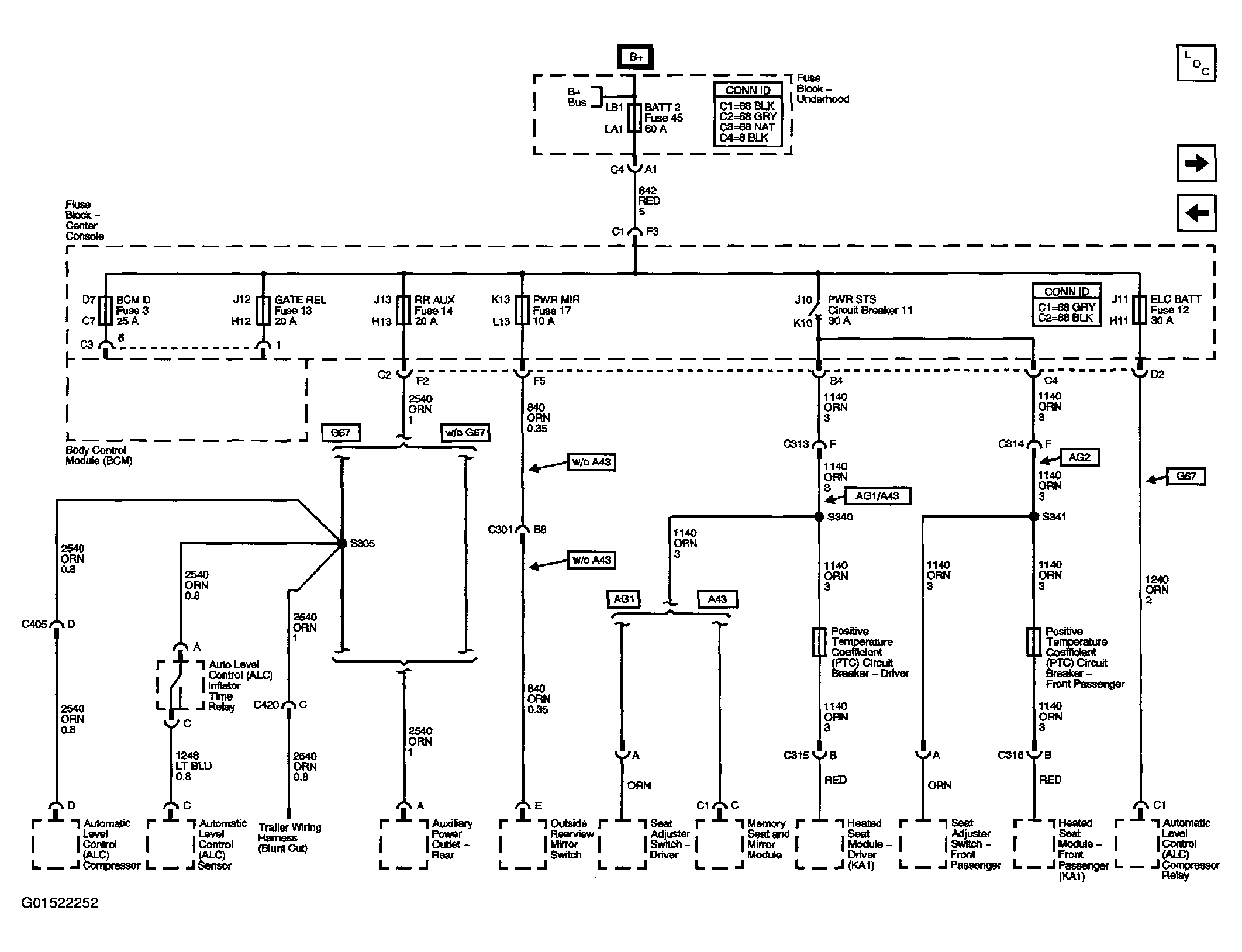

Fig 8: Power Distribution Schematic (3 Of 9)

G01522252

Courtesy of GENERAL MOTORS CORP.

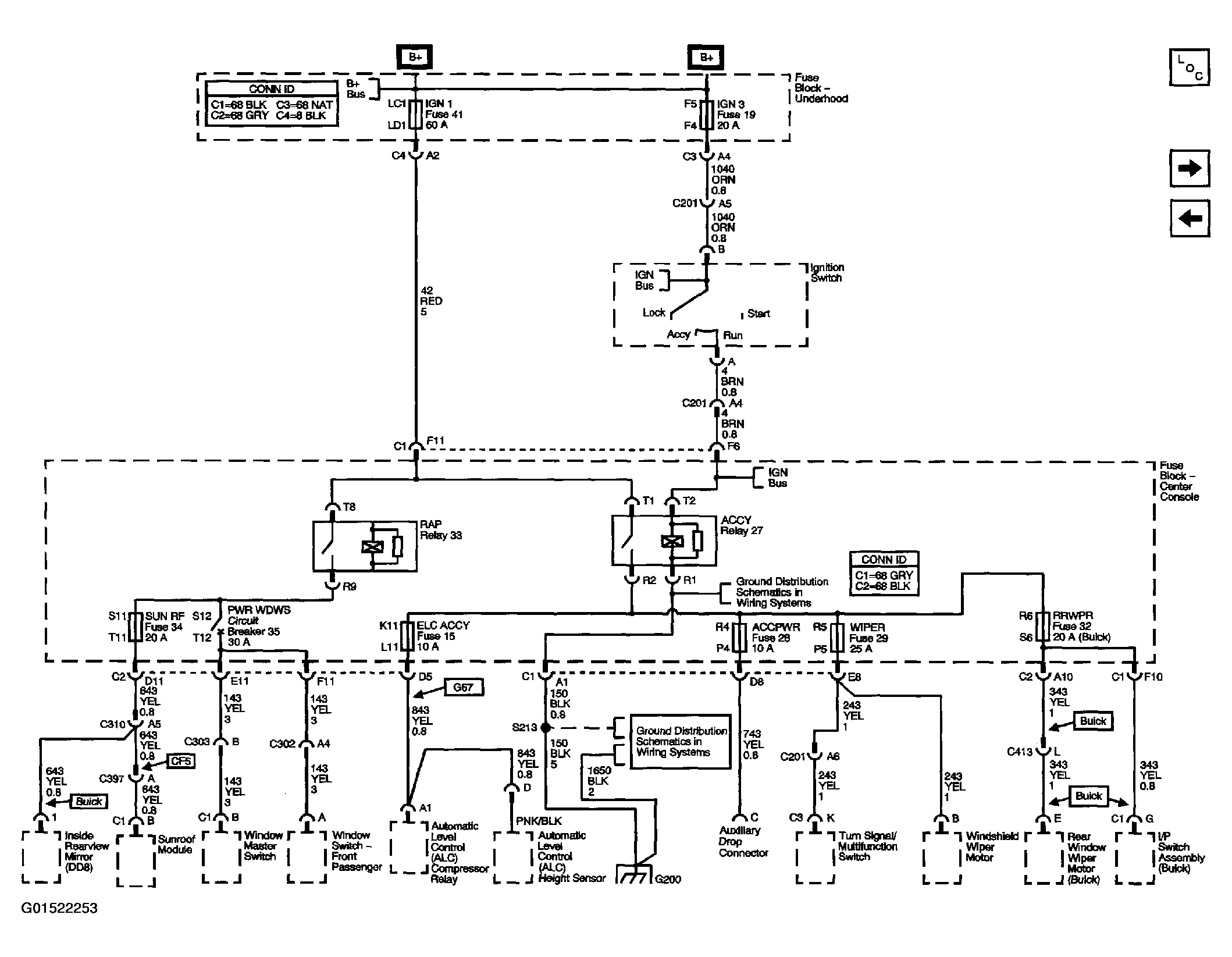

Fig 9: Power Distribution Schematic (4 Of 9)

G01522253

Courtesy of GENERAL MOTORS CORP.

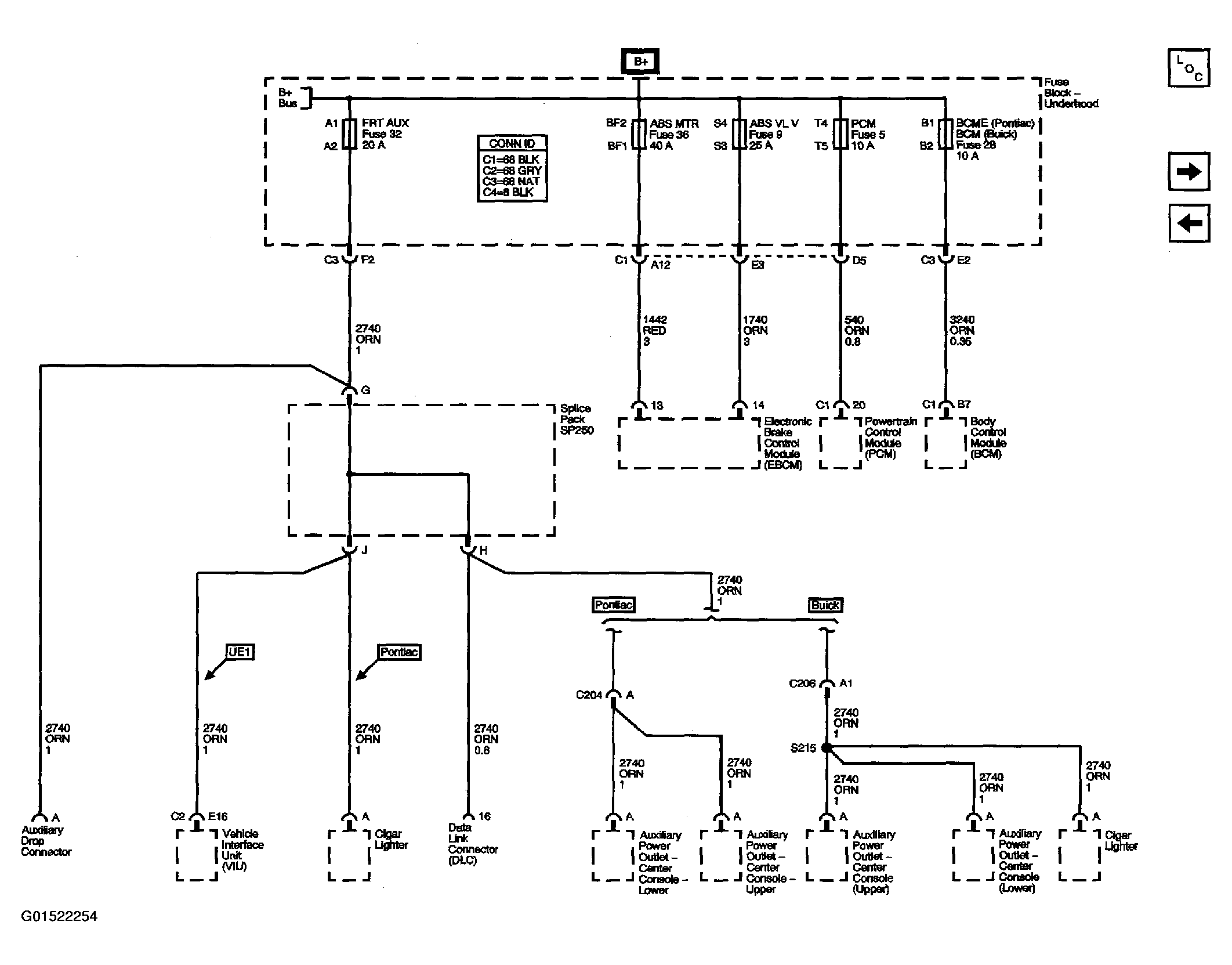

Fig 10: Power Distribution Schematic (5 Of 9)

G01522254

Courtesy of GENERAL MOTORS CORP.

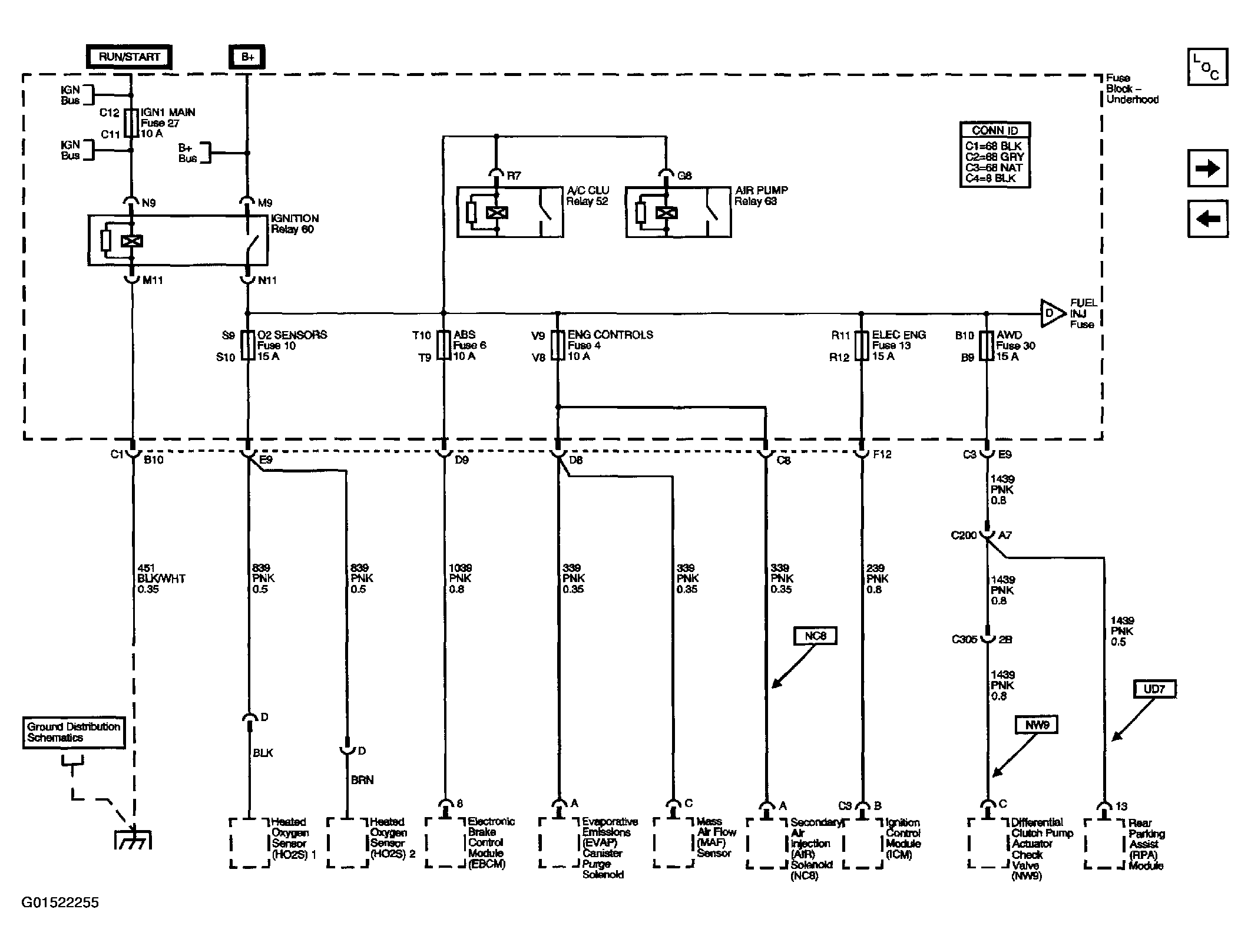

Fig 11: Power Distribution Schematic (6 Of 9)

G01522255

Courtesy of GENERAL MOTORS CORP.

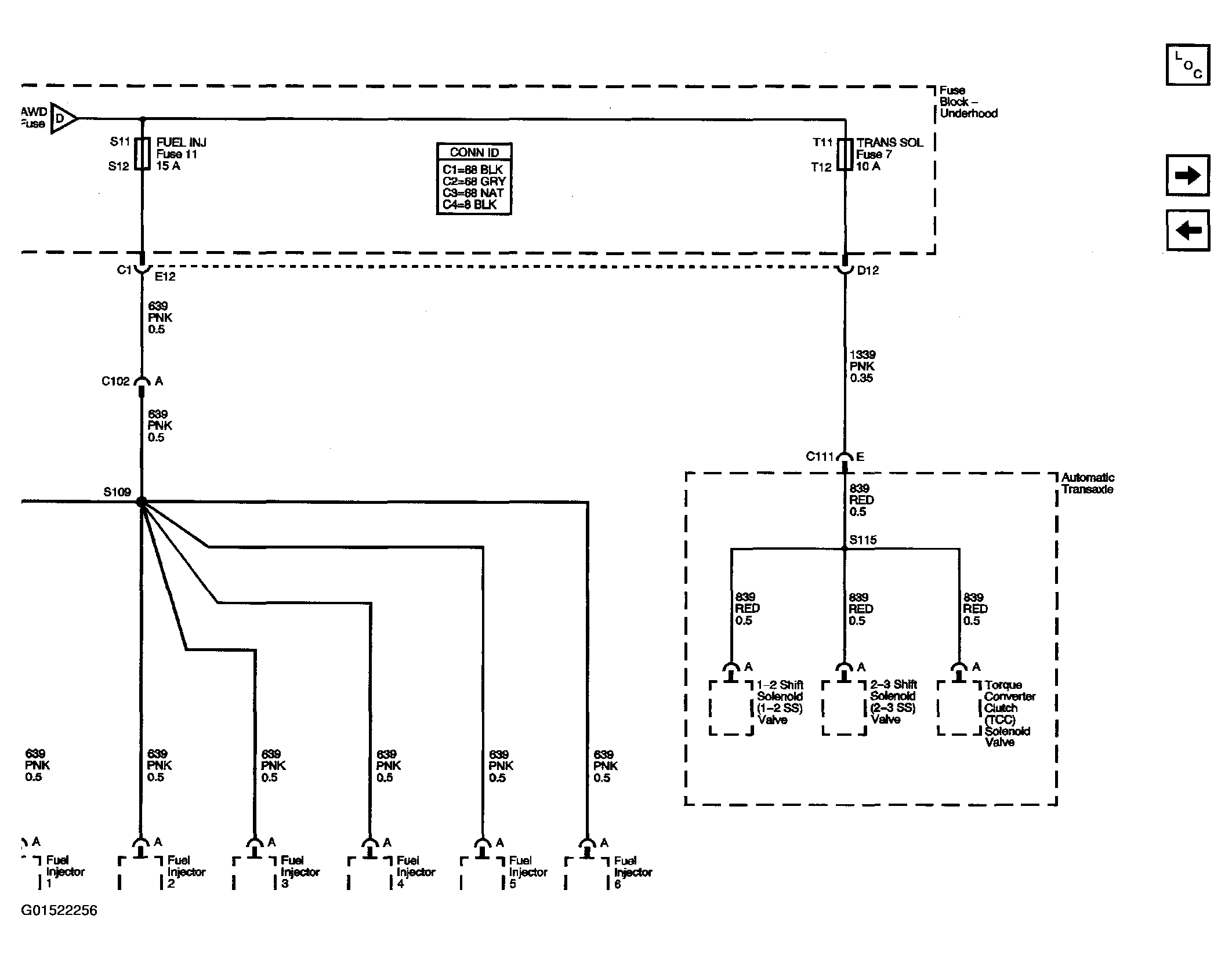

Fig 12: Power Distribution Schematic (7 Of 9)

G01522256

Courtesy of GENERAL MOTORS CORP.

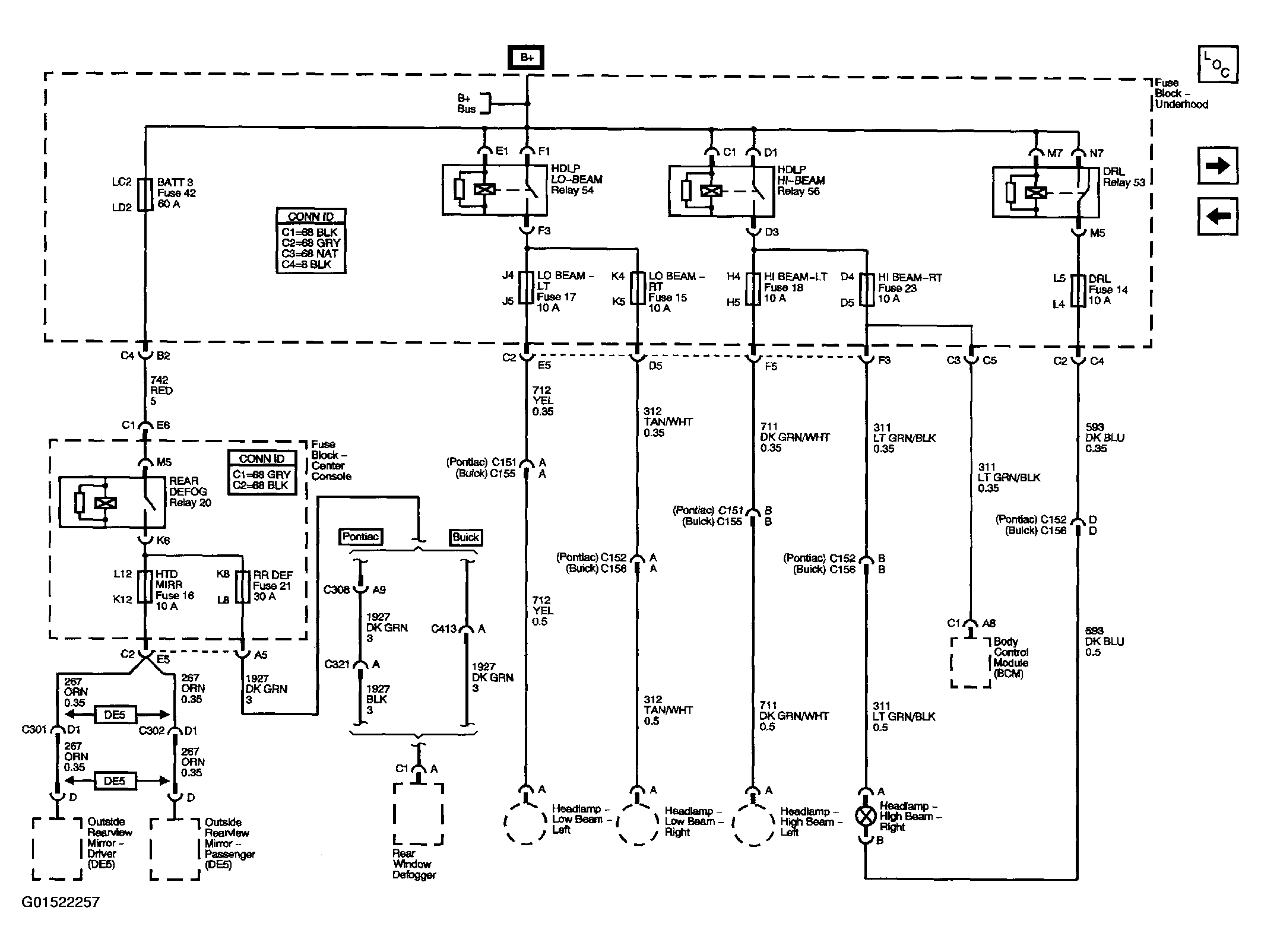

Fig 13: Power Distribution Schematic (8 Of 9)

G01522257

Courtesy of GENERAL MOTORS CORP.

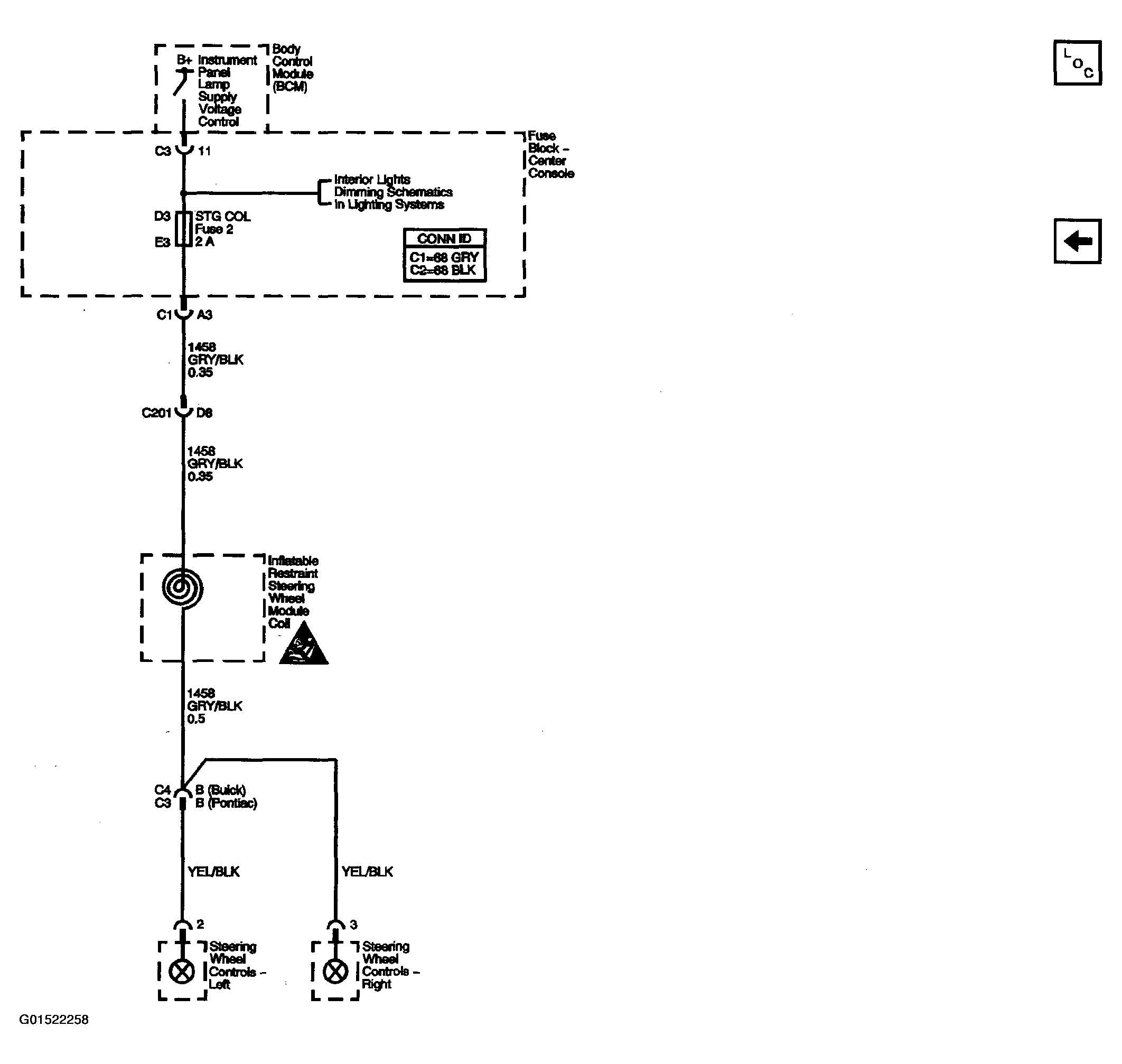

Fig 14: Power Distribution Schematic (9 Of 9)

G01522258

Courtesy of GENERAL MOTORS CORP.

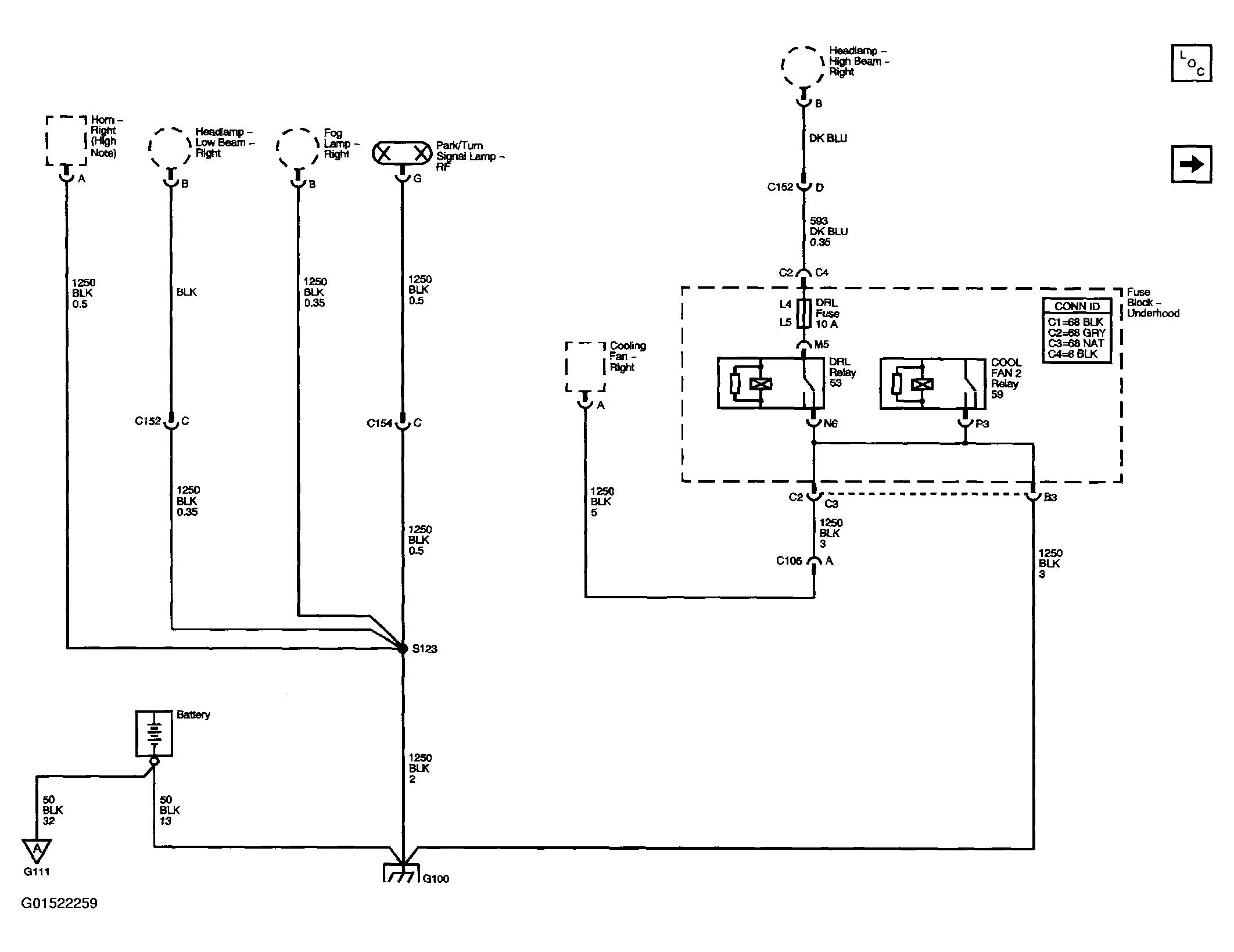

Fig 15: Ground Distribution Schematics (Ground G100 - Pontiac)

G01522259

Courtesy of GENERAL MOTORS CORP.

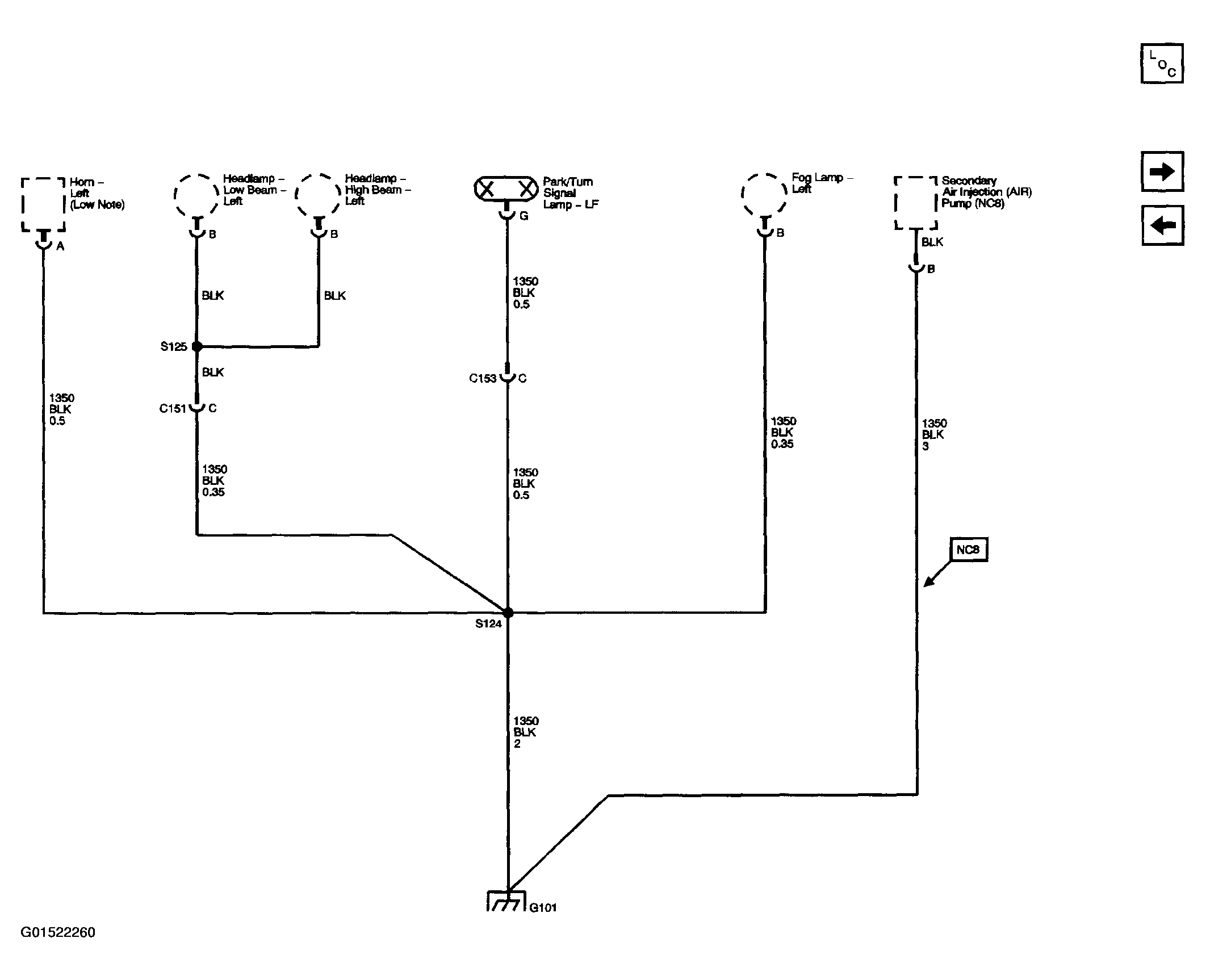

Fig 16: Ground Distribution Schematics (Ground G101 - Pontiac)

G01522260

Courtesy of GENERAL MOTORS CORP.

Fig 17: Ground Distribution Schematics (Ground G111 - Pontiac)

G01522261

Courtesy of GENERAL MOTORS CORP.

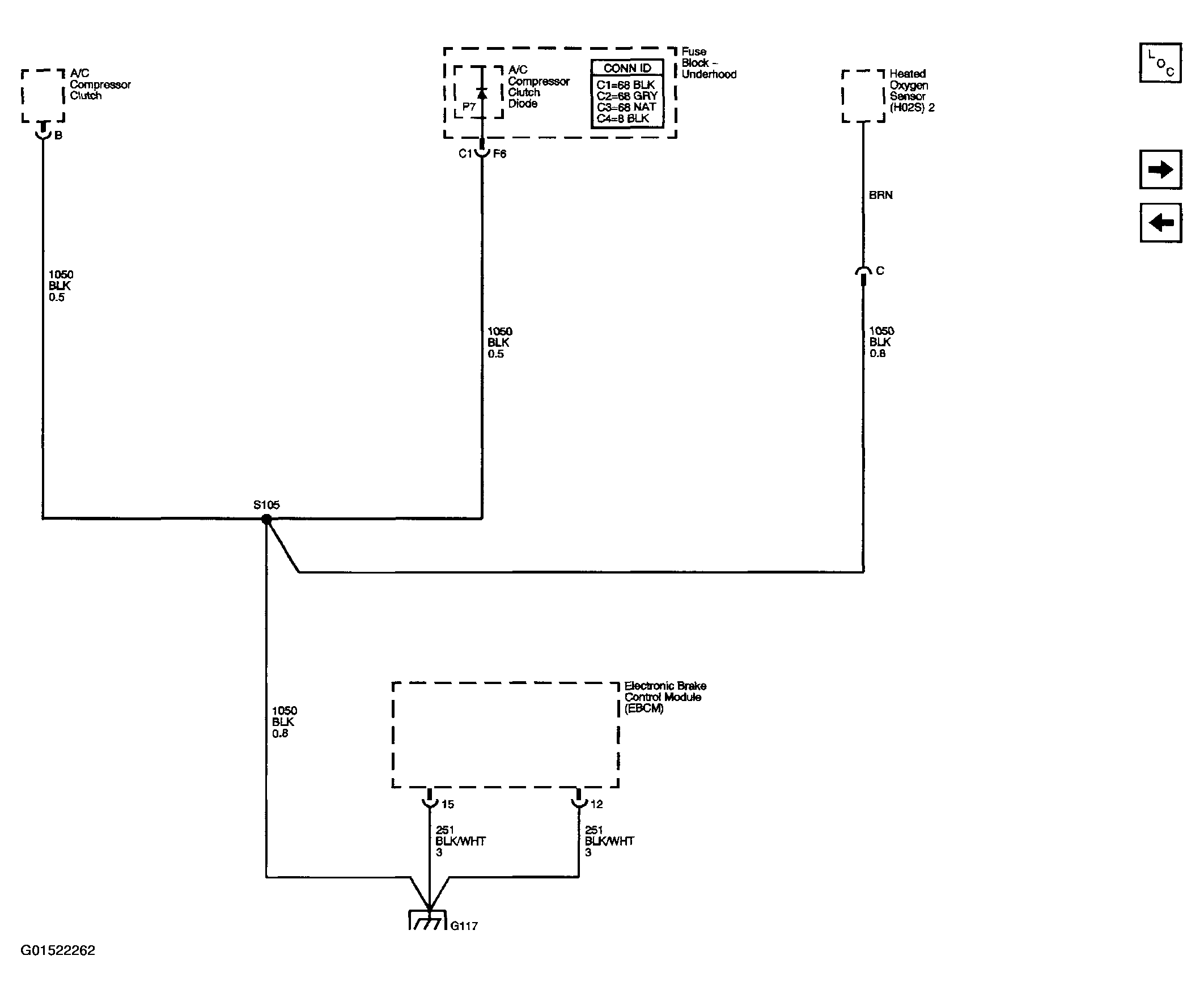

Fig 18: Ground Distribution Schematic (Ground G117 - Pontiac)

G01522262

Courtesy of GENERAL MOTORS CORP.

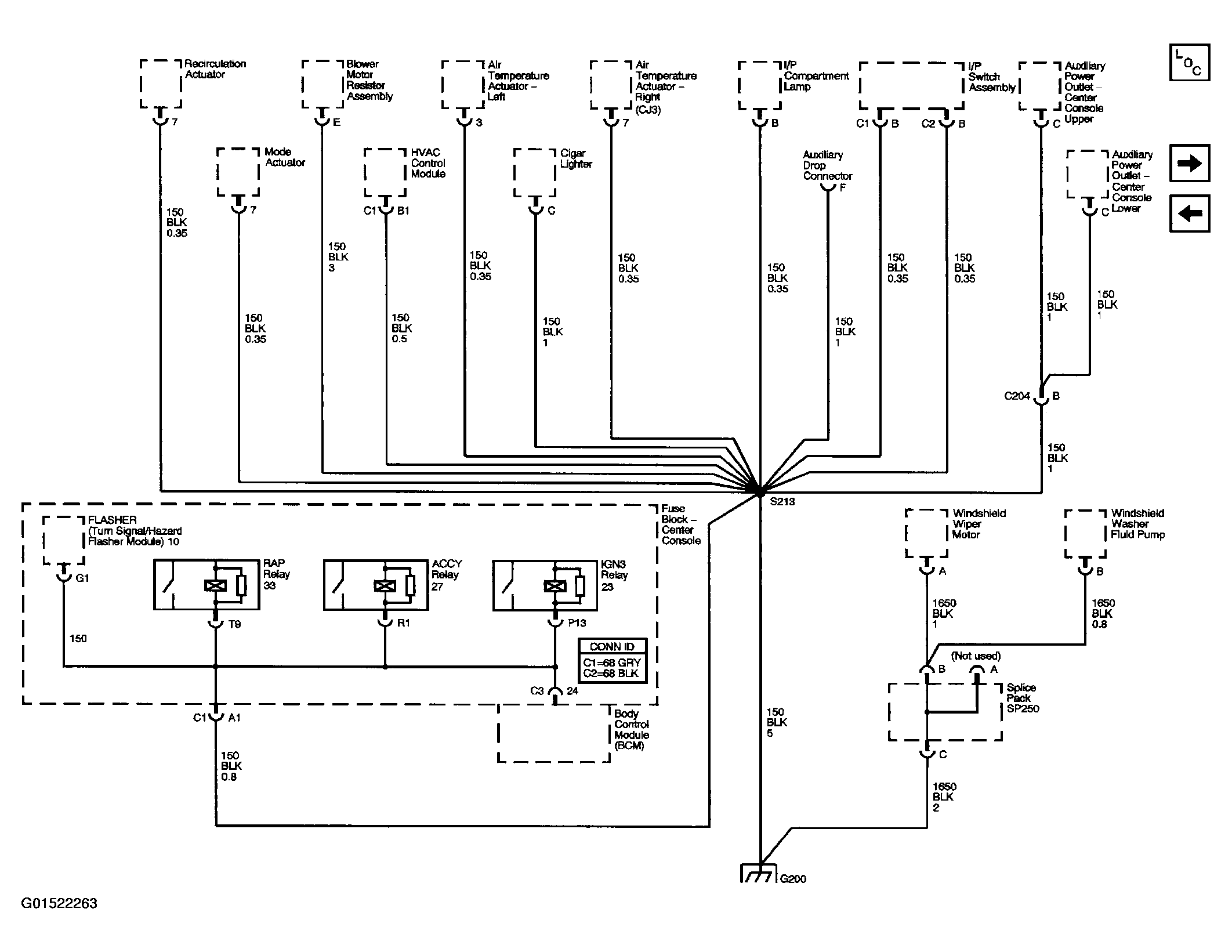

Fig 19: Ground Distribution Schematic (Ground G200 - Pontiac)

G01522263

Courtesy of GENERAL MOTORS CORP.

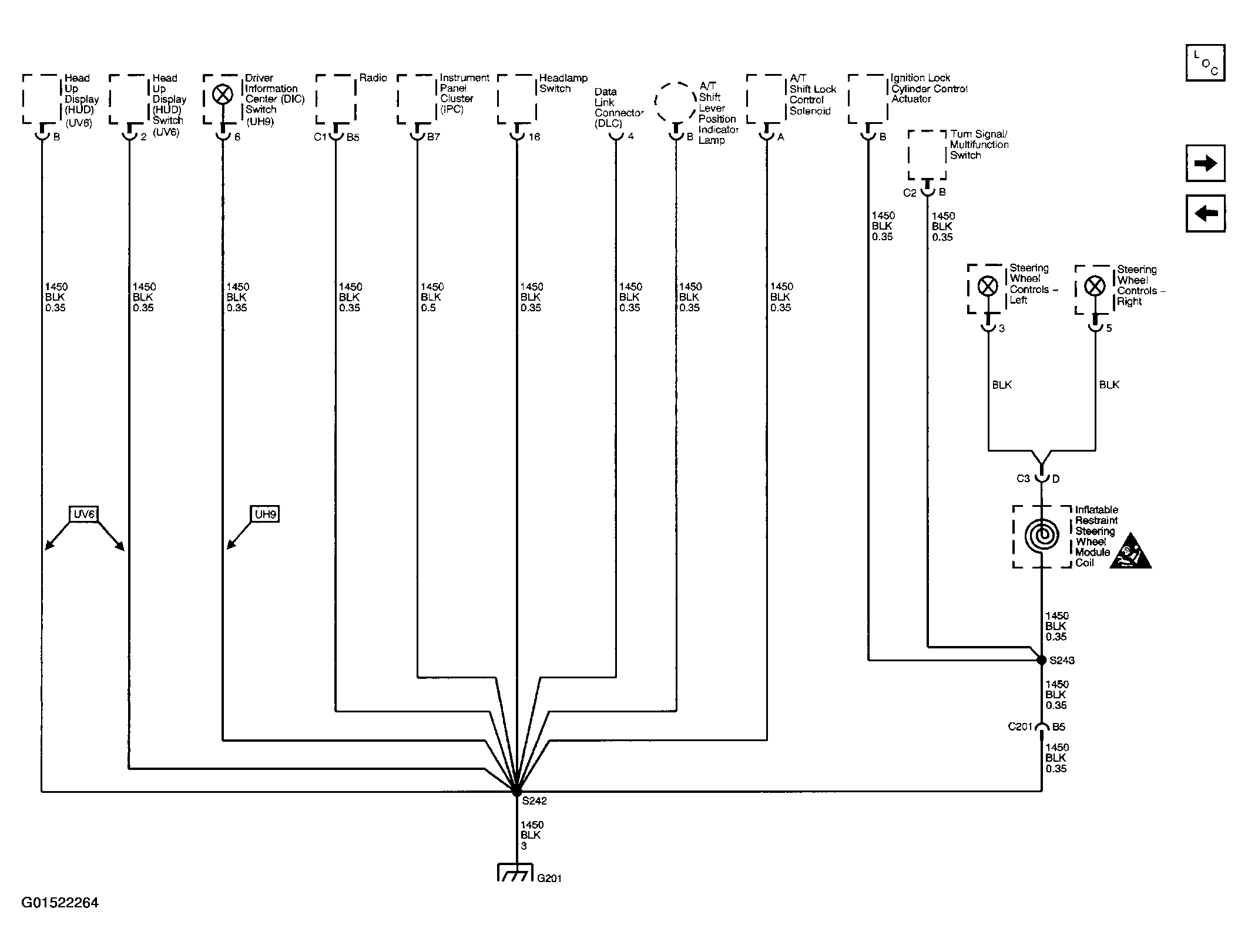

Fig 20: Ground Distribution Schematic (Ground G201 - Pontiac)

G01522264

Courtesy of GENERAL MOTORS CORP.

Fig 21: Ground Distribution Schematic (Ground G202 - Pontiac)

G01522265

Courtesy of GENERAL MOTORS CORP.

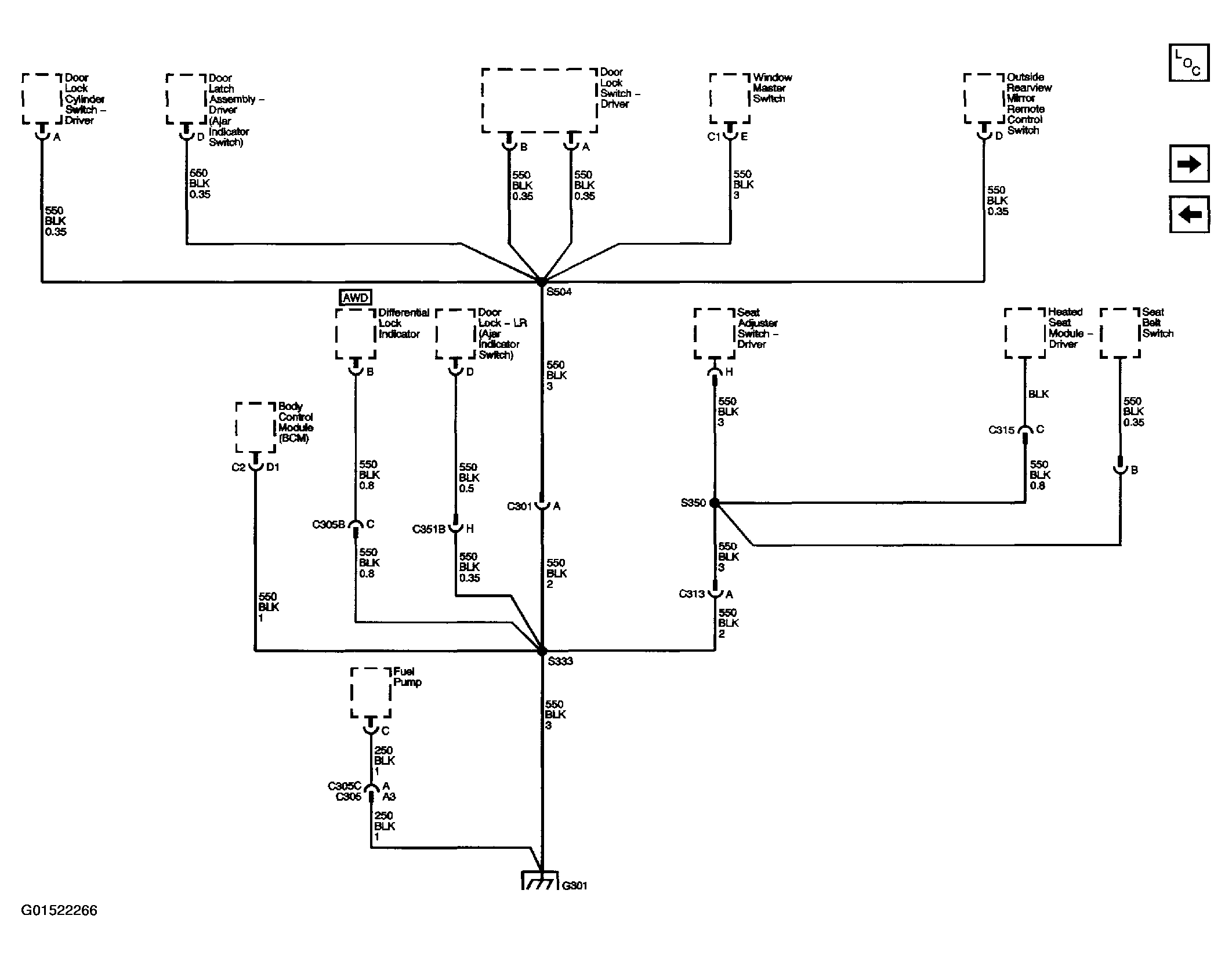

Fig 22: Ground Distribution Schematic (Ground G301 - Pontiac)

G01522266

Courtesy of GENERAL MOTORS CORP.

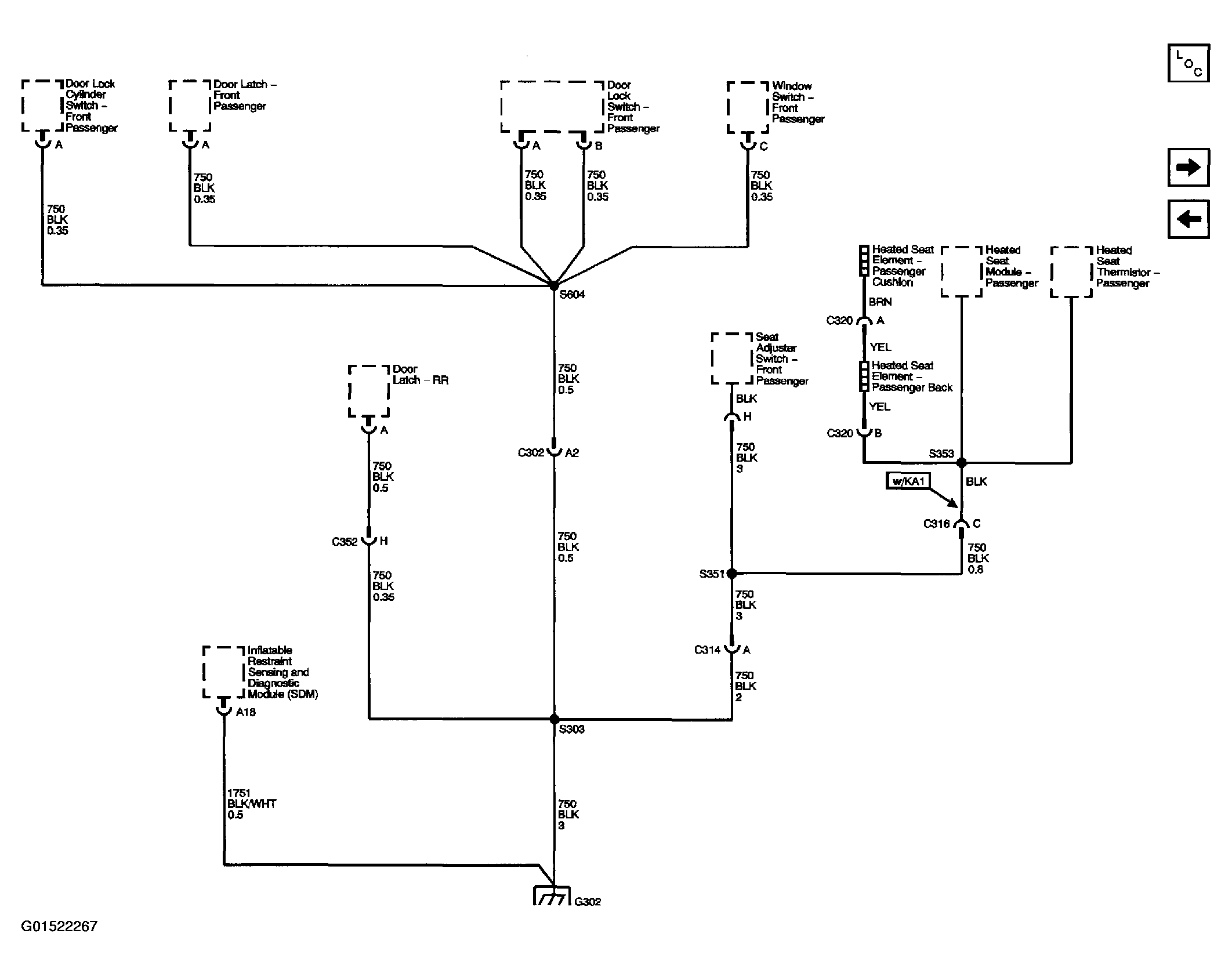

Fig 23: Ground Distribution Schematic (Ground G302 - Pontiac)

G01522267

Courtesy of GENERAL MOTORS CORP.

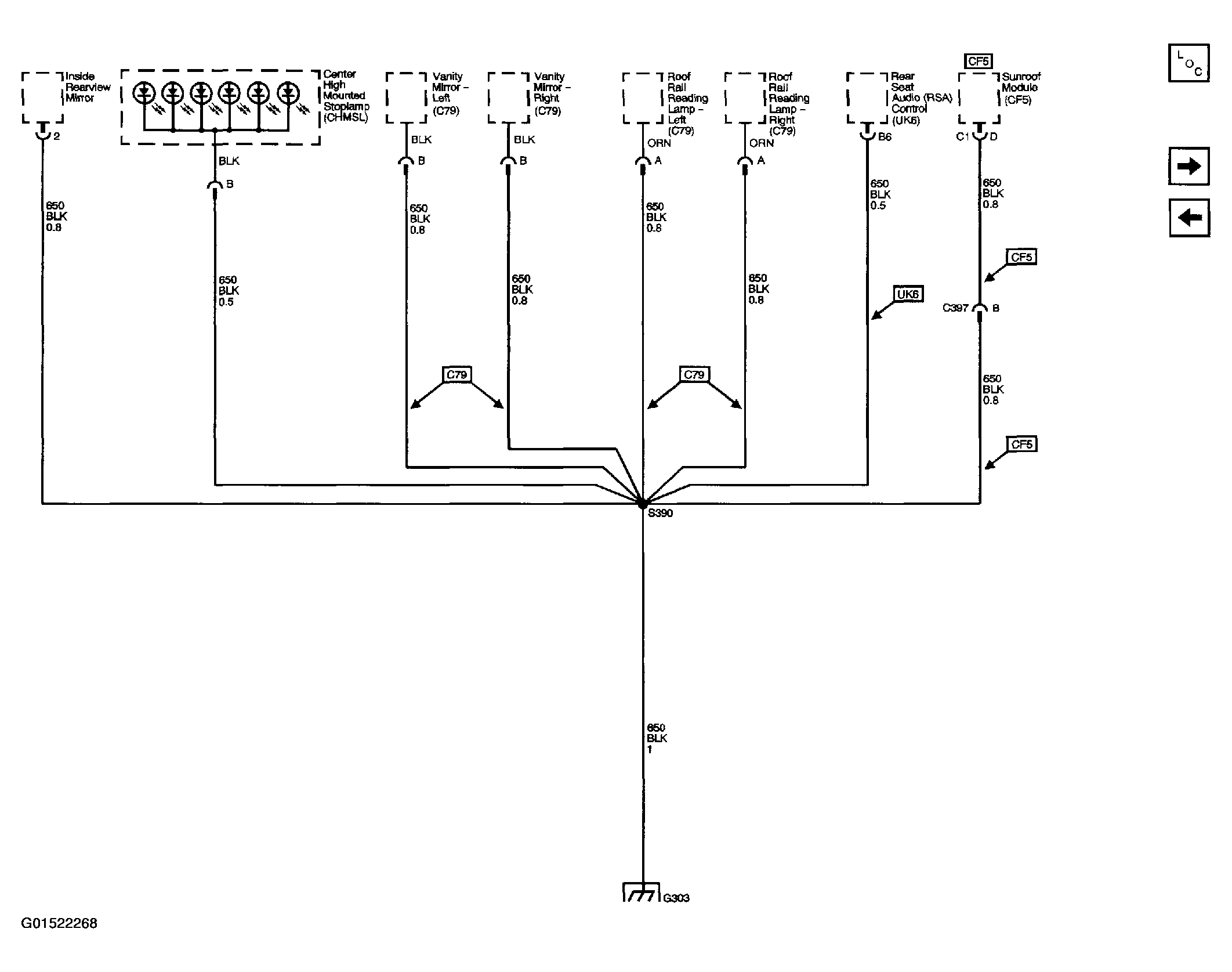

Fig 24: Ground Distribution Schematic (Ground G303 - Pontiac)

G01522268

Courtesy of GENERAL MOTORS CORP.

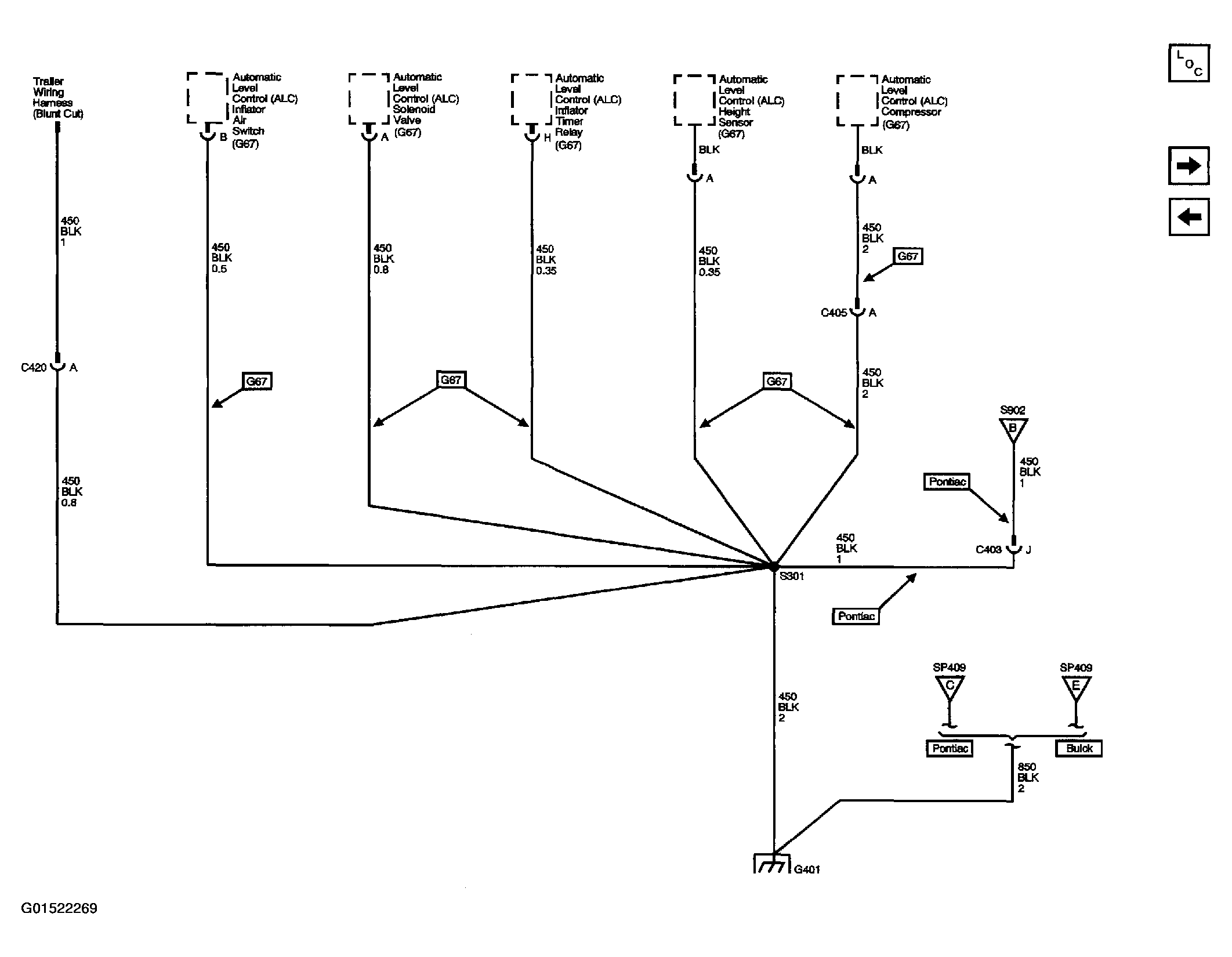

Fig 25: Ground Distribution Schematic (Ground G401 - Pontiac) (1 Of 2)

G01522269

Courtesy of GENERAL MOTORS CORP.

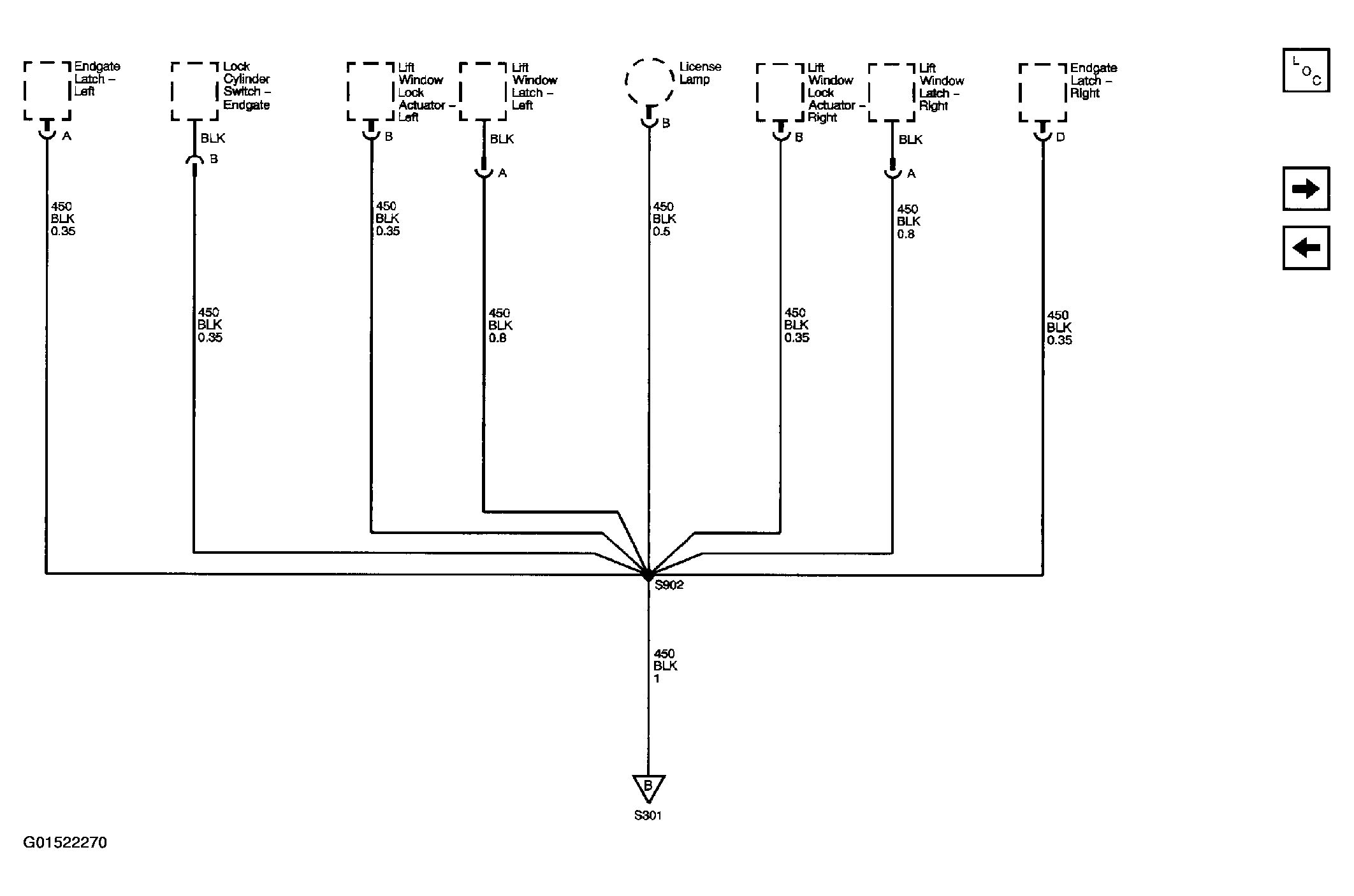

Fig 26: Ground Distribution Schematic (Ground G401 - Pontiac) (2 Of 2)

G01522270

Courtesy of GENERAL MOTORS CORP.

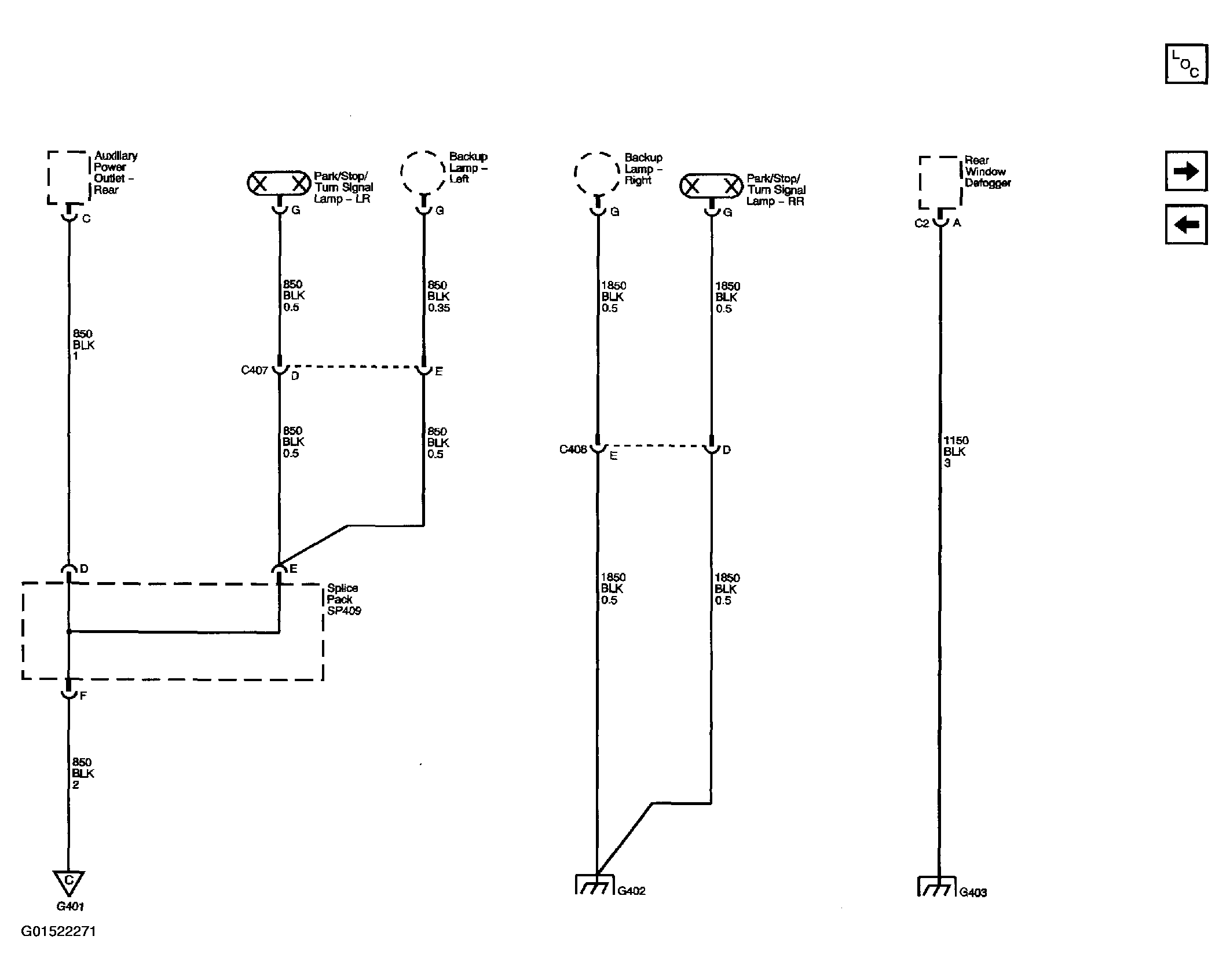

Fig 27: Ground Distribution Schematic (Ground G401, G402 & G403 - Pontiac)

G01522271

Courtesy of GENERAL MOTORS CORP.

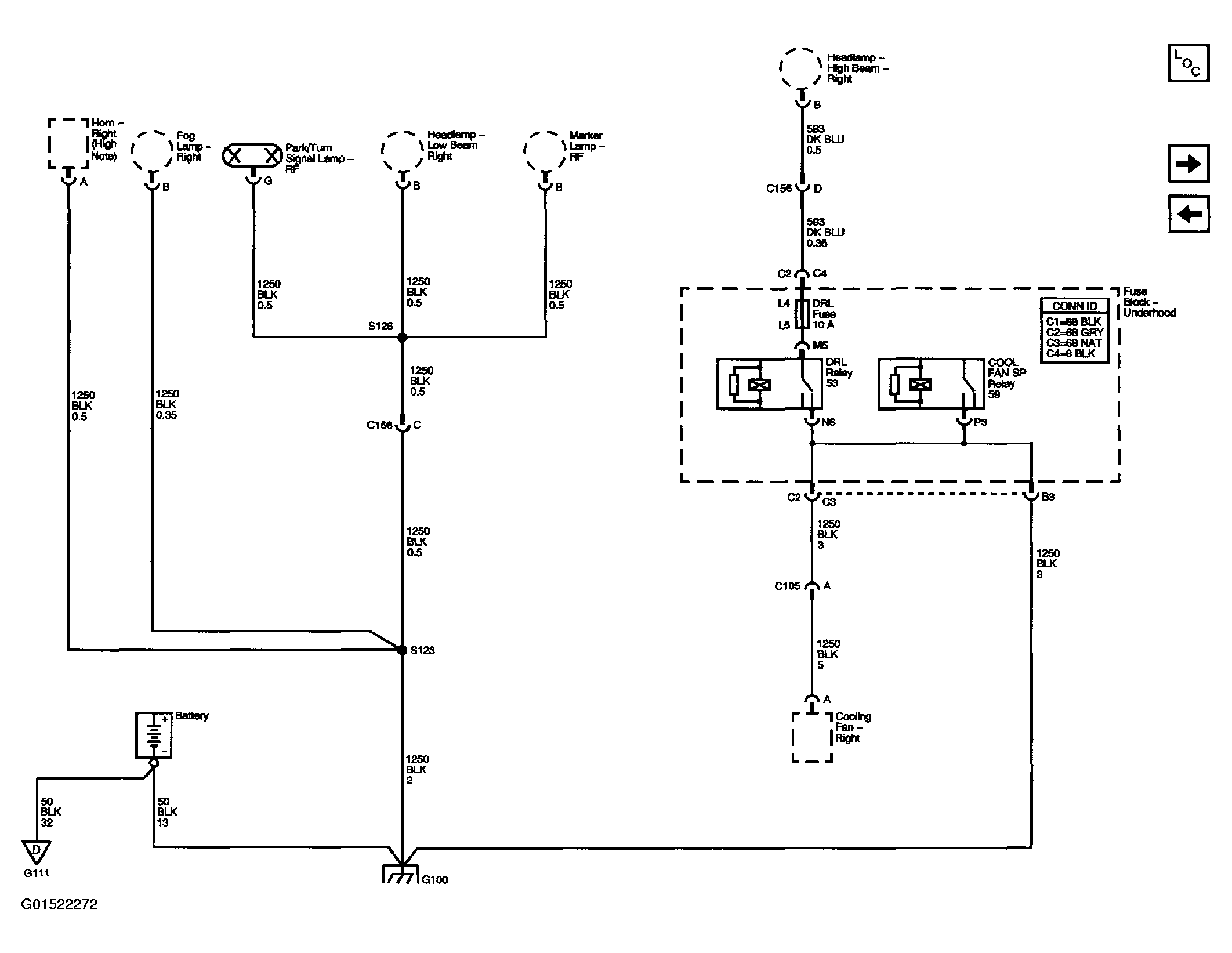

Fig 28: Ground Distribution Schematic (Ground G100 - Buick)

G01522272

Courtesy of GENERAL MOTORS CORP.

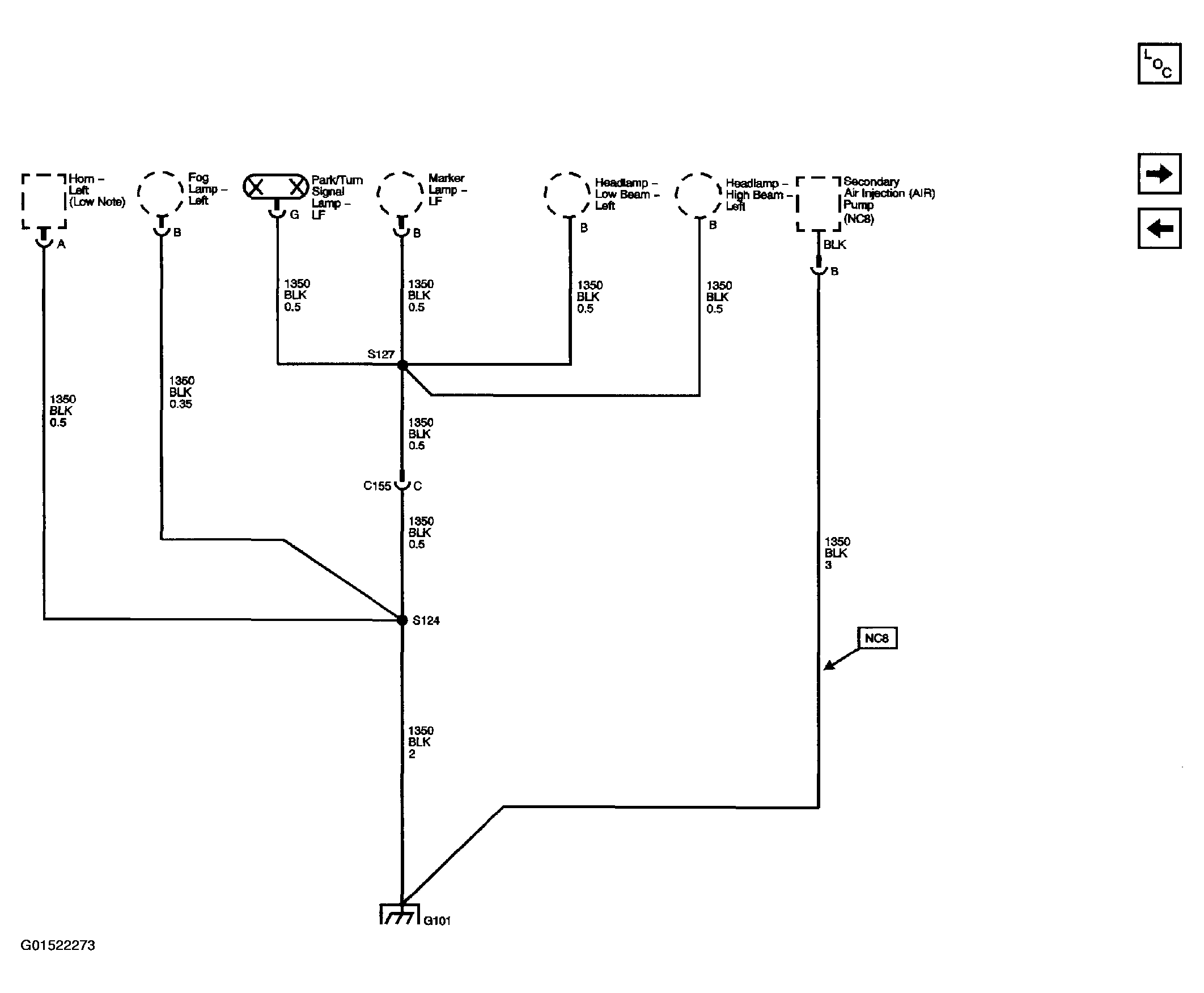

Fig 29: Ground Distribution Schematic (Ground G101 - Buick)

G01522273

Courtesy of GENERAL MOTORS CORP.

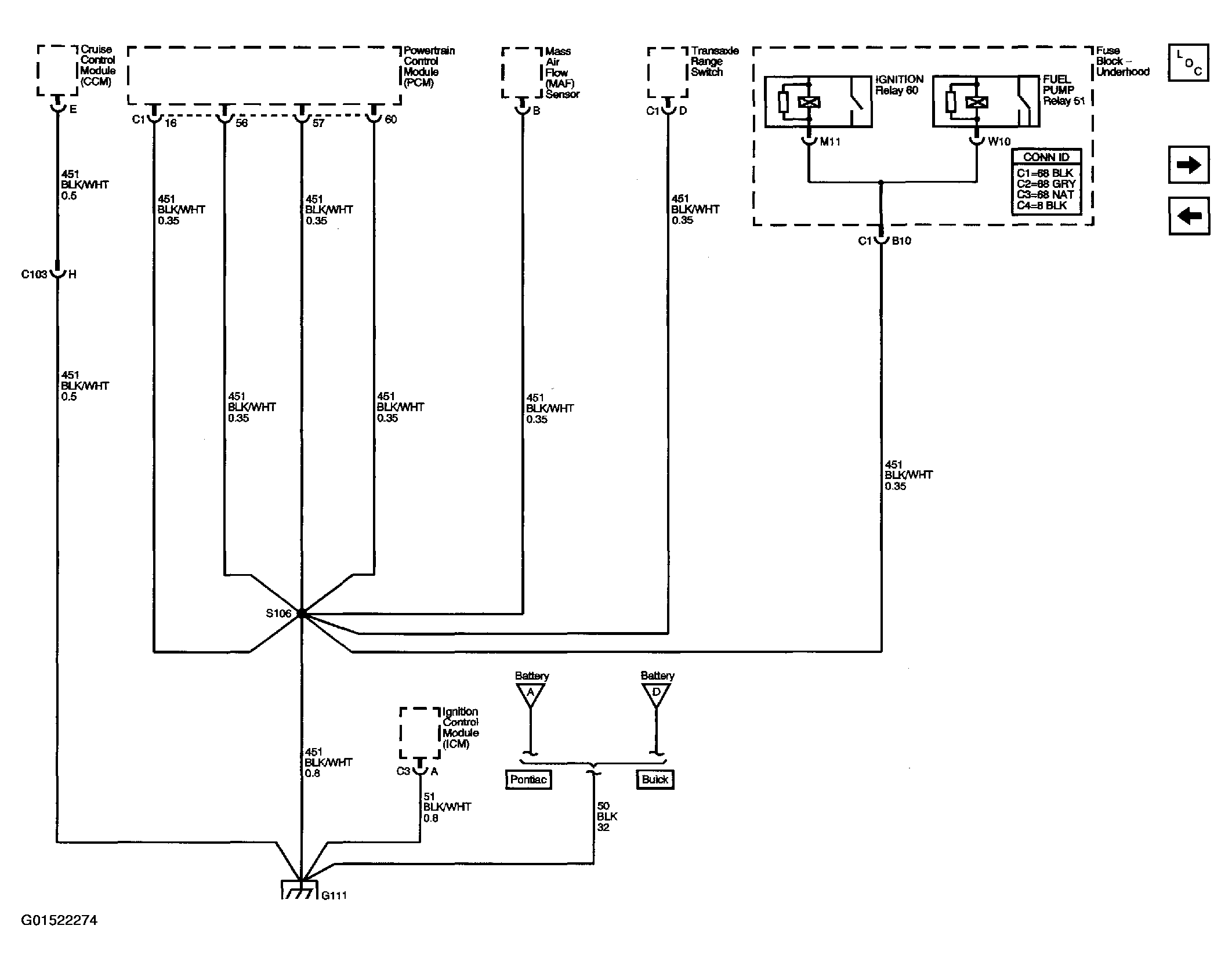

Fig 30: Ground Distribution Schematic (Ground G111 - Buick)

G01522274

Courtesy of GENERAL MOTORS CORP.

Fig 31: Ground Distribution Schematic (Ground G117 - Buick)

G01522275

Courtesy of GENERAL MOTORS CORP.

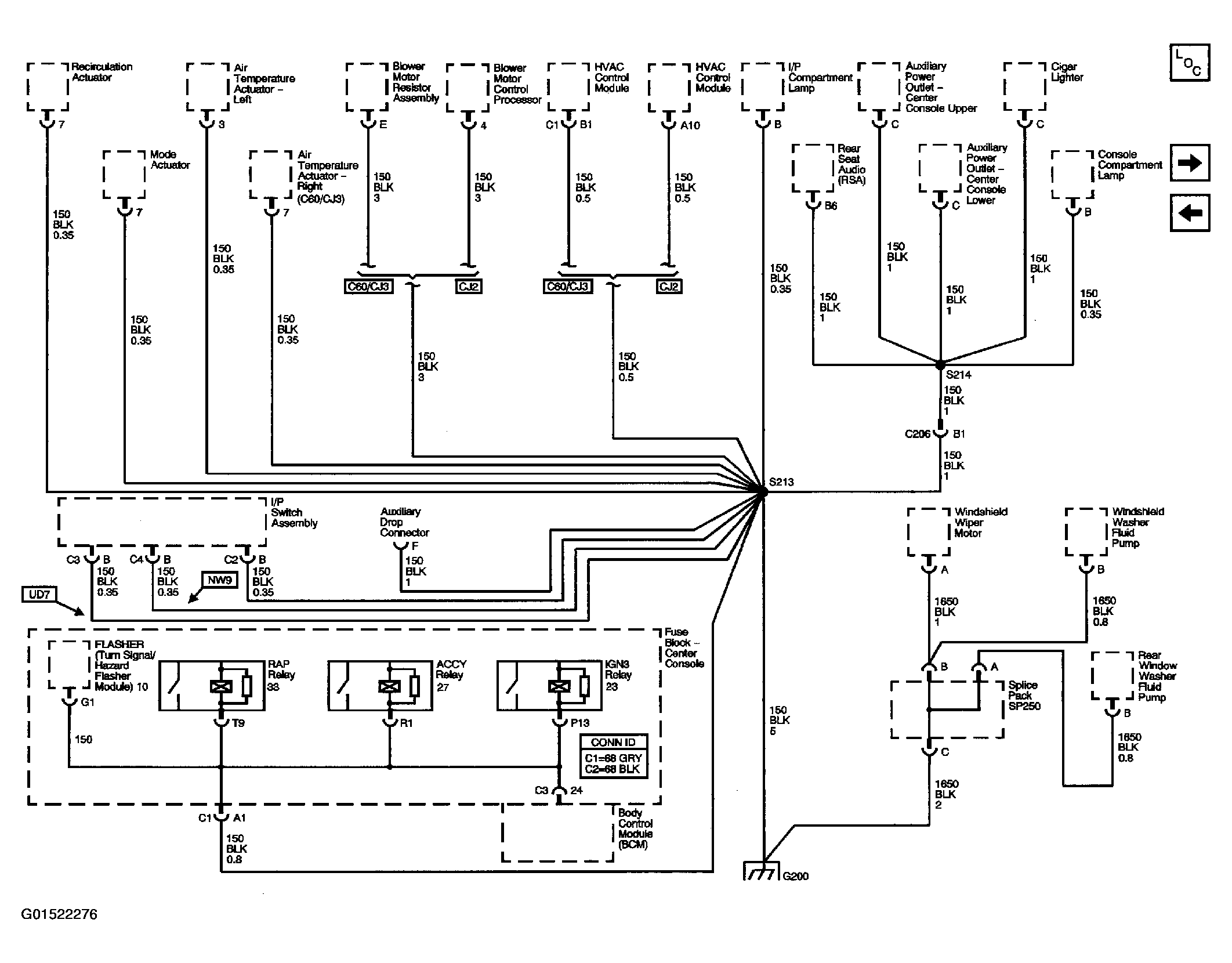

Fig 32: Ground Distribution Schematic (Ground G200 - Buick)

G01522276

Courtesy of GENERAL MOTORS CORP.

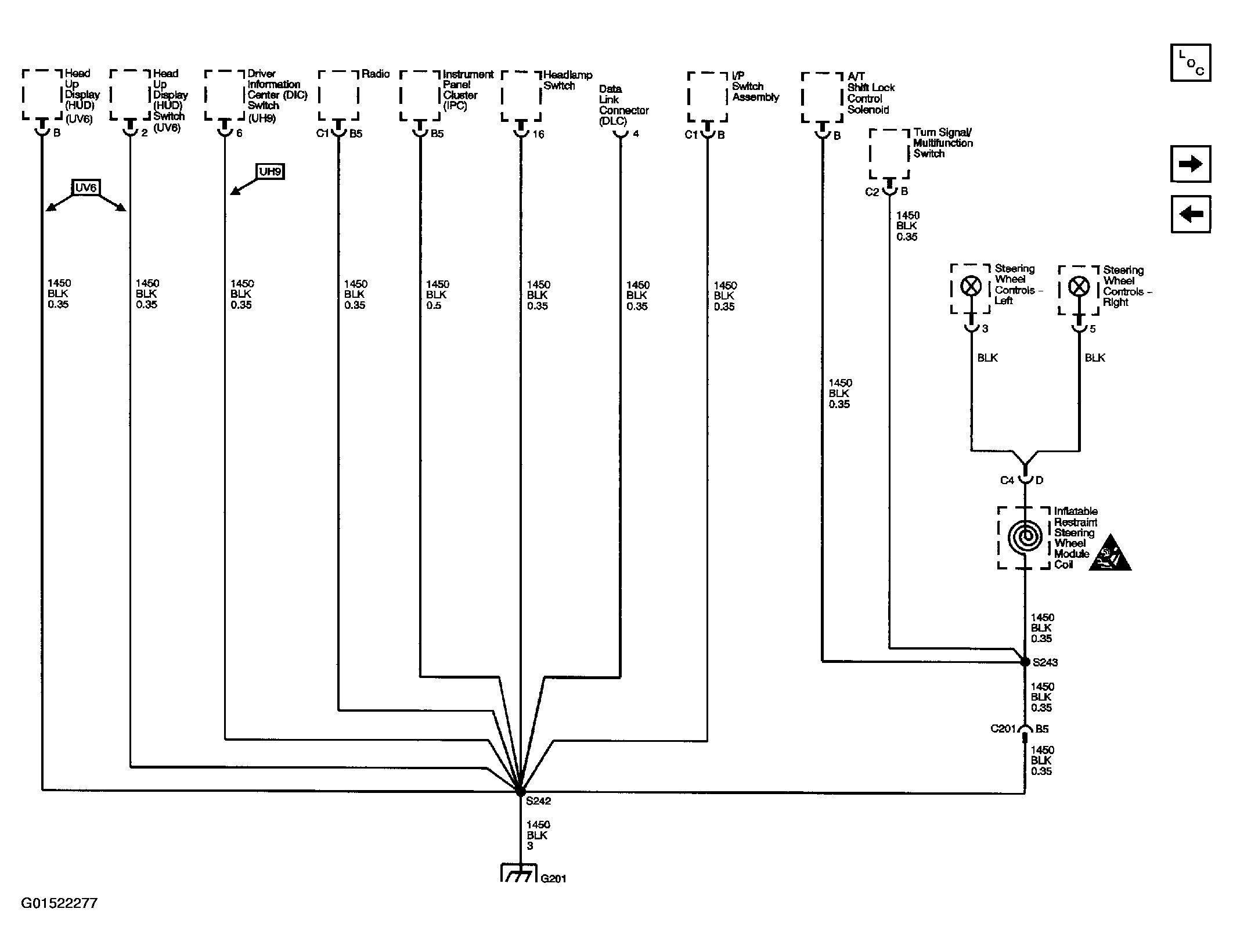

Fig 33: Ground Distribution Schematic (Ground G201 - Buick)

G01522277

Courtesy of GENERAL MOTORS CORP.

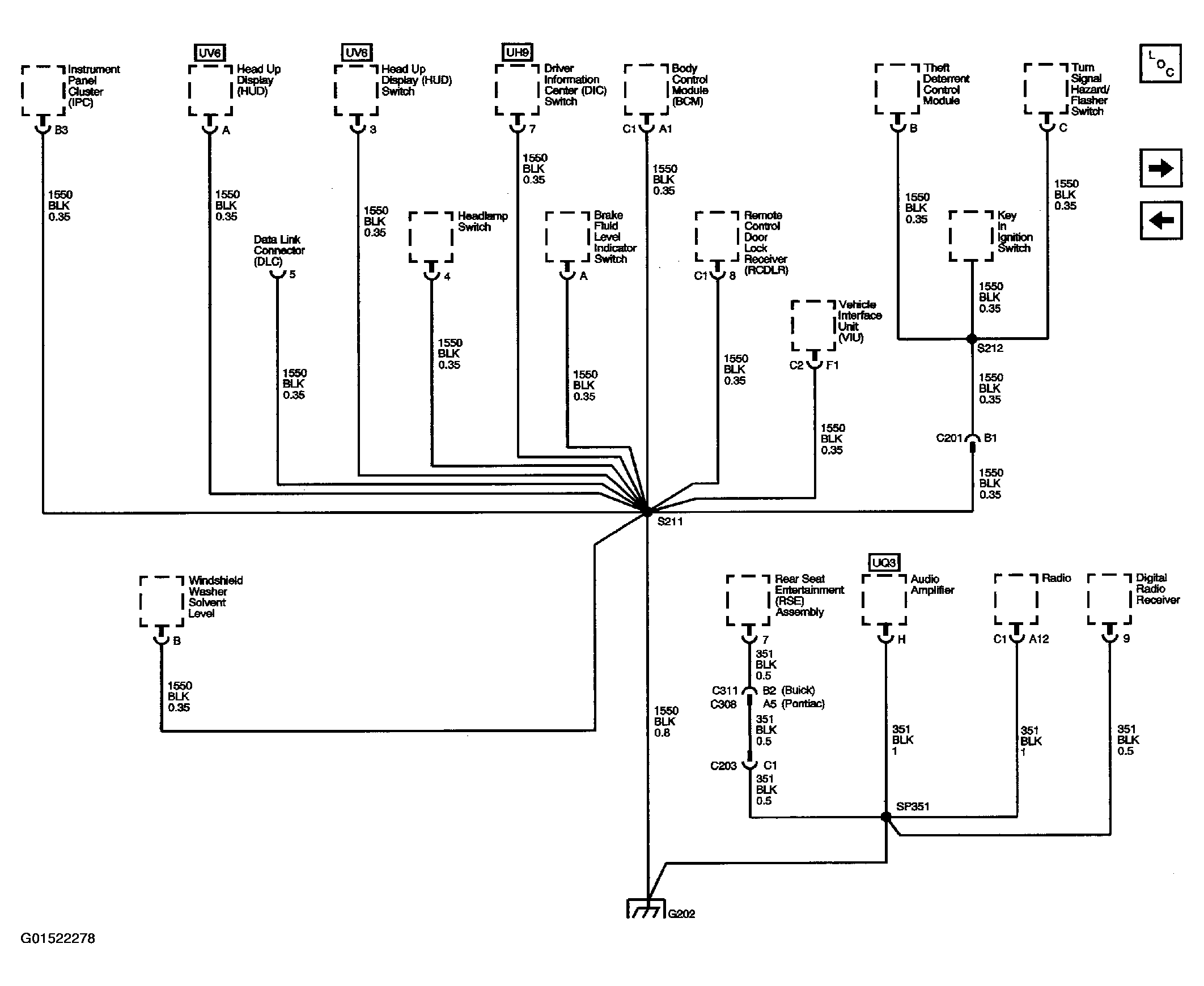

Fig 34: Ground Distribution Schematic (Ground G202 - Buick)

G01522278

Courtesy of GENERAL MOTORS CORP.

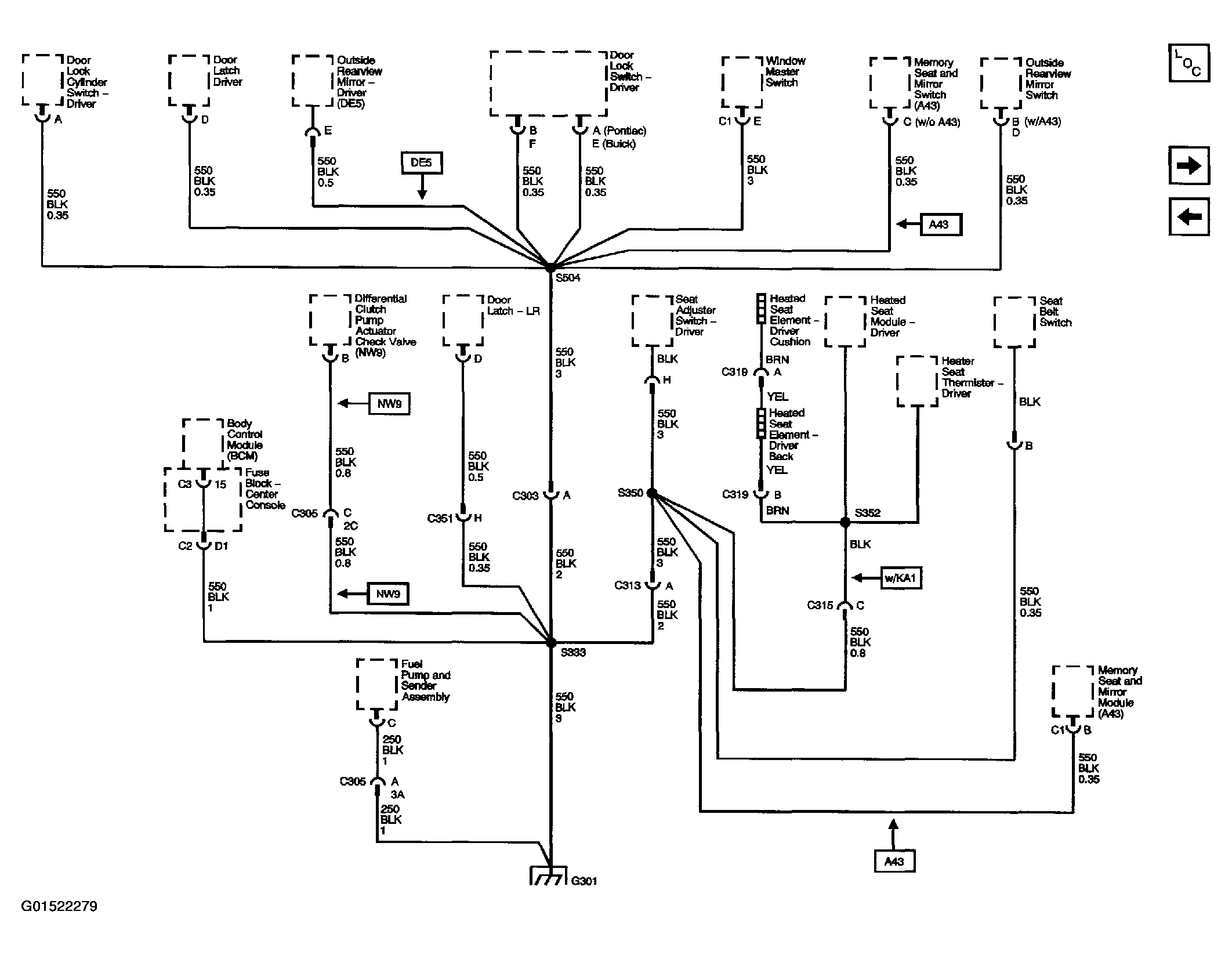

Fig 35: Ground Distribution Schematic (Ground G301 - Buick)

G01522279

Courtesy of GENERAL MOTORS CORP.

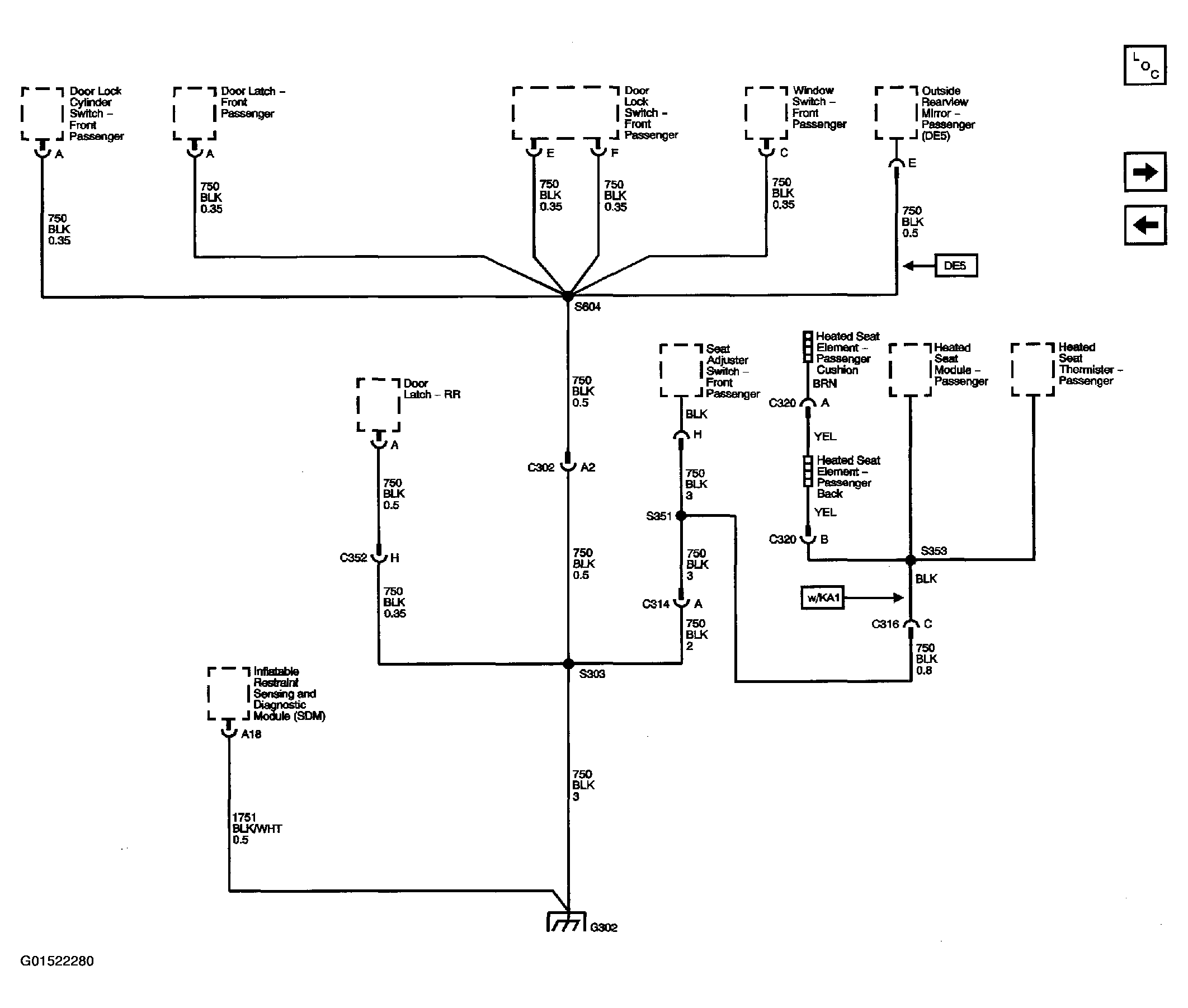

Fig 36: Ground Distribution Schematic (Ground G302 - Buick)

G01522280

Courtesy of GENERAL MOTORS CORP.

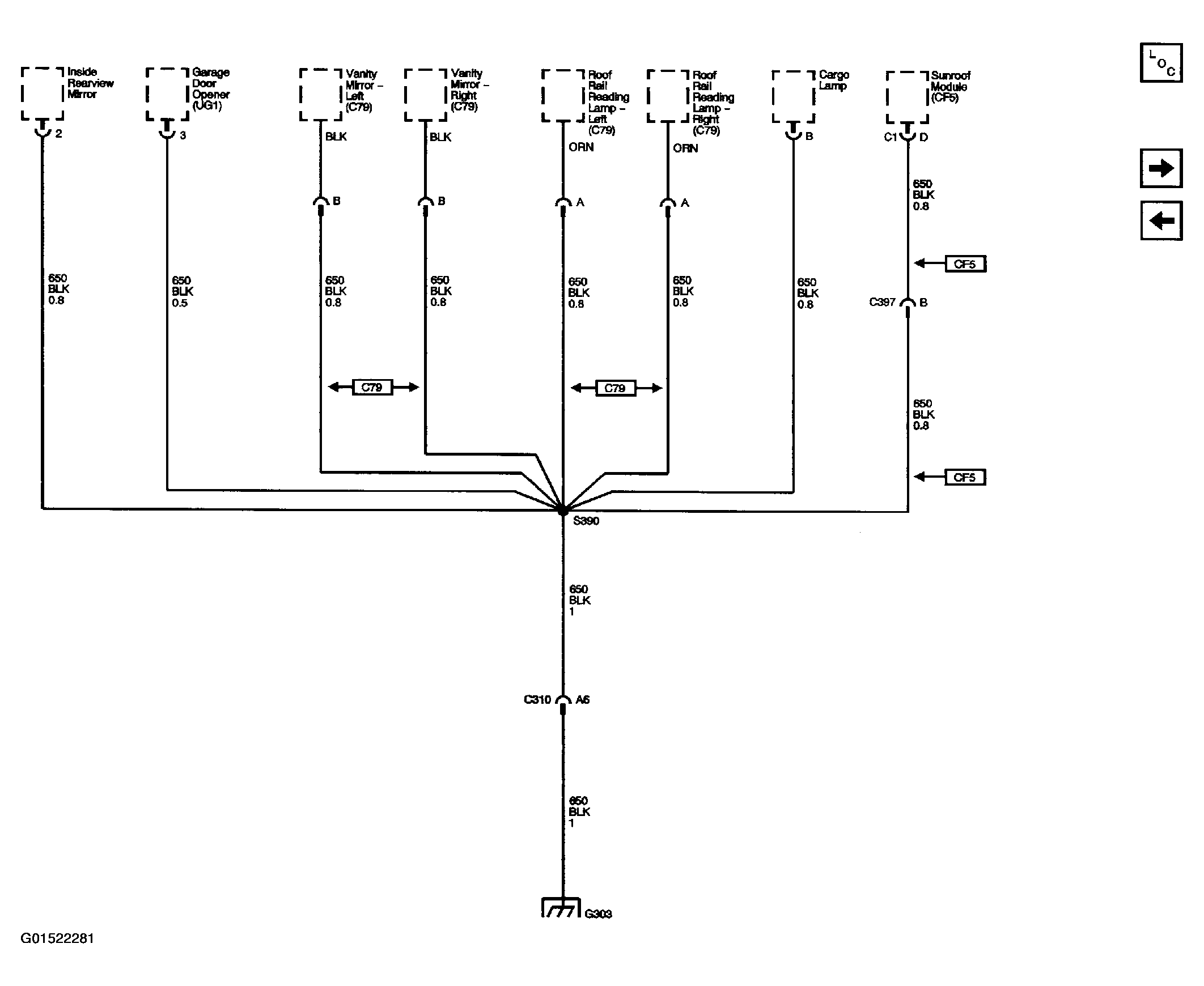

Fig 37: Ground Distribution Schematic (Ground G303 - Buick)

G01522281

Courtesy of GENERAL MOTORS CORP.

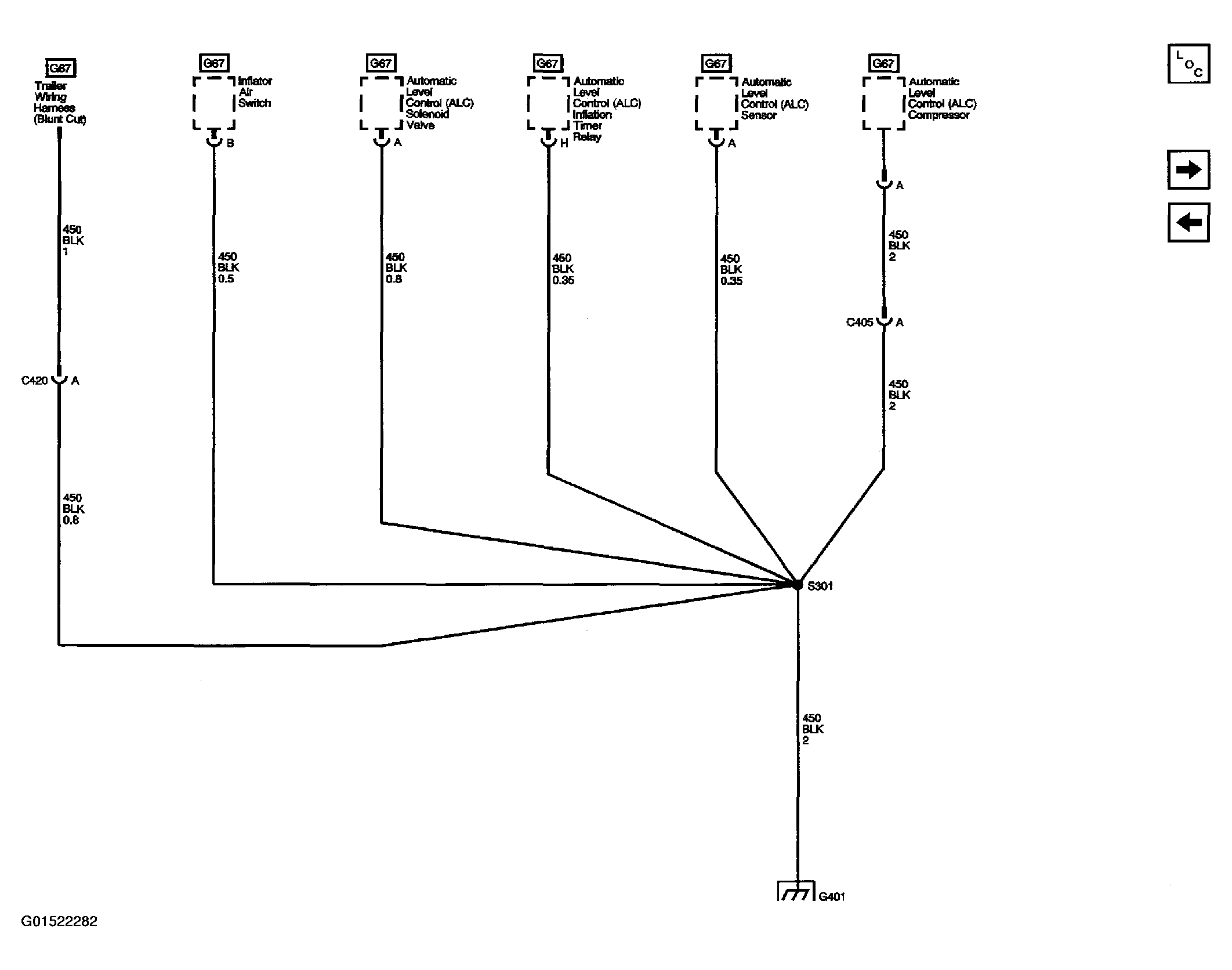

Fig 38: Ground Distribution Schematic (Ground G401 - Buick)

G01522282

Courtesy of GENERAL MOTORS CORP.

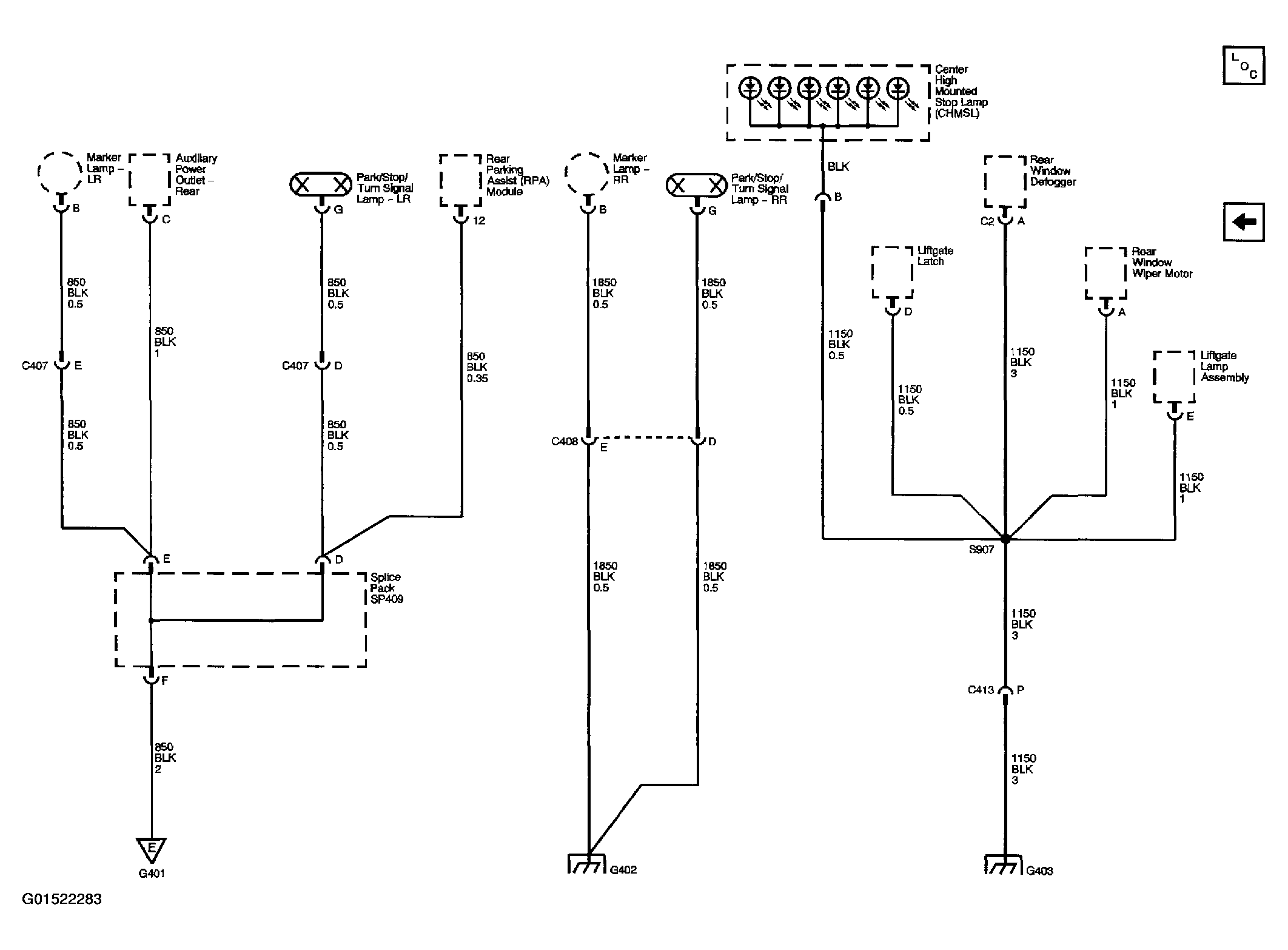

Fig 39: Ground Distribution Schematic (Ground G401, G402 & G403 - Buick)

G01522283

Courtesy of GENERAL MOTORS CORP.

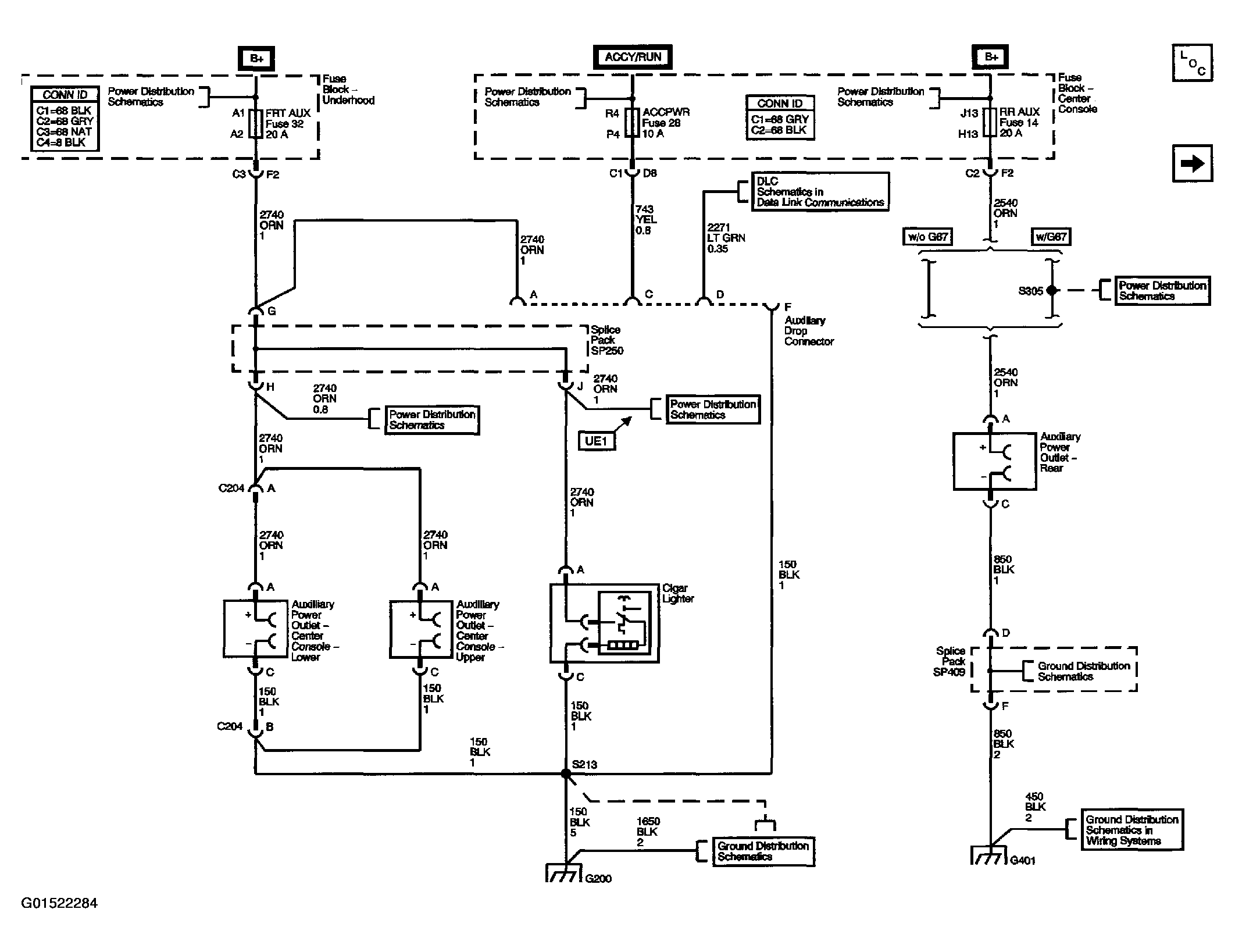

Fig 40: Cigar Lighter/Auxiliary Outlets Schematic (Pontiac)

G01522284

Courtesy of GENERAL MOTORS CORP.

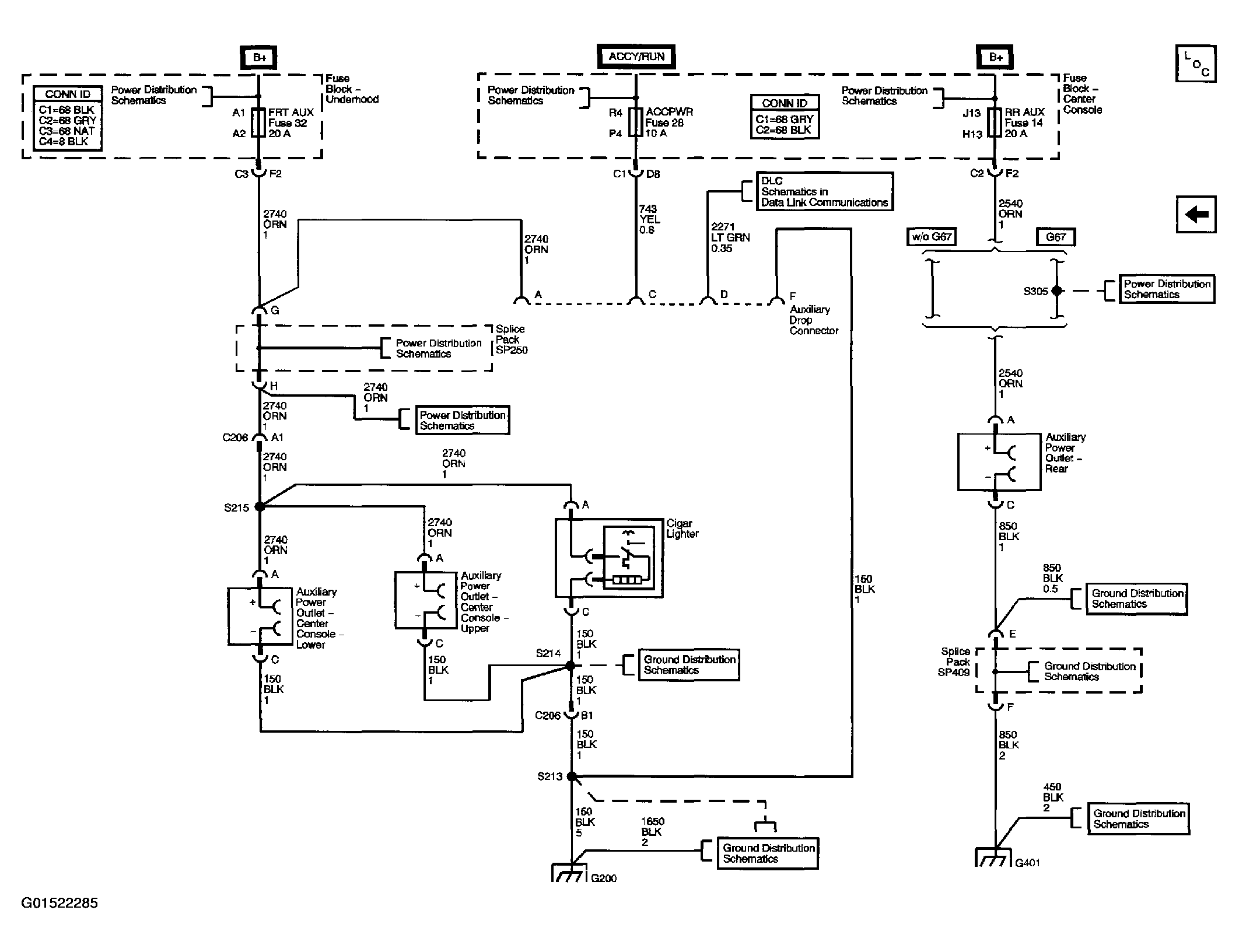

Fig 41: Cigar Lighter/Auxiliary Outlets Schematic (Buick)

G01522285

Courtesy of GENERAL MOTORS CORP.

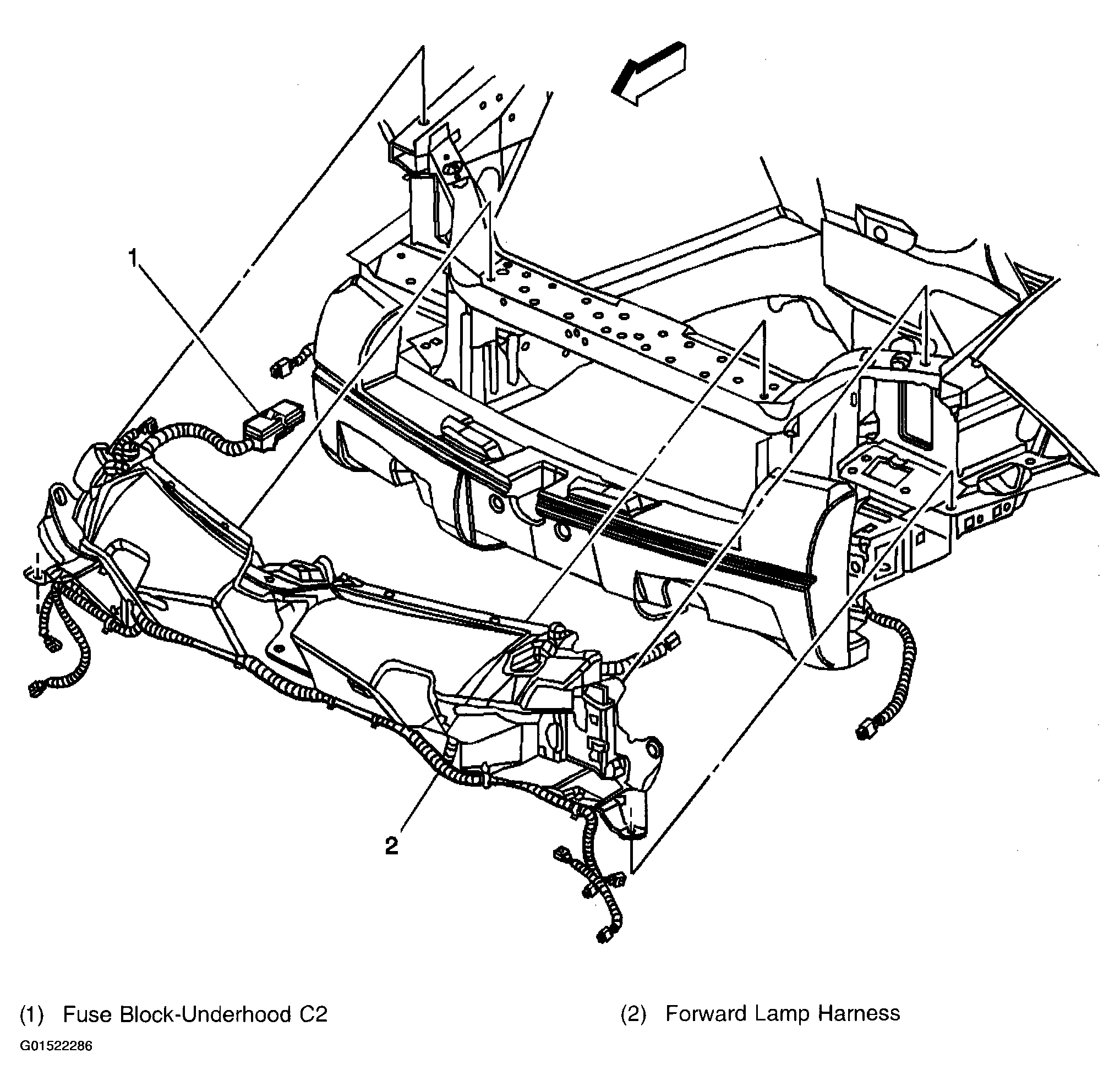

Fig 42: Identifying Forward Lamp Harness - Pontiac

G01522286

Courtesy of GENERAL MOTORS CORP.

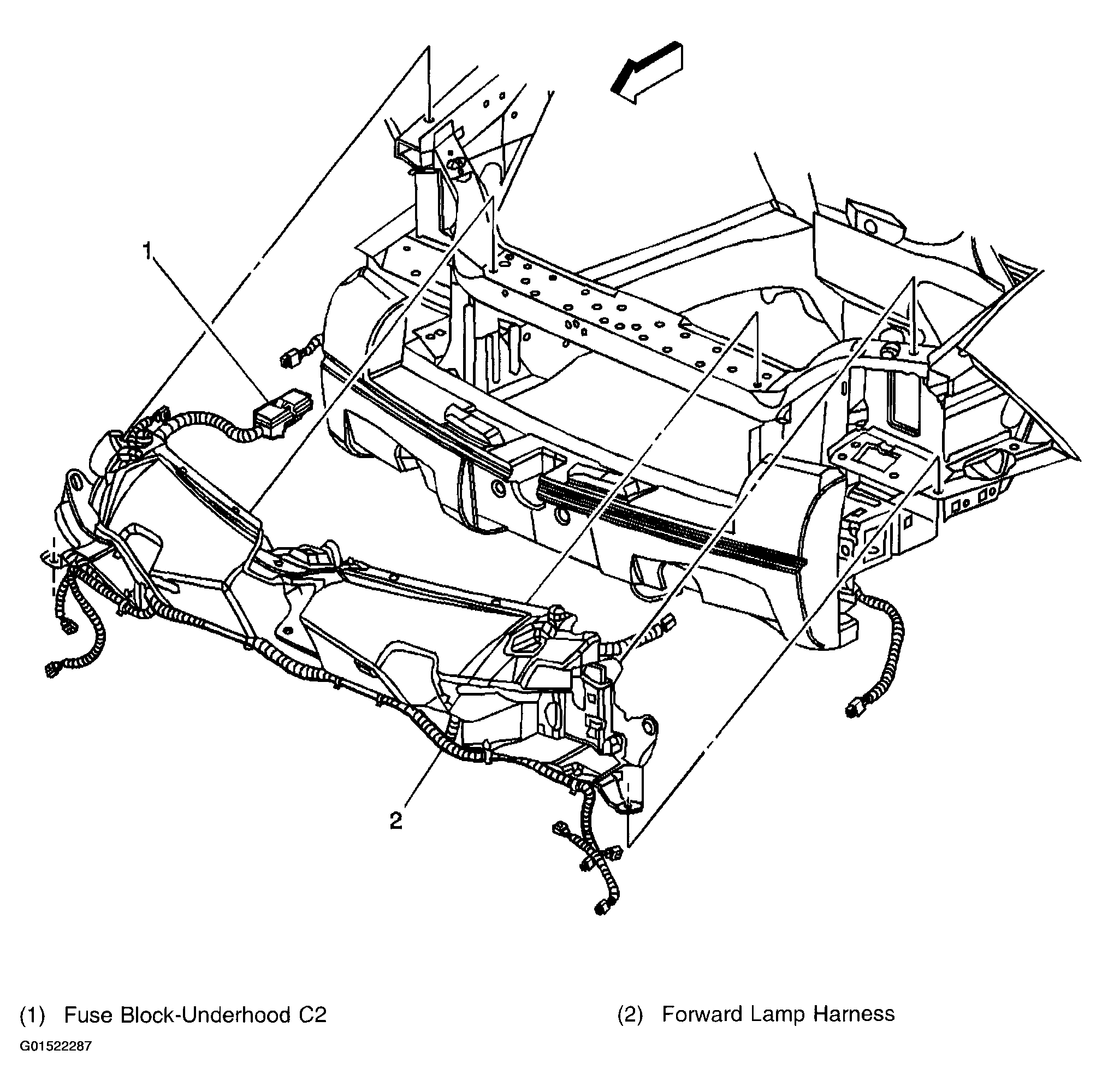

Fig 43: Identifying Forward Lamp Harness - Buick

G01522287

Courtesy of GENERAL MOTORS CORP.

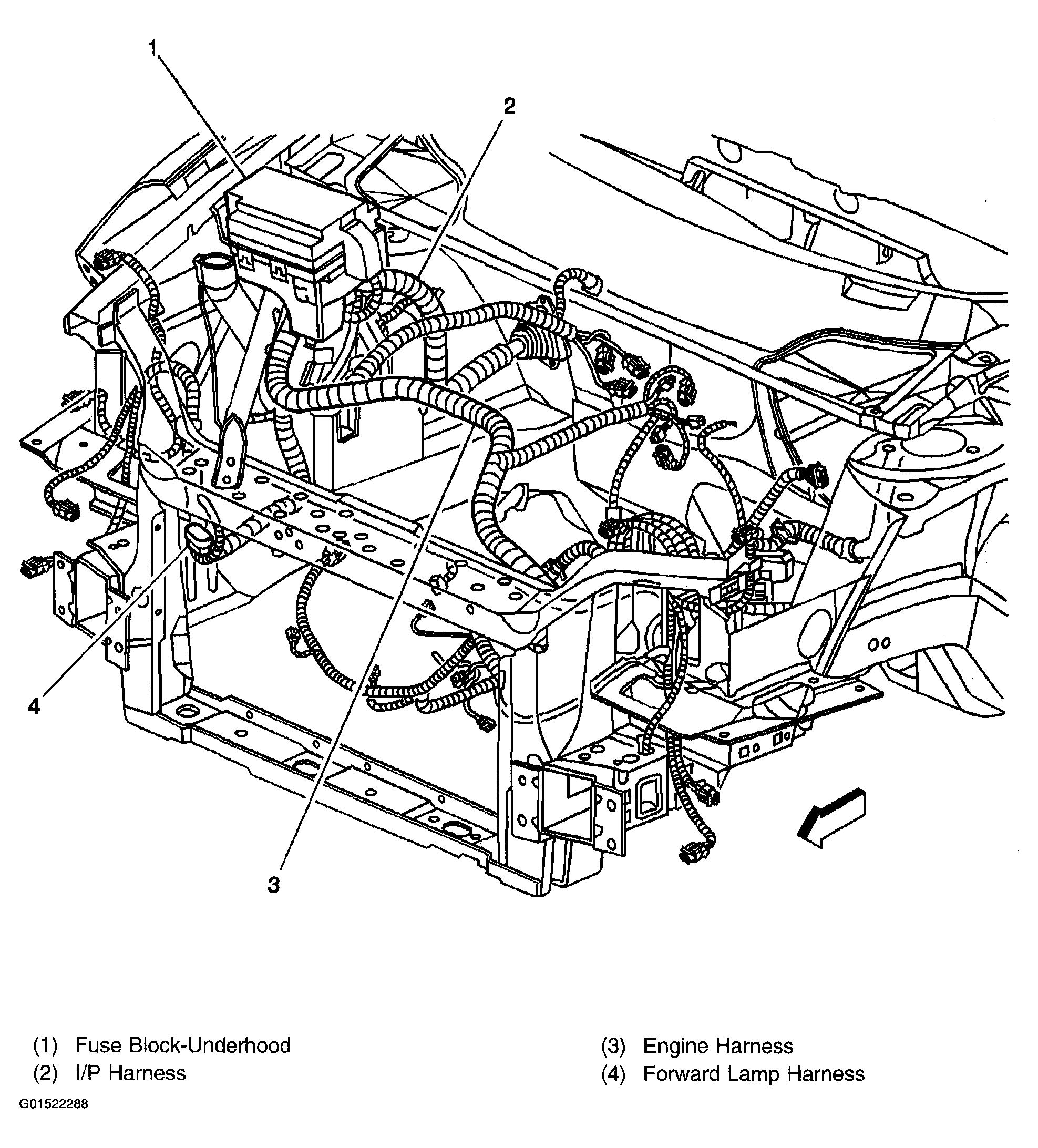

Fig 44: Identifying Harness Routing Views (Engine Compartment - LF)

G01522288

Courtesy of GENERAL MOTORS CORP.

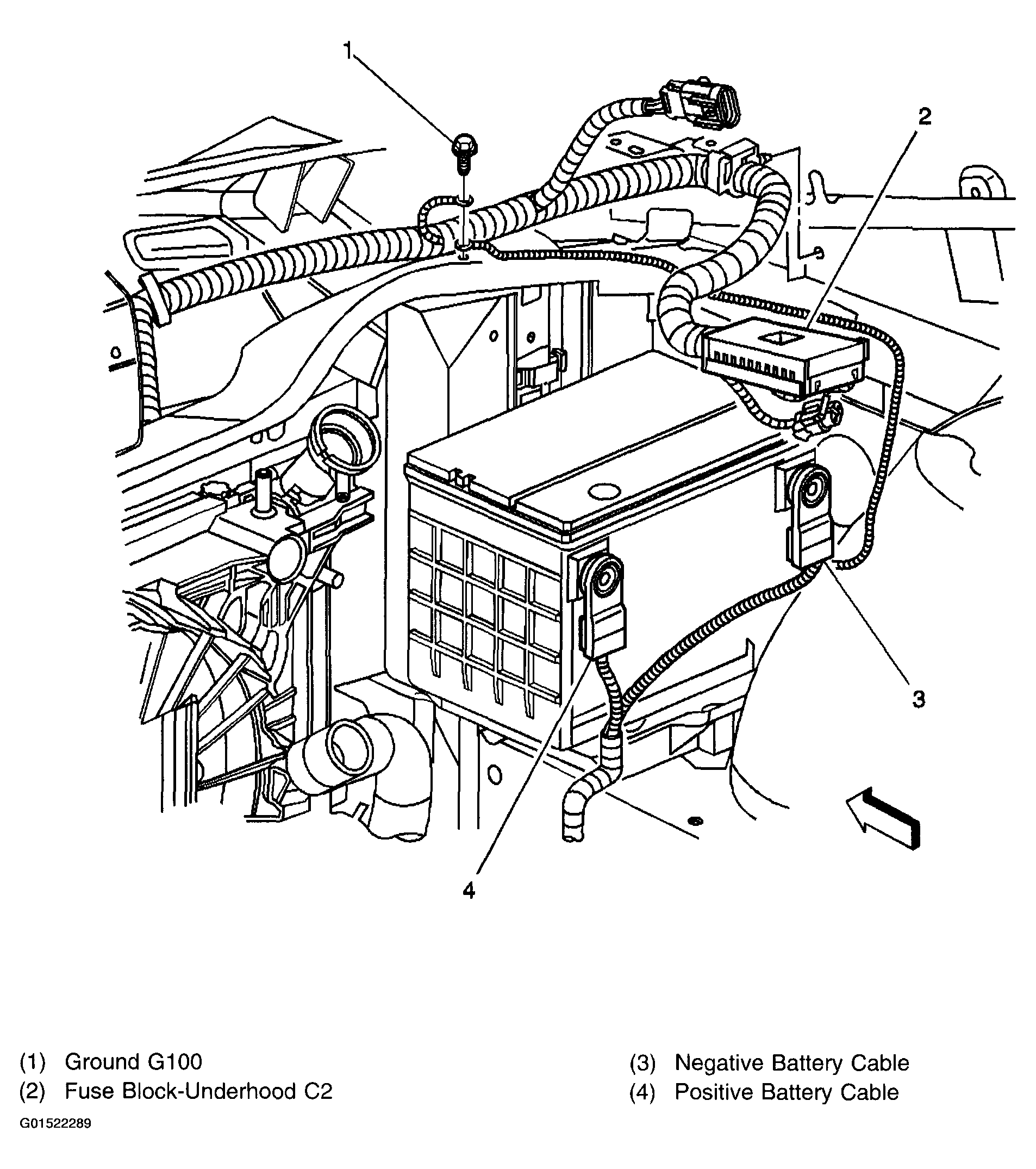

Fig 45: Harness Routing Views (Engine Compartment - RF)

G01522289

Courtesy of GENERAL MOTORS CORP.

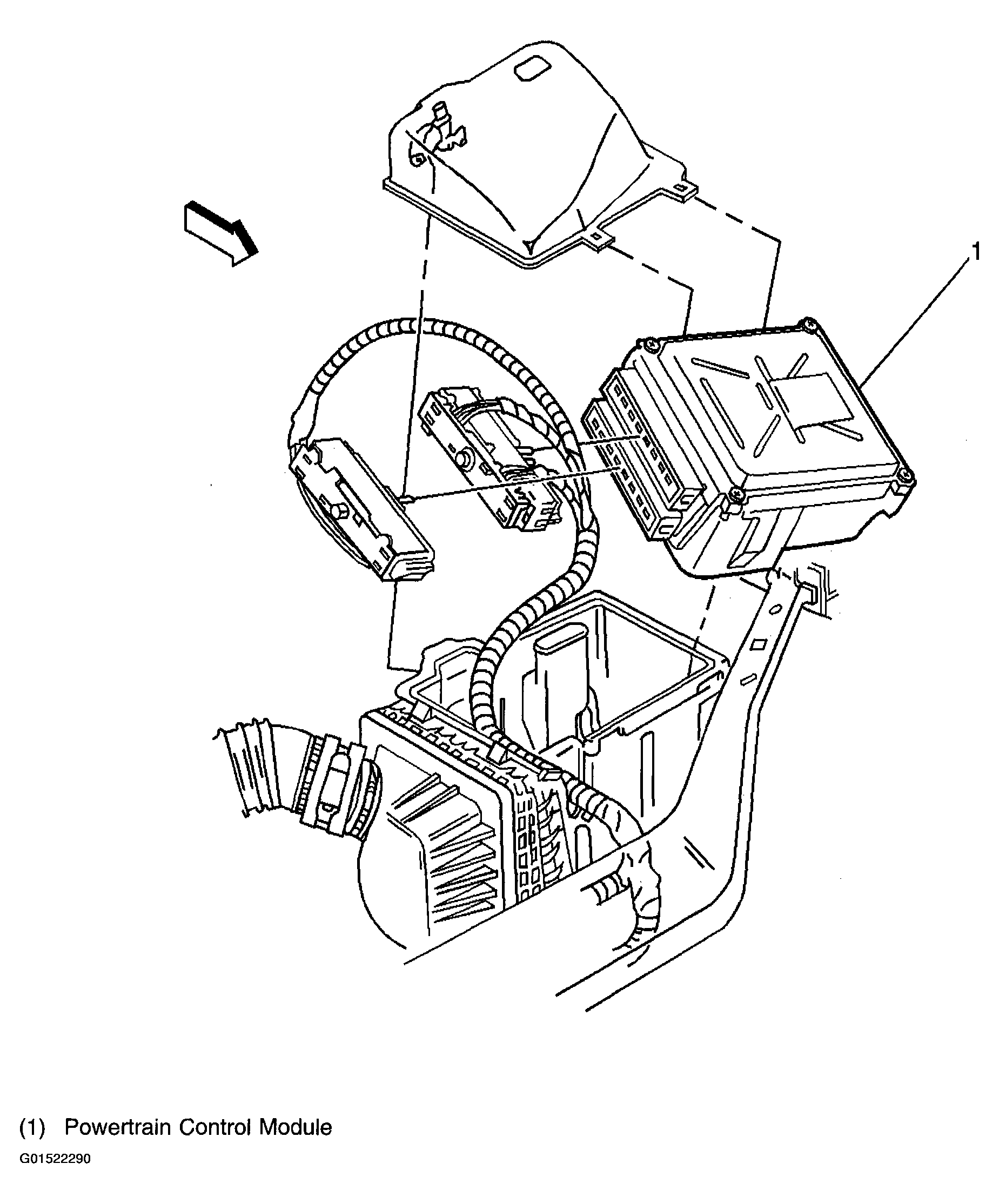

Fig 46: Identifying Harness Routing Views (LH Side of Engine Compartment)

G01522290

Courtesy of GENERAL MOTORS CORP.

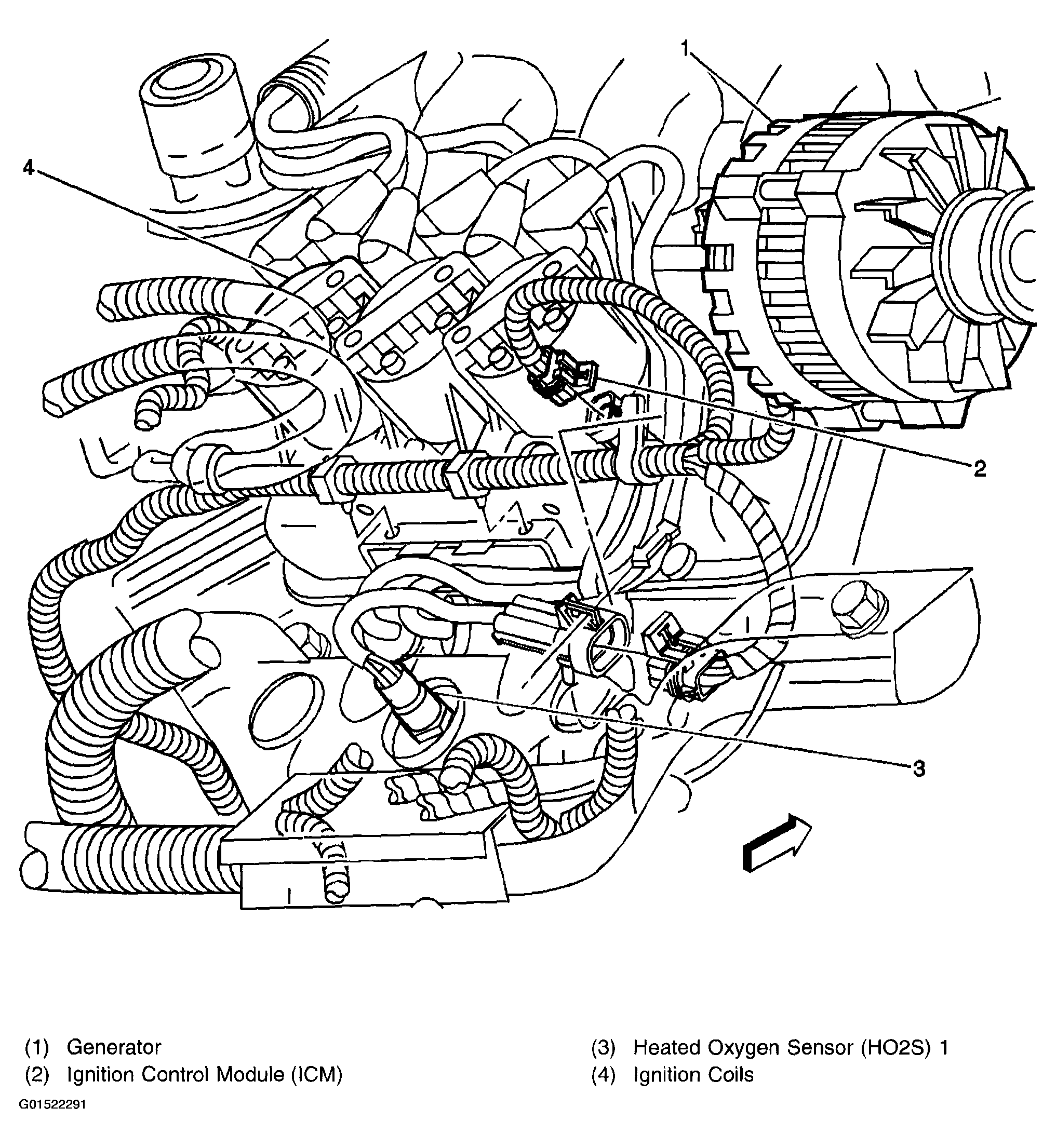

Fig 47: Identifying Harness Routing Views (LH Side of Engine)

G01522291

Courtesy of GENERAL MOTORS CORP.

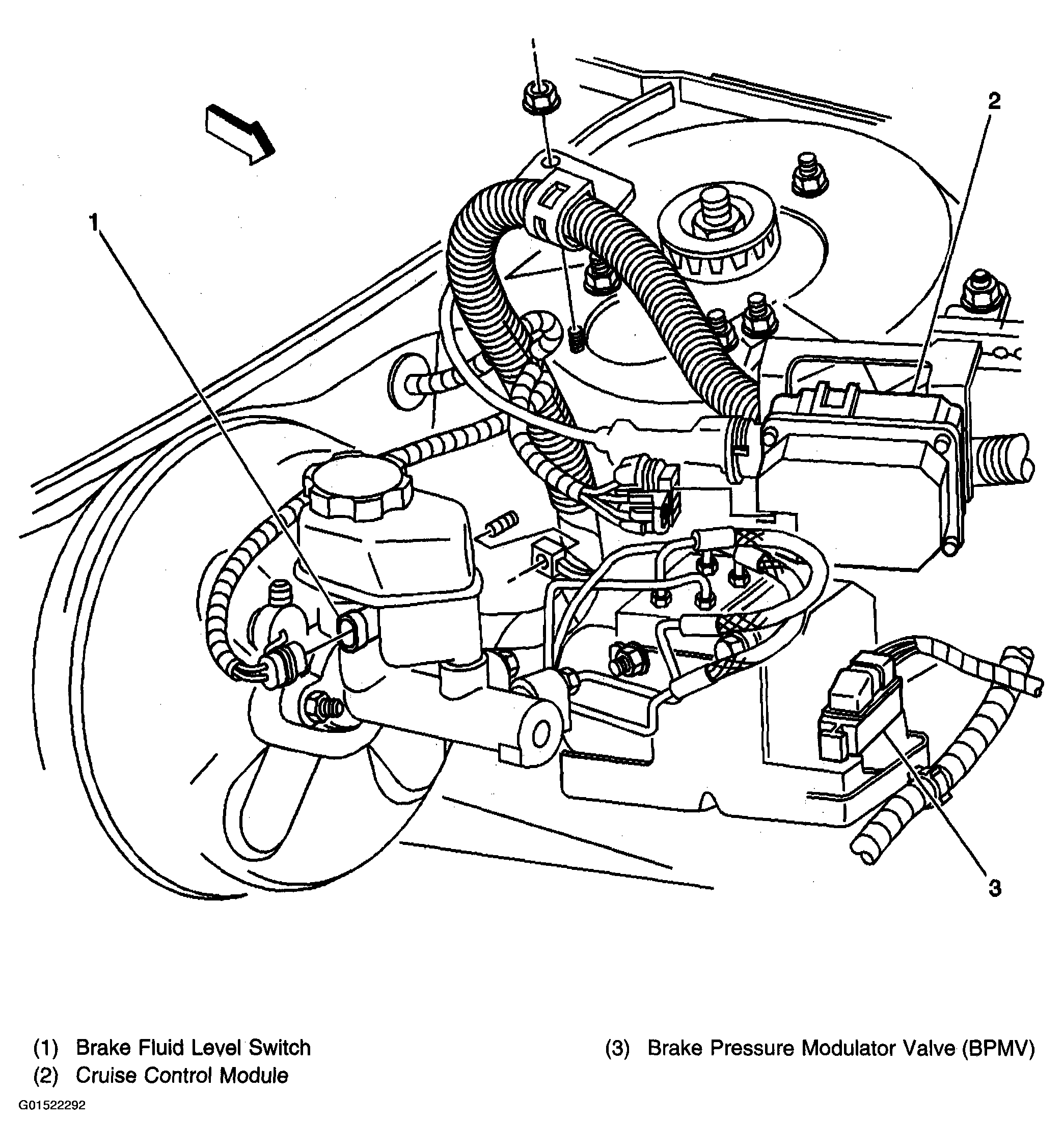

Fig 48: Harness Routing Views (LR Engine Compartment)

G01522292

Courtesy of GENERAL MOTORS CORP.

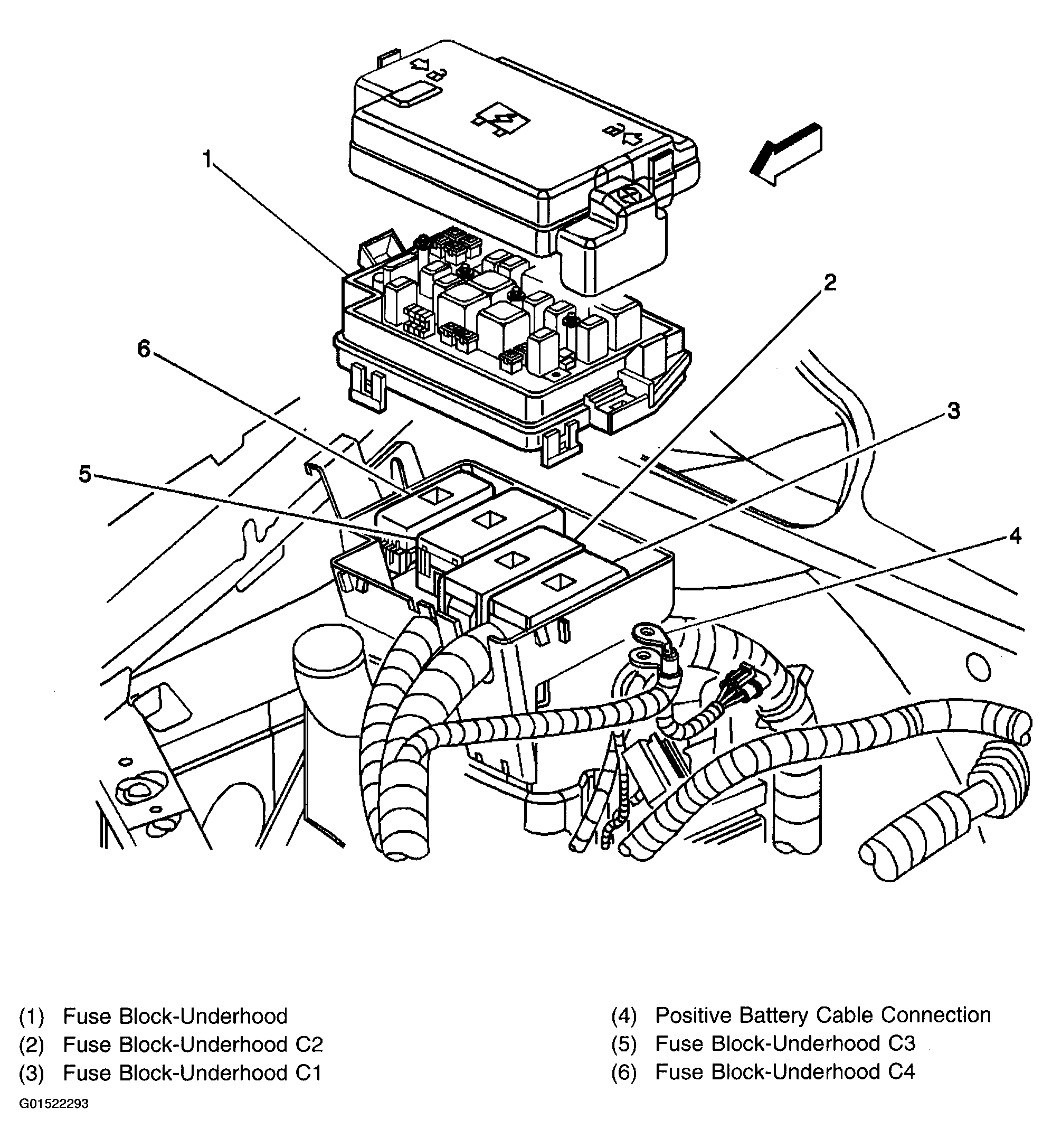

Fig 49: Identifying Harness Routing Views (Engine Compartment - RR)

G01522293

Courtesy of GENERAL MOTORS CORP.

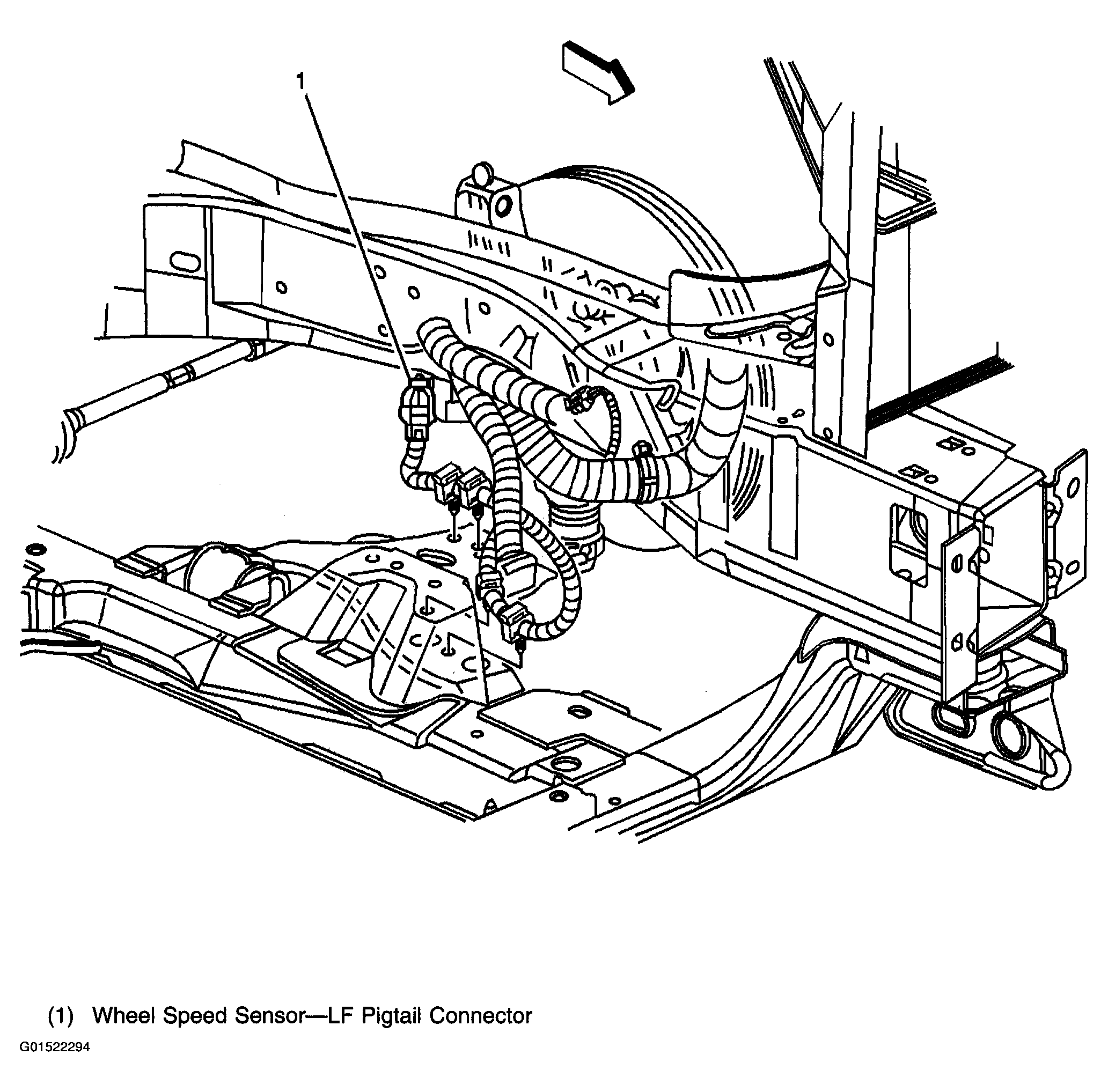

Fig 50: Identifying Harness Routing Views (Wheel - LF)

G01522294

Courtesy of GENERAL MOTORS CORP.

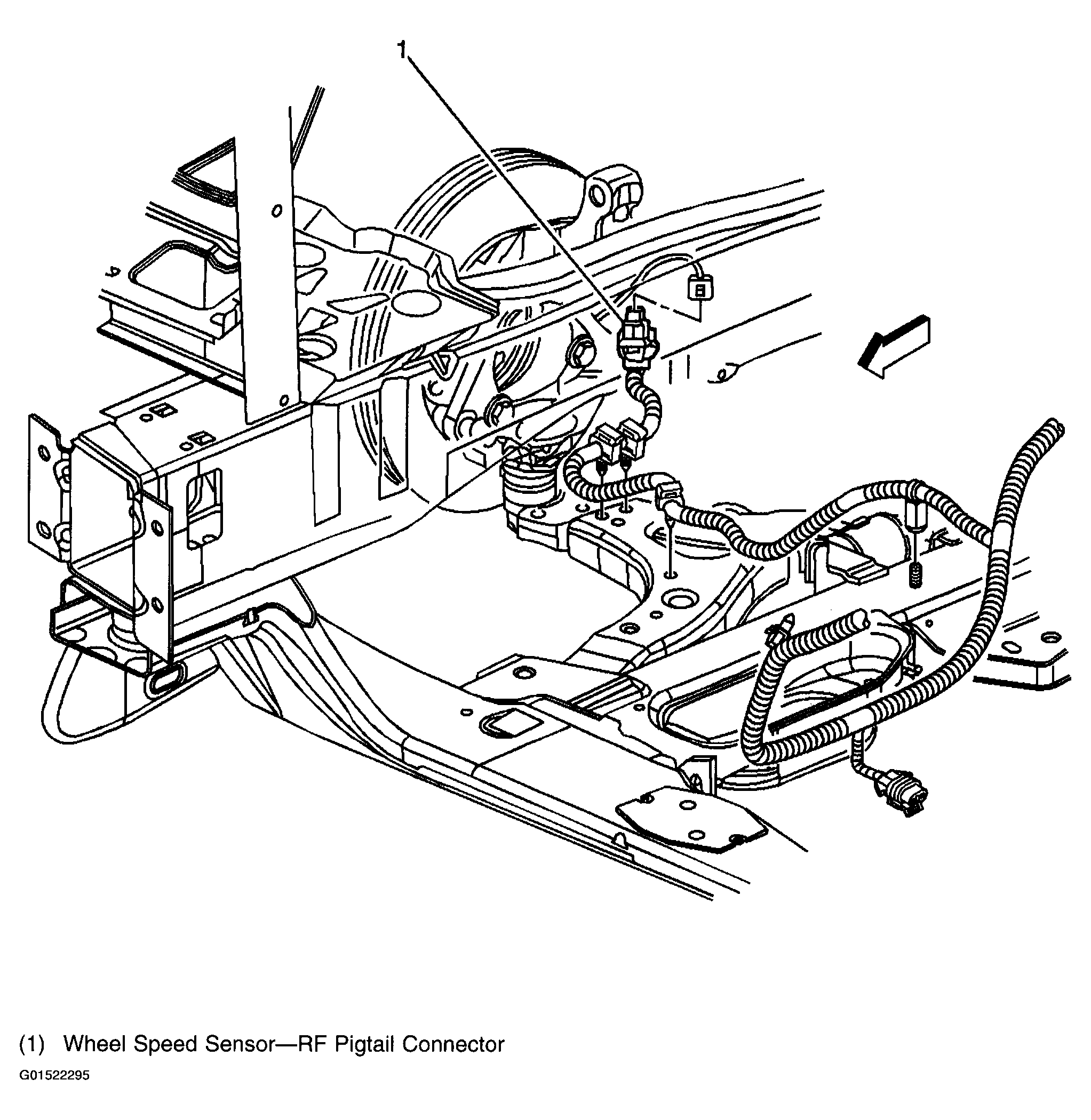

Fig 51: Identifying Harness Routing Views (Wheel - RF)

G01522295

Courtesy of GENERAL MOTORS CORP.

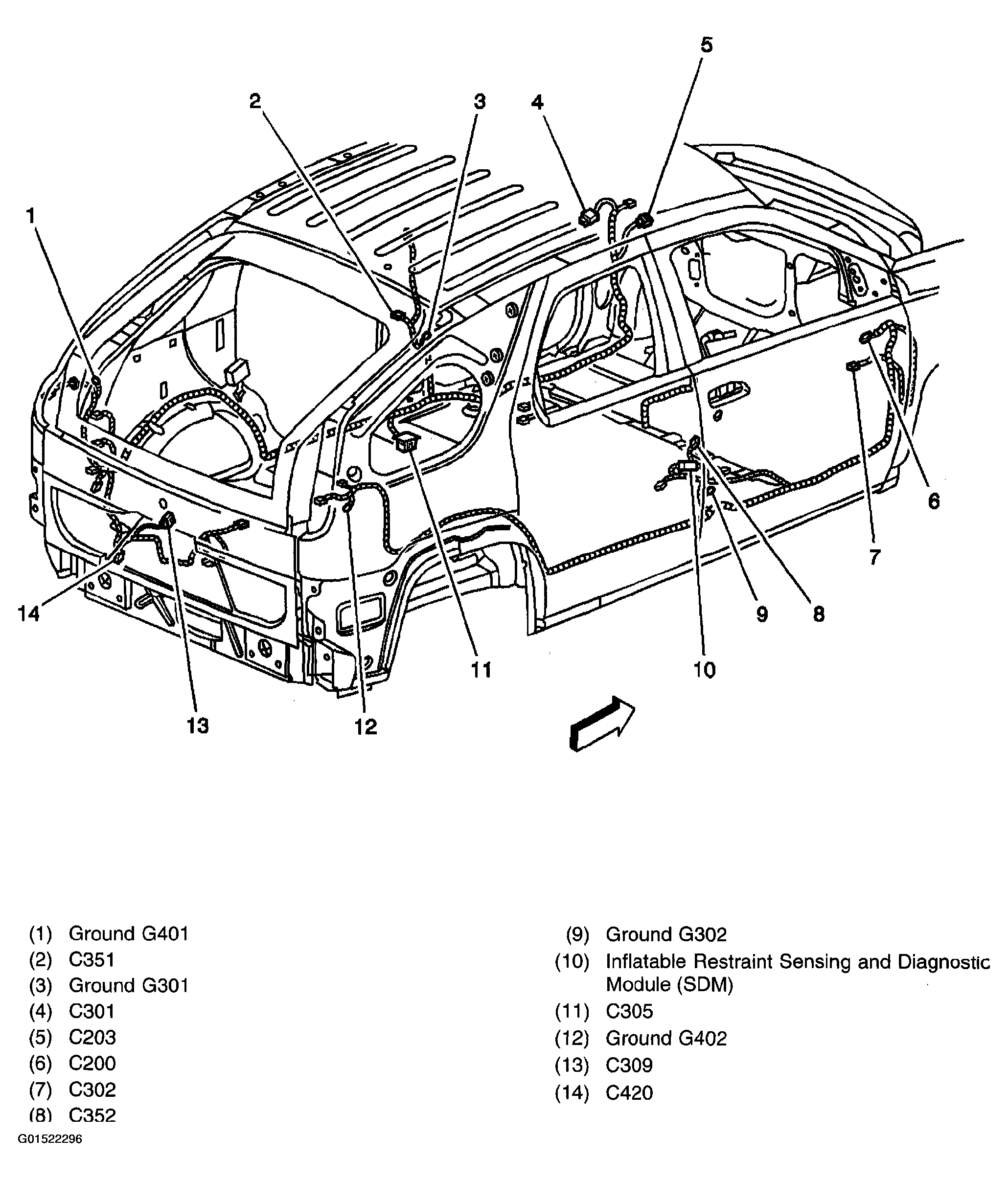

Fig 52: Identifying Harness Routing Views (Body Harness)

G01522296

Courtesy of GENERAL MOTORS CORP.

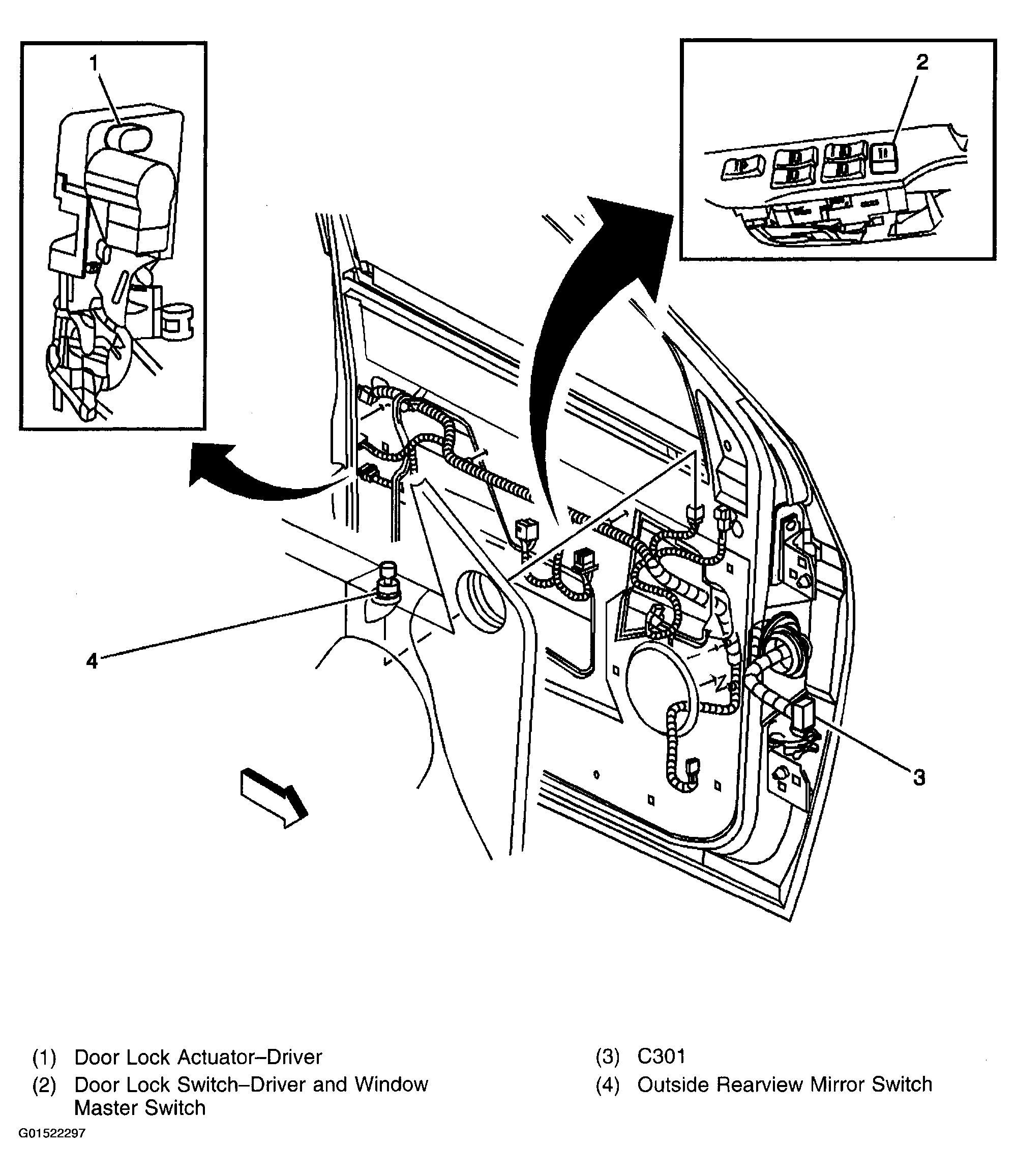

Fig 53: Identifying Harness Routing Views (Door - Driver)

G01522297

Courtesy of GENERAL MOTORS CORP.

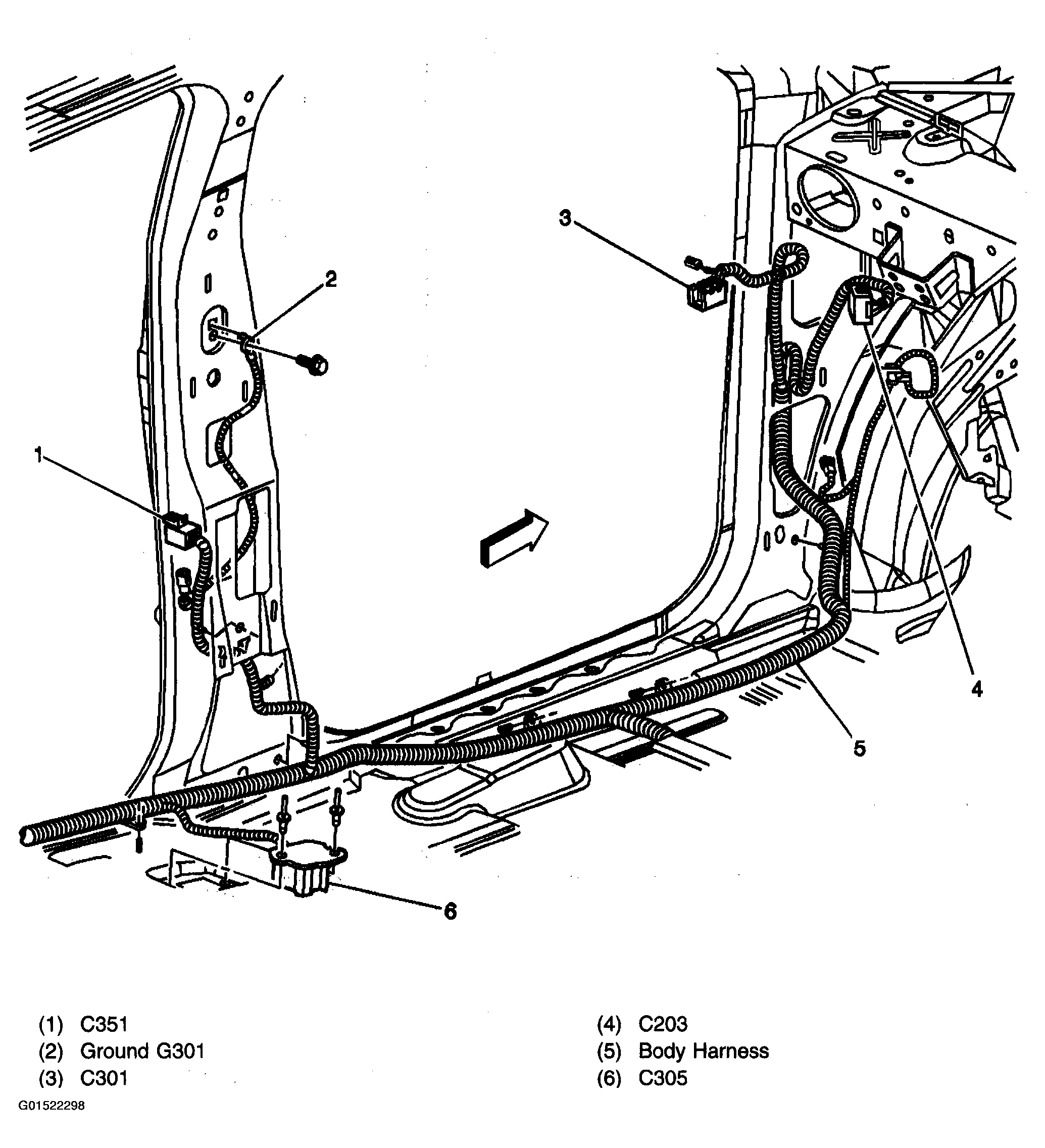

Fig 54: Identifying Harness Routing Views (Passenger Compartment - LF)

G01522298

Courtesy of GENERAL MOTORS CORP.

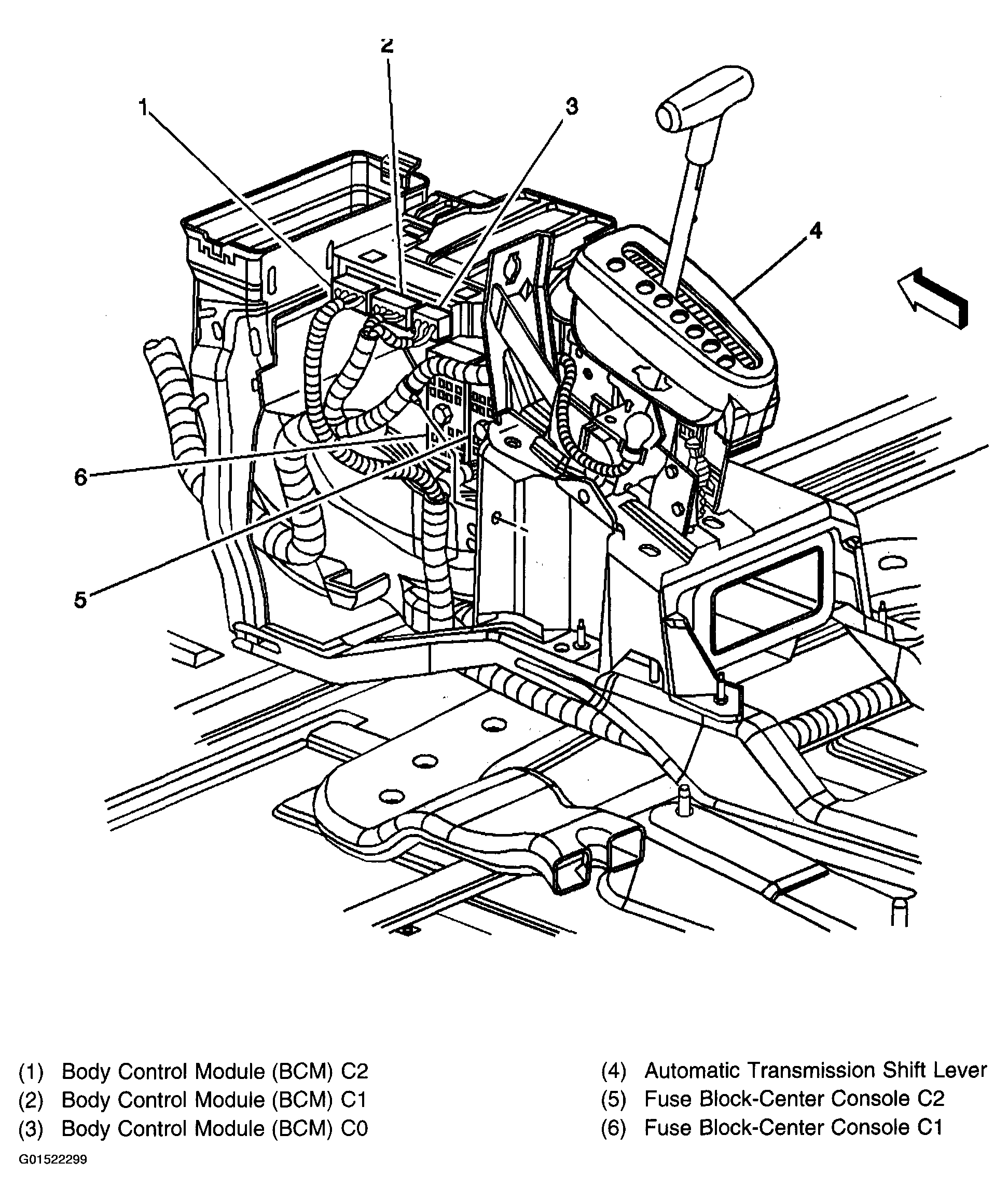

Fig 55: Identifying Harness Routing Views (Center Console - Pontiac)

G01522299

Courtesy of GENERAL MOTORS CORP.

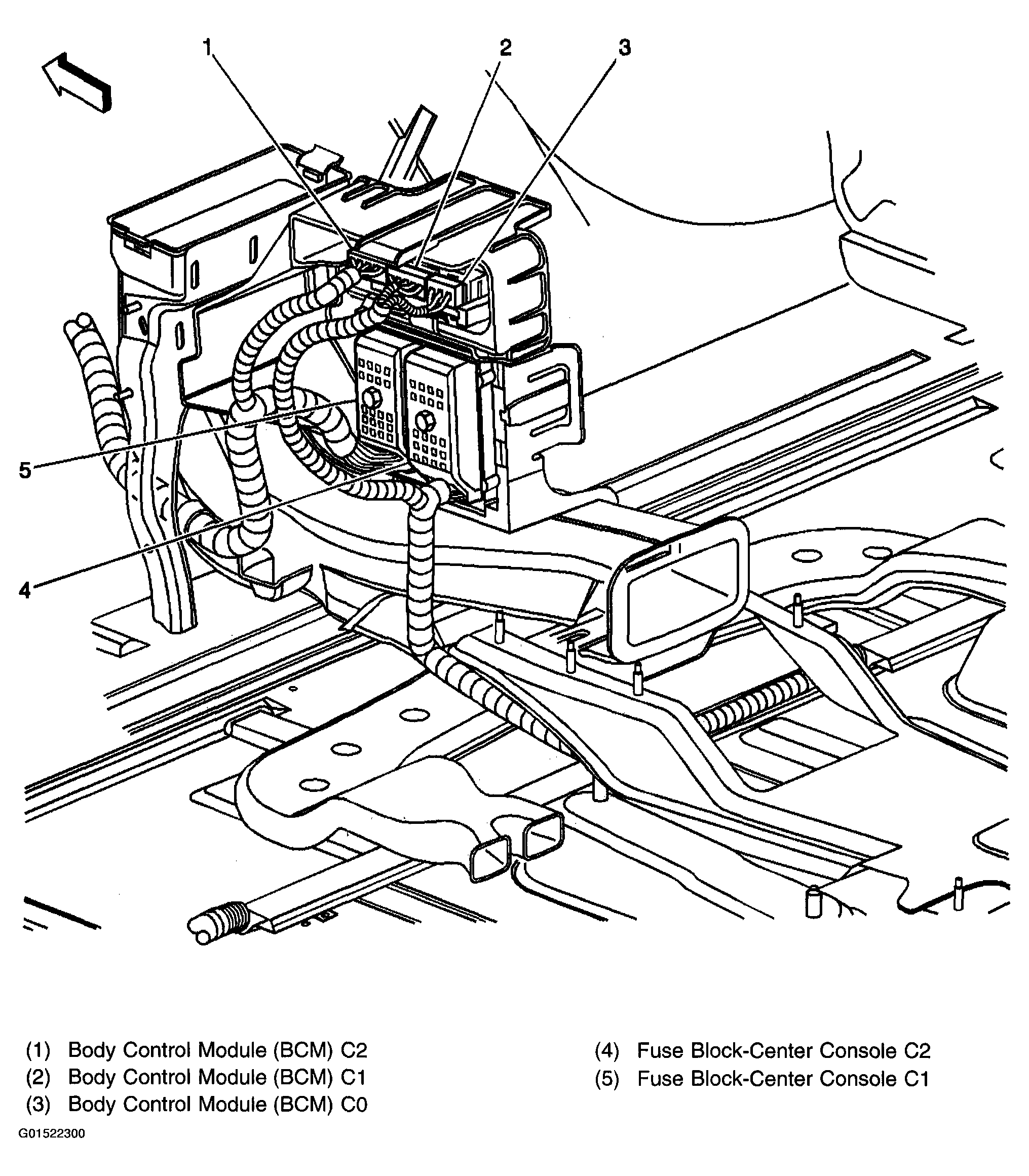

Fig 56: Identifying Harness Routing Views (Center Console - Buick)

G01522300

Courtesy of GENERAL MOTORS CORP.

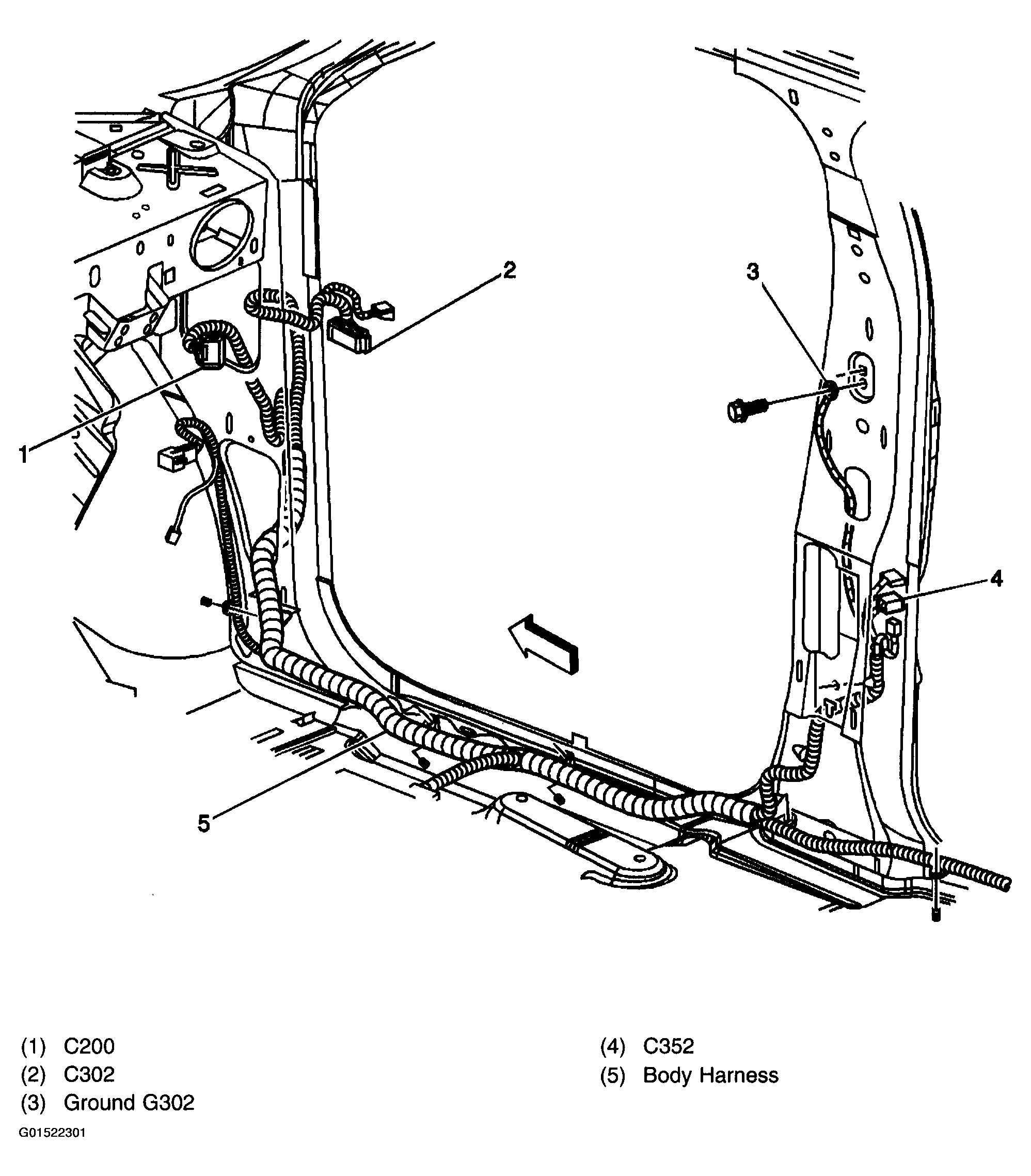

Fig 57: Identifying Harness Routing Views (Passenger Compartment - RF)

G01522301

Courtesy of GENERAL MOTORS CORP.

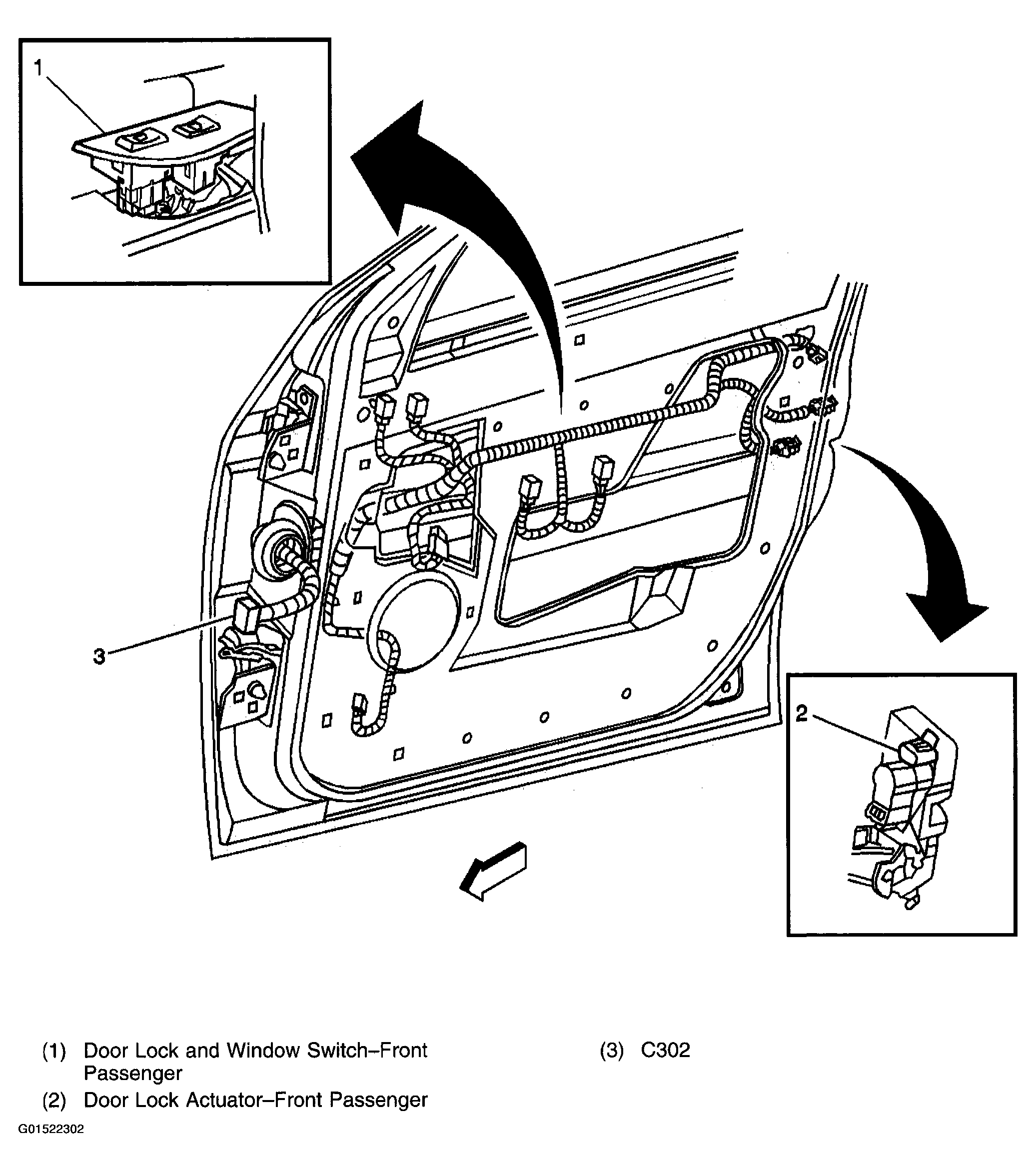

Fig 58: Identifying Harness Routing Views (Door - Front Passenger)

G01522302

Courtesy of GENERAL MOTORS CORP.

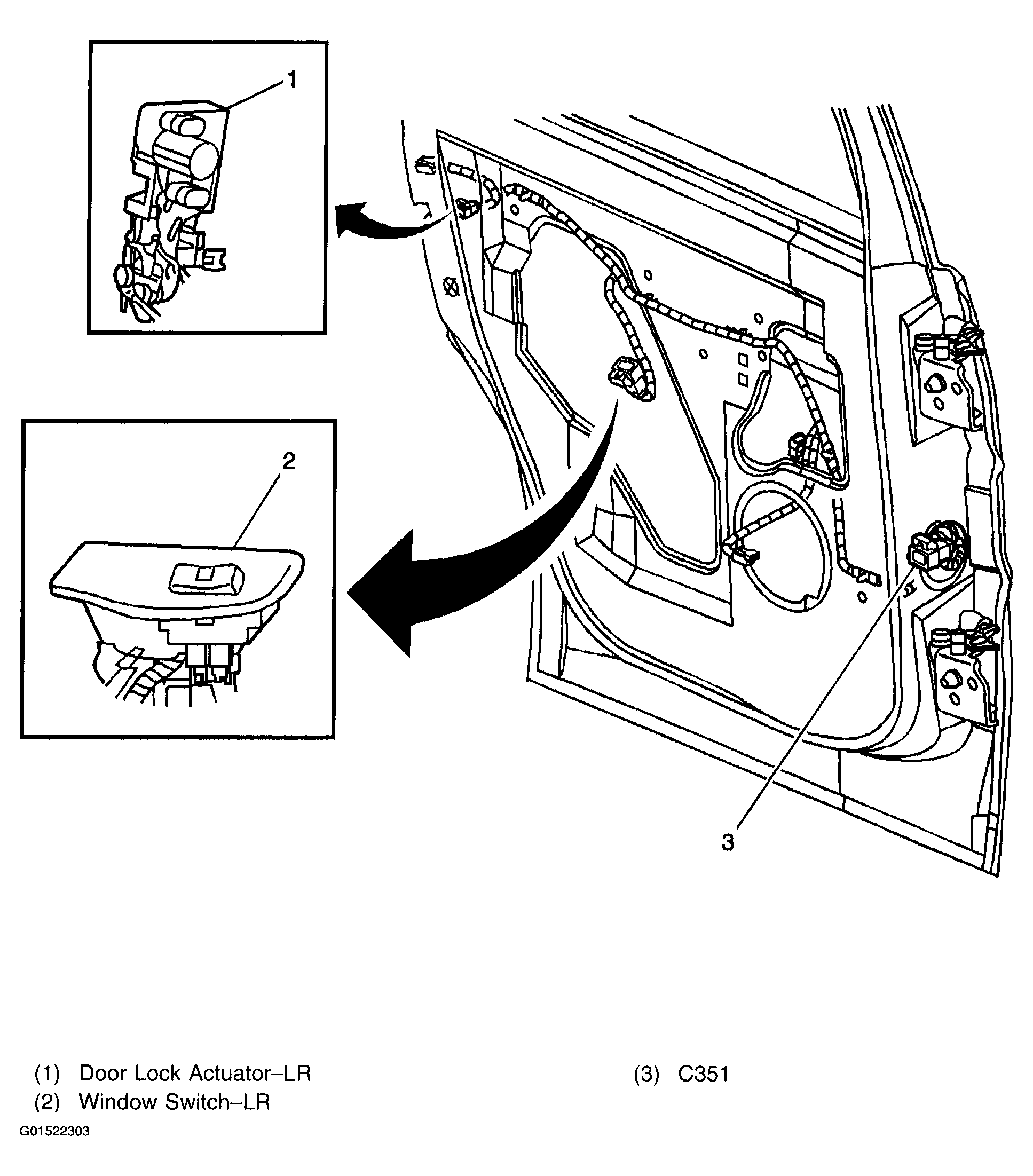

Fig 59: Identifying Harness Routing Views (Door - LR)

G01522303

Courtesy of GENERAL MOTORS CORP.

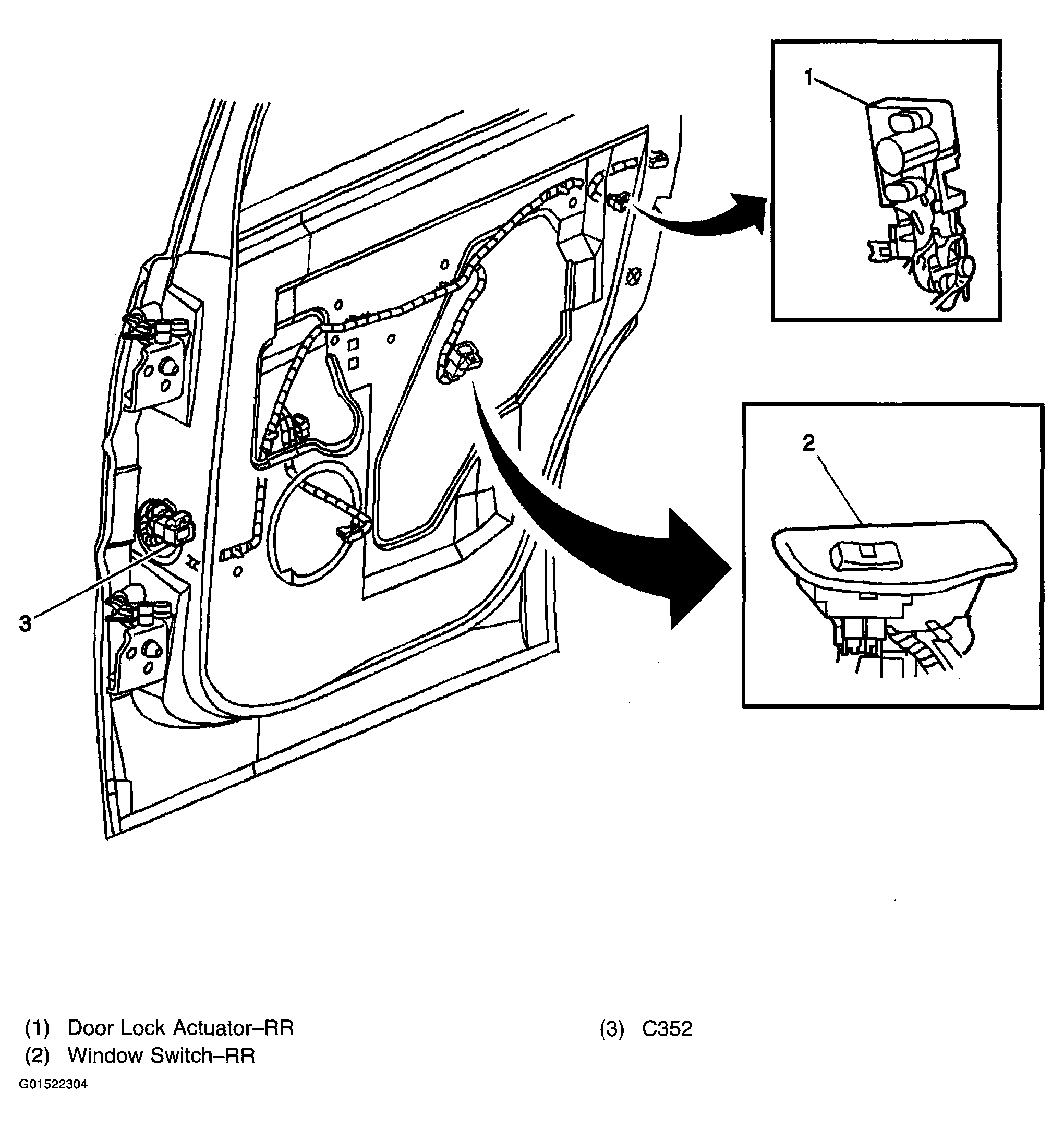

Fig 60: Identifying Harness Routing Views (Door - RR)

G01522304

Courtesy of GENERAL MOTORS CORP.

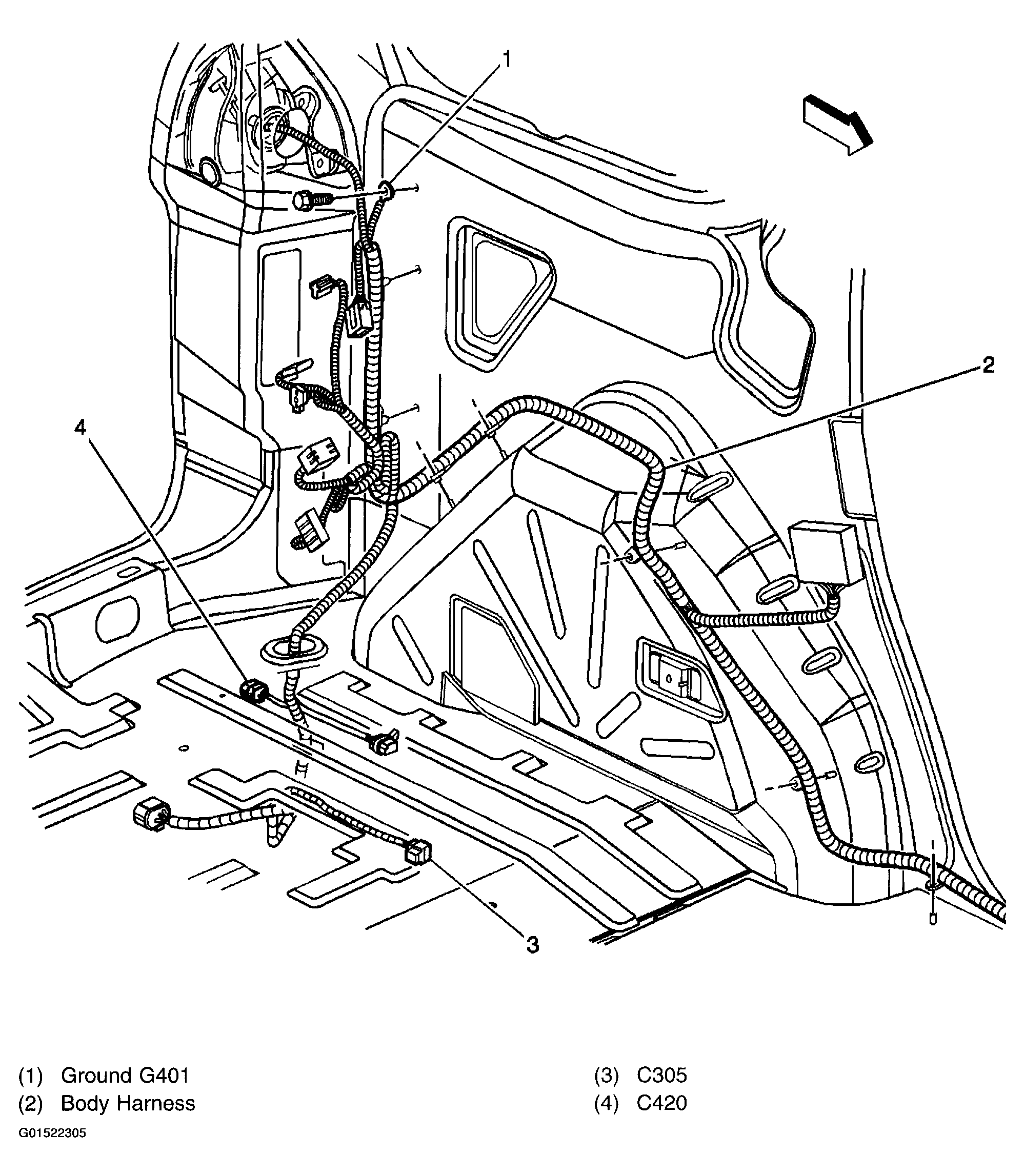

Fig 61: Identifying Harness Routing Views (Passenger Compartment - LR)

G01522305

Courtesy of GENERAL MOTORS CORP.

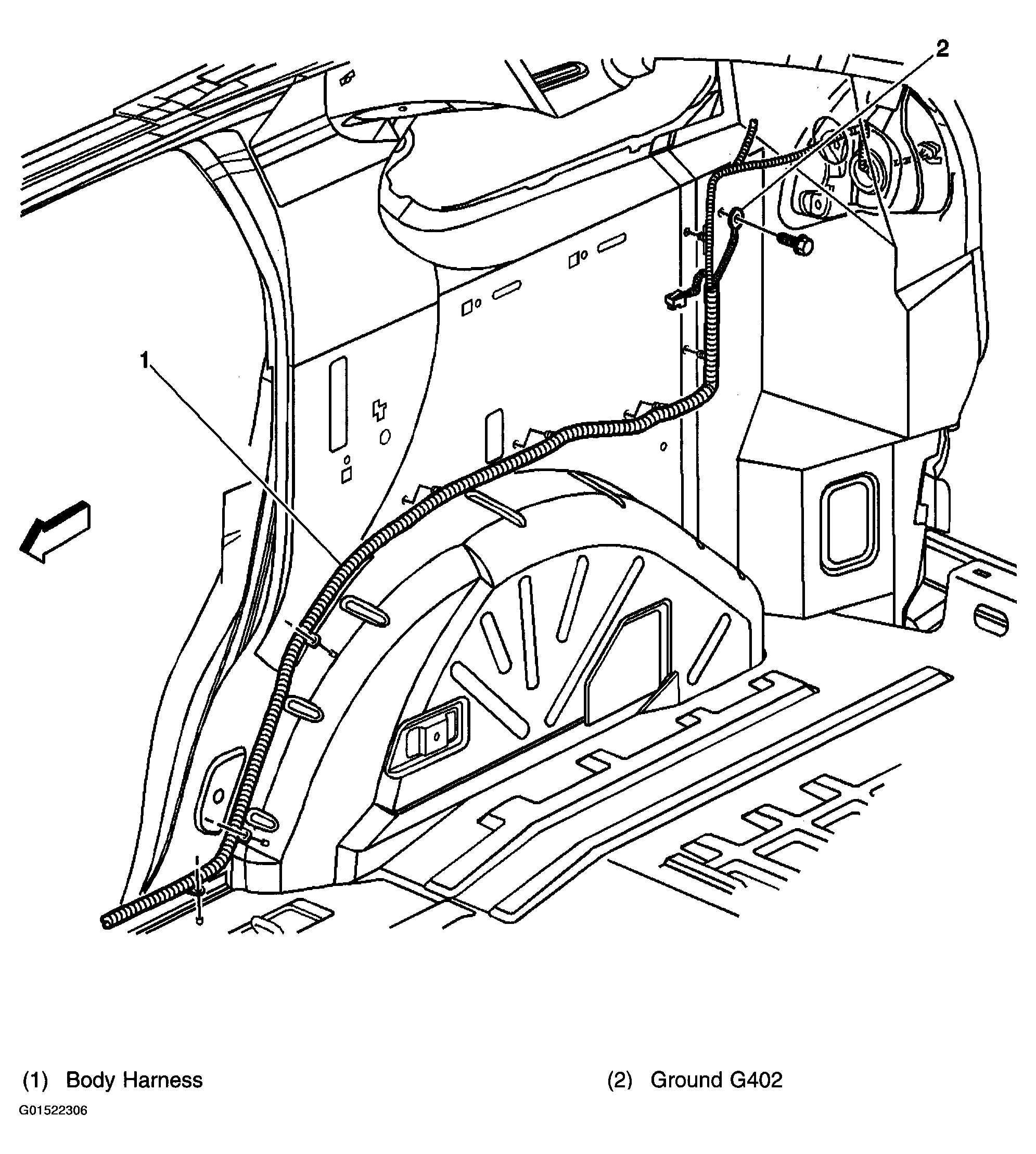

Fig 62: Identifying Harness Routing Views (Passenger Compartment - RR - Pontiac)

G01522306

Courtesy of GENERAL MOTORS CORP.

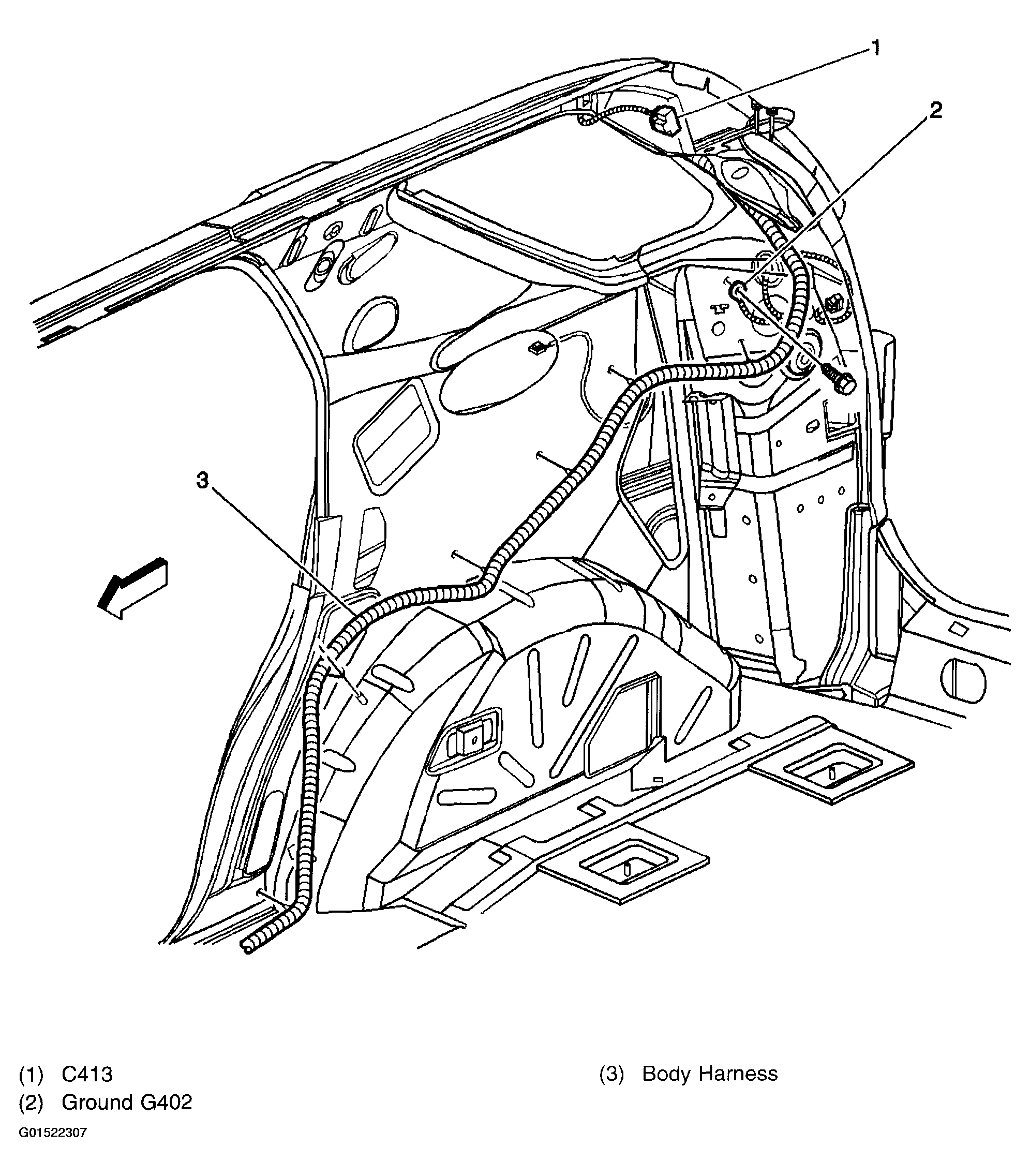

Fig 63: Identifying Harness Routing Views (Passenger Compartment - RR - Buick)

G01522307

Courtesy of GENERAL MOTORS CORP.

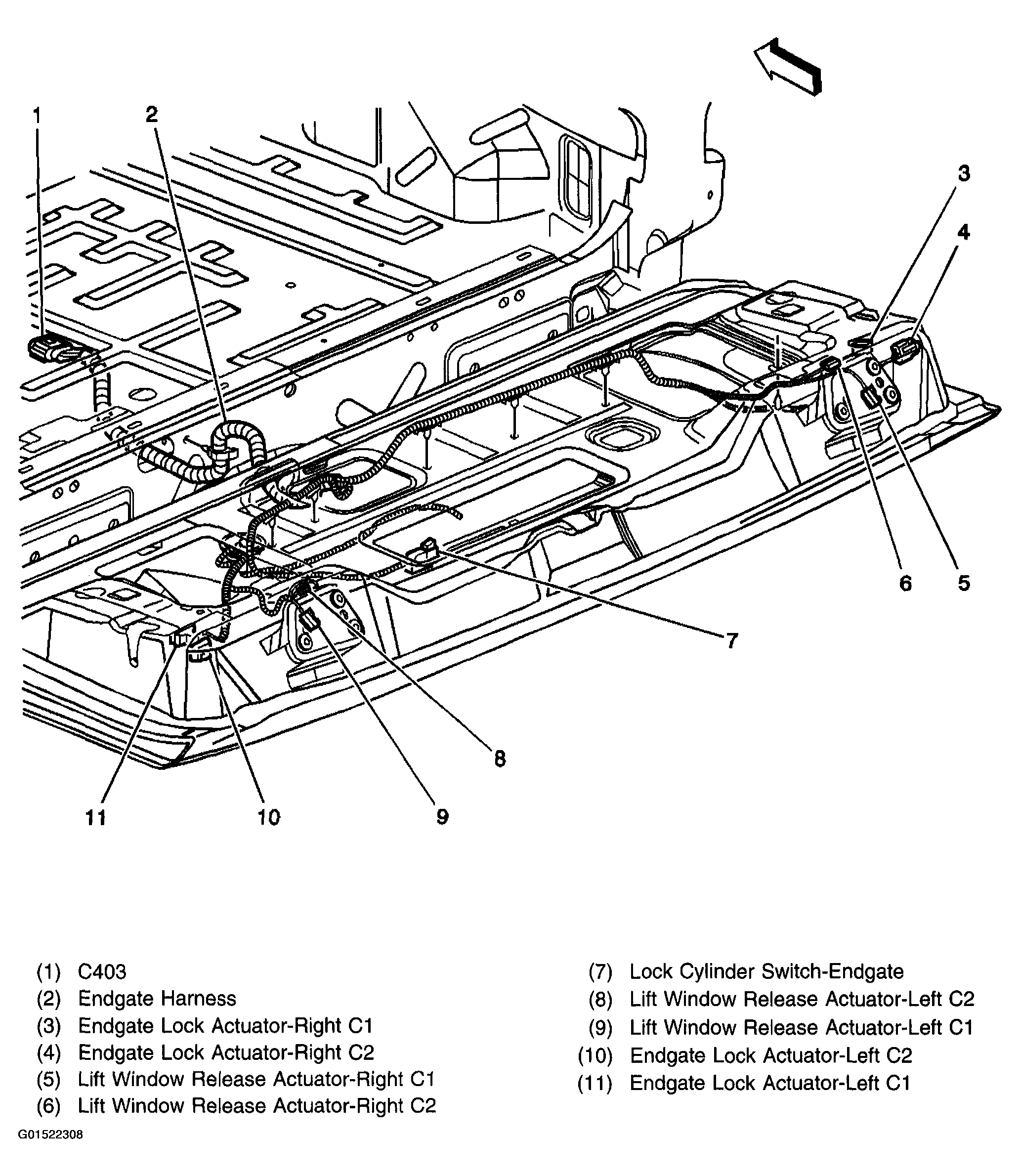

Fig 64: Identifying Harness Routing Views Endgate (Pontiac)

G01522308

Courtesy of GENERAL MOTORS CORP.

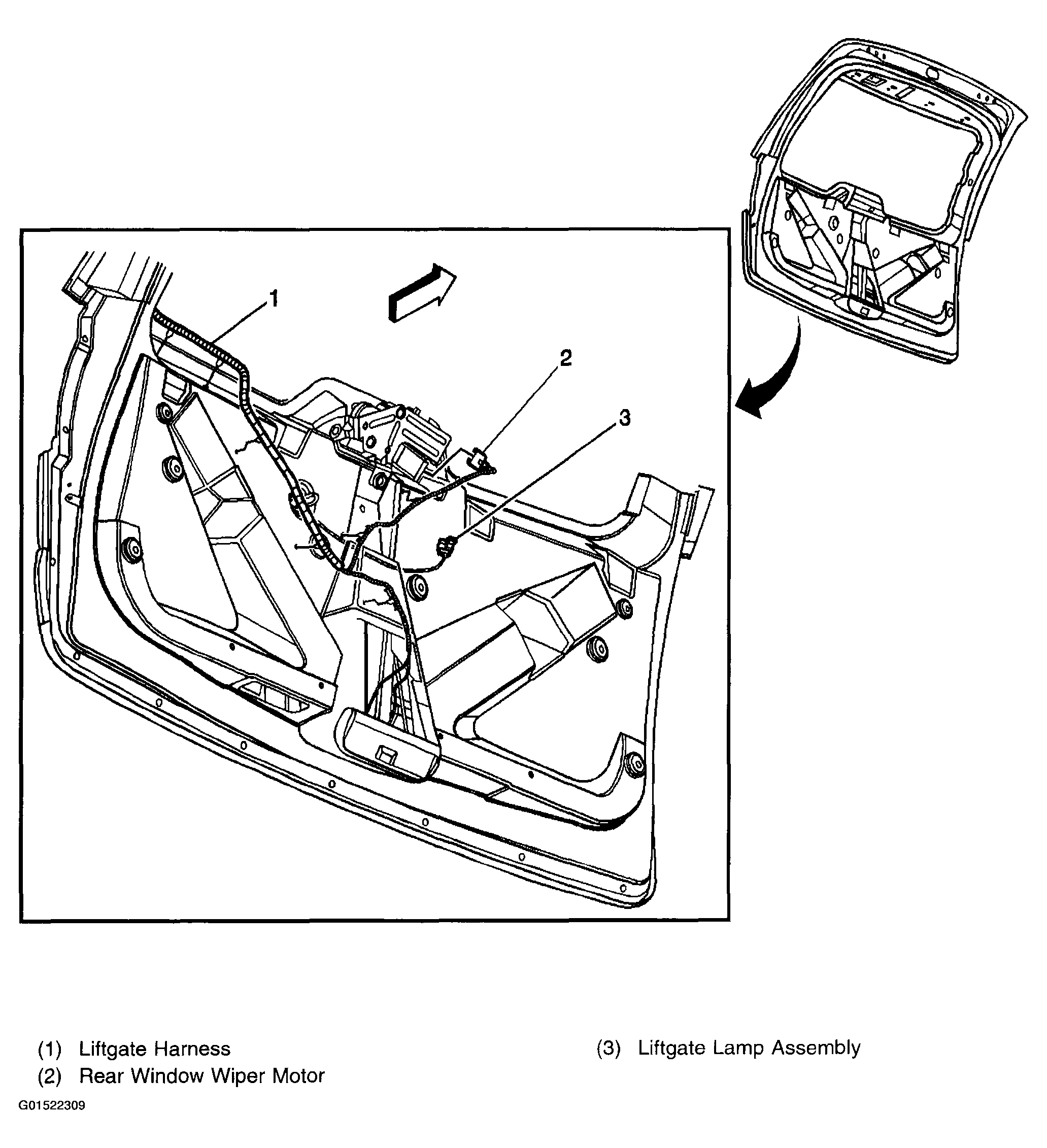

Fig 65: Identifying Harness Routing Views Liftgate - Buick (1 Of 2)

G01522309

Courtesy of GENERAL MOTORS CORP.

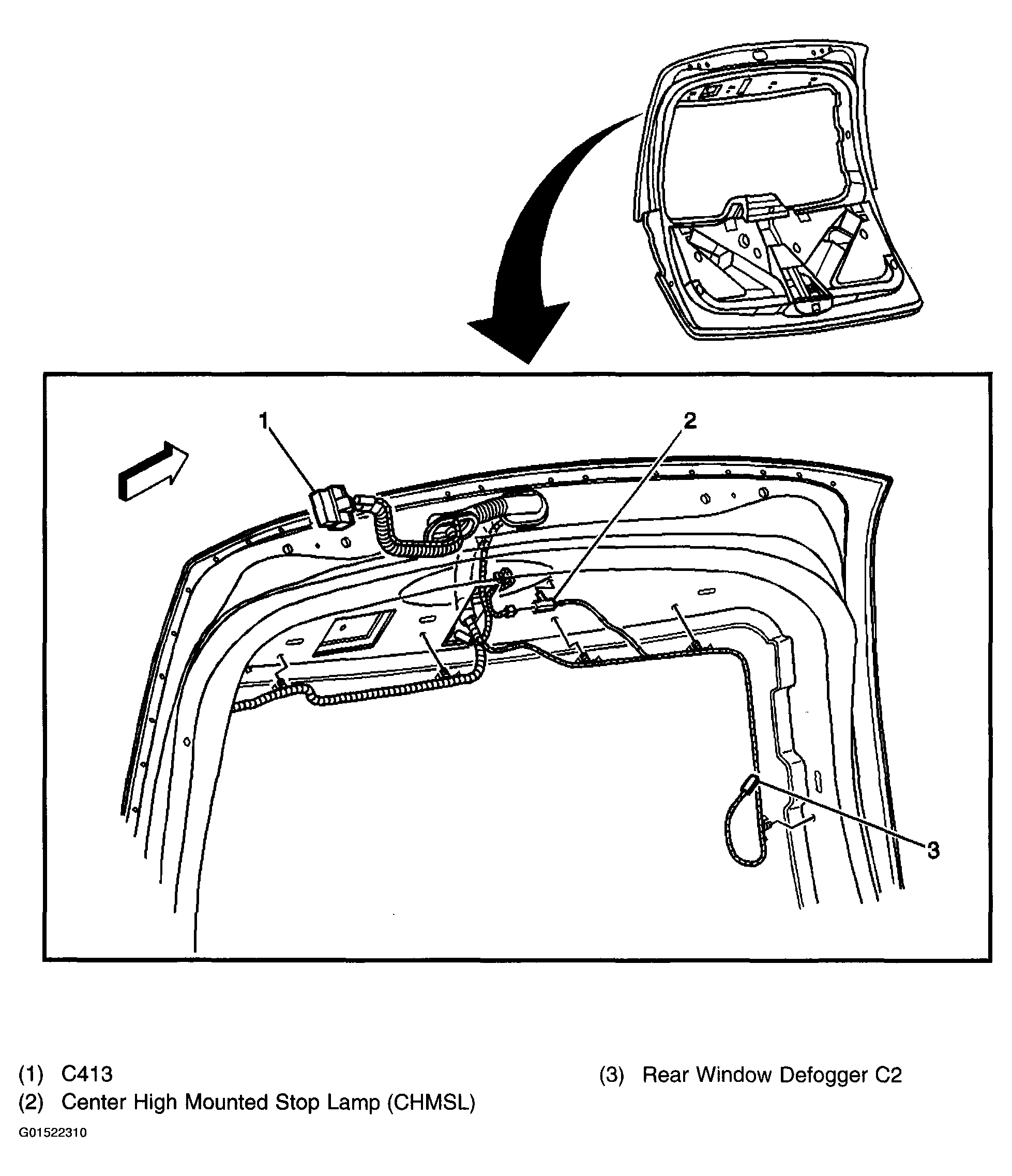

Fig 66: Identifying Harness Routing Views Liftgate - Buick (2 Of 2)

G01522310

Courtesy of GENERAL MOTORS CORP.

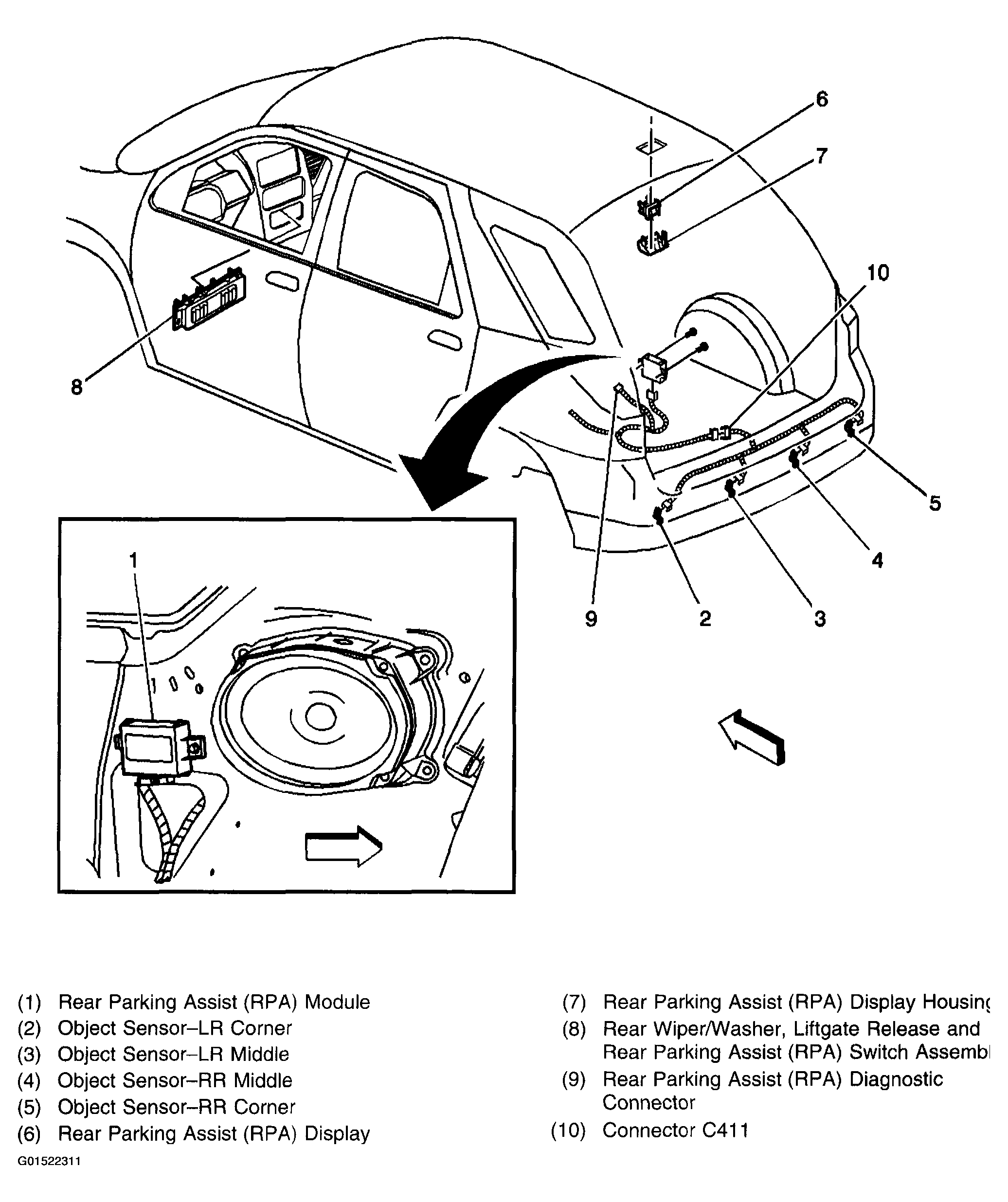

Fig 67: Identifying Harness Routing Views - Rear Parking Assist (RPA)

G01522311

Courtesy of GENERAL MOTORS CORP.
