Test G: Front Door Lock Switch Output Test

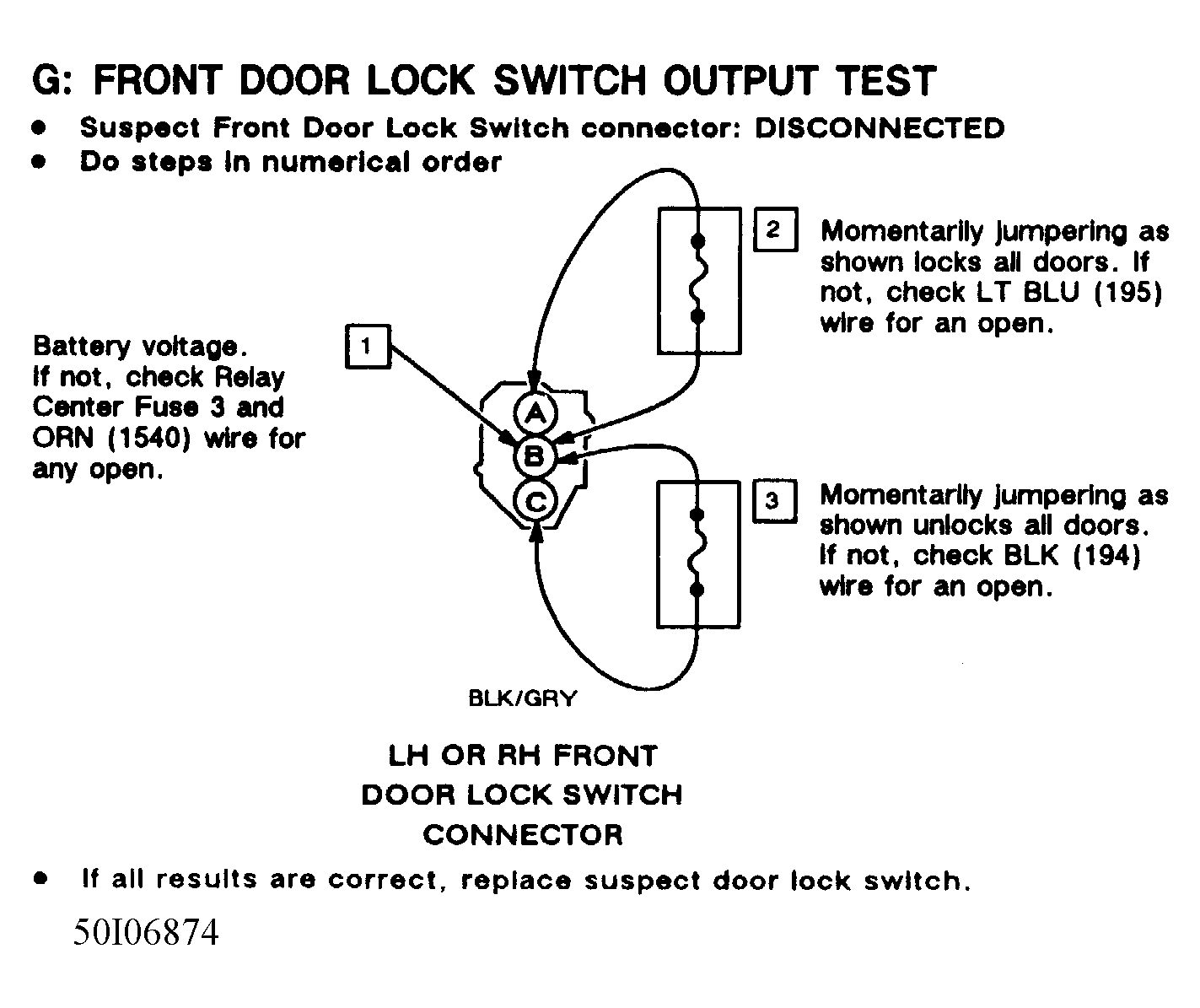

Fig 1: Test G: Front Door Lock Switch Output Test

G50I06874
