Installation Procedure

IMPORTANT: When performing this service procedure, make sure that the motor/encoder unit is flat against the transfer case for proper installation.
  1. Install the motor/encoder to the transfer case.

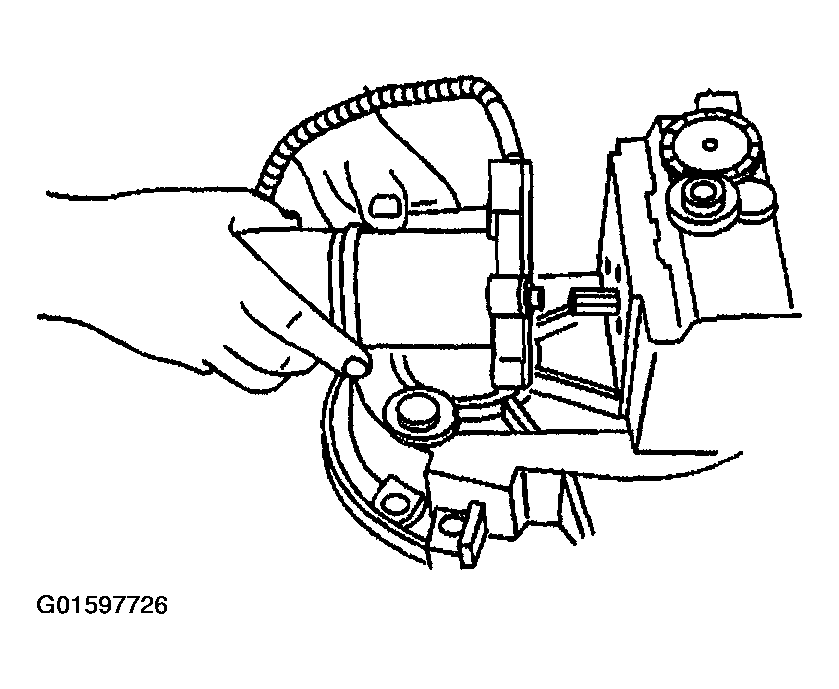

    Fig 1: Installing Motor/Encoder Assembly
    G01597726Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install motor/encoder mounting bolts to the transfer case.

    Tighten

    Tighten the bolts to 16 N.m (12 lb ft).

  3. Connect the motor/encoder electrical connector.
  4. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

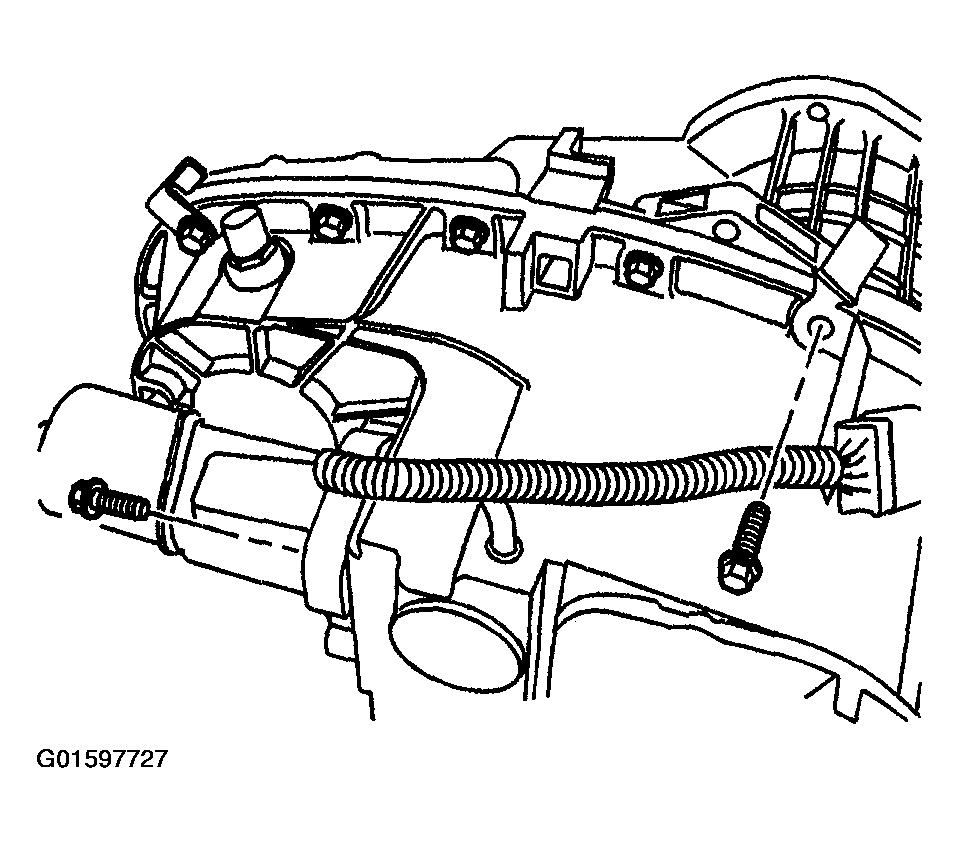

    Fig 2: Installing Motor/Encoder Mounting Bolts
    G01597727Courtesy of GENERAL MOTORS CORP.
