Floor Shift Models

With gear selector lever in the Park position and ignition key in LOCK position, gear selector lever should not be able to be moved to other gear positions. Ignition key should be removable from column.
With key in RUN position and gear selector lever in the Neutral position, ensure key cannot be turned to LOCK position. If system does not perform as described in steps 1) and 2), go to step 3) for adjustment procedure.
If key cannot be removed in Park position, snap connector lock button to up position. Move cable connector nose rearward until key can be removed from ignition. See Fig 1 -Fig 3 . Snap lock button down.

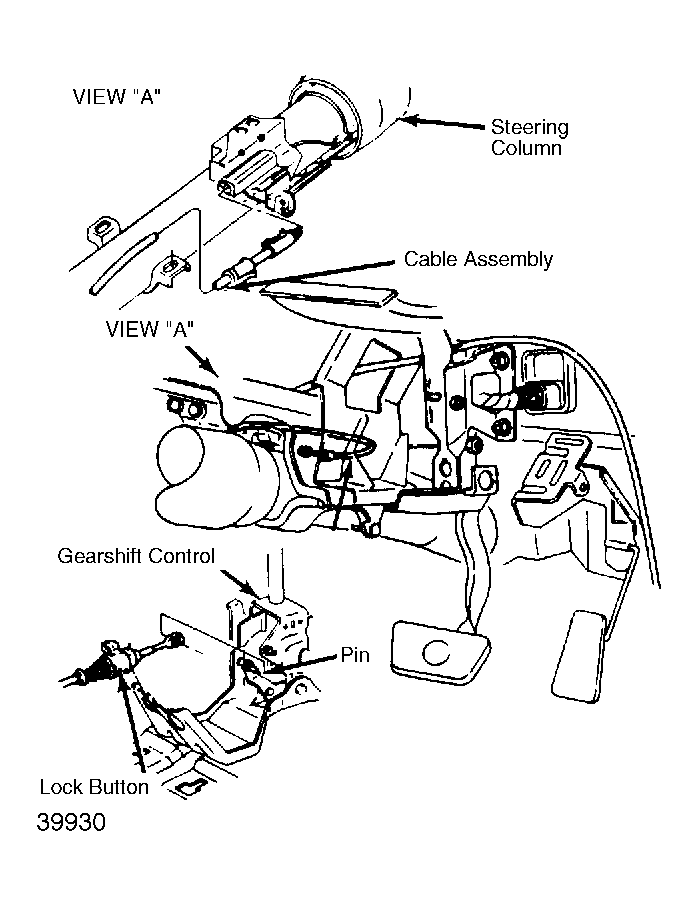

Fig 1: Park/Lock Control Cable (Corvette)

Courtesy of GENERAL MOTORS CORP.

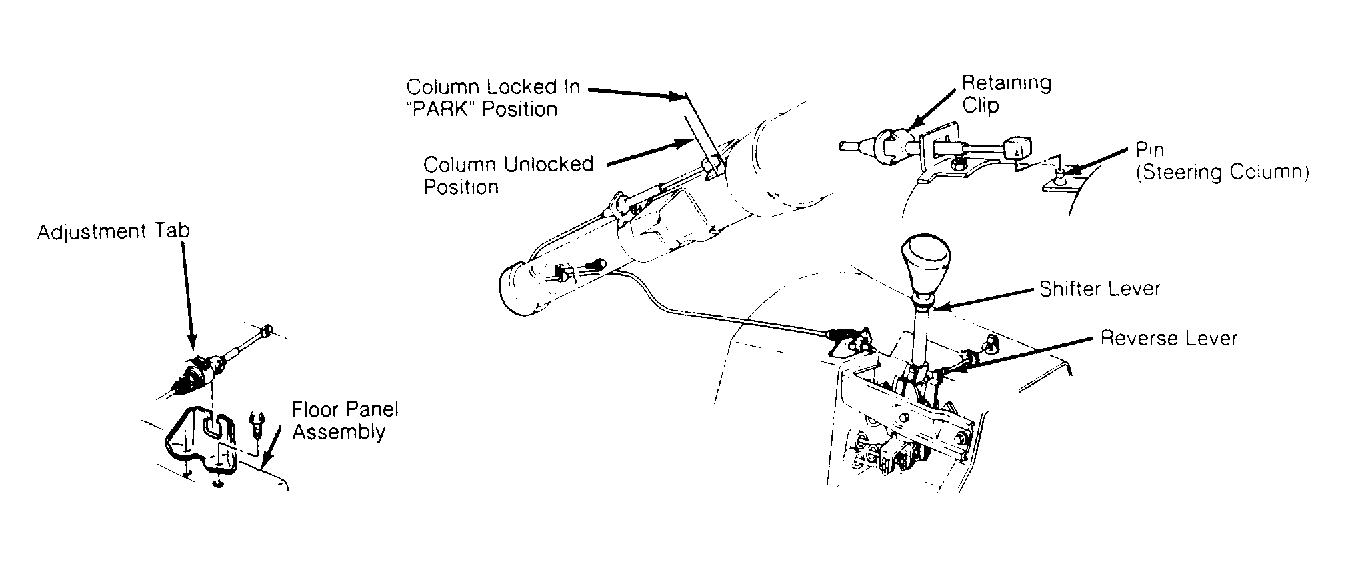

Fig 2: Park/Lock Control Cable On "J" & "N" Bodies

Courtesy of GENERAL MOTORS CORP.

Fig 3: Park/Lock Control Cable On "A" & "W" Bodies

Courtesy of GENERAL MOTORS CORP.
