Exploded View

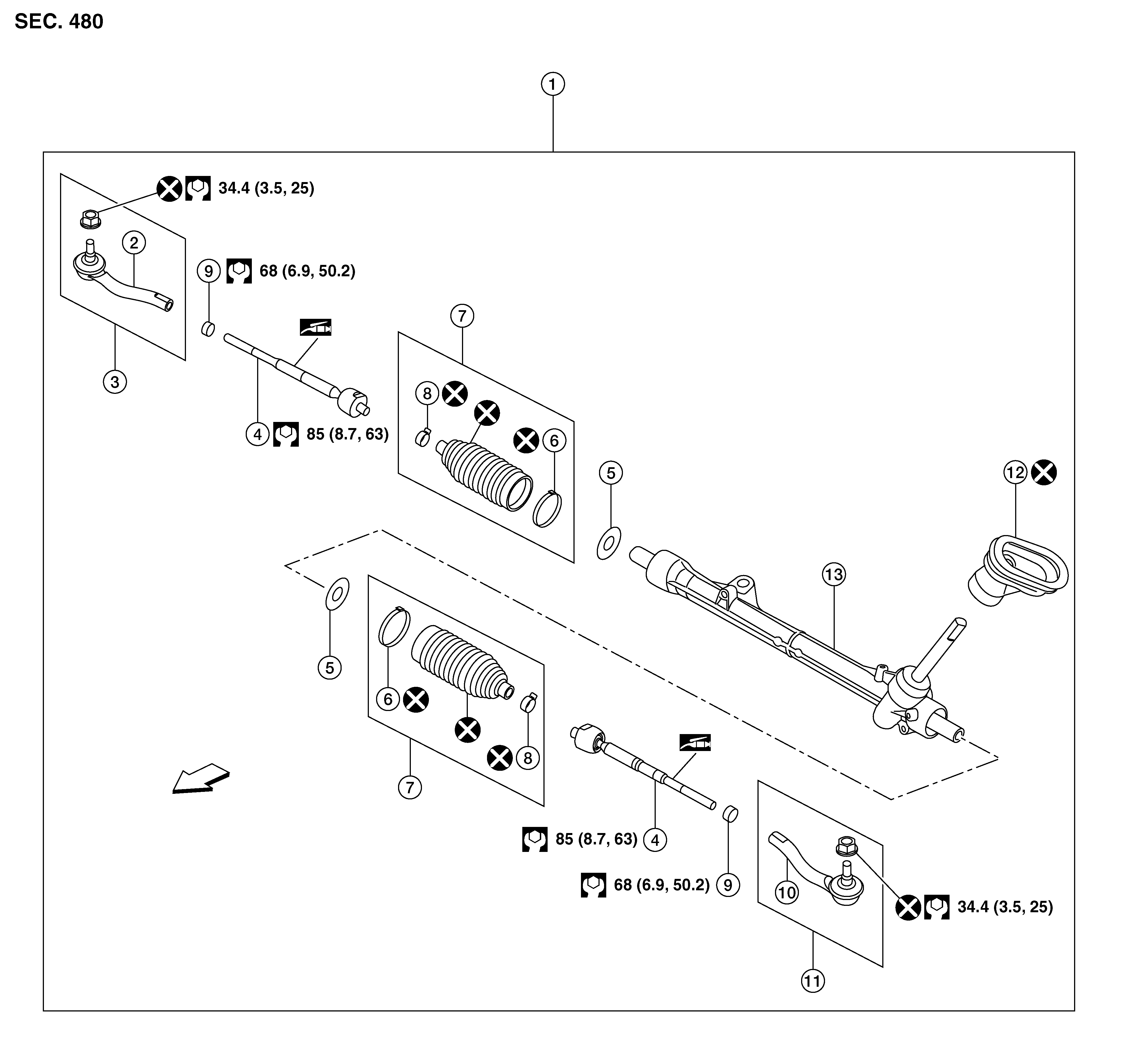

Fig 1: Steering Gear And Linkage With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering gear and linkage assembly	2.	Outer socket (RH)	3.	Outer socket kit (RH)
4.	Inner socket	5.	Spacer	6.	Large boot clamp
7.	Boot kit	8.	Small boot clamp	9.	Lock nut
10.	Outer socket (LH)	11.	Outer socket kit (LH)	12.	Hole cover
13.	Steering gear		Front
