Charging System: Generator

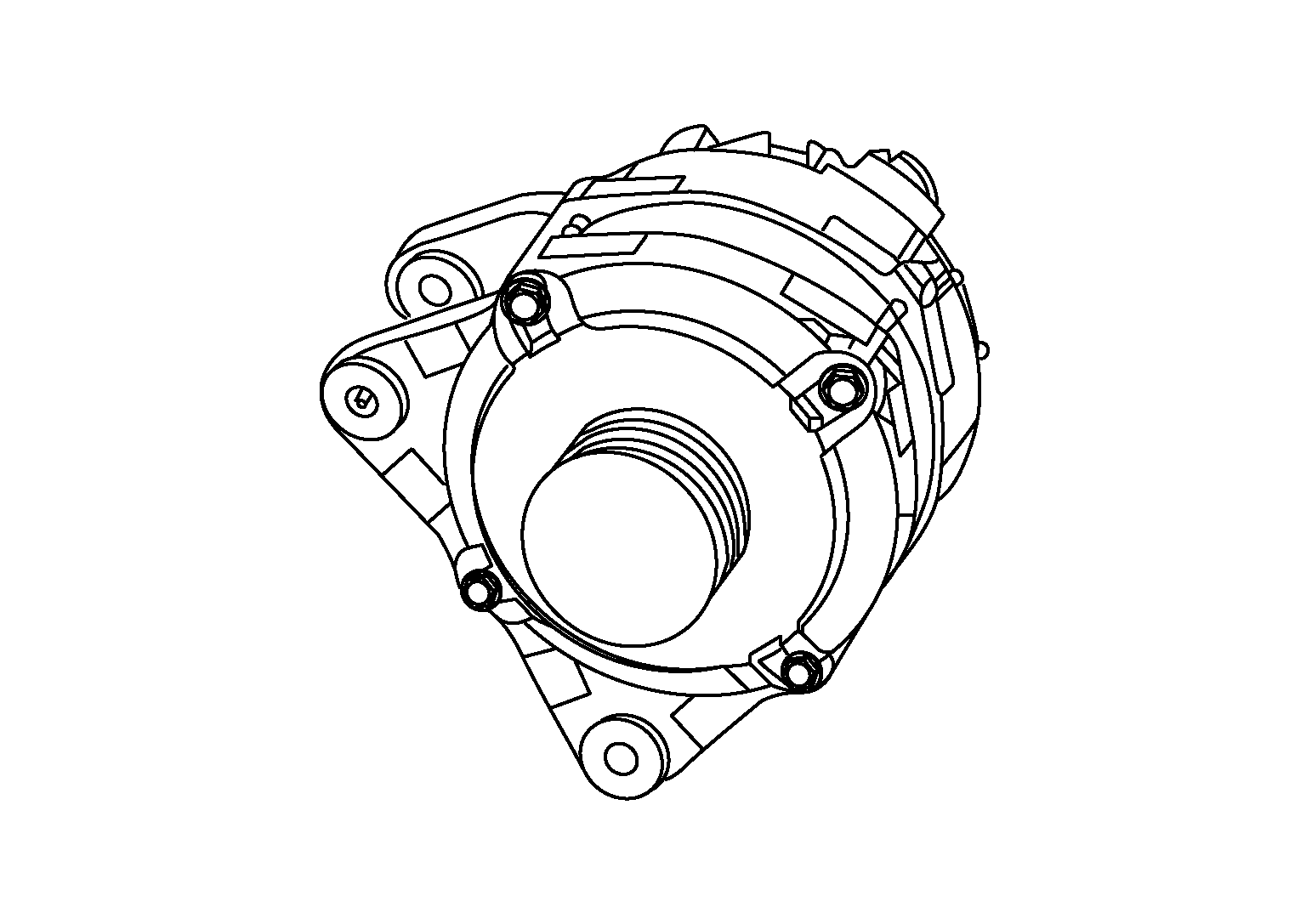

The generator is mounted on the front of the engine, near the top.

Courtesy of NISSAN NORTH AMERICA, INC.
IC voltage regulator controls the generator voltage based on the received signal.
When there is no command signal, the generator performs the normal power generation according to the characteristic of the IC voltage regulator.
