Exploded View

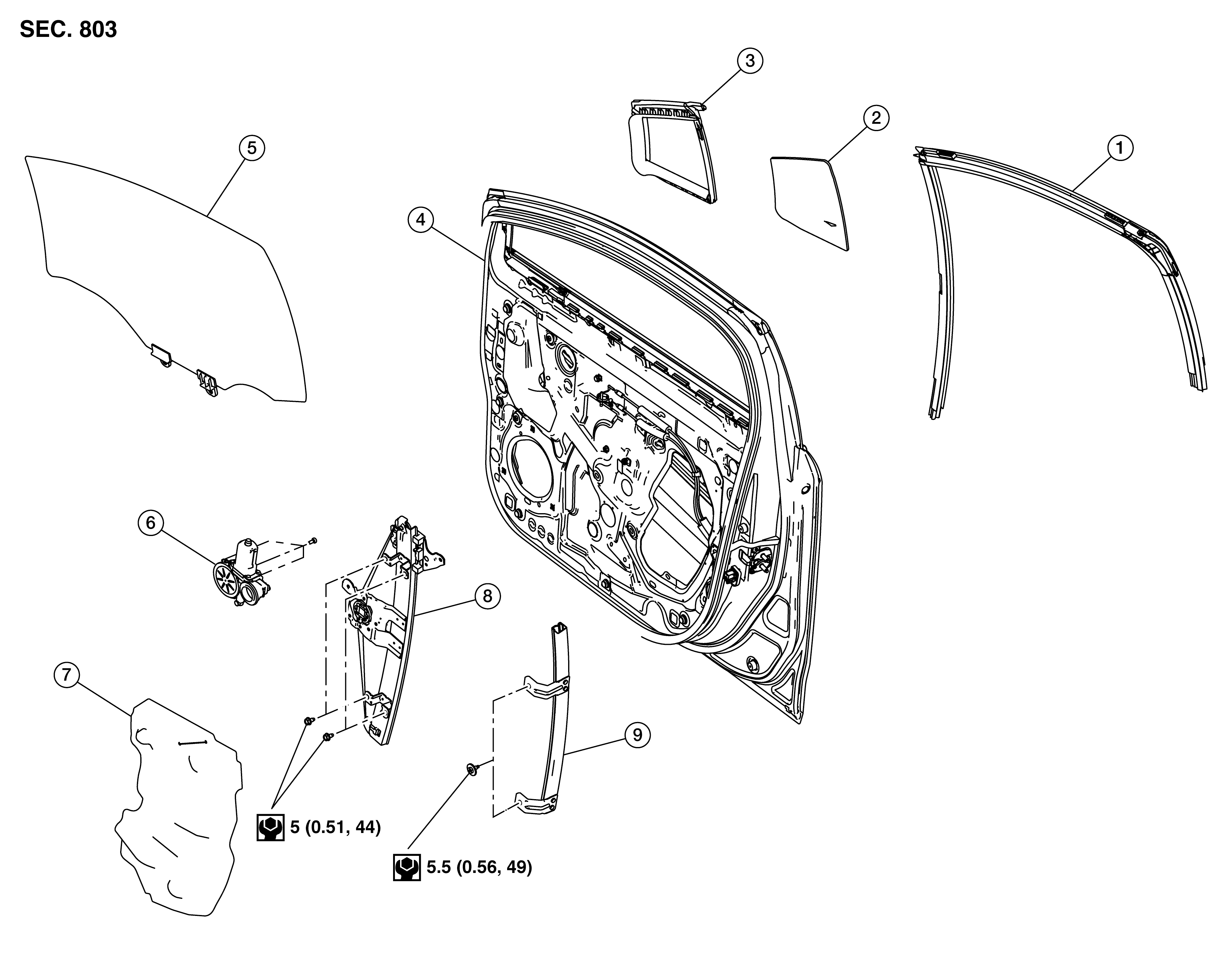

Fig 1: Front Regulator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Door glass rubber run	2.	Front partition glass	3.	Front partition weather-strip
4.	Front door	5.	Door glass	6.	Front power window motor
7.	Vapor barrier	8.	Door glass regulator	9.	Door glass rear run
