System Description

System Reference
Intelligent trace control function Refer to System Description .
Active ride control function Refer to System Description .
Automatic brake hold function Refer to System Description .

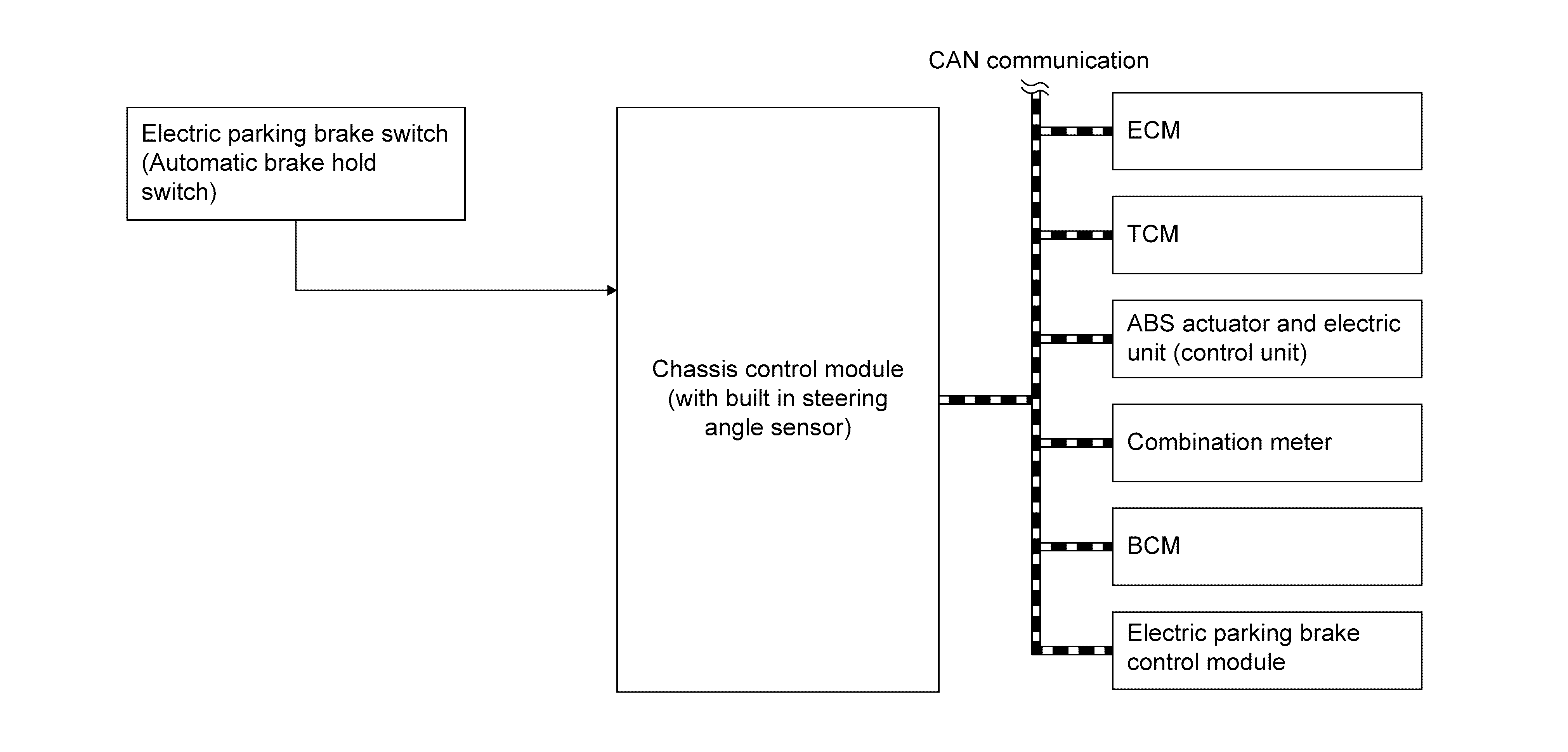

SYSTEM DIAGRAM

NOTE: SYMBOL
  • Automatic brake hold is applied to models with Automatic brake hold.
  • Electric parking brake control module is applied to models with electric parking brake system.
GNSDB49235Courtesy of NISSAN

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

Component parts Signal description
ECM Mainly transmits the following signals to chassis control module (with built in steering angle sensor) via CAN communication.
  • Accelerator pedal position signal
  • Engine speed signal
  • Engine torque signal
  • Estimate drive torque signal
  • Request drive torque signal
  • Request drive torque status signal
TCM Mainly transmits the following signals to chassis control module (with built in steering angle sensor) via CAN communication.
  • Current gear position signal
ABS actuator and electric unit (control unit) Mainly transmits the following signals to chassis control module (with built in steering angle sensor) via CAN communication.
  • Automatic brake hold malfunction signal*
  • Automatic brake hold permission signal*
  • Automatic brake hold status signal*
  • Electric parking brake operation signal (switch)*
  • Electric parking brake status signal*
  • Electric parking brake malfunction signal*
  • Chassis control module prohibition signal*
  • TCS operation signal
  • VDC operation signal
  • ABS operation signal
  • Vehicle speed signal
  • Brake fluid pressure signal
  • VDC accept permission signal
  • Steering angle sensor signal
  • Brake hold status signal
  • Decel G sensor signal
  • Front LH wheel speed signal
  • Front RH wheel speed signal
  • Rear LH wheel speed signal
  • Rear RH wheel speed signal
  • Side G sensor signal
  • Slope signal
  • VDC malfunction signal

Mainly receives the following signals from chassis control module (with built in steering angle sensor) via CAN communication.
  • Active ride control signal
  • Intelligent trace control signal
Combination meter Mainly transmits the following signals to chassis control module (with built in steering angle sensor) via CAN communication.
  • Seat belt buckle switch (driver side) signal
  • Intelligent trace control setting signal

Mainly receives the following signals from chassis control module (with built in steering angle sensor) via CAN communication.
  • Automatic brake hold indicator lamp signal*
  • Meter display signal
BCM Mainly transmits the following signals to chassis control module (with built in steering angle sensor) via CAN communication.
  • Stop lamp switch signal
  • Brake pedal status signal
Electric parking brake control module* Mainly transmits the following signals to chassis control module (with built in steering angle sensor) via CAN communication.
  • Chassis control module prohibition signal
  • Automatic brake hold permission signal
  • Automatic brake hold malfunction signal
  • Automatic brake hold prohibition signal
  • Brake system warning lamp signal
  • Electric parking brake warning lamp signal
  • Electric parking brake operation signal (switch)
  • Electric parking brake status signal
  • Electric parking brake malfunction signal

*: With automatic brake hold
