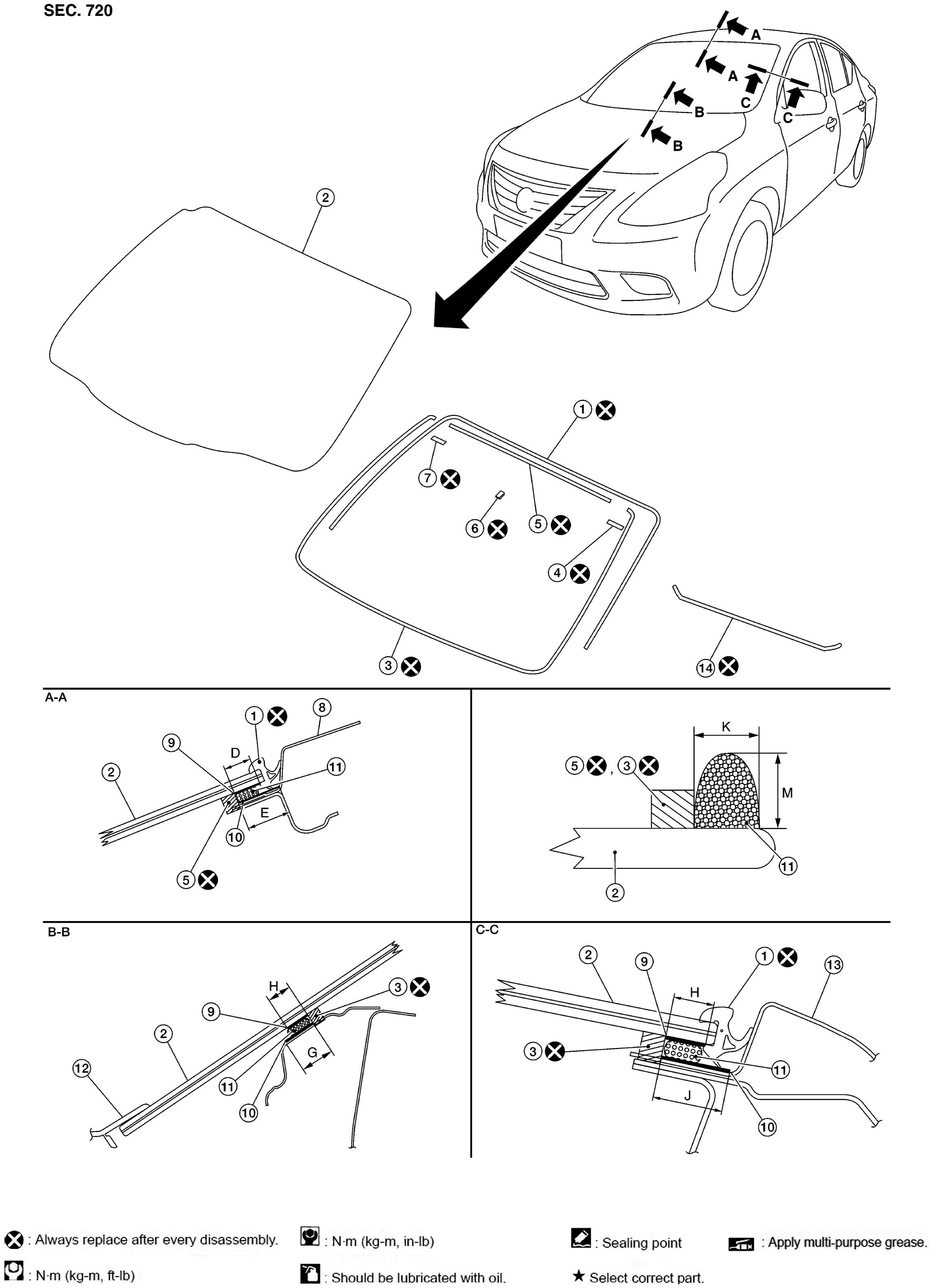

Exploded View With Torque Specifications
Unit: mm (in)
| 1. | Windshield glass molding | 2. | Windshield glass | 3. | Dam sealant rubber (lower) (Except for A/T model) |
| 4. | Windshield glass holder (LH) | 5. | Dam sealant rubber (upper) (Except for A/T model) | 6. | Inside mirror base |
| 7. | Windshield glass holder (RH) | 8. | Roof assembly | 9. | Glass primer |
| 10. | Body primer | 11. | Adhesive | 12. | Cowl top cover |
| 13. | Body side outer panel | 14. | Dam sealant rubber (For A/T model) | D. | 10.0 (0.39) |
| E. | 16.5 (0.65) | H. | 8.0 (0.31) | H. | 8.0 (0.31) |
| J. | 19.0 (0.75) | K. | 7.0 (0.28) | M. | 12.0 (0.47) |
