Exploded View

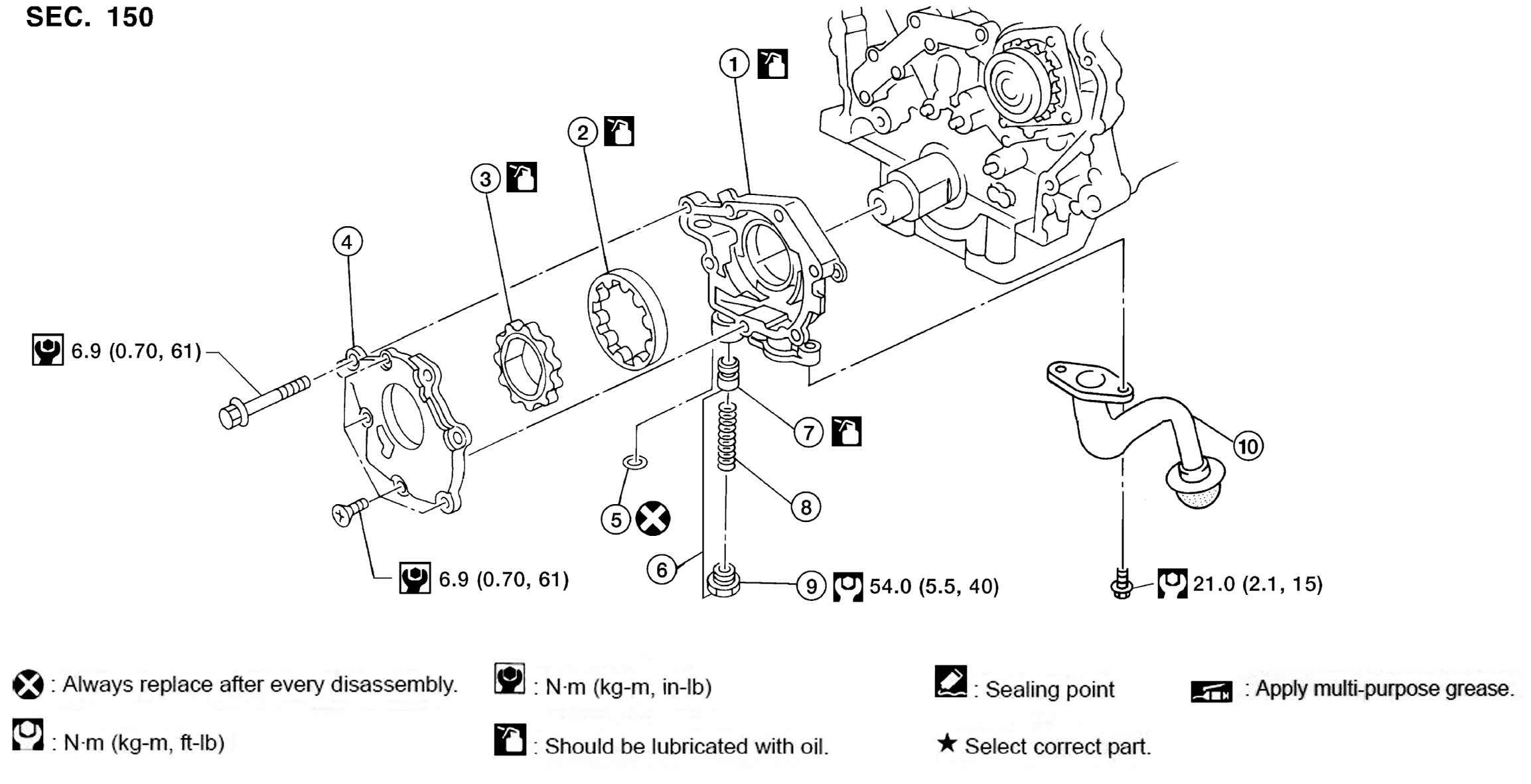

Fig 1: Oil Pump With Torque Specifications
GNSAWBIA0715ZZ-715Courtesy of NISSAN NORTH AMERICA, INC.
1. Oil pump housing 2. Outer rotor 3. Inner rotor
4. Oil pump cover 5. O-ring 6. Regulator valve set
7. Regulator valve 8. Spring 9. Regulator plug
10. Oil strainer
