Exploded View With Torque Specifications

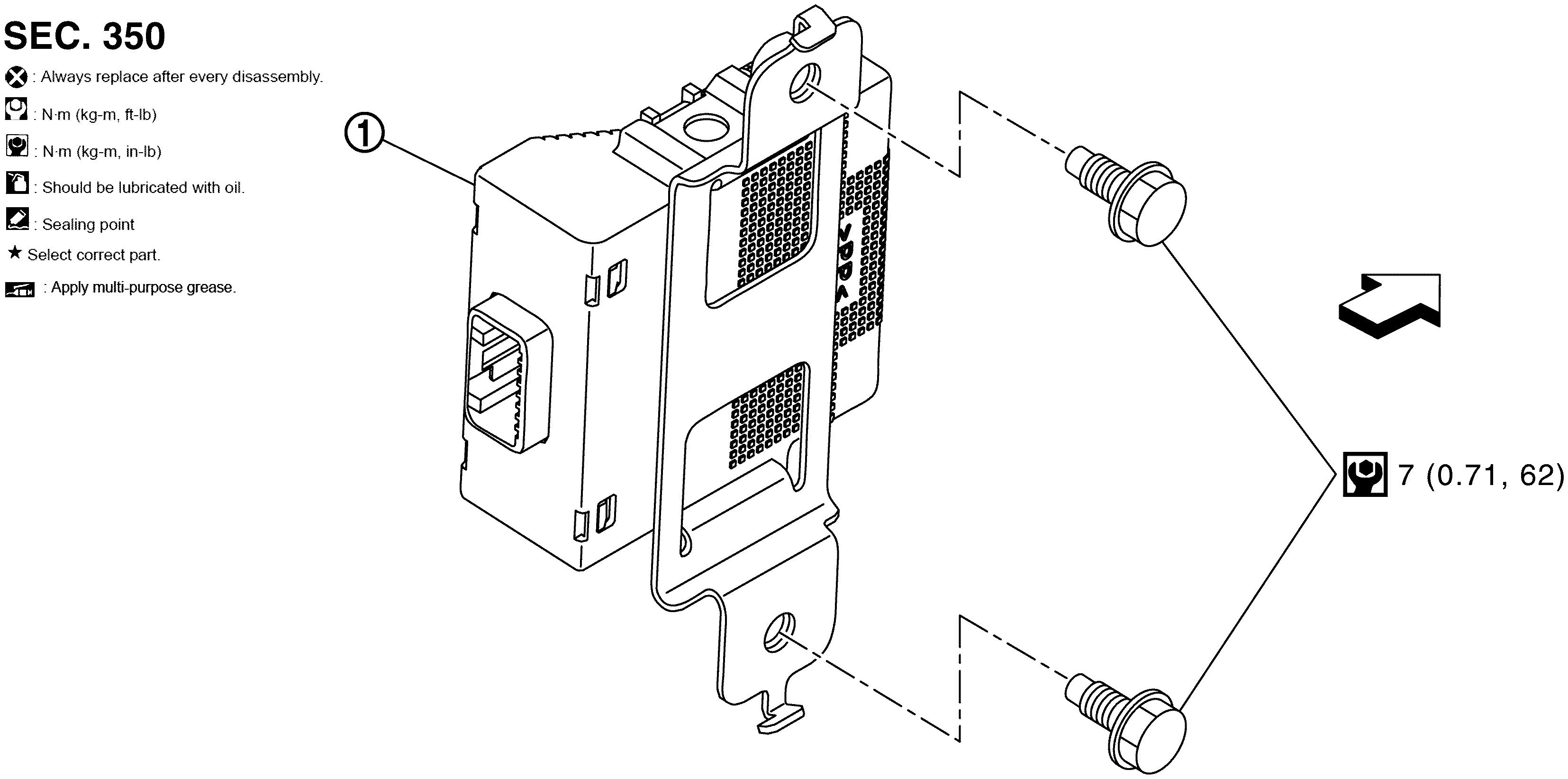

Fig 1: Exploded View Of AWD Control Unit With Torque Specifications
GNSJSDIA5368GB-368Courtesy of NISSAN NORTH AMERICA, INC.
1. AWD control unit ARROW Front
