Connector Terminal Identification

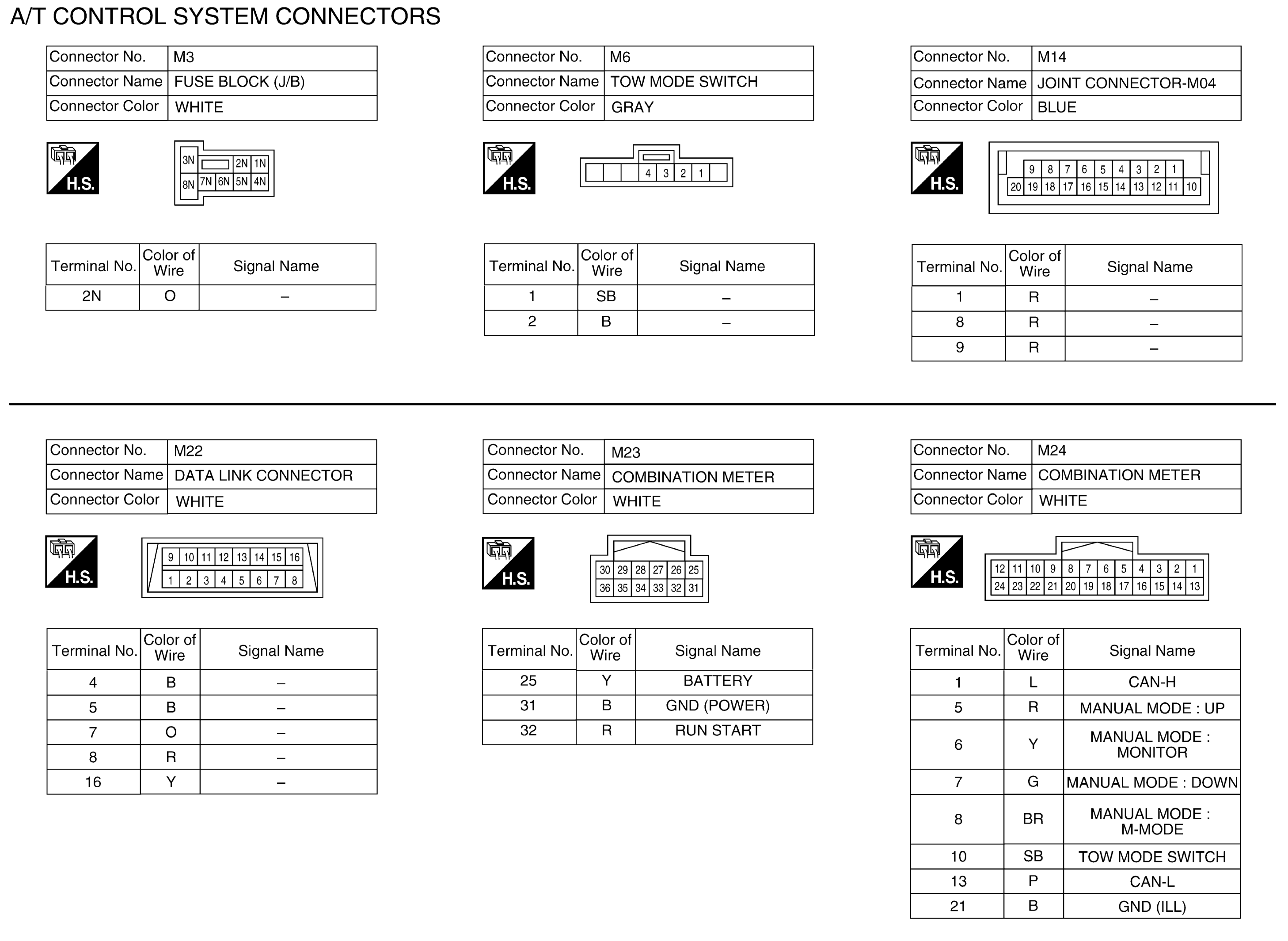

Fig 1: A/T Control System Connectors (1 Of 8)

G08162372

Courtesy of NISSAN NORTH AMERICA, INC.

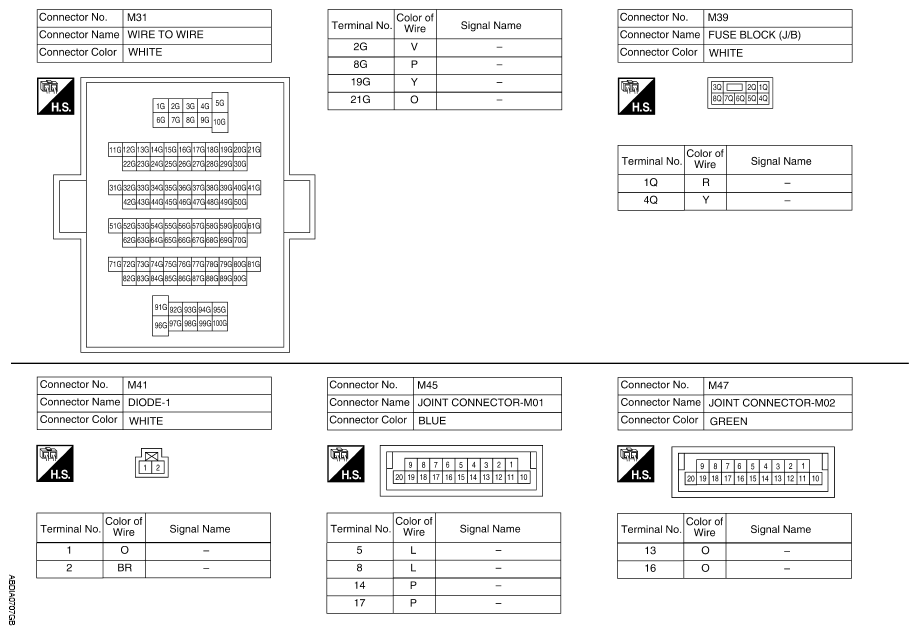

Fig 2: A/T Control System Connectors (2 Of 8)

G08162373

Courtesy of NISSAN NORTH AMERICA, INC.

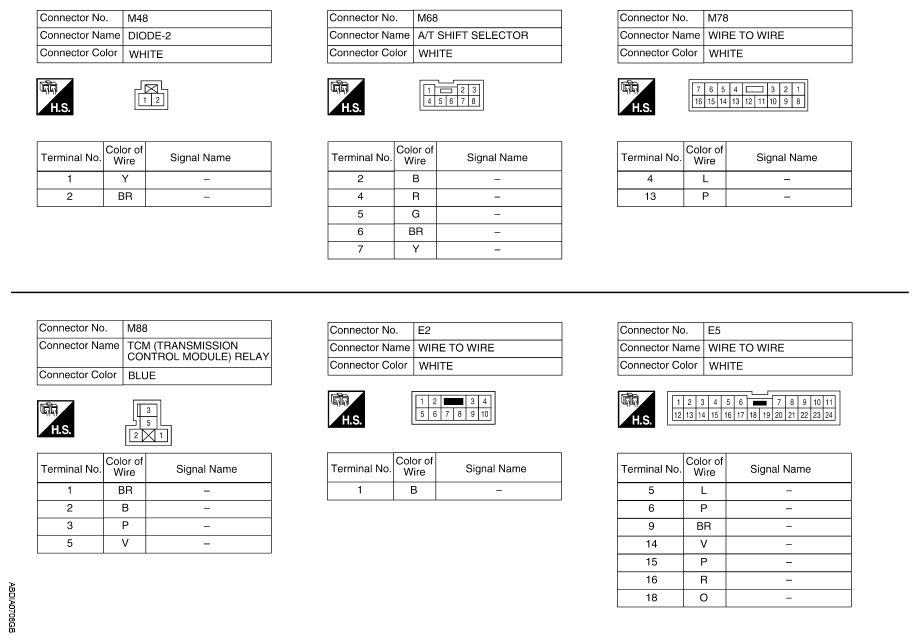

Fig 3: A/T Control System Connectors (3 Of 8)

G08162374

Courtesy of NISSAN NORTH AMERICA, INC.

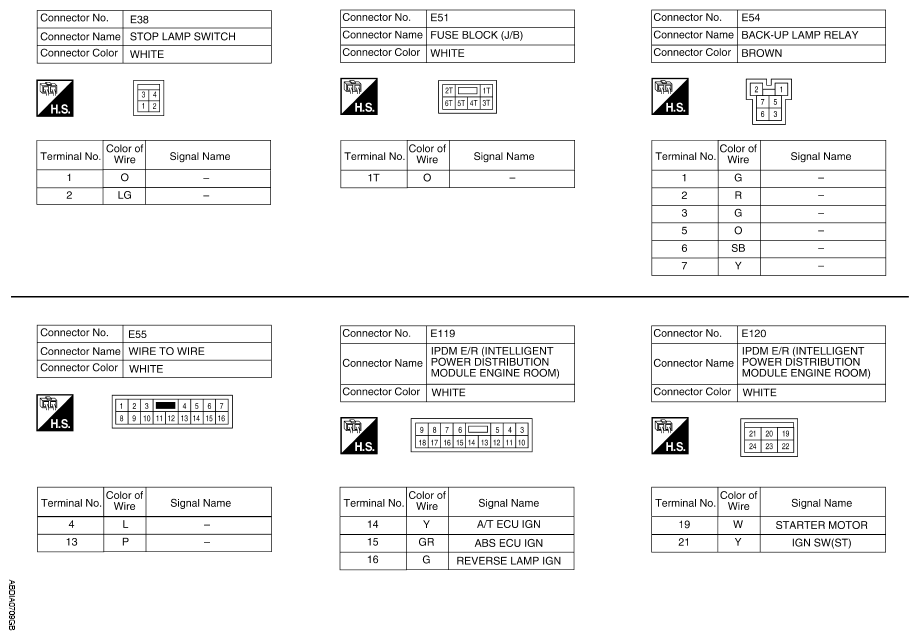

Fig 4: A/T Control System Connectors (4 Of 8)

G08162375

Courtesy of NISSAN NORTH AMERICA, INC.

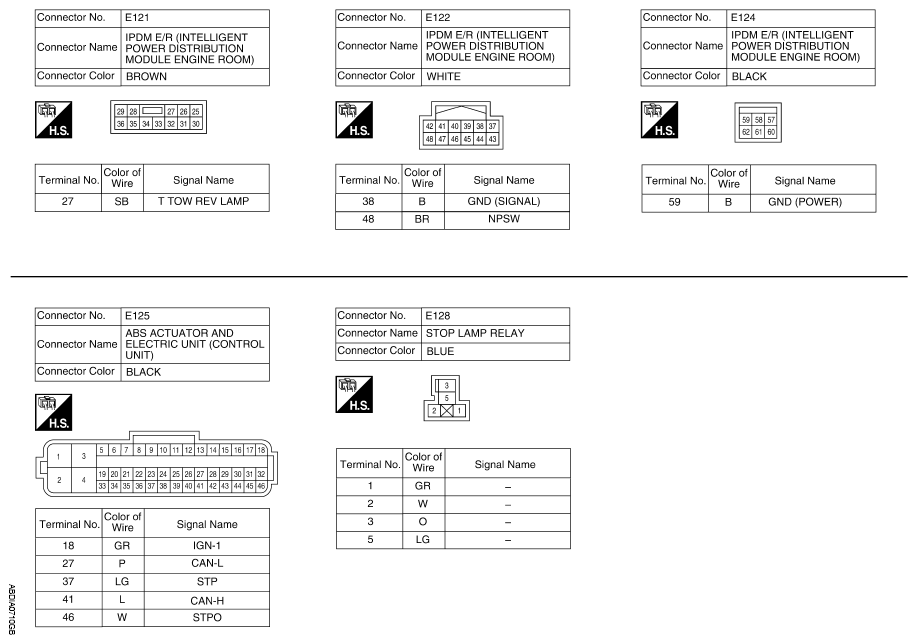

Fig 5: A/T Control System Connectors (5 Of 8)

G08162376

Courtesy of NISSAN NORTH AMERICA, INC.

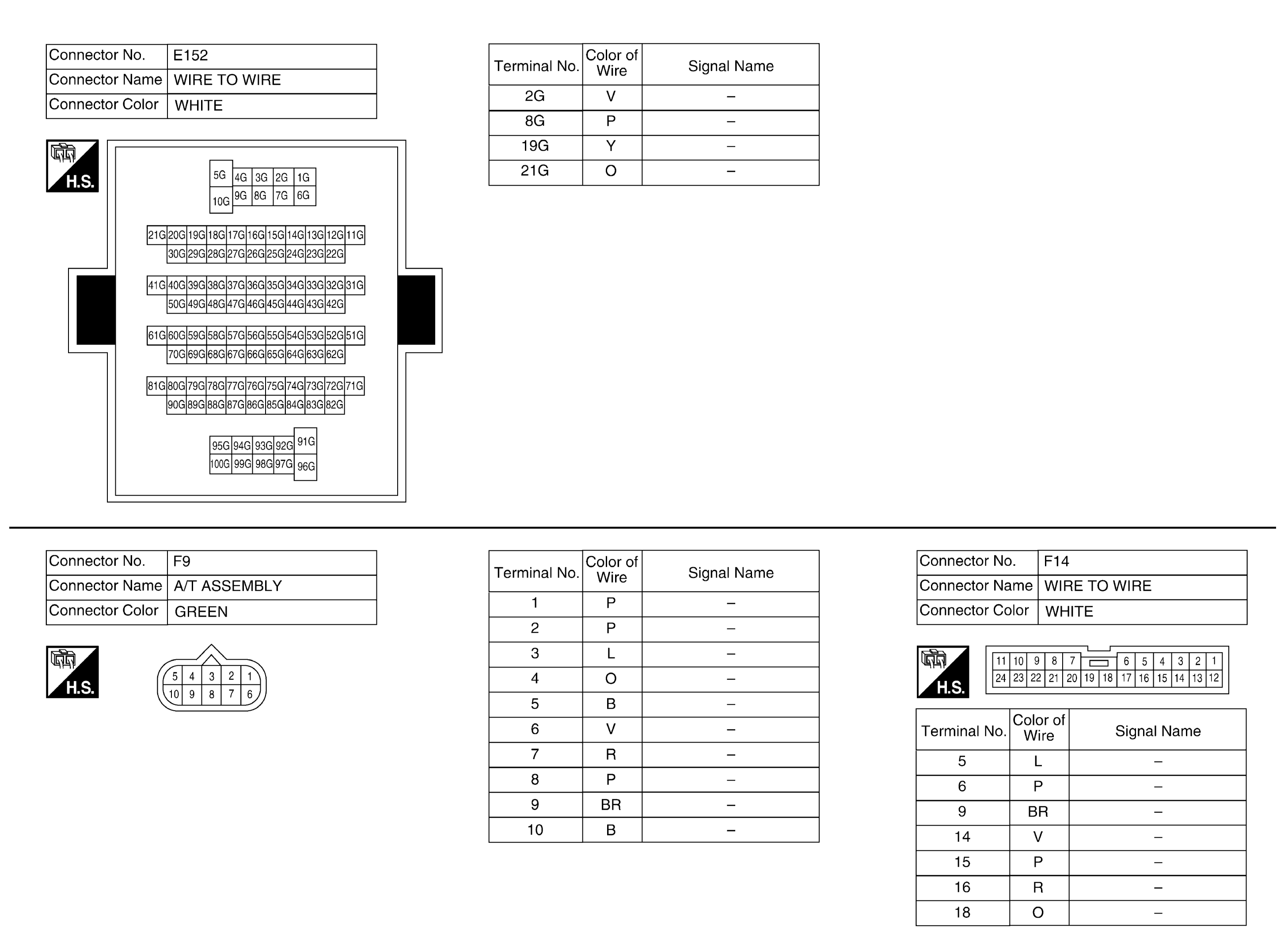

Fig 6: A/T Control System Connectors (6 Of 8)

G08162377

Courtesy of NISSAN NORTH AMERICA, INC.

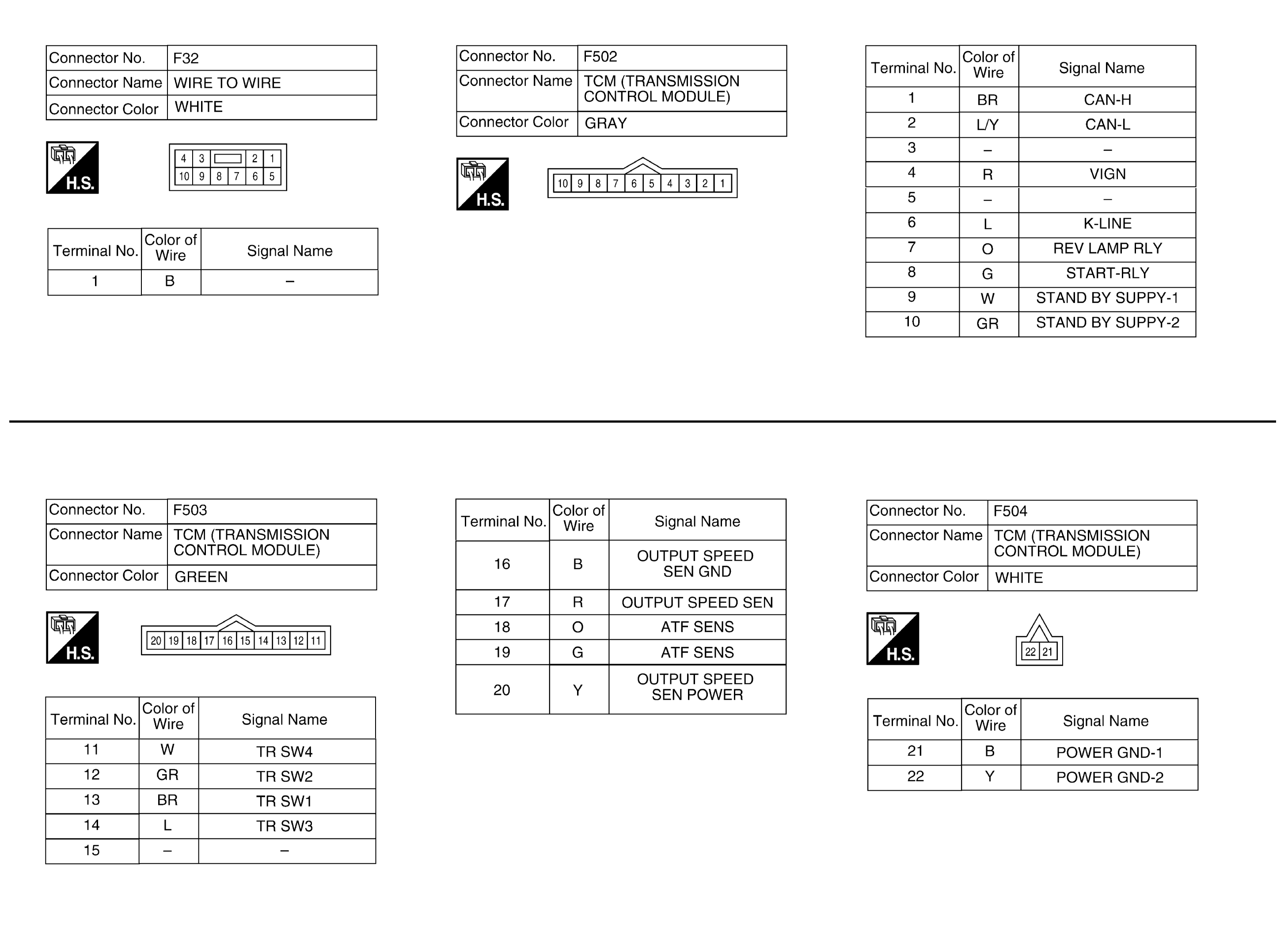

Fig 7: A/T Control System Connectors (7 Of 8)

G08162378

Courtesy of NISSAN NORTH AMERICA, INC.

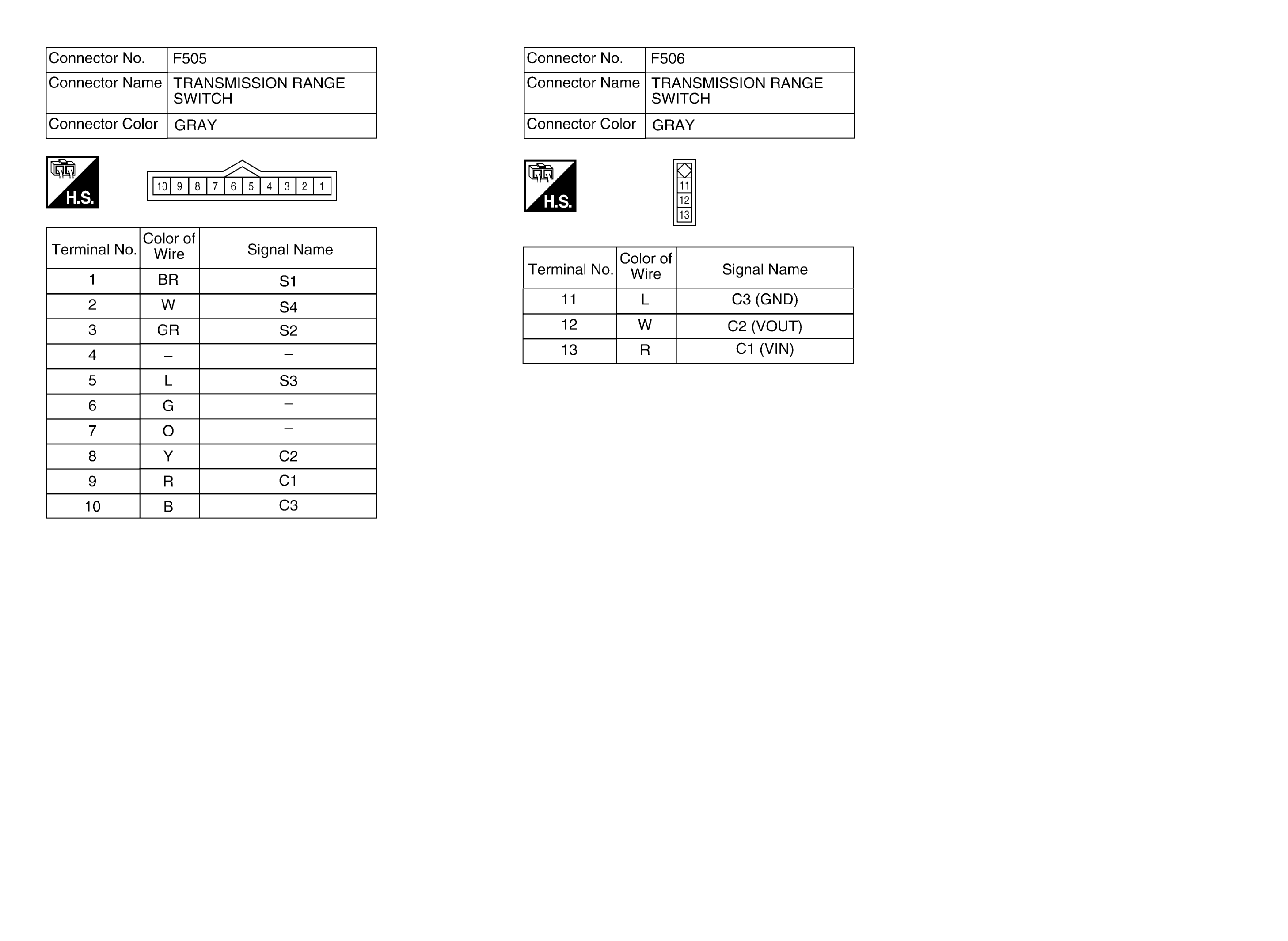

Fig 8: A/T Control System Connectors (8 Of 8)

G08162379

Courtesy of NISSAN NORTH AMERICA, INC.
