Nissan-Datsun
>>
2012
>>
NV3500 HD SL
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Unit Removal And Installation
>>
Fuel Tank
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes

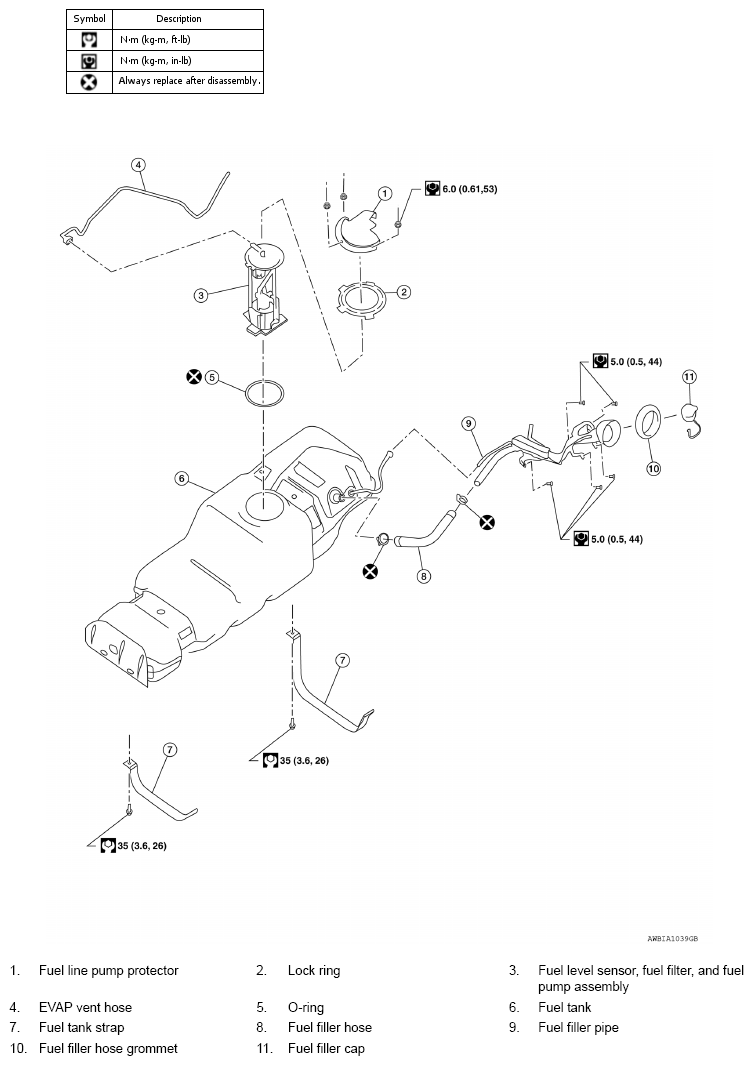

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
