Removal and Installation: Removal

Beginning at the rear edge, insert a suitable tool (A) and release the metal clip of the power window and door lock/unlock switch RH finisher (1).

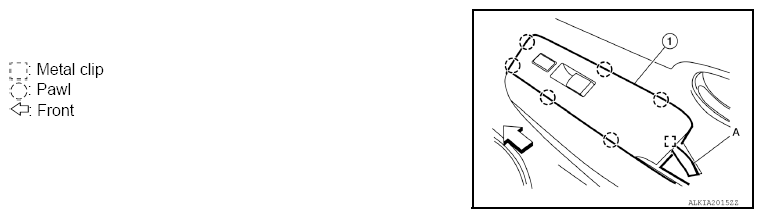

Fig 1: Releasing Metal Clip Of Power Window And Door Lock/Unlock Switch RH Finisher Using Suitable Tool
Courtesy of NISSAN NORTH AMERICA, INC.
Working forward, release the remaining pawls, then remove the power window and door lock/unlock switch RH finisher (1) and power window and door lock/unlock switch RH as an assembly from the front door finisher.
Disconnect the harness connector from power window and door lock/unlock switch RH.
Release the four pawls that retain the power window and door lock/unlock switch RH (1) to the power window and door lock/unlock switch RH finisher (2) and separate them using a suitable tool (A).

Fig 2: Separating Power Window And Door Lock/Unlock Switch RH From Finisher Using Suitable Tool
Courtesy of NISSAN NORTH AMERICA, INC.
