Nissan-Datsun
>>
2011
>>
Murano SL, AWD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Power Steering Control System (Except CROSSCABRIOLET)
>>
System Description
>>
EPS System
>>
System Diagram
>>
Cross-Sectional View
Cross-Sectional View

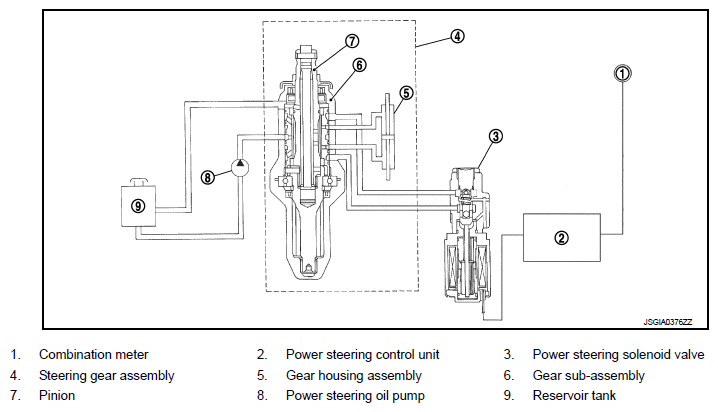

Fig 1: Cross-Sectional View Of EPS
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
