Removal and Installation: Notes

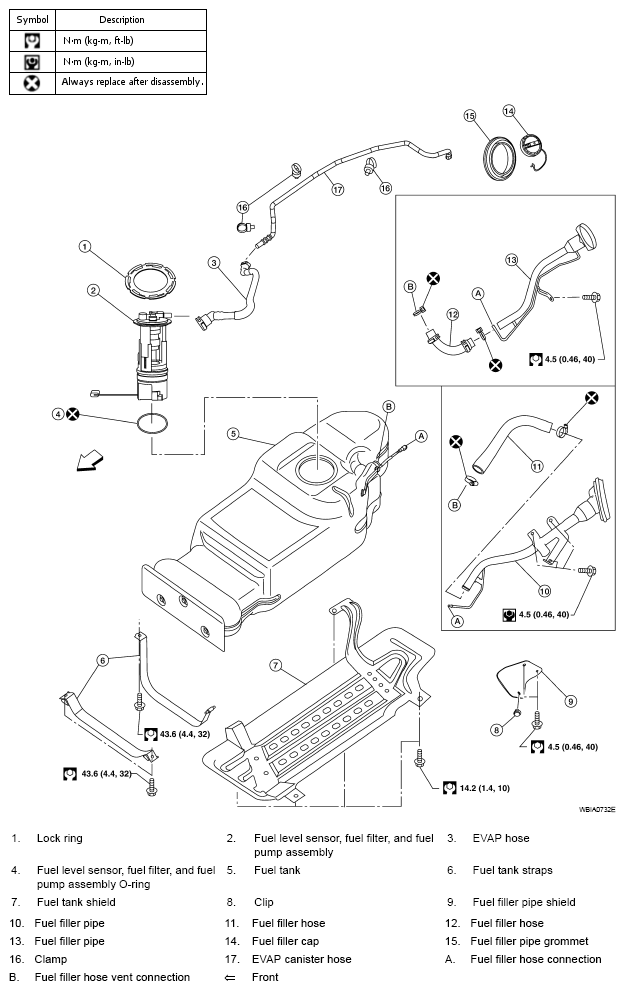

Fig 1: Fuel Tank Replacement Components With Torque Specifications

G05700965

Courtesy of NISSAN MOTOR CO., U.S.A.
