System Description: Operation

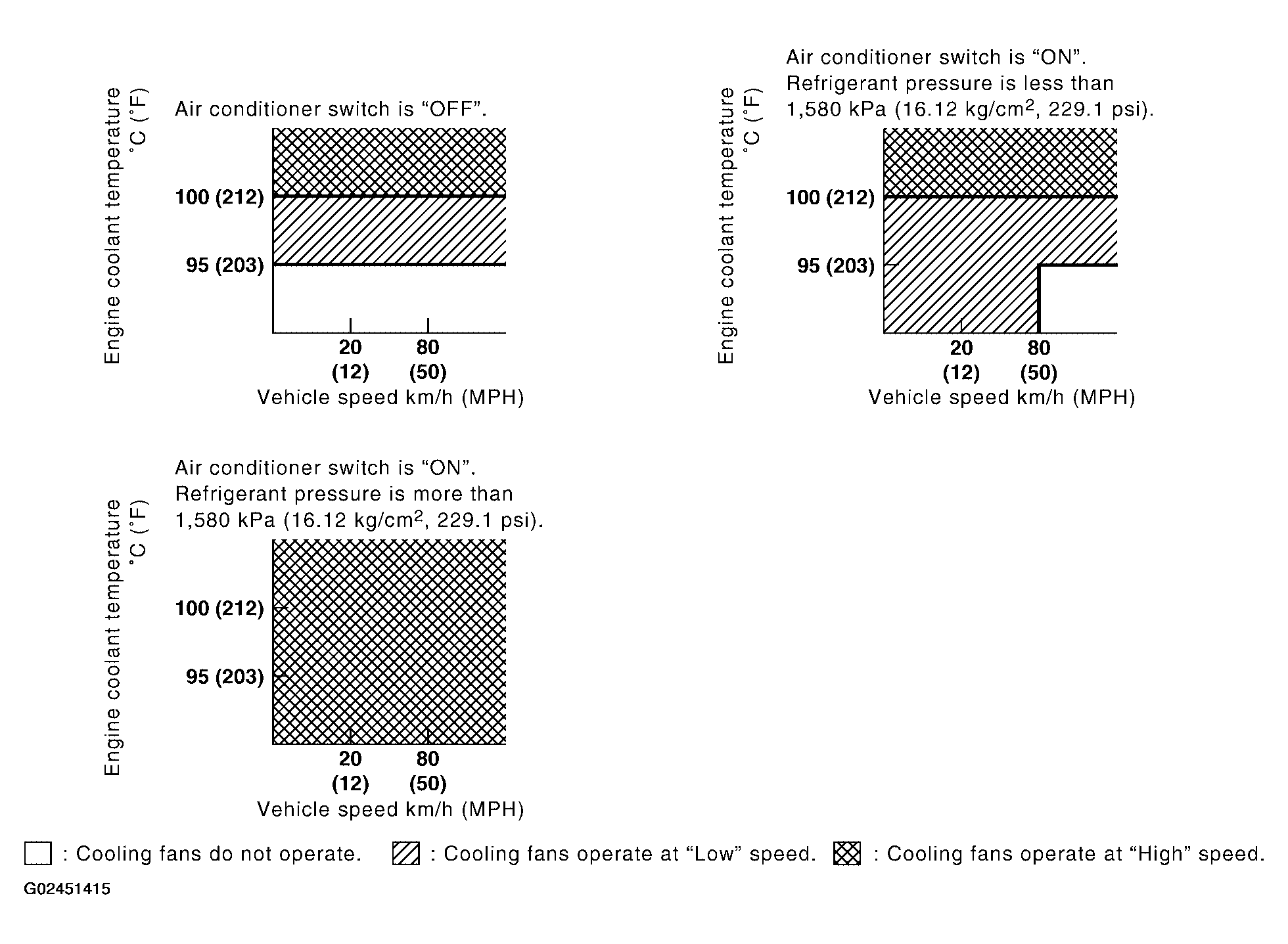

Fig 1: Engine Coolant Fan Actuation Conditions Graph

G02451415

Courtesy of NISSAN MOTOR CO., U.S.A.
