A/T Models Except ULEV

This self-diagnosis has the one trip detection logic.

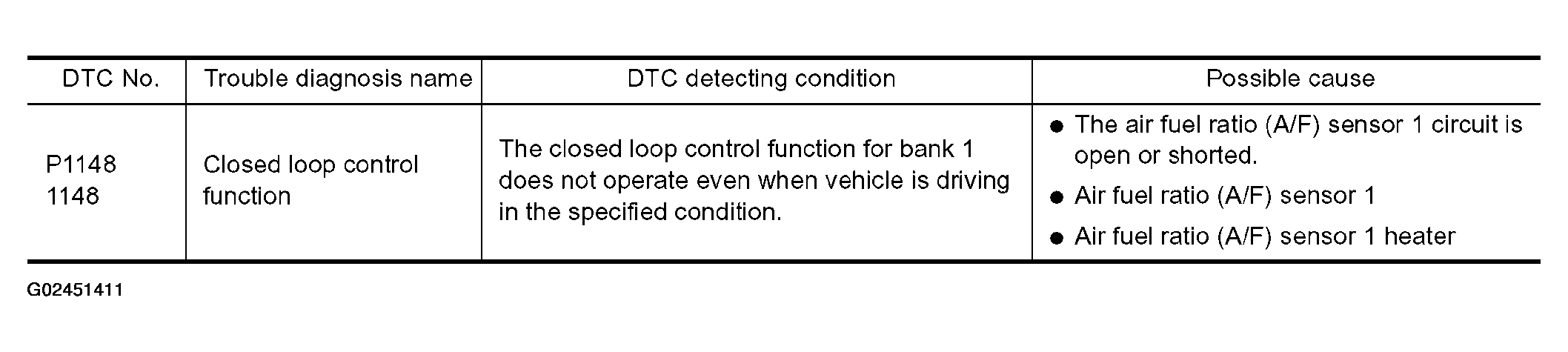

Fig 1: DTC P1148: Problem Detection Possible Cause Chart (A/T Models Except ULEV)
G02451411Courtesy of NISSAN MOTOR CO., U.S.A.

DTC P1148 is displayed with another DTC for air fuel ratio (A/F) sensor 1. Perform the trouble diagnosis for the corresponding DTC.
