Specification data are reference values.
*
: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.

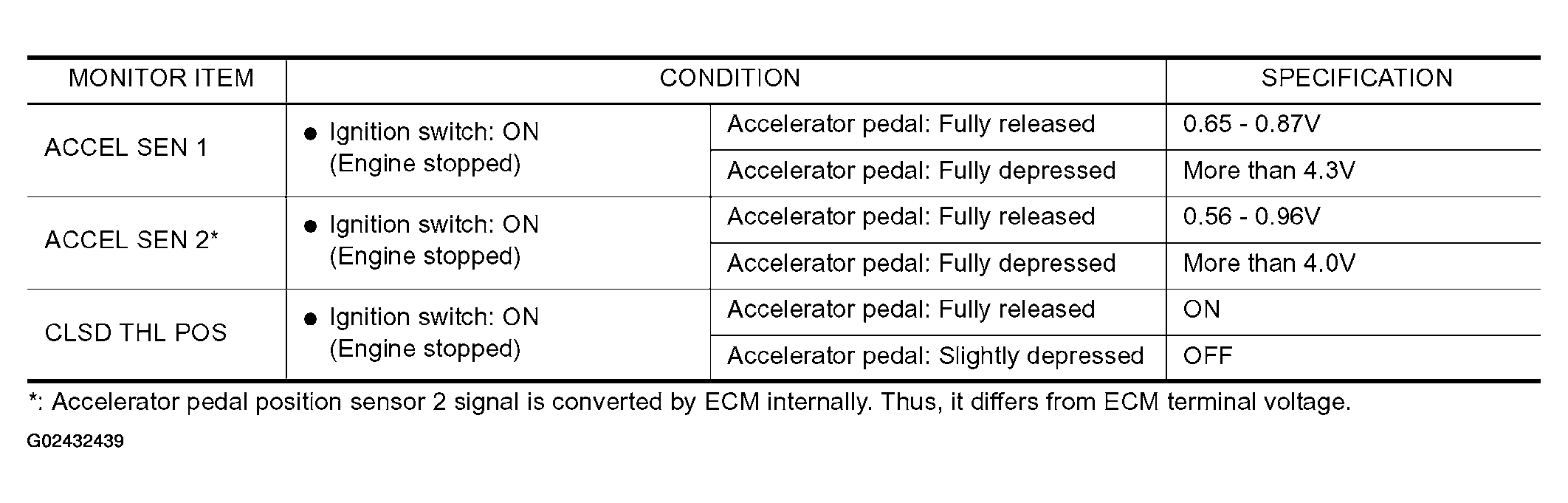

Fig 1: CONSULT-II Reference Value Chart - Accelerator Pedal Position Sensors
