Specification data are reference values.
*
: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.

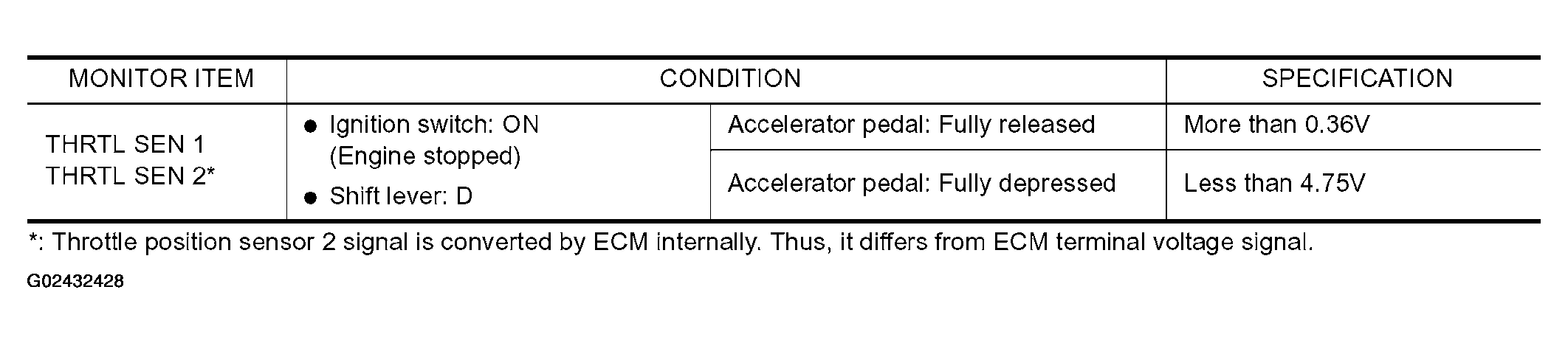

Fig 1: CONSULT-II Reference Value Chart - Throttle Position Sensors
