Consult-II Basic Operation Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which performs CAN communication.
  3. Turn ignition switch ON.

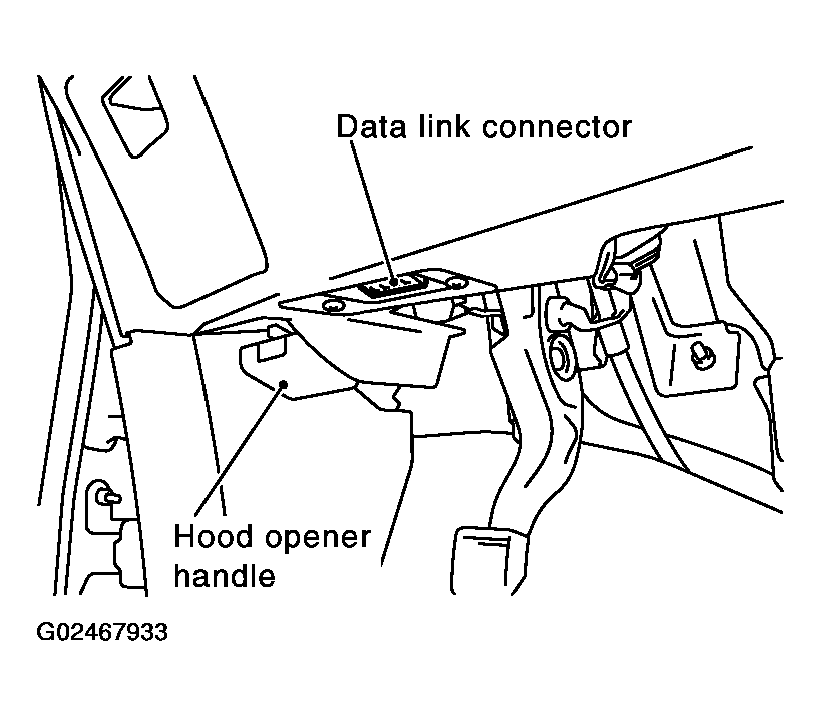

    Fig 1: Identifying Data Link Connector
    G02467933Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
    G02467934Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS" in "SELECT SYSTEM" screen.

    If "ABS" is not indicated, go to CONSULT-II DATE LINK CONNECTOR (DLC) CIRCUIT .

    Fig 3: CONSULT-II Display - SELECT SYSTEM
    G02467935Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select required diagnostic location from "SELECT DIAG MODE" screen.

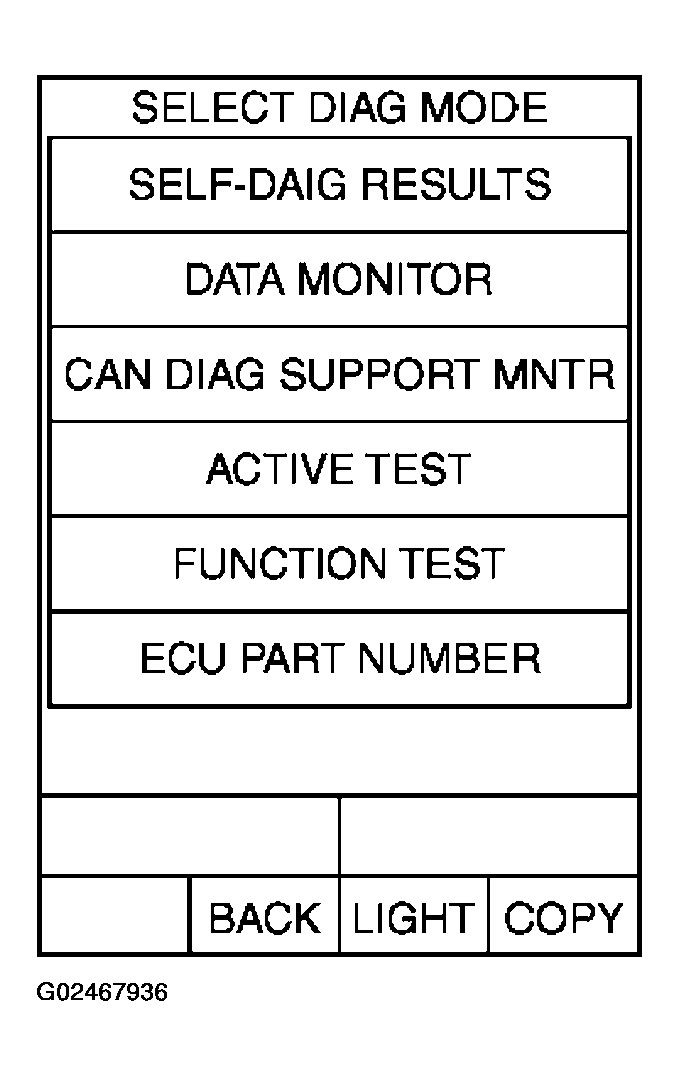

    Fig 4: CONSULT-II Display - SELECT DIAG MODE
    G02467936Courtesy of NISSAN MOTOR CO., U.S.A.
