SRT Item

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

The table below shows required self-diagnostic items to set the SRT to "CMPLT".

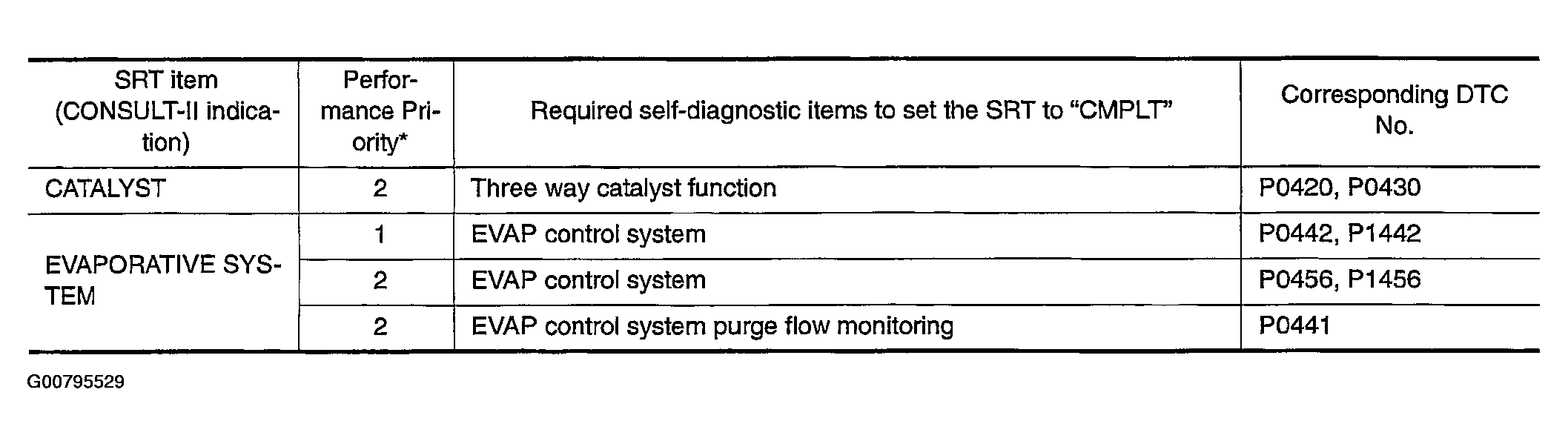

Fig 1: Identifying Required Self-Diagnostic Items To Set SRT To "CMPLT" (1 Of 2).

Courtesy of NISSAN MOTOR CO., U.S.A.

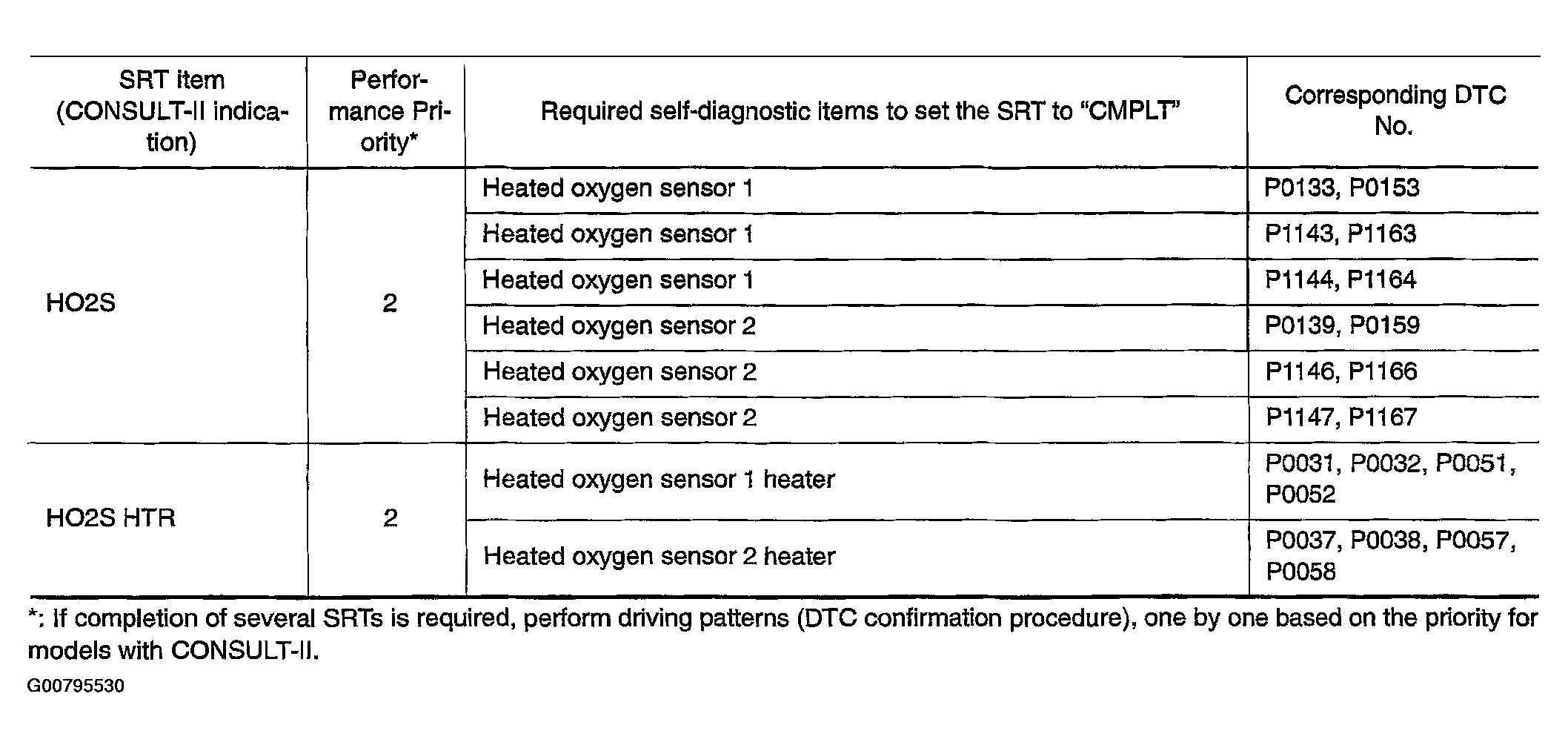

Fig 2: Identifying Required Self-Diagnostic Items To Set SRT To "CMPLT" (2 Of 2).

Courtesy of NISSAN MOTOR CO., U.S.A.
