Shift Rod Components

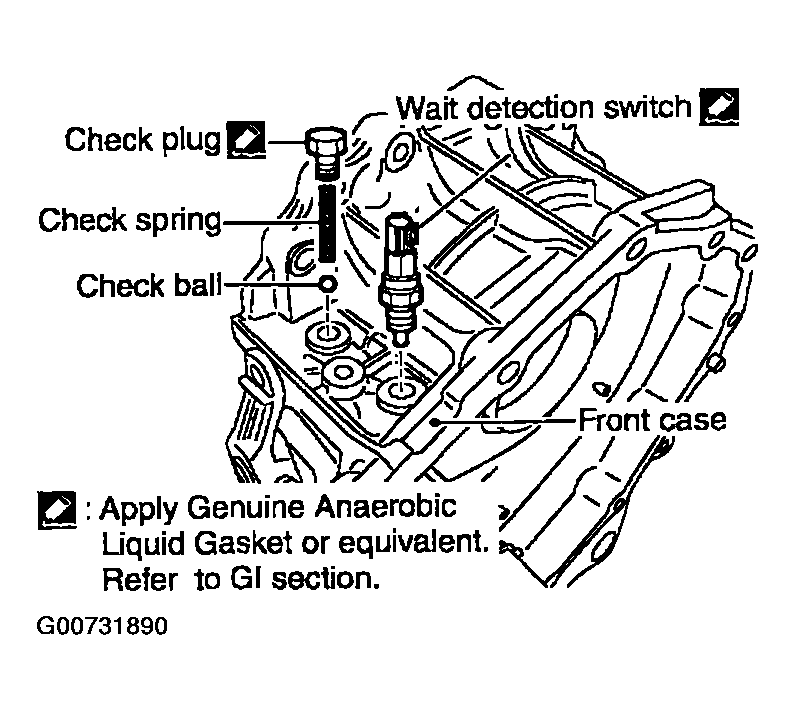

Remove check plug, then check spring and check ball.
1. Remove wait detection switch.
Fig 1: Shift Rod Components Removal Procedure (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

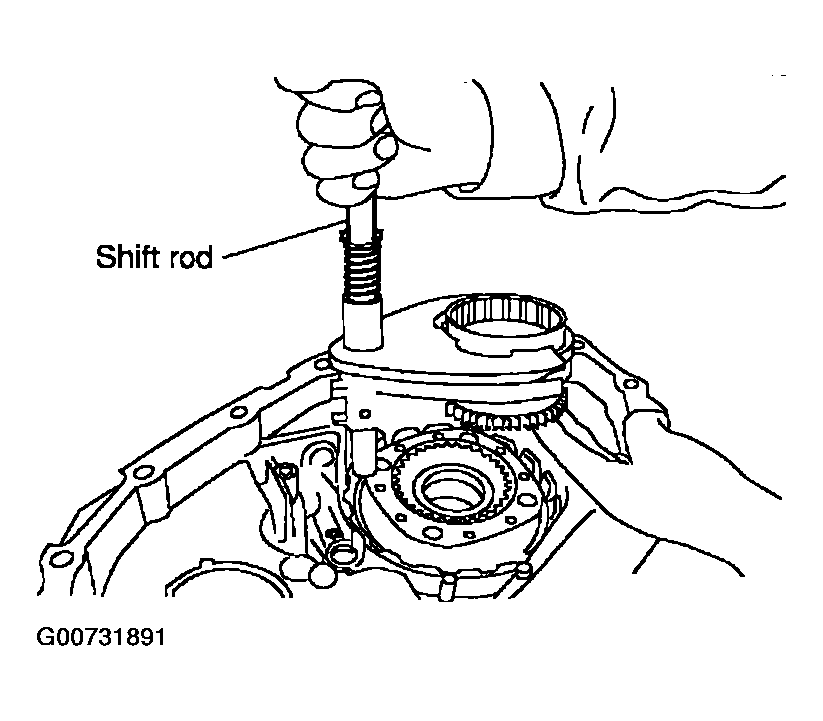

Remove shift rod components together with 2-4 sleeve and L-H sleeve.

Fig 2: Shift Rod Components Removal Procedure (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the shift cross from the front case.
Remove 2-4 sleeve and L-H sleeve from 2-4 fork and L-H fork respectively.

Fig 3: Shift Rod Components Removal Procedure (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Using tool drive out retaining pin from shift rod.
1. Tool number: KV321011001 (-)
Fig 4: Shift Rod Components Removal Procedure (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

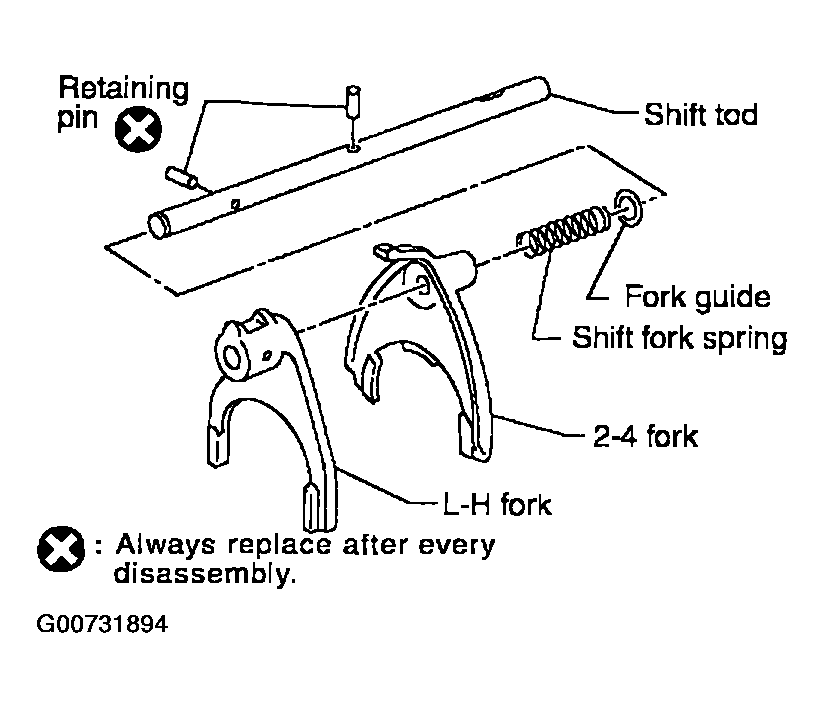

Remove L-H fork, 2-4 fork, shift fork spring and fork guide from shift rod.

Fig 5: Shift Rod Components Removal Procedure (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
