Front Case - Disassembly: Disassembly: Notes

Remove rear case from center case. Refer to "Disassembly ".
Remove the lock pin nut from the lock pin.
1. Remove the lock pin.

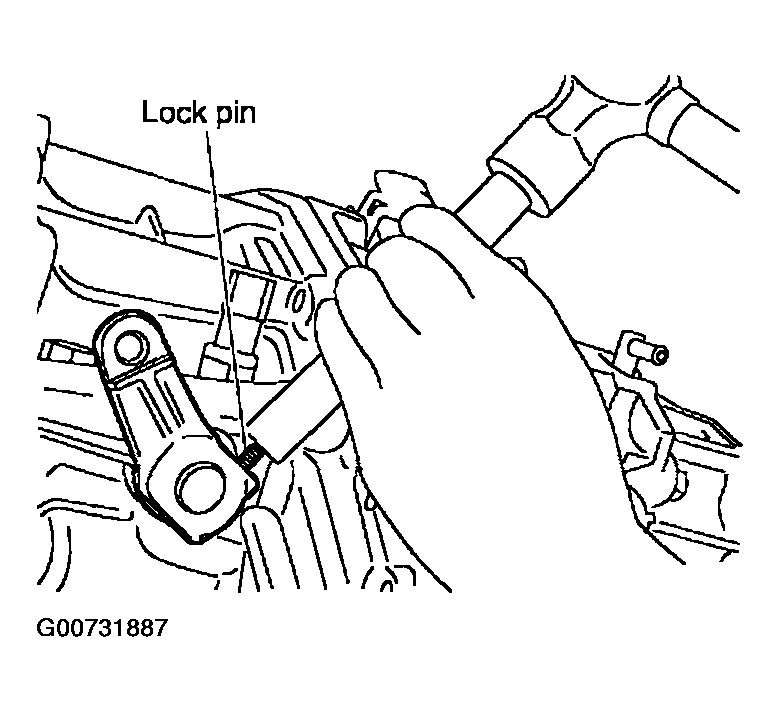

  Fig 1: Front Case Disassembly (1 Of 3)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the oil seal from the front case.

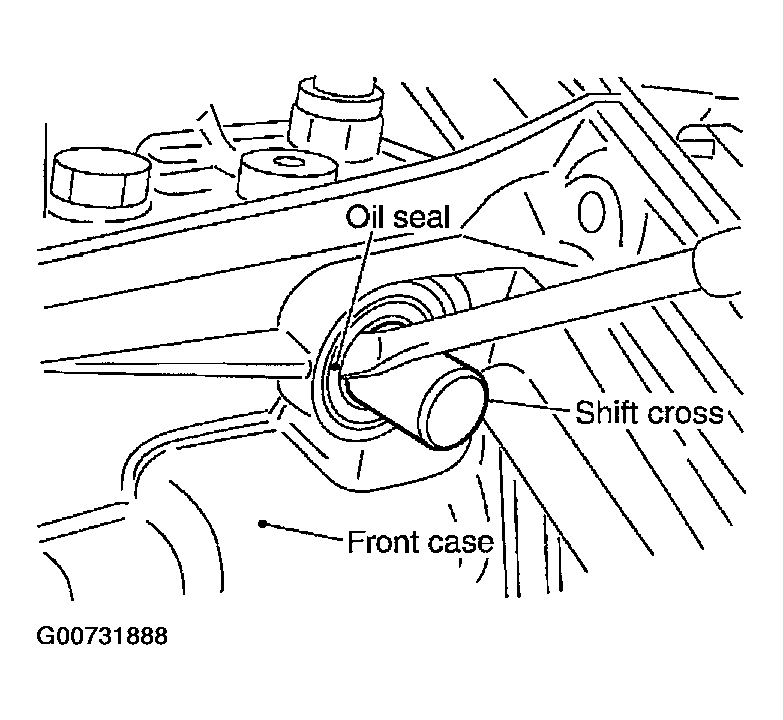

Fig 2: Front Case Disassembly (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Be careful not to damage the front case.
Remove front case from center case.

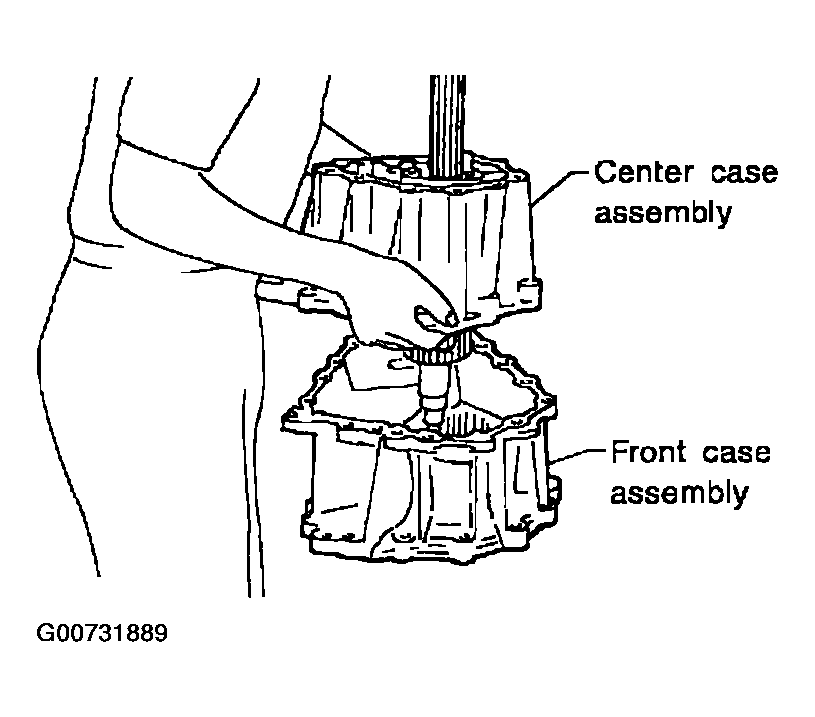

Fig 3: Front Case Disassembly (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
