Shift Rod Assembly

Install fork guide, shift fork spring, 2-4 fork, and L-H fork to shift rod, and secure them with retaining pins.

Fig 1: Front Case Assembly (16 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
- Do not reuse retaining pins.
Install 2-4 sleeve and L-H sleeve to each fork.

Fig 2: Front Case Assembly (17 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.

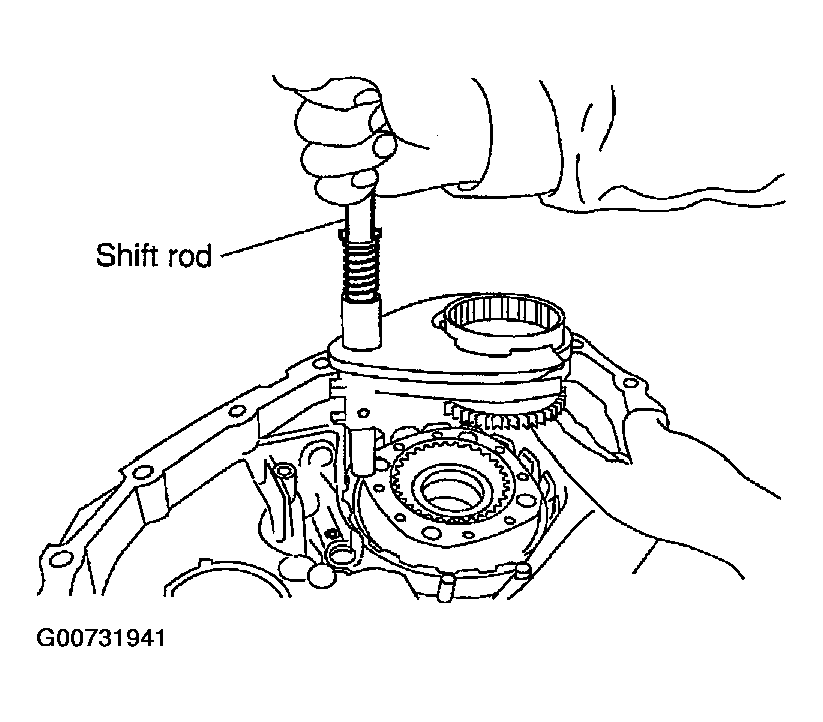

While aligning L-H sleeve with planetary carrier, install shift rod assembly to front case.

Fig 3: Front Case Assembly (18 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.

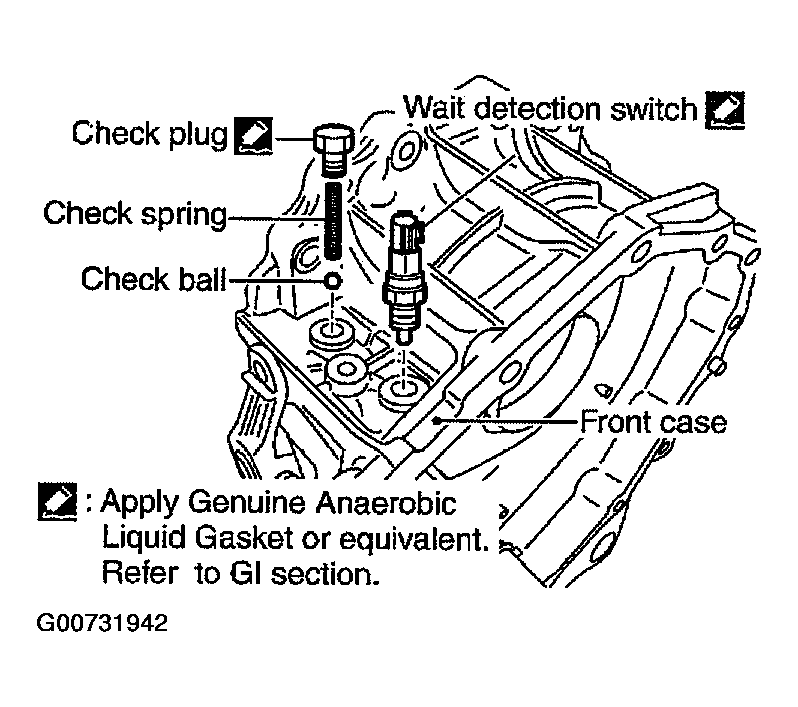

Remove all the liquid gasket on check plug and front case, and install check ball and check spring to front case. Apply Genuine Thread Sealant or equivalent to check plug, install it to front case, and tighten it to specified torque.

Fig 4: Front Case Assembly (19 Of 19)
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Front case check plug: 22 N.m (2.2 kg-m, 16 ft-lb)
Remove all the liquid gasket on the switch fitting and inner side of front case, and with wait detection switch threaded one pitch into the hole, apply Genuine Thread Sealant or equivalent to the thread, install, it, and tighten it to specified torque.
1. Wait detection switch: 28 N.m (2.9 kg-m, 21 ft-lb)
- Wait detection switch harness connector is black.
Install center case assembly to front case assembly. Refer to "Final Assembly ".
Install rear case assembly to center case. Refer to "Final Assembly ".
