LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2004
>>
Armada LE, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
All-Mode 4WD System
>>
Cross-Sectional View
Cross-Sectional View

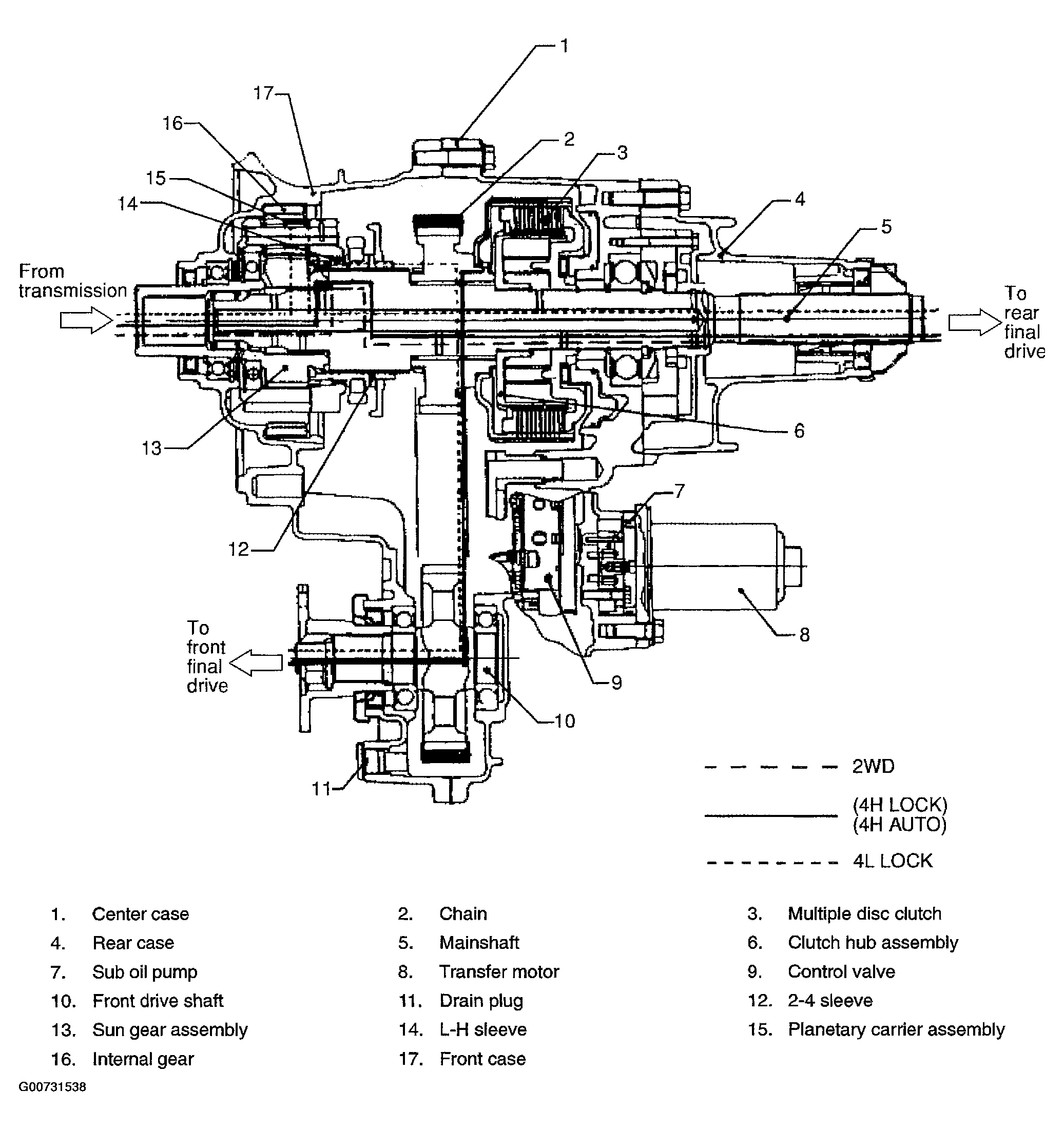

Fig 1: Cross-Sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
