Hydraulic Control Circuits

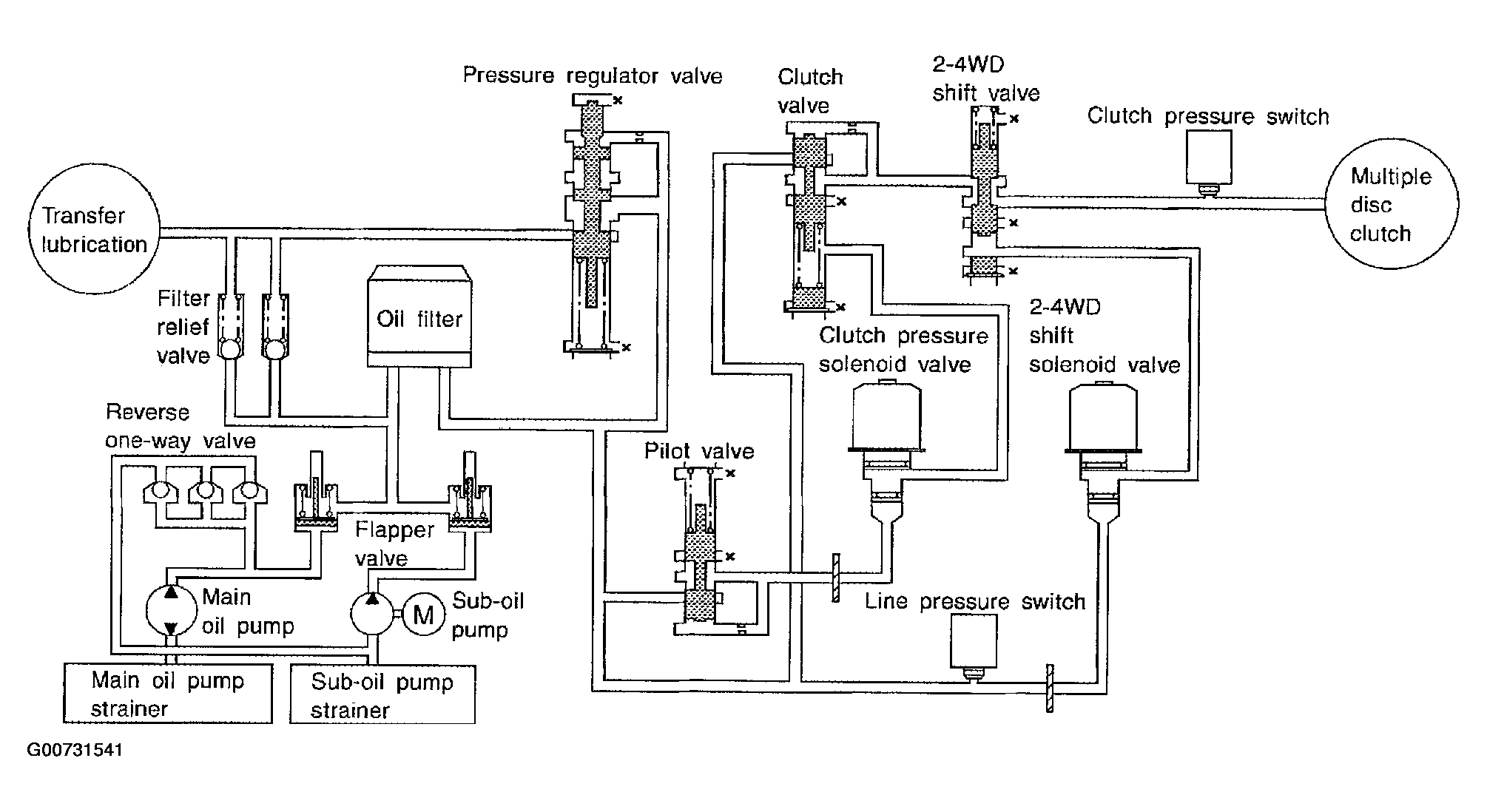

Fig 1: Hydraulic Control Circuits Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
