Circuit Diagram For Quick Pinpoint Check

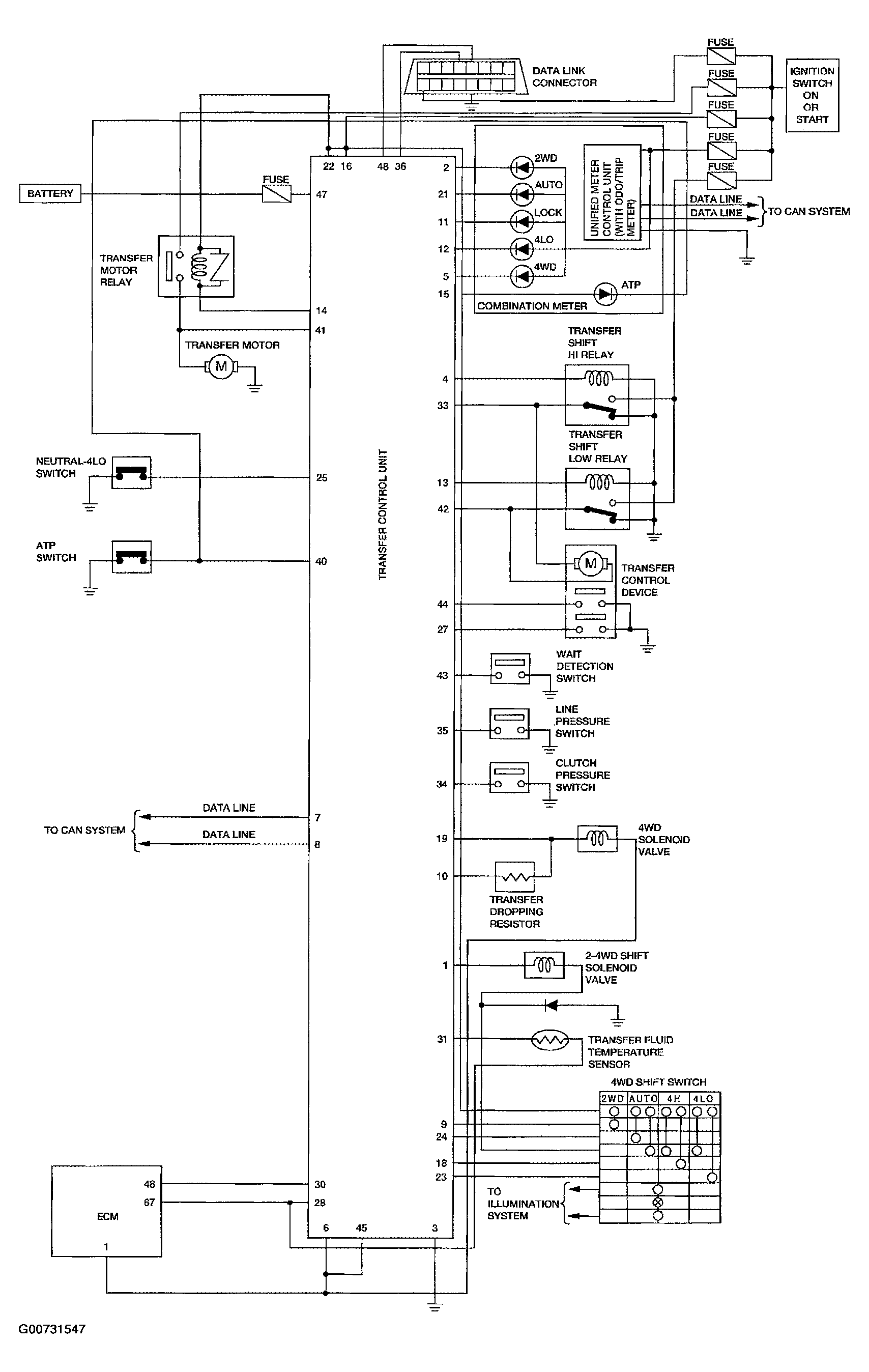

Fig 1: Circuit Diagram For Quick Pinpoint Check

G00731547

Courtesy of NISSAN MOTOR CO., U.S.A.
