A/T Interlock Coupling Pattern Table
>>
Notes
A/T Interlock Coupling Pattern Table: Notes

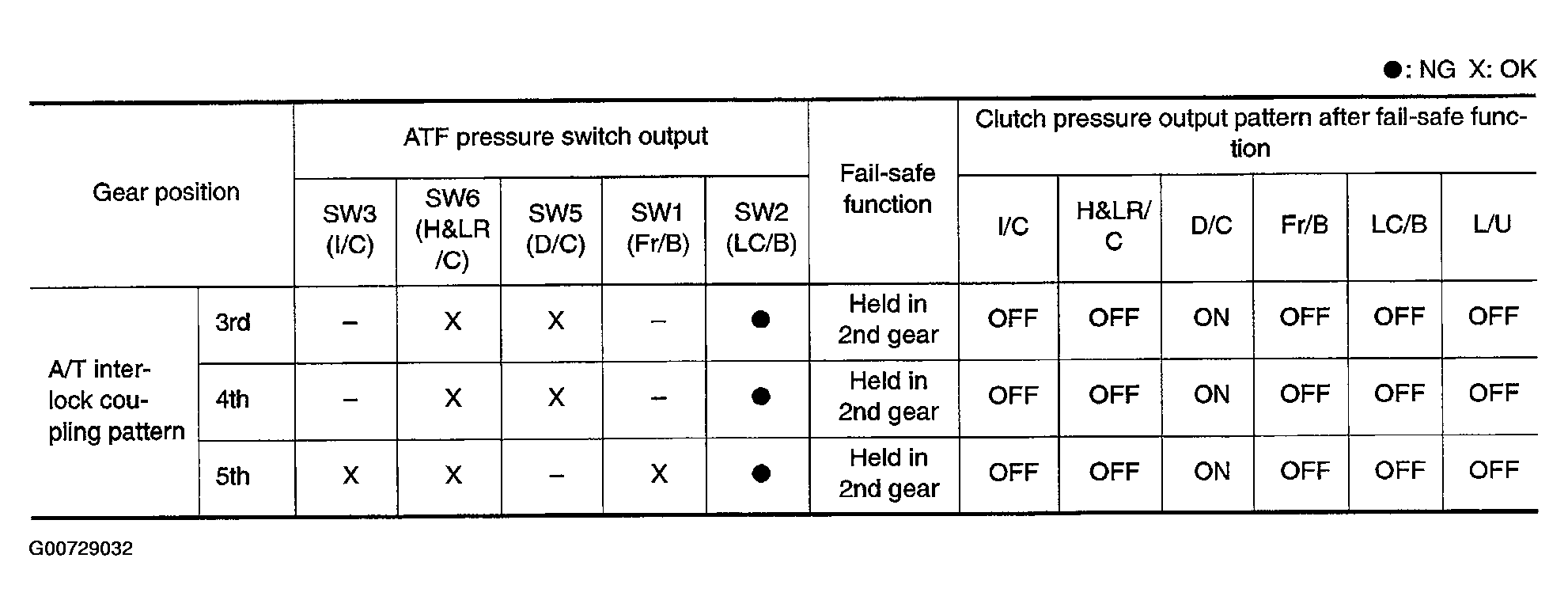

Fig 1: A/T Interlock Coupling Pattern Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
