Control Device Removal and Installation: Removal

1. Disconnect selector control cable.
2. Remove the select lever knob.
3. Remove console finisher.
   • Refer to "INSTRUMENT PANEL ASSEMBLY ".
4. Remove center console.
   • Refer to "INSTRUMENT PANEL ASSEMBLY ".
5. Disconnect A/T device harness connector.
6. Remove control device assembly.

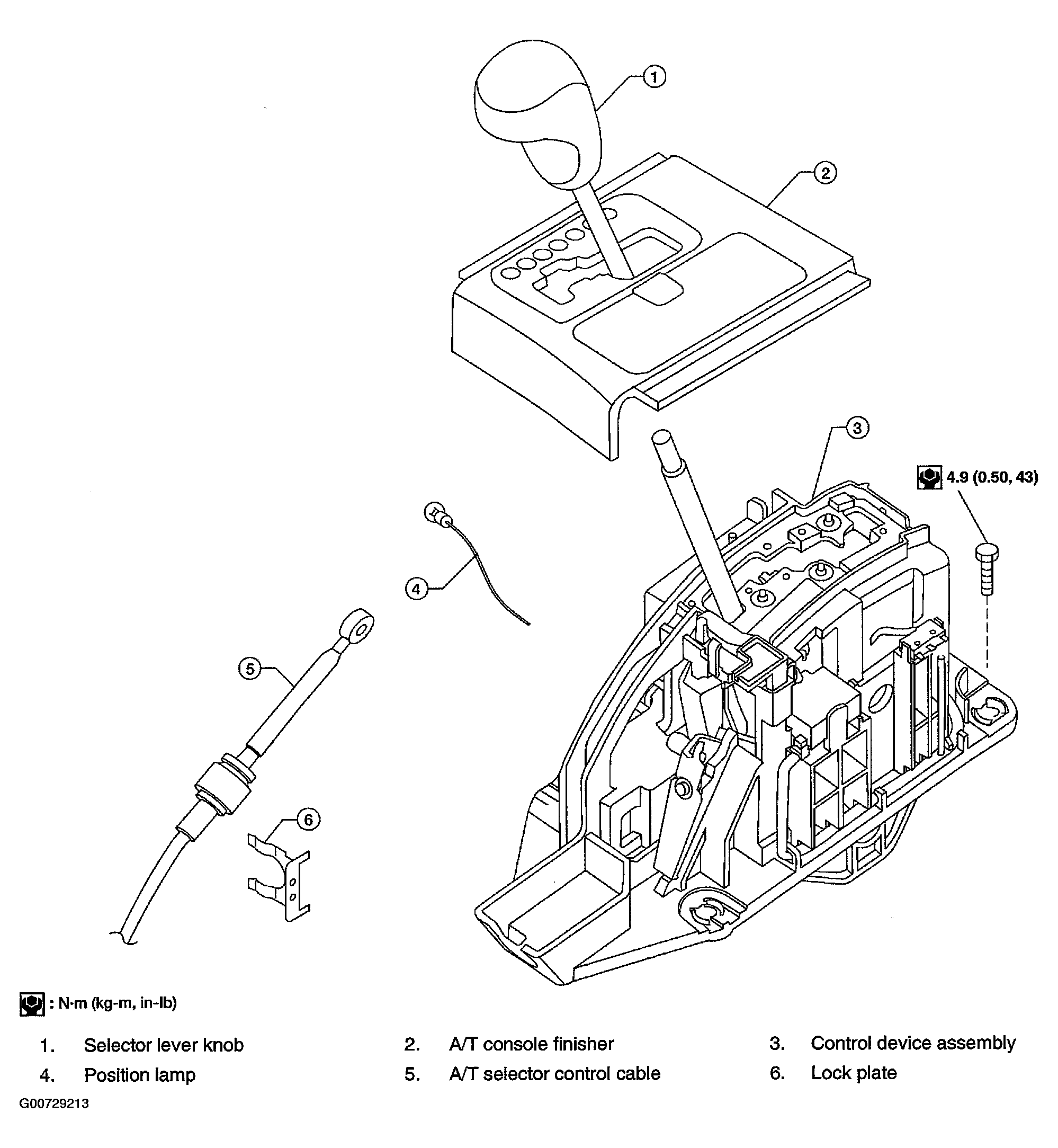

Fig 1: Exploded View Of Shift Control System

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Remove Select Lever Knob

Courtesy of NISSAN MOTOR CO., U.S.A.
