Function Of Pressure Switch

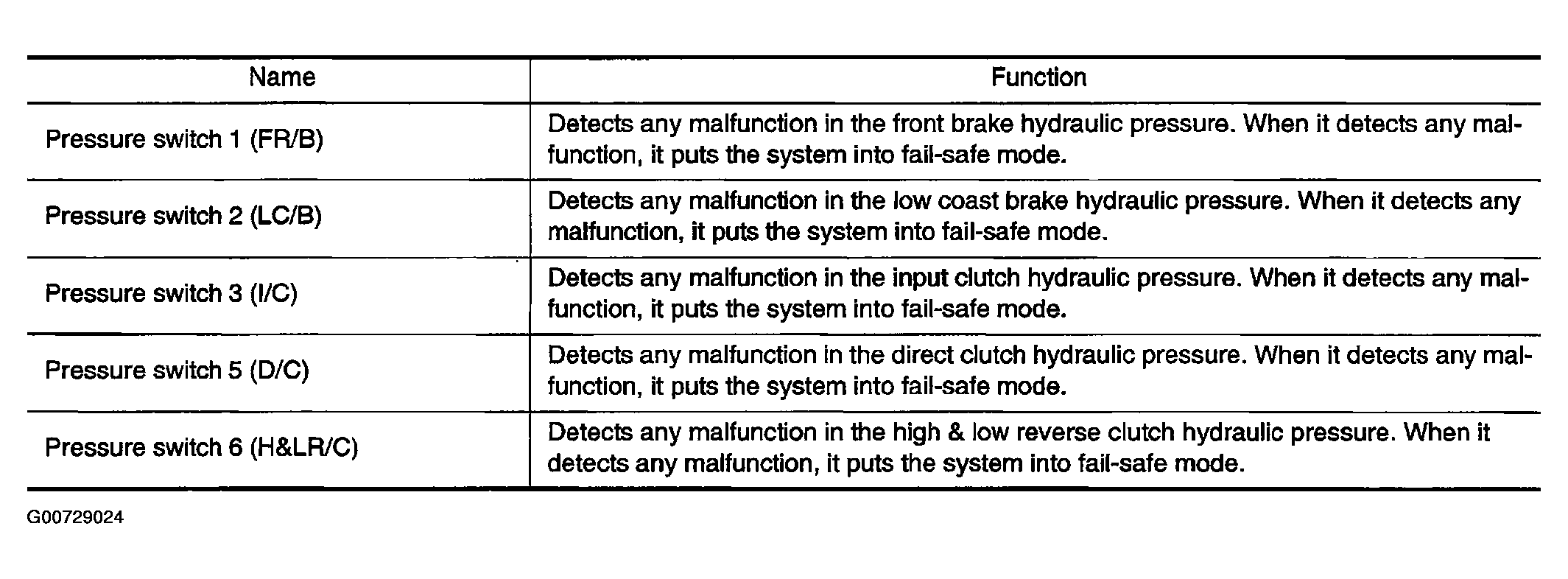

Fig 1: Function Of Pressure Switch
G00729024Courtesy of NISSAN MOTOR CO., U.S.A.
